JBL VRX932LAP+VRX918SP Bundle

JBL VRX932LAP Dual 10-inch Powered Line Array Loudspeaker

The VRX932LAP is a powered, lightweight, compact 12" two-way line-array speaker system designed for use in arrays of up to five units. VRX932LAP is the ideal choice when line-array performance is needed but the venue size doesn't call for the very long-throw characteristics of larger line-arrays and a fast and easy setup is vital.

Features

• Built-in JBL Drivepack® DPC-2 amplifier module designed by Crown provides 1750 Watts of peak Power. DSP based resident input module provides system optimization and EQ functionality.
• JBL's exclusive neodymium magned Differential Drive® woofer for high-power capacity and light-weight.
• VRX932LAP features 3 x 2408J Annular Ring Diaphragm HF drivers. The 2408 represents the latest in JBL Professional compression driver design.
• Constant Curvature waveguide for unprecedented array coherence.
• Integral rigging hardware for simple connection of enclosures and optional array frame. Dual angle pole socket for aiming flexibility.
• Array Configuration Selector permits "array shading".

Specifications

• Power Rating : 1750 Watts Peak875 Watts Continuous
• Frequency Range (-10dB) : 57 Hz - 20 kHz
• Dimensions (H x W x D) : 349 mm x 597 mm x 444 mm(13.75 in x 23.5 in x 17.5 in)
• Frequency Response : 75 Hz - 20 kHz (+/-3db)
• Maximum SPL (1m) : 136 dB SPL
• Coverage Pattern : 100 x 15 nominal
• DPC-2 Output as (Continuous IED shaped pink noise into rated load impedance) : LF: 750 Watts, HF: 125 Watts
• DPC-2 Output Section : LF: Dual-Bridged Technology™, Class D
• Inputs : XLR with loop through
• LF Driver : 1 x JBL 2262FF 305 mm (12 in) neodymium magnet
• HF Driver : 3 x JBL 2408J, 38 mm (1.5 in)
• User Controls : Input Attenuator (0-16 dB)
• Signal Processings : DSP based, resident in Input Module
• AC Power Operating Range : 90-132 VAC or 216-264 VAC, 50/60 Hz
• AC Input Connector : Neutrik PowerCon (NAC 3MPA)
• AC Loop Through Connector : Neutrik PowerCon (NAC 3MPB)
• AC Current Requirements : 6A per system at 120V, 3A per system at 240V
• Enclosure : 25/15 mm, 11-ply birch plywood
• Suspension / Mounting : Optional VRX-AF line array frame kit, 10mm forged eyebolts or internal dual angle 36mm pole mount cup for pole or tripod mounting
• Finish : Black DuraFlex™ finish
• Grille : Powder coated, black, 16-gauge perforated steel with with acoustically transparent foam
• Net Weight (each) : 24 kg (52 lb)
• Optional Accessories : VRX-AF: Suspension array frame
• Outputs : 1 x XLR
• System Type : Constant Curvature 12" Two-Way Powered Line Array System
• Nominal Impedance : NA - amplification is integrated

JBL VRX918SP 18 inch High Power Powered Flying Subwoofer

The VRX918SP is a powered, suspendable subwoofer system containing a 2268FF neodymium magnet, patented Differential Drive®, 18" woofer in a front-loaded, vented enclosure. The VRX918SP was designed specifically for use in arrays with the VRX932LAP Line Array speaker and VRX-AF Array Frame. In addition it may also be used in arrays consisting entirely of VRX918SP subwoofers.

Features

• Built-in JBL Drivepack® DPC-2 amplifier module designed by Crown provides 1500 Watts of peak Power. DSP based resident input module provides system optimization, EQ and crossover functionality.
• 18 inch, 2268FF dual voice coil, neodymium magnet Differential Drive® woofer for high-power capacity and light weight.
• Integral rigging hardware for simple connection of enclosures and optional array frame.
• 20 mm threaded pole socket for solid, secure satellite speaker mounting.
• Large port area for reduced distortion.

Specifications

• Power Rating 1500 Watts PeakLF: Dual-Bridged Technology™, Class D
• Frequency Range 31 Hz – 220 Hz
• Dimensions (H x W x D) 508 mm x 597 mm x 749 mm (20.0 in x 23.5 in x 29.5 in)
• Frequency Range (-10dB) 31 Hz – 220 Hz
• Maximum Peak Output 126 dB SPL at 1m
• Bandpass Nominal Impedance LF: 2 x 2 ohms
• LF Driver 1 x JBL 2268FF 457 mm (18 in) dual voice coil Differential Drive® woofer with neodymium-magnet
• Inputs XLR with loop through
• User Controls Input Attenuator (0-16 dB)Selectable 80 Hz or 120 Hz Low Pass 80 Hz High-Pass enable/disable for XLR loop thru.
• System Processing DSP based, resident in Input Module
• System Management DSP based limiters for mechanical and thermal protection
• AC Power Operating Range 90-132 VAC or 216-264 VAC, 50/60Hz
• AC Line Voltage User selectable: 120V/240V (-15%, +10%)
• AC Input Connector Neutrik PowerCon (NAC 3MPA)
• AC Loop Through Connector Neutrik PowerCon (NAC 3MPB)
• AC Current Requirements 6A per system at 120V, 3A per system at 240V
• Enclosure 18 mm birch plywood.
• Suspension / Mounting Optional VRX-AF line-array frame kit or 10 mm forged eyebolts
• Finish Black DuraFlex™ finish
• Grille Powder coated, black, 16-gauge perforated steel with acoustically transparent foam
• Net Weight (each) 38.5 kg (85 lb)
• Optional Accessories VRX-AF array frameSRX718S-CVR: Pull-over padded cover (works with WK-4S) SS4-BK adjustable satellite speaker pole WK-4S Caster kit
• Outputs 1 x XLR
• Nominal Impedance LF: 2 x 2 ohms


• VRX918SP Spec Sheet
• VRX918SP User Manual

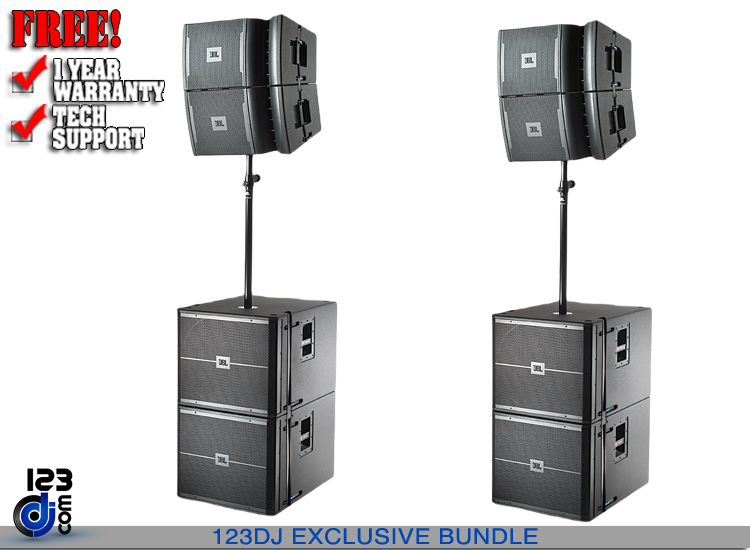

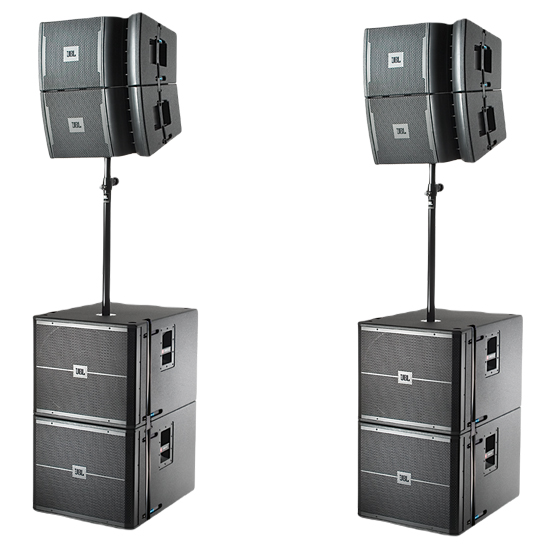

This Package Includes:

• (4) JBL VRX932LAP
• (4) JBL VRX918SP
• (2) JBL Speaker Pole (Manual Assist)
