JBL VRX932LA-1+VRX918S Bundle

JBL VRX932LA-1 Description

The JBL VRX-932LA-1 is a lightweight, compact, passive and bi-ampable two-way line array speaker system, with an 800-watt continuous passive program power handling capacity, designed for use in arrays of up to six units.

The VRX-932LA-1 is equipped with a 12" dual voice coil woofer and a trio of 1" Neodymium compression drivers, and offers a worthy solution when line array performance is desired in a smaller venue, but the very long-throw characteristics of a larger line array is not needed.

The VRX-932LA-1 uses amplitude shading technology to shape the coverage of the array. Switches on the input plate allow the upper box in an array to reach a distant balcony, while the lower HF section is attenuated to reduce excessive level at the front of the listening area.

One or two VRX-932LA-1 units may also be used on a tripod or over subwoofers, and up to six may be suspended in a single array for a nominal vertical coverage of up to 90°.

Specifications:

• 2-way passive or bi-ampable 800-watt line array P.A. speaker system for smaller venues with up to 6-unit array capacity
• 12" Neodymium magnet Differential Drive(TM) woofer for high-power capacity and light-weight
• Three 1.5" Neodymium Annular Ring Diaphragm technology drivers for high power capacity, high-frequency extension and directivity
• Constant Curvature waveguide technology for reliable array coherence
• Array Configuration Selector switch - permits array in passive mode, allows for precise directivity and level attenuation
• Dual angle pole socket for aiming flexibility when pole mounting, Integral rigging hardware for simplified connection of enclosures and optional array frame
• Tripod or subwoofer mounting of up to 2 speakers for multi-range floor placement
• Frequency Response: 75Hz - 20KHz, &plusmn3dB
• Power Capacity

  Passive LF and HF:
  3200W peak
  Bi-amp LF:
  3200W peak
  Bi-amp HF:
  300W peak

•   Maximum Sound Pressure Level (SPL)

130dB, system, passive
LF: 130dB
HF:139dB

• Nominal Sensitivity

95dB SPL, 1W/1m, system, passive
LF: 95dB
HF: 114dB

• Impedance

8 Ohms, passive and bi-amped, LF and HF

• Crossover

1.2KHz, passive and bi-amp modes, externally switchable

Low Frequency Driver

1 x 12" Differential Drive(TM) woofer with neodymium-magnet, dual voice-coils and magnetic gap

High Frequency Driver

3 x Neodymium compression drivers with 1.5" voice coils

Enclosure Material

18mm 11-ply birch plywood with Black DuraFlex(TM) finish
Powder coated, black, 16-gauge perforated steel with acoustically transparent foam

Input Connections

2 x Speakon(TM) NL-4

Dimensions

23.5 x 13.75 x 15" (597 x 349 x 381mm)

Weight

46 lbs (21kg)

JBL VRX918S Description

The VRX918S is a compact, high power suspendable subwoofer system containing a 2268H neodymium magnet, patented Differential Drive, 18" woofer in a front-loaded, vented enclosure. The VRX918S was designed specifically for use with the VRX932LA Line Array speaker and VRX-AF Array Frame. In addition it may also be used in setups consisting entirely of VRX918S subwoofers.

The subwoofer system offers complete input connection flexibility for compatibility with a variety of cabling schemes. A recessed, external switch allows selection of either contacts +1/-1 or +2/-2.

Equally at home in ground stacked applications, the VRX918S speaker is equipped with a top-mounted, threaded, 20 mm socket that can receive the optional SS4-BK pole. This adjustable height pole can be used to mount speakers equipped with standard 35 mm pole sockets and weighing up to 50 kg (100 lb). The threaded socket minimizes buzzing and rattling and assures that the pole will be secure and straight.

The VRX918S enclosure is constructed of top quality birch plywood, coated in JBL's rugged DuraFlexTM finish and is heavily braced to maximize low- frequency performance. The attractive CNC-machined, 16-gauge steel grille is internally lined with acoustically transparent foam to provide additional driver protection and give a very professional appearance. The rear of the speaker enclosure is fitted with T-nuts which may be used to attach the optional WK-4 caster kit.

JBL VRX918S 18" High Power Flying Subwoofer Features:

• Power Rating: 3200 W Peak
• Integral rigging hardware for simple connection of VRX932LA line-arrays and optional array frame
• 18 inch, 2268H Differential Drive woofer for extended low-frequency output
• Large port area for reduced distortion
• 20 mm threaded pole socket for solid, secure satellite speaker mounting
• Frequency Range: 31 Hz — 220 Hz
• Frequency Response: 34 Hz — 220 Hz
• Recommended Crossover Frequencies: 80 Hz, 24 dB / octave HPF_80 Hz, 24 dB / octave LPF
• System Maximum SPL: 130 dB SPL peak
• System Sensitivity: 95 dB SPL
• LF Driver: 1 x JBL 2268H 457 mm (18 in) Differential Drive woofer
• Nominal Impedance: 8 ohms
• Active Tunings: Tunings available at www.jblpro.com
• Enclosure: Rectangular, 18 mm, 13-ply birch plywood
• Suspension/Mounting: Optional VRX932LA-AF line array frame kit or 10mm eyebolt
• Finish: Black DuraFlex finish
• Grille: Powder coated, black, 16-gauge perforated steel with_acoustical transparent charcoal foam backing.
• Input Connectors: Neutrik Speakon NL-4 (x2)
• Dimensions (H x W x D): 20.0 in x 23.5 in x 29.5 in, (508 mm x 597 mm x 749 mm)
• Net Weight: 81 lb
• PDF Manual

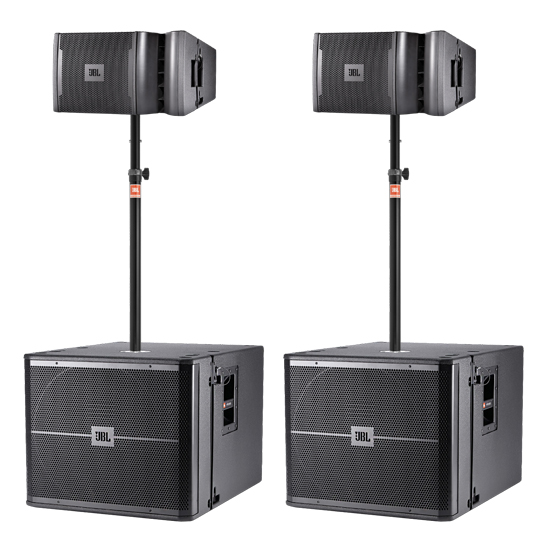

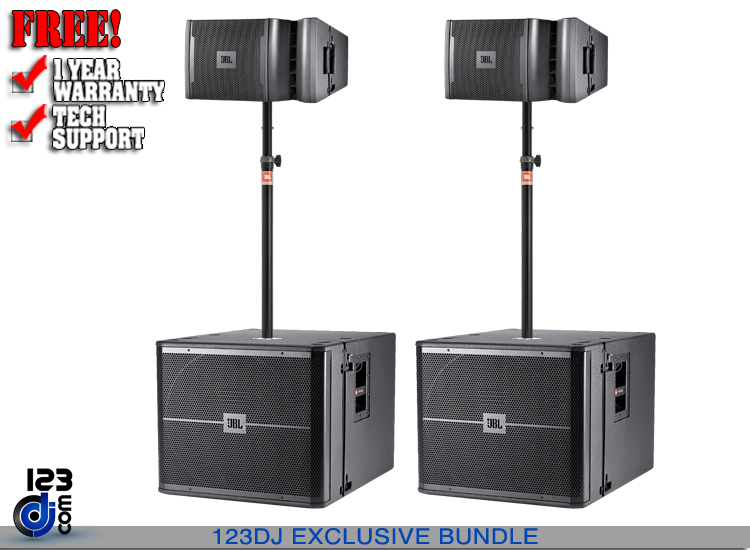

This Package Includes:

• (2) JBL VRX932LA-1
• (2) JBL VRX918S
• (2) JBL Speaker Pole (Manual Assist)
