JBL SRX815+SRX818S Bundle

JBL SRX815 Description

15" Two-Way Bass Reflex Passive System

SRX815 is a two-way full range speaker with a 15" woofer made for use as a light to medium duty main PA, monitor, or rear or side fill. Featuring M10 suspension points and feet for both floor standing and monitor use, the SRX815 is an ideal solution for musicians, bands, and DJs, concert use, public speaking, or installations such as performance venues, corporate spaces, educational facilities or houses of worship.Tunings and presets are available for Crown ITech HD and XTI 2 amps as well as dbx VENU360 signal processors.

Features

• Premium JBL Transducers
• Rugged, versatile enclosures
• Tunings available for Crown amps and dbx signal processors
• Fully supported in Audio Architect
• Power Handling: 3200W Peak, 1600W Program, 800W Continuous
• Frequency Range: 41Hz-20kHz
• Frequency Response: 56Hz-20kHz
• Max SPL: 136dB
• Coverage Pattern: 90 x 50
• Amplification options: Passive/Bi-Amp

Technology

PURPOSEFUL DESIGN

Every detail in the SRX800 Series was purposefully designed and thought through with full consideration for its intended use. Ergonomically designed handles support an easy, non-fatiguing grip for streamlined handling. M10 suspension points, indexed feet, and pole/tripod mounts support a wide, flexible array of configurations.

TRANSDUCER TECHNOLOGY

JBL's patented Differential Drive® Technology ferrite drivers incorporate 3" voice coils with lower mass ferrite magnets for reduced weight, increased power handling, exceptionally low distortion and extended low frequency response. JBL's 2432H is the only neodymium 3" voice coil compression driver in this class, delivering very high power levels and smooth, crystal clear sound.

Application

• Live performance systems.
• Mobile and fixed DJ systems.
• Sound system rental and tour.
• Permanent installations.

Specification

• System Type Passive 15", two-way, bass-reflex
• Maximum SPL Output 136dB
• Frequency Range (-10dB) 41hz - 20khz
• Frequency Response (- 3dB) 56hz - 20khz
• Sensitivity (1W/1m) 95dB
• System Power Rating 3200W Peak, 1600W Program, 800W Continuous
• Nominal Impedance 8 Ohm
• Connectors NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)
• Operational Modes Passive/Bi-Amp
• LF Driver 2275H
• HF Driver 2432H
• Coverage Pattern 90 x 50
• Crossover Frequency 1.9khz
• Enclosure Material 18mm plywood
• Monitor Angle 50°
• Suspension/Mounting Dual 36mm pole socket, 12 x M10 Suspension points
• Handles 3
• Finish Obsidian Duraflex™ finish
• Grille Powder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing
• Dimensions (L x W x H) 18.82" x 18.03" x 27.20" (478mm x 458mm x 691mm)
• Weight 57.0 lbs (25.9kg)
• Shipping Weight 67.0 lbs (30.4kg)

JBL SRX818S Description

18" Passive Subwoofer System

SRX818S is a single 18" subwoofer for concert, touring, or installed use. Featuring a standard M20 pole cup for use with top boxes, indexing feet for stacking in both the standard and cardioid position, and a 136dB max SPL, the SRX818S is an ideal solution for musicians, bands, and DJs, concert use, public speaking, or installations such as performance venues, corporate spaces, educational facilities or houses of worship. Tunings and presets are available for Crown ITech HD and XTI 2 amps as well as dbx VENU360 signal processors

Features

• Premium JBL Transducers
• Rugged, versatile enclosures
• Tunings available for Crown amps and dbx signal processors
• Fully supported in Audio Architect
• Power Handling: 2400W Peak, 1200W Program, 600W Continuous
• Frequency Range: 28Hz-150Hz
• Frequency Response: 45Hz-150Hz
• Max SPL: 135dB
• Amplification options: Passive
• 2279 LF 8 Ohm 18" Woofer

Technology

PURPOSEFUL DESIGN

Every detail in the SRX800 Series was purposefully designed and thought through with full consideration for its intended use. Ergonomically designed handles support an easy, non-fatiguing grip for streamlined handling. M10 suspension points, indexed feet, and pole/tripod mounts support a wide, flexible array of configurations.

TRANSDUCER TECHNOLOGY

JBL's patented Differential Drive® Technology ferrite drivers incorporate 3" voice coils with lower mass ferrite magnets for reduced weight, increased power handling, exceptionally low distortion and extended low frequency response. JBL's 2432H is the only neodymium 3" voice coil compression driver in this class, delivering very high power levels and smooth, crystal clear sound.

Application

• Live performance systems.
• Mobile and fixed DJ systems.
• Sound system rental and tour.
• Permanent installations.

Specification

• System Type Passive 18", subwoofer system
• Maximum SPL Output 135dB
• Frequency Range (-10dB) 28hz - 150hz
• Frequency Response (- 3dB) 45hz - 150hz
• Sensitivity (1W/1m) 96dB
• Power Rating 2400W Peak , 1200W Program, 600W Continuous
• Nominal Impedance 8 Ohm
• Connectors NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)
• Operational Modes Passive
• LF Driver 2279H
• Crossover Frequency 80hz
• Enclosure Material 18mm plywood
• Suspension/Mounting M20 Threaded Pole Mount
• Casters Accepts JBL WK-4S Kit
• Handles 4
• Finish Obsidian Duraflex™ finish
• Grille Powder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing
• Dimensions (L x W x H) 26.89" x 26.92" x 22.62" (683mm x 684mm x 575mm)
• Weight 78.0 lbs (35.4kg)
• Shipping Weight 88 lbs (40.2kg)

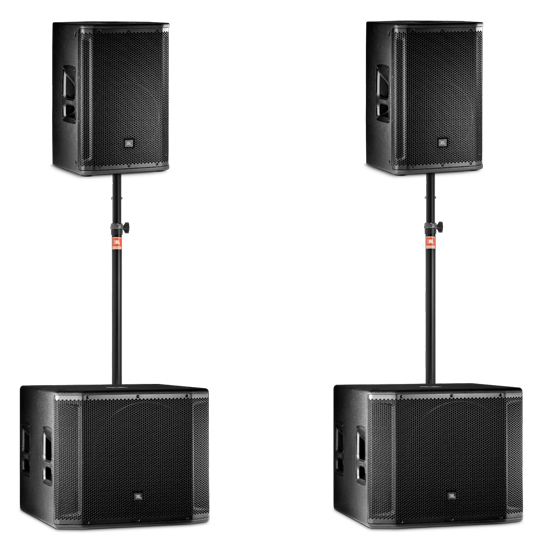

This Package Includes:

• (2) JBL SRX815
• (2) JBL SRX818S
• (2) JBL Speaker Pole (Manual Assist)
