JBL PRX735 (2) Speakers w PRX718XLF Sub & AKG D5

Overview

JBL PRX735 SPEAKERS

• 1500 Watts power rating
• 136 dB peak SPL
• 15" Differential Drive® low-frequency driver for low-distortion and higher SPL
• 165 mm (6.5 in) horn loaded midrange transducer
• 1.5" diameter next generation JBL neodymium compression driver
• JBL designed waveguide for accurate coverage
• Efficient Class-D amplifier technology
• Normal and Boost user selectable EQ presets
• DSP input section, crossover, dynamic limiting, component optimization, selectable system EQ
• Line level and direct microphone input capability
• Professional XLR-1/4" combination inputs, RCA inputs, and XLR loop-through
• Multiple injection molded handles with backing cup for easy transport
• Integrated M10 suspension points for easy setup
• Lightweight poplar plywood cabinets made structurally sound with tongue and groove joints and protected by JBL's tour proven DuraFlex™finish.
• Cloth backed, dent-resistant 16 gauge steel grilles

PRX718XLF SubWoofer Specifications:

• Power Rating: 1500 W
• Frequency Range (-10 dB): 30 Hz - 103 Hz
• Frequency Response (±3 dB): 35 Hz – 87 Hz
• Internal Crossover Frequency: 90 Hz DSP controlled 48 dB filter slope
• Loop out Crossover Frequency: 120 Hz analog 24 dB filter slope
• Maximum SPL: 134 dB peak
• Signal indicators: Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting, Signal: Green LED indicates signal present, Power/Standby : Blue indicates system has power and ready to pass audio, Red indicates system has power but is in a power saving mode and will not pass audio.
• Dynamic Control (Input): dbx Type IV limiter circuit
• Input Impedance: 20K Ohms (balanced)
• Polarity: normal or reverse polarity
• LF Driver: 1 x JBL 2278G 460 mm (18 in) woofer
• Enclosure: Rectangular, 18 mm, plywood
• Suspension / Mounting: M20 threaded pole socket on top
• Transport: 2 x injection molded handles with backing cup
• Finish: Obsidian DuraFlex™ finish
• Grille: Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.
• Input Connectors: Two Balanced female XLR/ 1/4" combo connectors
• Output Connectors: Two balanced male XLR connectors.
• Dimensions (H x W x D): 690.372 mm x 523.24 mm x 723.9 mm, (27.18 in x 20.60 in x 28.50 in)
• Net Weight: 36.8 kg (81 lb.)

AKG D5C Professional Dynamic Handheld Vocal Mic

• Audio Frequency bandwidth: 20 to 17000 Hz
• Sensitivity: 2.6 mV/Pa
• Electrical Impedance: 600 Ohms
• Recommended Load Impedance: 2000 Ohms
• Polar Pattern: cardioid
• Audio Output Type: Balanced XLR
• Gender: Male
• Contacts: 3-pin
• Length: 185 mm
• Diameter: 51 mm
• Weight: mic only 320g

The PRX735 is the next step in the highly successful PRX Series and introduces the first use of JBL's patented Differential Drive Technology with ferrite drivers. Differential Drive technology incorporates lower mass in the ferrite magnet for reduced weight while maximizing power amp efifciency for greater heat dissipation and increased power handling. Powering the PRX735 is a 1500 Watt high performance, exceptionally low distortion tri-ampli?cation system engineered to deliver clean power with maximum headroom to efficiently deliver smooth high frequencies and rich, deep bass response even at very high sound power levels. Compact, ultra-lightweight, the PRX735 uses JBL's tour tested technology throughout so you can trust it to deliver a lifetime of reliable performance.

The PRX718XLF is the next step in the highly successful PRX Series and introduces the first use of JBL's patented Differential Drive Technology with ferrite drivers. Differential Drive technology incorporates lower mass in the ferrite magnet for reduced weight while maximizing power amp efficiency for greater heat dissipation and increased power handling. Powering the PRX718XLF is a 1500 Watt high performance, exceptionally low distortion biampli?cation system engineered to deliver clean power with maximum headroom to efficiently deliver rich, deep bass response even at very high sound power levels. Compact, ultra-lightweight, the PRX718XLF uses JBL's tour tested technology throughout so you can trust it to deliver a lifetime of reliable performance.

The D5 C is a dynamic vocal microphone that you can depend on, from small live gigs to large concert halls. The cardioid shaped polar pattern makes it your most versatile companion giving you freedom on stage while ensuring minimum feedback.

This is the perfect microphone cable solution for the performer on a tight budget! Plug into your microphone, patch up to the mixer or the snake, and pump up the volume folks! XLR to XLR mic cable with rugged jacket is designed to handle a small backyard party or large scale event while preventing unwanted interference from entering the signal path. At this price you can outfit your whole rig with these value priced mic cables for clean, truly clear always noise-free music...rock on!

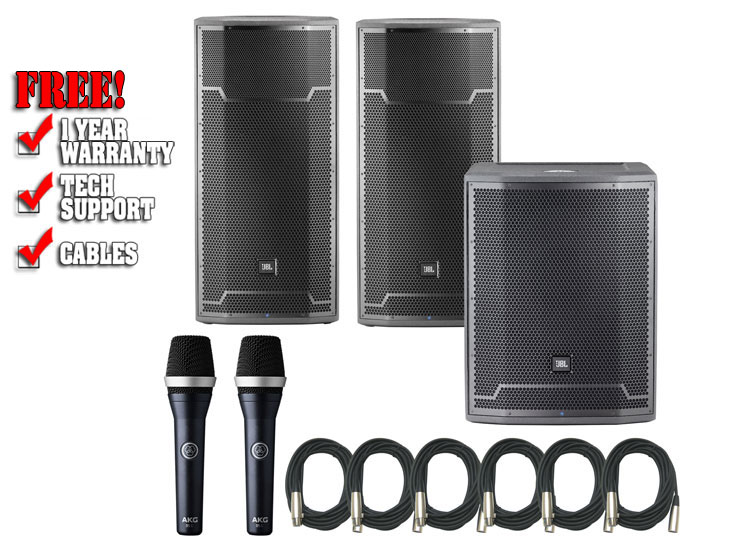

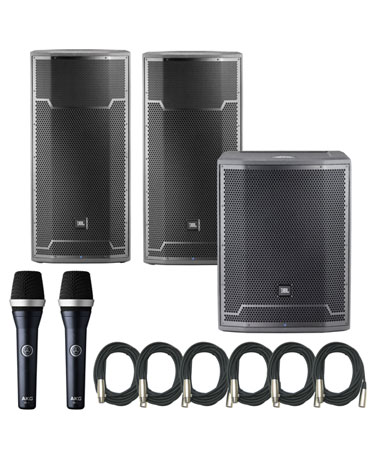

Package Includes:

• 2 x JBL PRX735 15 in 3 Way Powered PA Speaker 1500W
• 6 xMicrophone Cables 20Ft Xlr To Xlr
• 2 x AKG D5C Professional Dynamic Handheld Vocal Mic
• 1 x JBL PRX718XLF 18-Inch Powered Subwoofer 1500W
