JBL PRX715 Speakers & dbx DriveRack 260 Bundle

Overview

JBL PRX715

• 136 dB peak SPL
• 15" Differential Drive low-frequency driver for low-distortion and higher SPL
• 1.5" diameter next generation JBL neodymium compression driver
• JBL designed waveguide for accurate coverage
• Efficient Class-D amplifier technology
• Optimized EQ for monitor or front-of-house applications
• DSP input section, crossover, dynamic limiting, component optimization, selectable system EQ
• Line level and direct microphone input capability
• Professional XLR-1/4" combination inputs, RCA inputs, and XLR loop-through
• Multi-angle enclosure for main PA or floor monitor applications
• Integrated 36 mm pole mount socket with angle down tilt
• Injection molded handle with backing cup for easy transport
• Integrated M10 suspension points for easy setup
• Lightweight poplar plywood cabinets made structurally sound with tongue and groove joints and protected by JBL's tour proven DuraFlex finish.
• Cloth backed, dent-resistant 16 gauge steel grilles
• Power Rating: 1500 W
• Frequency Range (-10 dB): Main: 42.9 Hz - 19.5 kHz
• Monitor: 43.6 Hz - 19.3 kHz
• Frequency Response (±3 dB): Main: 58.1 Hz - 17.2 kHz
• Monitor: 60.7 Hz - 16.7 kHz
• Coverage Pattern: 90° x 50° nominal
• Directivity Index (DI): 10.2 dB
• Directivity Factor (Q): 10.4
• Crossover Frequency: 1.7 kHz
• Maximum SPL: Normal: 136 dB
• Boost: 136 dB
• Signal indicators:
  • Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting
  • Signal: Green LED indicates signal present
  • Power/Standby : Blue indicates system has power and ready to pass audio
  • Red indicates system has power but is in a power saving mode and will not pass audio.
• Dynamic Control (Input): dbx Type IV limiter circuit
• Input Impedance: 20K Ohms (balanced), 10K Ohms (unbalanced)
• LF Driver: 1 x JBL 275G (15 in) woofer
• HF Driver: 1 x JBL 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver
• Enclosure: Asymmetrical, 18 mm, plywood
• Suspension / Mounting: Dual 36 mm pole socket, 12 x M10 Suspension Points
• Transport: 1 x injection molded handles with backing cup
• Finish: Obsidian DuraFlex™ finish
• Grille: Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.
• Input Connectors: 2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input
• Output Connectors: 1 male XLR balanced output
• Dimensions (H x W x D): 714.43 mm x 445.13 mm x 358.71 mm (28.13 in x 17.52 in x 14.12 in)
• Net Weight: 21.6 kg (47.5 lb.)

DBX DRIVERACK-260

• Feedback Elimination
• 2.7 Seconds of Alignment and Zone Delay
• RS-232 PC GUI control
• Classic dbx Compression and Limiting
• Graphic and Parametric EQ
• Auto-EQ Function
• Full Bandpass, Crossover, and Routing Configurations
• Auto Gain Control
• Pink Noise Generator and fulltime RTA
• Setup Wizard with JBL speaker and Crown Power Amplifier Tunings
• Security Lockout
• Wall Panel Control Inputs
• Analog Inputs: (2) Female XLR line inputs. XLR RTA Mic input
• Analog Outputs: 6 Male XLR

The PRX715 is the next step in the highly successful PRX Series and introduces the first use of JBL's patented Differential Drive® Technology with ferrite drivers. Differential Drive technology incorporates lower mass in the ferrite magnet for reduced weight while maximizing power amp efficiency for greater heat dissipation and increased power handling. Powering the PRX715 is a 1500 Watt high performance, exceptionally low distortion biamplification system engineered to deliver clean power with maximum headroom to efficiently deliver smooth high frequencies and rich, deep bass response even at very high sound power levels. Compact, ultra-lightweight, the PRX715 uses JBL's tour tested technology throughout so you can trust it to deliver a lifetime of reliable performance.

The DriveRack 260 continues the legacy of DriveRack series, which has been created by the company that has been redefining the standard of signal processing for more than 30 years. The DriveRack 260 was designed with the purpose and vision of providing state-of-the-art signal processing, while utilizing a simple and intuitive user interface. This goal has been achieved by offering two independent channels of processing power with a linkable 28-Band Graphic Equalizer, industry-standard dbx stereo compressor module, feedback eliminator and the 120A Subharmonic Synthesizer on the input, with a six channel output system that includes parametric EQs, PeakStopPlus? limiters (to provide protection against speaker blowouts) and alignment delay. These features combined with the Wizard setup system and complete DriveWare? GUI control represent a methodical design that is guaranteed to deliver optimal, all-inclusive processing in a completely scalable system.

The steel-aluminum design on this affordable speaker stand make it both lightweight and durable. Use either the 1-3/8" diameter upper shaft or the included 1-1/2" adapter sleeve for a universal fit.

This is the perfect microphone cable solution for the performer on a tight budget! Plug into your microphone, patch up to the mixer or the snake, and pump up the volume folks! XLR to XLR mic cable with rugged jacket is designed to handle a small backyard party or large scale event while preventing unwanted interference from entering the signal path. At this price you can outfit your whole rig with these value priced mic cables for clean, truly clear always noise-free music...rock on!

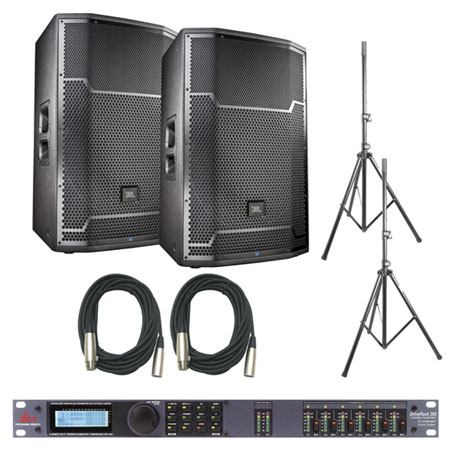

Package Includes:

• 2 x Microphone Cable 20Ft Xlr To Xlr
• 2 x Tripod Speaker Stand
• 1 x DBX DRIVERACK-260 System Controller & Crossover
• 2 x JBL PRX715 15-Inch 2-Way Powered Speaker 1500W
