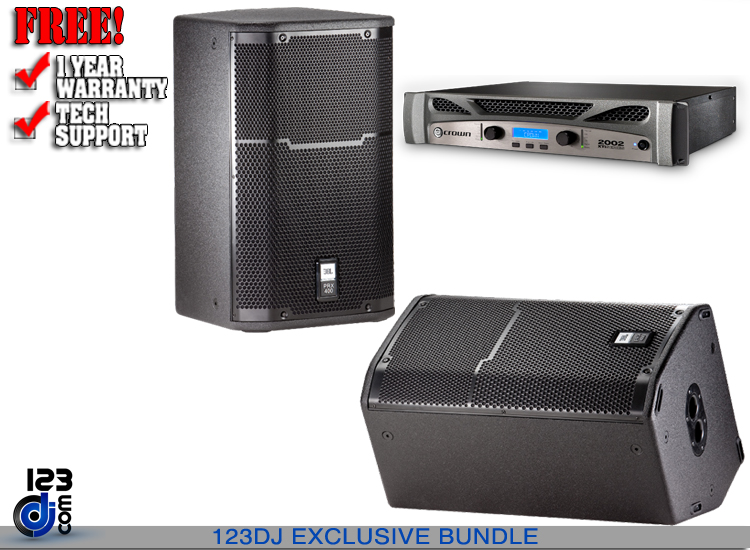

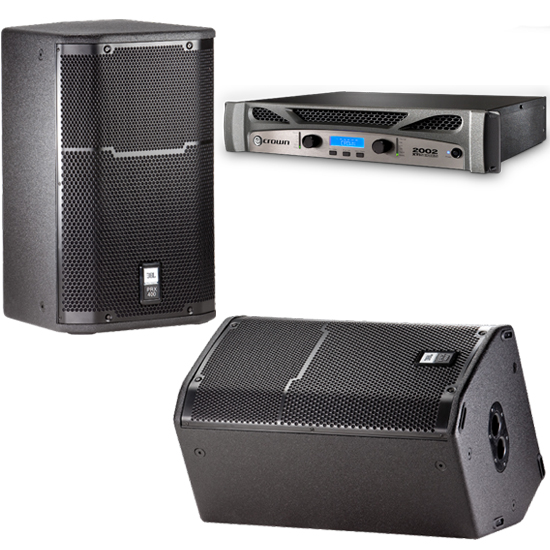

JBL PRX415M(Pair)+Crown XTi2002 Bundle

JBL PRX-415M Description

PRX415M is a portable, fifteen-inch, two-way speaker system designed for either main sound reinforcement or monitoring applications.

• 90° x 50° coverage
• Dual-angle pole socket for applications requiring tripod mounting
• Heavy Duty 16 gauge protective screen backed steel grille
• Tough DuraFlex™ enclosure finish
• SonicGuard™ protects the highfrequency driver from excess power without interrupting the performance.
• Reinforcement of music and speech in entertainment, live or pre-recorded applications
• High-performance satellite speaker for use with subwoofers
• Frequency Range : 55 Hz – 19 kHz
• Frequency Response : 75 Hz – 16 kHz
• Coverage Pattern : 90° x 50° nominal
• System Sensitivity : 98 dB SPL (1w@1m)
• Power Rating, Pink Noise : 300 W / 600 W / 1200 W (Continuous/Program/Peak)
• Rated Maximum SPL : 129 dB SPL peak
• Nominal Impedance : 8 ohms
• Dimensions (H x W x D) : 25.6" x 16.9" x 18"
• Net Weight : 46 lbs.

Crown XTi 2002 Description

There's no debate – when you choose Crown's XTi 2 Series, you're choosing one of the most powerful and innovative amplifiers on the market today. That's because the all-new XTi 2 Series amps continue to set the standard for unmatched performance and value, delivering the goods night after night without breaking a sweat.

• Wattage:
  • 2O Stereo (per ch.) 1000W
  • 4O Stereo (per ch.) 800W
  • 8O Stereo (per ch.) 475W
  • 8O Bridge-Mono 1600W
  • 4O Bridge-Mono 2000W
• Peakx Plus™ Limiters provide the ultimate in system performance and protection by allowing full control over threshold, attack, and release
• Enhanced Subharmonic Synth section provides user control over frequency, gain and filter type for system-specific tuning
• 3 User-defined fan mode controls – normal, early and fullspeed – for matching fan performance to a specific application
• New system monitoring provides software visibility of AC line voltage and power supply temperature
• Integrated cast-aluminum handles for easy handling and enhanced durability
• Locking power cord clip provides a secure connection between the amplifier and power cord
• Updated HiQnet Band Manager™ and System Architect™ control software
• Increased number of presets to a total of 50; 49 of which are user definable
• Input EQ: 6 parametric filters per channel with adjustable Q, ±15 dB boost/cut. Also adjustable high and low shelving filters. This 8-filter EQ section can be bypassed.
• Crossover Filters: Highpass and Lowpass per channel. Butterworth 6/12/18/24 dB per octave. Linkwitz-Riley 24/48 dB per Octave. Also includes ± 15 dB bandpass gain and polarity control.
• Output EQ: 8 parametric filters per channel with adjustable Q, ±15 dB boost/cut. This 8-filter EQ section can be bypassed.
• Delay: For signal alignment of driver; 50 mS of total delay.
• SubHarmonic Synth: Takes the low-frequency content of the input signal and "synthesizes" a new signal that is the same as the input signal but one octave lower. The new synthesized signal is then mixed with the original signal to create the effect. New: Users now have control over frequency, gain, and filter type.
• Peakx™ Plus Limiter: User defeatable limiter that allows users to control Threshold, Attack, and Release times.
• Presets: 50 total presets, 49 of which are user-definable.
• Sensitivity (for full rated power at 4 ohms): 1.4 Vrms
• Frequency Response (at 1 watt, 20 Hz - 20 kHz): +0 dB, –1 dB
• Signal-to-Noise Ratio (below rated 1kHz power at 8 ohms):100 dB (A weighted)
  Total Harmonic Distortion (THD): < 0.5%
• Damping Factor 20 Hz to 1 kHz: > 500
• Crosstalk (below rated power): 20 kHz - 1 kHz: > 70 db
• Input Impedance (nominal): 20k ohms balanced, 10k ohms unbalanced
• Maximum Input Signal: +22 dBu typical
• AC Line Voltage and Frequency Configurations: 100 VAC, 120 VAC, 220-240 VAC 50/60 Hz
• AC Line Current : 6.8A; no more than 38W at idle
• Operating Temperature: 0°C to 40°C at 95% relative humidity (non-condensing)

This Package Includes:

• (2) JBL PRX-412M
• (1) Crown XTi 2002
