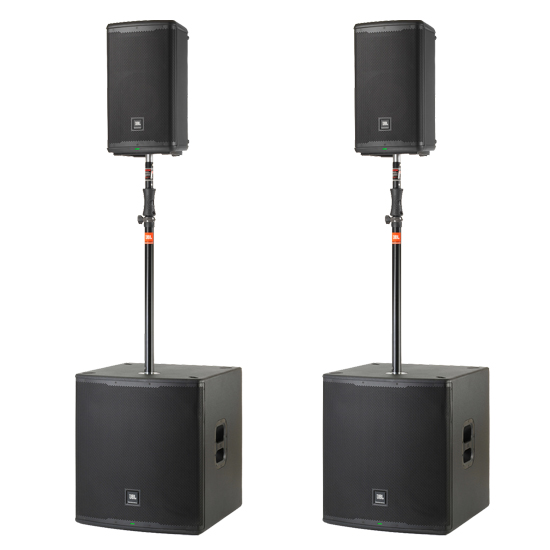

JBL EON710+EON718S Bundle

Indexed feet molded into enclosures, enable a range of acoustic configurations and secure stacking for traditional stand-up configurations and convenient storage and transport. (Companion EON718S subwoofers feature a threaded pole mount for full-range speakers and are easily stacked for cardioid configurations.)

Rugged and Reliable

All audio products have useful lives, and JBL engineers are committed to making that lifespan as long as possible—not only in terms of reliability, but in terms of how good the system sounds, every time it's turned on.

The EON710 is housed in an FEA-optimized composite enclosure, taking advantage of injection-molding and mechanical-shaping techniques for added durability without sacrificing cabinet size or performance. Computer-optimized ergonomic handles make moving boxes a breeze.

Like every JBL Professional product, the EON710 undergoes stringent testing that goes above and beyond any conditions the product would face in the real world. Our industry-leading 100-hour power test ensures longevity so musicians and audio engineers can rely on JBL components in any scenario.

Features:

• Custom-designed 15-inch woofer
• 2414H compression driver
• Re-designed high-frequency horn
• Power: 1,300W peak / 650W RMS
• Frequency response: 45 Hz–20 kHz (-10 dB); 55 Hz–20 kHz (-3 dB)
• Max SPL: 128 dB
• Dispersion: 90° H x 60° V
• Audio I/Os: 2 XLR Combo, 1 XLR passthrough
• Advanced dbx DSP: Automatic Feedback Suppression, ducking, 100ms speaker delay, parametric EQ
• Built-in 3-channel digital mixer
• Backlit color LCD screen provides easy access to functions
• Universal JBL Pro Connect app control
• Bluetooth 5.0 streaming and control
• Durable polypropylene cabinet and metal grille
• Two ergonomic handles simplify transport
• Built-in pole mount and optional EON700 Universal Yoke Mount expand system configuration options
• Stackable cabinets allow easy storage
• Dimensions: 27.6 x 17.2 x 13.8 in (702 x 438 x 351 mm) (HxWxD)
• Weight: 37.3 pounds (16.9 kg)
• Shipping dimensions: 29.92 x 21.73 x 18.38 in (760 x 552 x 467 mm) (HxWxD)
• Shipping weight: 49.6 pounds (22.5 kg)

Specifications:

• System Type : 10IN Powered Loudspeaker
• Woofer Model : 710G
• Woofer Size : 10"
• Woofer Magnet : Ferrite
• Woofer Voice Coil : 2"
• Tweeter Model : 2414H Compression Driver
• Tweeter Size : 1"
• Tweeter Magnet : Neodymium
• Transducer Impedence : LF 4ohm rated, HF 8ohm rated
• Max SPL : 125dB @1m/4Pi
• Freq Range -10 : 52Hz - 20kHz
• Freq Range -3 : 65Hz - 20kHz
• Hor Dispersion : 90°
• Vert Dispersion : 60°
• Power Rating : 1300W peak / 650 RMS
• AC power input : 100V-120V or 220V-240V
• Cooling : Passive
• LED indicators : 1 Power LED, 1 Limit LED, 1 Front LED, 2 Signal/SSM LEDs
• Input Impedance : 50k/100k un-balanced/balanced
• Input Gain : -8to +36db
• Crossover Frequency : 2 kHz
• I/O : 2 XLR Combo Jacks / BT, 1 XLR M Thru
• Cabinet : PP+10% Talc
• Grille : 16GA perforated steel with acoustically transparent black cloth backing
• Suspension / Mounting : 4 M10 Suspension points, 36mm Pole Socket, universal yoke bracket holes
• Handles : 1, cable channel on bottom
• Net Weight : 12kg (26.46 lbs.)
• Gross Weight : 15.2kg (33.51 lbs.)
• Product Dims : HxWxL 587x332x305mm (23.11x13.07x12 in.)
• Shipping Dims : HxWxL 606x439x407mm (23.86x17.28x16.02 in.)

JBL EON718S 18" Powered PA Subwoofer

18-inch Powered Subwoofer

Launched in 1995, JBL's best-selling EON family of PAs set the benchmark for how great a powered loudspeaker system can be.

The JBL EON718S 18-inch subwoofer is part of JBL's new EON700 Series of powered PAs, which represents a major step forward in innovation and technology by delivering truly intelligible, clearly consistent coverage at any volume level.

The EON700 Series leverages the latest acoustic science, transducer designs, cabinet materials and advanced DSP and control technologies to deliver extraordinary performance in a fully professional, highly flexible, easy to use, portable system.

With four models available, including the 10-inch EON710, the 12-inch EON712 and the 15-inch EON715 powered PA speakers and the 18-inch EON718S subwoofer, EON700 systems cover the needs of today's working musicians and sound providers.

(Note: JBL EON718S Pro Connect App support is expected in April 2022, pending App Store / Google Play Store approval.)

Features

• Custom-engineered 18-inch woofer
• Power: 1,500W peak / 750W RMS
• Frequency response: 31–150 Hz (-10 dB); 40–120 Hz (-3 dB)
• Max SPL: 131 dB
• Audio I/Os: 2 XLR Combo, 2 XLR loop-outs
• Advanced dbx DSP: Parametric EQ, polarity inversion, speaker delay
• Built-in 2-channel digital mixer
• Parametric EQ, polarity inversion and speaker delay
• Color backlit LCD screen provides easy access to functions
• Durable birch plywood cabinet with patented DuraFlex finish and metal grille
• Universal JBL Pro Connect app control using powerful BLE technology
• Ergonomic handles simplify transport
• Built-in threaded pole mount expands system configuration options
• Stackable cabinets simplify cardioid configurations and equipment storage
• Dimensions: 26.3 x 24 x 25.1 in (667 x 609 x 637mm) (HxWxD)
• Weight: 81.5 pounds (37 kg)
• Shipping dimensions: 29.6 x 28.42 x 29.3 x (744 x 722 x 752 mm) (HxWxD)
• Shipping weight: 94.4 pounds (42.8 kg)

Iconic Acoustics, Superior Sound

The EON718S produces smooth, natural bass down to 31 Hz, thanks to a newly engineered acoustic package with a completely redesigned woofer and 1,500 watts of ultra-efficient amplification.

Advanced DSP and Control

The EON718S's advanced DSP package includes built-in parametric EQ, polarity inversion and speaker delay. Access settings on-speaker using an integrated backlit LCD screen, or from anywhere in the venue using the JBL Pro Connect App. The EON700 Series' built-in Bluetooth 5.0 audio streaming (full-range speakers) and control take advantage of the newest protocol's security features, low latency, broad range and improved audio fidelity.

System Versatility

The EON718S subwoofer features a threaded pole mount for full-range speakers and can be easily stacked for cardioid configurations. Full-range models can be used as main PA speakers or floor monitors. Indexed feet molded into enclosures enable a range of acoustic configurations and secure stacking for traditional stand-up configurations and convenient storage and transport.

Rugged and Reliable

All audio products have useful lives, and JBL engineers are committed to making that lifespan as long as possible—not only in terms of reliability, but in terms of how good the system sounds every time it's turned on.

EON700 Series full-range speakers feature FEA optimized composite enclosures, taking advantage of injection-molding and mechanical-shaping techniques for added durability without sacrificing cabinet size or performance. The EON718S subwoofer is housed in a rugged 15-ply birch enclosure; computer-optimized ergonomic handles make moving these speakers and subwoofers a breeze.

Like every JBL Professional product, the 718S undergoes stringent testing that goes above and beyond any conditions the product would face in the real world. Our industry-leading 100-hour power test ensures longevity so musicians and audio engineers can rely on JBL components in any scenario.

Specification:

• System Type: 18IN Powered Subwoofer
• Woofer Model: 718G
• Woofer Size: 18"
• Woofer Magnet: Ferrite
• Woofer Voice Coil: 3"
• Transducer Impedence: 4 ohm rated
• Max SPL: 131dB @1m/2Pi
• Freq Range -10: 31Hz - 150Hz
• Freq Range -3: 40Hz -120Hz
• Hor Dispersion: Omni
• Vert Dispersion: Omni
• Crossover Frequency: 80, 100, 120Hz selectable
• Power Rating: 1500W Peak Power
  1500W Peak / 750W RMS
• AC power input: 100V-120V or 220V-240V
• Cooling: Passive
• LED indicators: 1 Power LED, 1 System Limit, 1 Front LED
• Input Impedance: 50k/100k un-balanced/balanced
• Input Gain: -8to +36db
• I/O: 2 XLR Combo
  2 XLR M Thru
• Cabinet: 18mm Duraflex-coated Birch Plywood
• Grille: 16GA perforated steel with acoustically transparent black cloth backing
• Suspension / Mounting: 1 M20 Threaded Polecup
• Handles: 2
• Net Weight: 35.5kg (78.26 in.)
• Gross Weight: 42.5kg (93.70 in.)
• Product Dims: HxWxL 674x609x637mm (26.54x23.98x25.08 in.)
• Shipping Dims: HxWxL 722x743x713mm (28.43x29.25x28.07 in.)

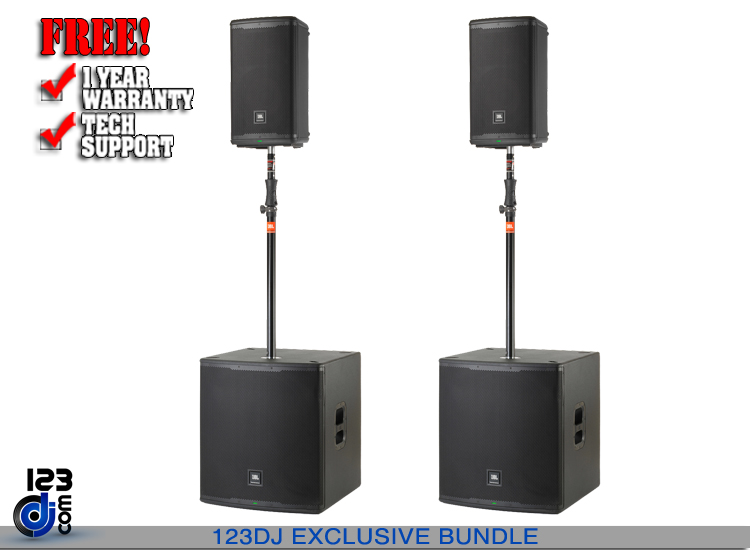

This Package Includes:

• (2) JBL EON710
• (2) JBL EON718S
• (2) JBL Speaker Pole (Manual Assist)
