JBL 305P MkII 5 inch Powered 5.1 Monitor System with Subwoofer

Enhance your home or project studio with legendary JBL performance. Perfect for musicians and producers of all levels, the 306P MkII Studio Monitors and LSR310S 10" Powered Studio Subwoofer take your projects to the next level. With the powered 5" monitors, you'll hear every detail of your mix, as they deliver unparalleled accuracy and a broad sweet spot. Complimenting your monitors, the LSR310S subwoofer incorporates JBL's patented Slip Stream™ Port working in concert with a custom 10" down-firing driver and a 200 Watt amplifier to add deep, powerful bass to any studio monitor system. Buy them together in this special 5.1 surround bundle and save big!

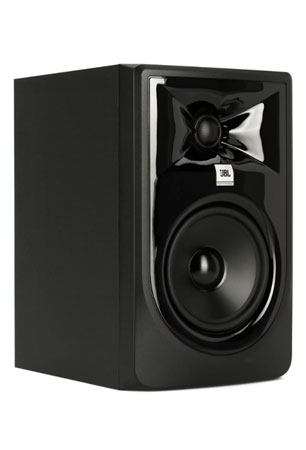

JBL 305P MkII 5inch Powered Studio Monitor

Accurate Nearfield Monitoring for Every Studio

JBL 305P MkII active studio monitors are a great nearfield solution for any serious audio engineer or music producer. They're great for mixing music in your DAW software, editing video, or any other task that requires monitoring accuracy. JBL designed the 305P MkII with advanced features acquired from their 7 Series and M2 Master Reference Monitor, making legendary JBL performance accessible to every studio. JBL's innovative Image Control Waveguide works in concert with refined transducers to deliver a well-defined and incredibly dimensional stereo image.

Incredible stereo imaging thanks to an innovative waveguide

When you can clearly hear everything in your mix, you make accurate sonic judgments — which leads to better-sounding recordings. To that end, JBL applied innovative elements from their 7 Series and M2 Master Reference Monitors to give the 305P MkII truly impressive sound reproduction capabilities. The Image Control Waveguide design is one such feature, and it helps the 305P MkII present a deep, detailed soundstage and a wide, room-friendly sweet spot.

Wide sweet spot equals a better studio experience

We're engineers, musicians, and producers, too — we know you don't spend every second of your studio time in the ideal mixing position. JBL 305P MkII monitors have a broad sweet spot, which means there's less variation in what you hear when you're not in the perfect position. Especially if you have clients in the room, you want consistent sound throughout your studio, and you'll like what you hear from the 305P MkII.

Ported design for greater accuracy at low volume levels

Checking your mix at low volume levels is a great way to confirm your overall balances, but many monitors will suffer in the bass regions when monitoring at low levels. The JBL 305P MkII uses JBL's patented Slip Stream low-frequency port for accurate bass response at low playback levels. The double-flared port shape also reduces the turbulence some ported designs suffer from, meaning that bass response remains pure when you turn the 305P MkII back up.

JBL 305P MkII Powered Studio Monitor Features:

• NEW Next-generation JBL transducers for optimized transient response and enhanced linearity
• NEW Boundary EQ settings compensate for environmentally induced low-frequency anomalies
• Patented Imag Control Waveguide for detailed imaging and a wide, room-friendly sweet spot
• Patented Slip Stream low-frequency port for superior bass performance at all playback levels
• Integrated custom Class D amplifiers deliver 82 watts (LF: 41W; HF: 41W) of power for high output and dynamic range
• Frequency response (±3dB): 49Hz–20kHz
• HF Trim switch adjusts high-frequency output to accommodate room acoustics or personal preferences
• Flexible connectivity with balanced XLR and 1/4" TRS inputs, +4dBu/–10dBV input-sensitivity switch, and volume control
• Engineered to JBL Linear Spatial Reference design criteria for outstanding accuracy in any acoustical environment
• Strenuous JBL 100-hour power test ensures years of reliability
• Shielded for safe placement near magnetically sensitive equipment
• Sleek, modern design provides a dramatic flair to any studio
• Compact footprint accommodates a variety of studio spaces
• Sold individually

Tech Specification

• Powered: Yes
• Power Configuration: Bi-amped
• LF Driver Size: 5" woofer
• LF Driver Type: Cone
• HF Driver Size: 1" tweeter
• HF Driver Type: Soft dome
• LF Driver Power Amp: 41W
• HF Driver Power Amp: 41W
• Total Power: 82W Class D
• Frequency Response: 49Hz-20kHz (±3dB), 43Hz-24kHz (-10dB)
• Crossover Frequency: 1725Hz
• Maximum Peak SPL: 108 dB SPL
• Input Types: 1 x XLR, 1 x 1/4" TRS
• Enclosure Type: Ported
• Enclosure Material: 15mm Medium-Density Fiberboard
• Height: 11.7"
• Width: 7.3"
• Depth: 9.1"
• Weight: 10.43 lbs.
• Manufacturer Part Number: 305PMKII

JBL LSR310S 10-Inch Powered Studio Subwoofer

Extend your system LF all the way down! The LSR310S subwoofer incorporates JBL's patented Slip Stream Port working in concert with a custom 10" down-firing driver and a 200 Watt amplifier to add deep, powerful bass to any studio monitor system. A JBL first, the XLF Extended Low Frequency setting lets you hear your tracks with the augmented bass tuning used in today's dance clubs.

Features:

JBL Patented Slip Stream Port

This patented JBL port design works in concert with the LSR310S low frequency driver for deep, dynamic bass response at all playback levels. The double-flared shape of the port is precisely calculated to optimize low-frequency extension.

XLF Extended Low Frequency Setting

A JBL first, the XLF setting activates a specially-engineered tuning that emulates the ample bass tuning used in today's dance clubs. When producing a dance track, the XLF setting will inspire you and bring a bit of the club to your control from. For inspiration to the max, position the LSR310S in the nearest corner of your room and activate the XLF setting.

Custom 10" Down-Firing High Excursion Low Frequency Driver

JBL Transducers are legendary for their performance. The custom-designed driver in the LSR310S exemplifies JBL engineering prowess, delivering deep low frequency response into the 20 Hz region, and 113 dB peak output, for long periods at full rated power with no risk of failure.

Professional Balanced Inputs and Outputs

With balanced XLR and 1/4" inputs and XLR outpus you can add the LSR310S to any studio monitor system to extend its low frequency performance or use it as the ".1" LFE Channel in a surround sound system.

Selectable Input Sensitivity

The -10dBV/+4 dBu sensitivity switch ensures compatibility with a broad range of signal sources, allowing you to connect the LSR310S to high-output professional equipment without any danger of input overload.

Three Crossover Settings

The 80 Hz setting is recommended for use with the LSR305, LSR308 or any studio monitors. The External setting allows use of an outboard crossover.

Volume Control

Simple and effective, the LSR310S volume control has detents that make it easy to balance the LSR310S in your studio monitor system.

Specifications:

• Driver: 250mm (10-inch) High-Excursion, Down-Firing
• Low Frequency Extension: 27 Hz
• Max Peak SPL: 113 dB
• Amplifier Power: 200 W CLass D
• Crossover Settings: 80 Hz, XLF, External
• Inputs: 2 x XLR, 2 x TRS Balanced
• Outputs: 2 x XLR
• Maximum Peak Input Level: +20.3 dBu
• AC Voltage: 100-240 VAC +/- 10% 50/60 Hz
• Dimensions (HxWxD): 448 mm x 381 mm x 398 mm (17.65 in x 15 in x 15.65 in)
• Weight: 15.6 kg/34.3 lbs.

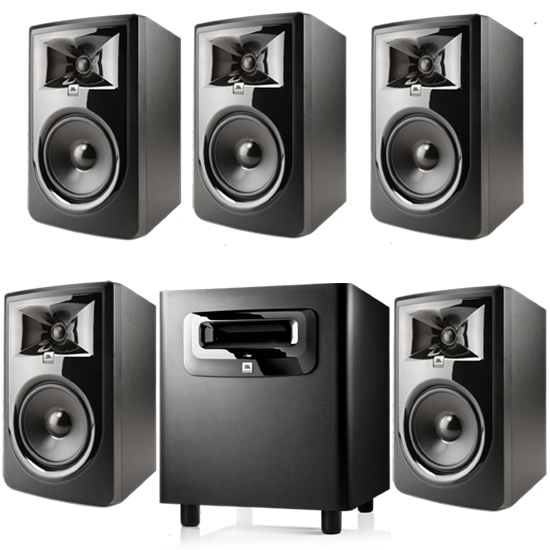

This Package Includes:

• (5) JBL 305P MkII
• (1) JBL LSR310S
