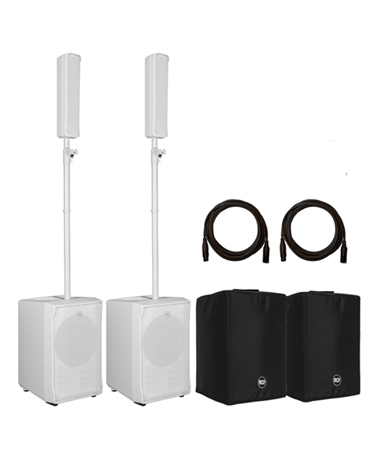

J8 White Two Pack with Bags

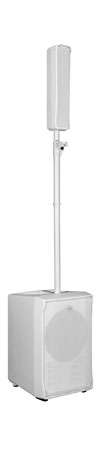

RCF Evox J8 Active Two Way Portable Array (white)

The incredibly powerful EVOX series alters the landscape of portable PA once again. The system features a line source satellite module with eight 2" full-range drivers paired with a high-powered 12" woofer in a bass reflex enclosure. All powered by on-board 1400-watt Class-D amplification. The EVOX J Series maintains a similar footprint to the original EVOX systems, now in a portable composite enclosure. The system offers stunning sound performance with crystal clear vocal reproduction and unparalleled musical response. This makes the RCF EVOX the smart choice for live entertainment, DJs, parties, club music and corporate events.

RCF Evox J8 Active Two Way Portable Array Features:

• 128 dB Max SPL.
• 1400 Watt 2-way peak power.
• DSP Processing with FiRPHASE.
• 12" woofer, high power 2.5" voice coil.
• 8 x 2" ultra compact fullrange 1.0" voice coil.
• 2350x350x450 mm 92.5x13.77x17.71 in (HxWxD).
• 23,8/52.5 kg/lbs.

Applications:

• Live Sound.
• Clubs and DJs.
• Corporate events.
• AV presentations.

The RCF J8 features a line source satellite module with eight 2" full-range drivers paired with a high-powered 12" woofer in a bass reflex enclosure. All powered by on-board 1400 W Class D amplification. The EVOX J Series maintains a similar footprint to the original EVOX systems, now in a portable composite enclosure. The system offers stunning sound performance with crystal-clear vocal reproduction and unparalleled musical response.

FiRPHASE

RCF speakers are designed by using FiRPHASE, a proprietary and advanced FIR filtering technology, conceived for delivering transparent sound, absolute clarity and perfect stereo images to the listener. The FiRPHASE algorithm optimizes dynamics, amplitude and phase patterns, ensuring at the same time minimum system latency.

Phase Matters

The design of the FIR filter for this specific purpose should start from an accurate measurement of the loudspeaker phase. The FiRPHASE algorithm uses this measurement and adapts the loudspeaker's phase without touching the amplitude equalization. The heart of the advanced technique used by FiRPHASE is a recursive method (Least Squared method) combined with a proprietary algorithm that calculates the best FIR filter coefficients set in according to amplitude and phase constraints. The algorithm corrects phase and amplitude (when necessary) by taking into account the weak points of the transducers and the resonances or cancellations due to the cabinet of the loudspeaker. Despite the design perfection of our transducers and cabinets, we realize that the phase corrections are the "missing point" for the perfection. This technique allows a deep control of phase at mid-low frequencies with relatively small filters, reaching a higher resolution than that one as theory suggests.

Superior Transducers

The ultra-compact full-range 2" RCF drivers are capable of handling high SPL and power with a stunning sound performance. The high excursion 12" RCF woofer extends to the lowest frequencies offering quick and precise punch. The bass-reflex port design avoids air turbulence reducing distortions. The EVOX design features constant directivity coverage of 120°x30°(HxV), providing a perfect coverage pattern. The vertical array is progressively shaped to guarantee consistent sound coverage from the first row to the last.

Powerful Class D Amplifiers

RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. EVOX amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. The EVOX amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.

Bring EVOX With You

The sturdy, ergonomic cabinet is easy to carry, thanks to the handle at the top and the practical bag. Each subwoofer includes a steel pole socket for the array. Stability and safety are assured. The satellite module slides easily into the rear of the subwoofer for compact transportation. Internal structure reinforcements prevent any damage of the cabinet. Cabinets are moulded on a special polypropylene composite material designed to dampen down unwanted vibrations.

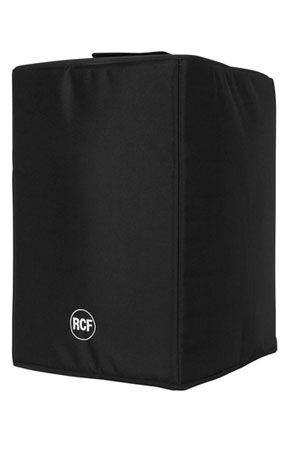

RCF Protective Cover for the Evox J8 Subwoofer

• RCF Protective Cover for the Evox J8 Subwoofer.

• Protects the EVOX from scratches and hits.
• Strong construction.
• Features easy access to the top handle to transportation.

Technical Specification

RCF Evox J8 Active Two Way Portable Array Specifications:

Acoustical Specifications

• Frequency Response -3 dB: 40 Hz ÷ 20 Hz
• Max SPL: 128 dB
• Horizontal coverage angle: 120°
• Vertical coverage angle: 30°
• Fullrange: 8 x 2.0'', 1.0'' v.c
• Woofer: 12'', 2.5'' v.c

Input/Output Section

• Input signal: bal/unbal
• Input connectors: XRL, Jack

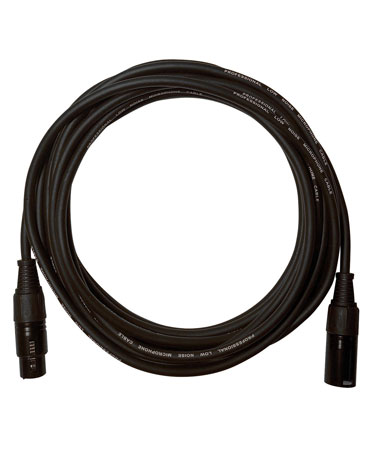

• Output connectors: XLR
• Input sensitivity: -2 dBu/+4 dBu

Processor Section

• Crossover frequencies: 220 Hz
• Protections: Thermal, RMS
• Limiter: Soft Limiter
• Controls: Volume, Boost, Mic/Line

Amplifier Specifications

• Total power: 1400 W PEAK
• High frequencies: 400 W PEAK
• Low frequencies: 1000 W PEAK
• Total power: 700 W RMS
• High frequencies: 200 W RMS
• Low frequencies: 500 W RMS
• Connections: Convection

Cabinet

• Cabinet Material: PP Composite
• Handles: 1 Top
• Pole Mount/Cap: Yes
• Grille: steel
• Colour: Black (EVOX J8), White (EVOX J8-W)

Physical Specifications

• Height: 623/24.53 mm/inch
• Width: 400/15.75 mm/inch
• Depth: 460/18.11 mm/inch
• Net Weight: 23.8/52.47 kg/lbs

RCF Protective Cover for the Evox J8 Subwoofer Specifications:

Shipping information

• Package Depth: 400 mm / 15.75 inches
• Package Height: 80 mm / 3.15 inches
• Package Weight: 2.6 kg / 5.73 lbs
• Package Width: 600 mm / 23.62 inches

Size

• Depth: 490 mm / 19.29 inches
• Height: 590 mm / 23.23 inches
• Weight: 1.19 kg / 2.62 lbs
• Width: 410 mm / 16.14 inches

Standard compliance

• CE marking: Yes
