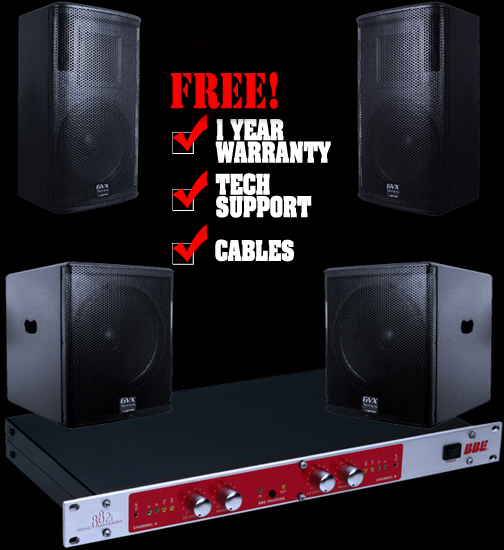

GVX Block Party

Overview

• Two Gemini GVX15P Active Speakers
  • 2000W, 2-way biamplified, optimized active loudspeaker system
  • Amplifier thermal, short circuit, and DC protections
  • Balanced XLR line input with pass-thru XLR connector
  • Switch: Full-range / monitor 100Hz low-cut filter
  • Perforated steel mesh grille
  • Recessed, flush handles
  • Water-resistant textured black paint
  • Flyable, pole-mountable, floor wedge-able
• Two Gemini GVXSUB-18P Subwoofers
  • 2000W peak
  • 18" woofer with 3" (76.2mm) voice coil and 62oz. magnet
  • Maximum sound pressure level: 138dB
  • Built-in amp with limiter circuit
  • Perforated steel mesh grille
  • Recessed flush handles
  • Water-resistant textured black paint
  • Balanced XLR/ 1/4" (6.5mm) combo input
  • Balanced XLR full-range output and high-pass output
  • Phase inverter switch
  • 35mm pole-mount fitting
  • Weight: 103.6lb., 47kg.
  • Dimensions: (WxHxD) 22.04" x 26.8" x 22.8", or 560mm x 680mm x 580mm
  • Electronic crossover with adjustable frequency control
  • Linear frequency response: between 37Hz and 250Hz
• BBE 882i Sonic Maximizer
  • Professional recording studios
  • Pro and semi-pro sound reinforcement
  • Multi-track studios
  • Cassette copies
  • Nightclub sound systems
  • Broadcast transmission
  • +4dBu balanced line (1/4 in. tip-ring-sleeve and XLR inputs and outputs)
  • +23dBu headroom
  • Active balanced outputs
  • Hardwire bypass
  • Bypass switch for comparison of processed to unprocessed signal
  • Frequency Response,
  • Process Mode: Program controlled
  • Bypass Mode: 10Hz to 50kHz, +/- 0.5dBu, 0dBu input
  • Signal to Noise Ratio: 115dB Process IN
  • THD, Process mode: less than 0.025% 20-20kHz
  • Bypass mode: less than 0.002% 20-20kHz
  • Maximum Output: +23dBu (may vary due to control settings)
  • Input Impedance: 14.7K Ohms, balanced 1/4 in. stereo phone jack or XLR jack. Pin #2 is the hot or "+" signal.
  • Output Impedance: 600 Ohms, balanced 1/4 in. stereo phone jack or XLR jack. Pin #2 is the hot or "+" signal.
  • Sensitivity: -45dBu for maximum process
  • Maximum Process: +12dBu boost at 5kHz, 0dBu input
  • Lo Contour: +12dBu adjustment at 50Hz, 0dBu input
• FREE Speaker Cables!
