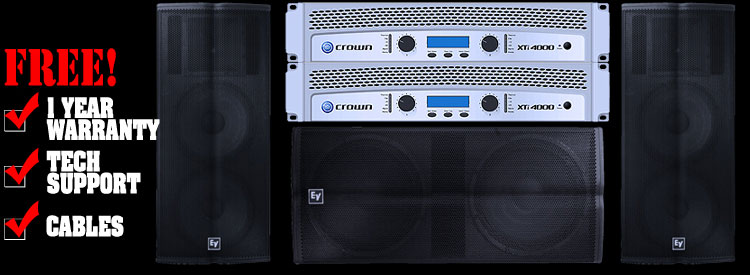

EV Power Pack 1

Overview

• Two EV TX2152 Speakers
  • Freq. response (-3 dB): 55Hz - 13kHz
  • Freq. range (-10 dB): 50Hz - 18kHz
  • Rec. hi-pass frequency: 40Hz
  • Axial sensitivity: 103dB (1W/1m)
  • Max. calculated SPL: 139dB
  • Horizontal coverage: 60 degree or 40 degree
  • Vertical coverage: 40 degree or 60 degree
  • Power handling: 1000W continuous 4000W peak
  • LF transducers: (2) SMX2151's 15" (381mm) drivers
  • HF transducer: ND2-8 2" (51mm) diaphragm compression driver
  • Crossover frequency: 1750Hz
  • Nominal impedance: 4 Ohms
  • Minimum impedance: 3.1 Ohms
  • Connectors: (2) Neutrik Speakon NL4's
  • Enclosure material: plywood and MDF with EVCoat
  • Grille: 16 GA steel black powdercoat with rotatable logo
  • Suspension: (6) 3/8" threaded points - (2) on each side and (2) on the rear of enclosure
  • Dimensions (H x W x D): 45.4" x 20.0" x 18.5" (1154mm x 508mm x 471mm)
  • Net weight: 94.3 lbs (42.8 kg)
  • Shipping weight: 105.8 lbs (48.0 kg)

  Electro-Voice TX2152 Tour-X 2-Way Dual 15 IN PA Speaker Features:

  • Dual 15" two-way
  • 60 degree x 40 degree full-range
  • ND2-8 2" (51mm) diaphragm 1" (25.4mm) exit neodymium compression driver
  • Dual SMX2151 15" (381mm) LF transducers with fully symmetric drive
  • Advanced 6th order crossover with HF protection
  • 60 degree x 40 degree rotatable coverage pattern
  • 103dB sensitivity 139dB maximum SPL
  • 1000W continuous 4000W peak power handling
  • (6) 3/8" threaded points for suspension
• EV TX2181 Subwoofer
  • Freq. response (-3 dB): 50Hz - 160Hz
  • Freq. range (-10 dB): 40Hz - 1.5kHz
  • Rec. low pass frequency: 80Hz - 120Hz
  • Axial sensitivity: 103dB (1W/1m)
  • Max. calculated SPL1: 138dB
  • Horizontal coverage: Omnidirectional
  • Vertical coverage: Omnidirectional
  • Power handling: 1000W continuous 4000W peak
  • LF transducers: (2) EVS-18S 18" (457mm) drivers
  • Nominal impedance: 4 Ohms
  • Minimum impedance: 2.9 Ohms
  • Connectors: (2) Neutrik Speakon NL4 s
  • Enclosure material: plywood and MDF with EVCoat
  • Grille: 16 GA steel black powdercoat with rotatable logo
  • Dimensions (H x W x D): 45.4" x 20.0" x 27.2" (1154mm x 508mm x 691mm)
  • Net weight: 123.5 lbs (56.1 kg)
  • Shipping weight: 139.0 lbs (63.1 kg)

  Electro-Voice TX2181 Tour-X Dual 18 IN Subwoofer Features:

  • Dual 18" Direct-Radiating
  • Dual EVS-18S 18" (457mm) LF transducers
  • 103dB sensitivity 138dB maximum SPL
  • 1000W continuous 4000W peak power handling
  • Four integrated handles for easy portability
  • Mounting points to attach optional TX-W1 wheel kit
• Two Crown XTi-4000 Amplifiers
  • Integrated proprietary DSP speaker presets

  • Backlit LCD front panel display

  • Switch-mode universal power supply

  • Proportional-speed fan-assisted cooling

  • XLR inputs, Speakon and binding-post outputs

  • Advanced protection circuitry

  • Comprehensive LED status per channel

  • Three-year, no-fault, fully transferable warranty

  • 2 ohm stereo (per channel) 1600 watts

  • 4 ohm stereo (per channel) 1200 watts

  • 8 ohm stereo (per channel) 650 watts

  • 4 ohm Bridge-Mono 3200W

  • 8 ohm Bridge-Mono 2400W
• All Connecting Cables
