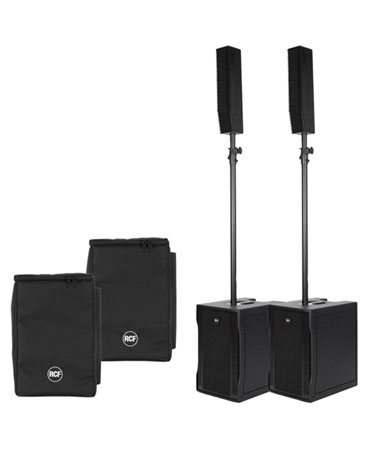

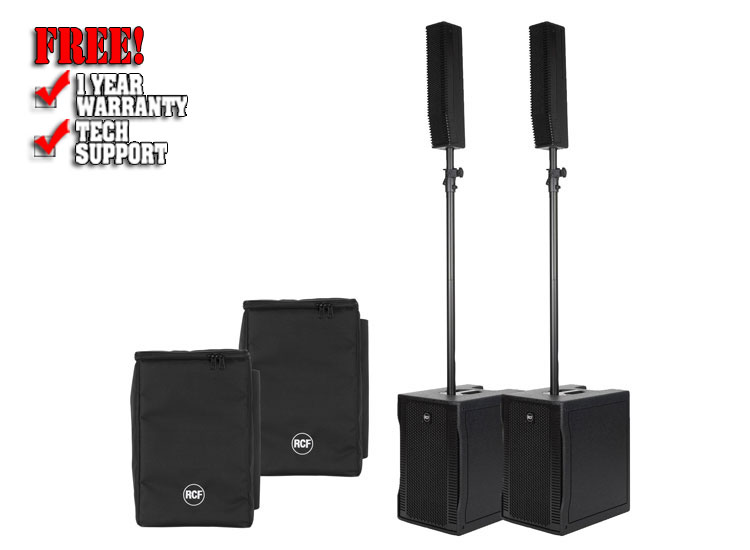

Evox 8 Duo Pack

• 1400 Watt
• 128 dB max SPL
• 40 Hz 20 kHz frequency response
• 12" Woofer, 2.5" v.c.
• 8 x 2" Ultra compact fullrange, 1.0 v.c.
• 120° x 30° slightly tilted pattern control
• Innovative DSP processing
• Pole mountable, easy set-up and transportation

EVOX 8 Applications

• DJs
• Corporate events
• Presentations
• Performers

RCF EVOX 8 Protective Speaker Cover [COVER EVOX 8]

• Zippered protective cover/case for RCF EVOX 8 Speakers.

Technical Specification

RCF EVOX 8 Specifications

Acoustical Specifications

• Frequency Response -3 dB: 40 Hz ÷ 20 Hz
• Max SPL: 128 dB
• Horizontal coverage angle: 120°
• Vertical coverage angle: 30°
• Fullrange: 8 x 2", 1.0" v.c.

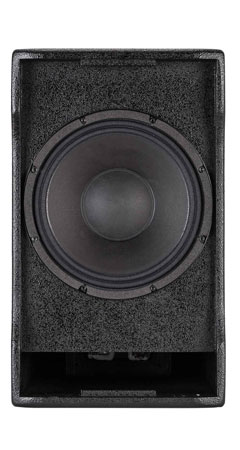

• Woofer: 12", 2.5" v.c.

Input/Output Section

• Input connectors: Jack-XLR male
• Output connectors: XLR female
• Input sensitivity: -2 dBu / + 4 dBu

Processor Section

• Crossover frequencies: 220 Hz
• Protections: thermal, rms
• Limiter: Soft limiter
• Controls: Volume, EQ, phase, xover

Amplifier Specifications

• Total power: 1400 W PEAK
  High frequencies: 400 W PEAK
  Low frequencies: 1000 W PEAK
• Total power: 700 W RMS
  High frequencies: 200 W RMS
  Low frequencies: 500 W RMS
• Cooling: Convection
• Connections: VDE connector

Cabinet

• Cabinet Material: Baltic birch plywood
• Hardware: 2 x M6
• Handles: 1 top
• Pole Mount/Cap: Yes
• Colour: black

Physical Specifications

• Height: 530/20.86 mm/inch
• Width: 346/13.62 mm/inch
• Depth: 459/18.10 mm/inch
• Net Weight: 23.8/50.70 kg/lbs

What's in the Box

This Package Includes:

• (2) RCF EVOX 8 Portable Active Two-Way Array PA Systems
• (2) RCF EVOX 8 protective speaker covers [COVER EVOX 8]

Each EVOX 8 Box Includes:

• (1) RCF EVOX 8 - Active Two-Way Array
• (1) Power Cord
• (1) User Manual

Each COVER EVOX 8 Box Includes:

• (1) RCF EVOX 8 Protective Speaker Cover [COVER EVOX 8]
