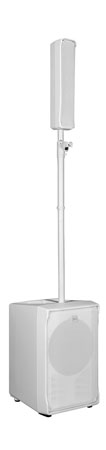

Evox J8 White Sound System

The RCF J8 features a line source satellite module with eight 2" full-range drivers paired with a high-powered 12" woofer in a bass reflex enclosure. All powered by on-board 1400 W Class D amplification. The EVOX J Series maintains a similar footprint to the original EVOX systems, now in a portable composite enclosure. The system offers stunning sound performance with crystal-clear vocal reproduction and unparalleled musical response.

FiRPHASE

RCF speakers are designed by using FiRPHASE, a proprietary and advanced FIR filtering technology, conceived for delivering transparent sound, absolute clarity and perfect stereo images to the listener. The FiRPHASE algorithm optimizes dynamics, amplitude and phase patterns, ensuring at the same time minimum system latency.

Phase Matters

The design of the FIR filter for this specific purpose should start from an accurate measurement of the loudspeaker phase. The FiRPHASE algorithm uses this measurement and adapts the loudspeaker's phase without touching the amplitude equalization. The heart of the advanced technique used by FiRPHASE is a recursive method (Least Squared method) combined with a proprietary algorithm that calculates the best FIR filter coefficients set in according to amplitude and phase constraints. The algorithm corrects phase and amplitude (when necessary) by taking into account the weak points of the transducers and the resonances or cancellations due to the cabinet of the loudspeaker. Despite the design perfection of our transducers and cabinets, we realize that the phase corrections are the "missing point" for the perfection. This technique allows a deep control of phase at mid-low frequencies with relatively small filters, reaching a higher resolution than that one as theory suggests.

Superior Transducers

The ultra-compact full-range 2" RCF drivers are capable of handling high SPL and power with a stunning sound performance. The high excursion 12" RCF woofer extends to the lowest frequencies offering quick and precise punch. The bass-reflex port design avoids air turbulence reducing distortions. The EVOX design features constant directivity coverage of 120°x30°(HxV), providing a perfect coverage pattern. The vertical array is progressively shaped to guarantee consistent sound coverage from the first row to the last.

Powerful Class D Amplifiers

RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. EVOX amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. The EVOX amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.

Bring EVOX With You

The sturdy, ergonomic cabinet is easy to carry, thanks to the handle at the top and the practical bag. Each subwoofer includes a steel pole socket for the array. Stability and safety are assured. The satellite module slides easily into the rear of the subwoofer for compact transportation. Internal structure reinforcements prevent any damage of the cabinet. Cabinets are moulded on a special polypropylene composite material designed to dampen down unwanted vibrations.

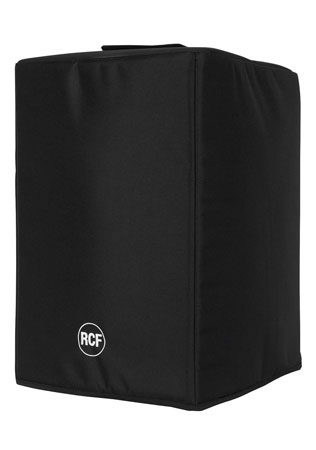

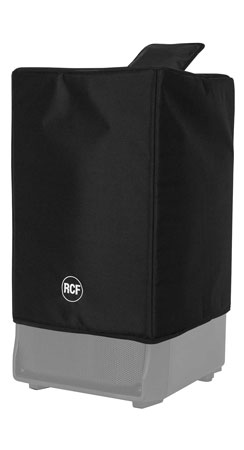

RCF Protective Cover for the Evox J8 Subwoofer.

• Protects the EVOX from scratches and hits.
• Strong construction.

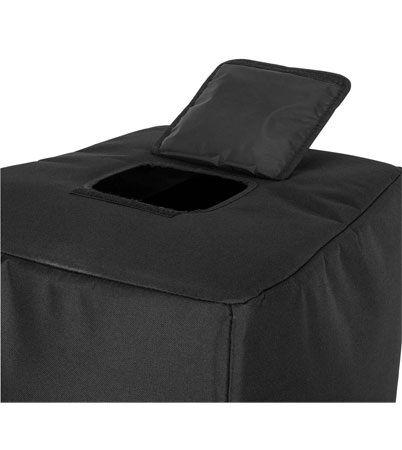

• Features easy access to the top handle to transportation.

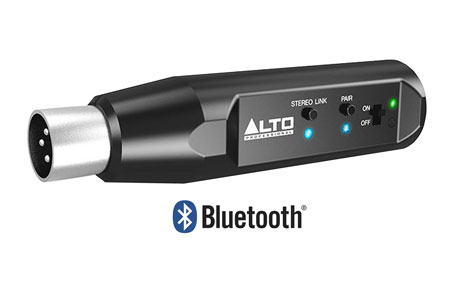

Alto Professional Bluetooth Total Professional XLR-Equipped Rechargeable Bluetooth Audio Receiver

Alto Bluetooth Total Professional XLR-Equipped Rechargeable Bluetooth Audio Receiver.

• XLR-equipped rechargeable Bluetooth receiver
• Stream audio wirelessly to mixers or powered loudspeakers
• Bluetooth links two receivers for cable-free stereo playback
• USB port for charging or continuous AC power for fixed use
• Battery- or AC-powered (power adapter included)

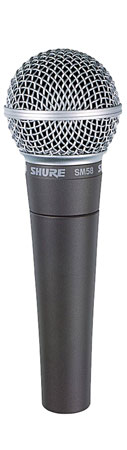

Shure SM58 Vocal Microphone

Legendary vocal microphone, tuned to accentuate the warmth and clarity of lead and back-up vocals.

The legendary Shure SM58 vocal microphone is designed for professional vocal use in live performance, sound reinforcement, and studio recording. Its tailored vocal response for sound is a world standard for singing or speech. A highly effective, built-in spherical filter minimizes wind and breath "pop" noise. A unidirectional (cardioid) pickup pattern isolates the main sound source while minimizing unwanted background noise.

Rugged construction, a proven shock-mount system, and a steel mesh grille ensure that even with rough handling, the SM58 will perform consistently, outdoors or indoors.

SM58 Features:

• Frequency response tailored for vocals, with brightened midrange and bass rolloff.
• Uniform cardioid pickup pattern isolates the main sound source and minimizes background noise.
• Pneumatic shock-mount system cuts down handling noise.
• Effective, built-in spherical wind and pop filter.
• Supplied with break-resistant stand adapter which rotates 180 degrees.
• Legendary Shure quality, ruggedness and reliability.
• Cardioid (unidirectional) dynamic.
• Frequency response: 50 to 15,000 Hz.
• Replacement cartridge: R59.

Technical Specification

RCF Evox J8 Active Two Way Portable Array Specifications:

Acoustical Specifications

• Frequency Response -3 dB: 40 Hz ÷ 20 Hz
• Max SPL: 128 dB
• Horizontal coverage angle: 120°
• Vertical coverage angle: 30°
• Fullrange: 8 x 2.0'', 1.0'' v.c
• Woofer: 12'', 2.5'' v.c

Input/Output Section

• Input signal: bal/unbal
• Input connectors: XRL, Jack
• Output connectors: XLR
• Input sensitivity: -2 dBu/+4 dBu

Processor Section

• Crossover frequencies: 220 Hz
• Protections: Thermal, RMS
• Limiter: Soft Limiter
• Controls: Volume, Boost, Mic/Line

Amplifier Specifications

• Total power: 1400 W PEAK
• High frequencies: 400 W PEAK
• Low frequencies: 1000 W PEAK
• Total power: 700 W RMS
• High frequencies: 200 W RMS
• Low frequencies: 500 W RMS
• Connections: Convection

Cabinet

• Cabinet Material: PP Composite
• Handles: 1 Top
• Pole Mount/Cap: Yes
• Grille: steel
• Colour: Black (EVOX J8), White (EVOX J8-W)

Physical Specifications

• Height: 623/24.53 mm/inch
• Width: 400/15.75 mm/inch
• Depth: 460/18.11 mm/inch
• Net Weight: 23.8/52.47 kg/lbs

RCF Protective Cover for the Evox J8 Subwoofer Specifications:

Shipping information

• Package Depth: 400 mm / 15.75 inches
• Package Height: 80 mm / 3.15 inches
• Package Weight: 2.6 kg / 5.73 lbs
• Package Width: 600 mm / 23.62 inches

Size

• Depth: 490 mm / 19.29 inches
• Height: 590 mm / 23.23 inches
• Weight: 1.19 kg / 2.62 lbs
• Width: 410 mm / 16.14 inches

Standard compliance

• CE marking: Yes

Shure SM58 Specifications

• Type Dynamic (moving coil)
• Frequency Response 50 to 15.000 Hz
• Polar Pattern Unidirectional (cardioid), rotationally symmetrical about microphone axis, uniform with frequency

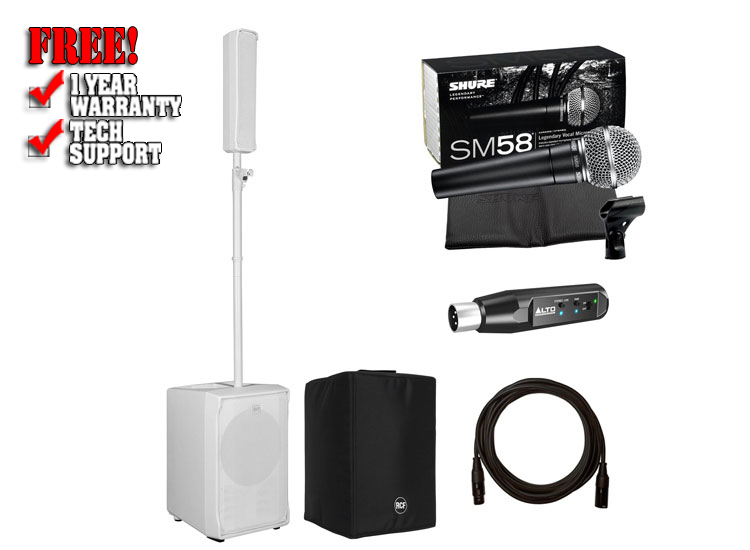

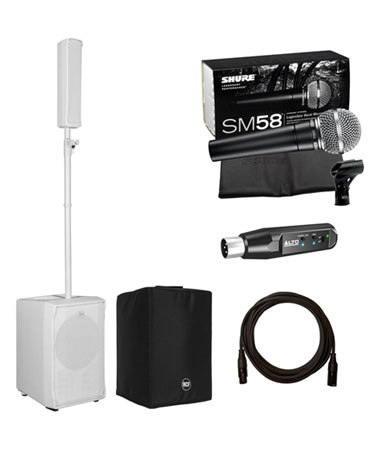

What's in the Box

This Package Includes:

• (1) RCF Evox J8 Active Two Way Portable Array (white)
• (1) RCF Protective Cover for the Evox J8 Subwoofer
• (1) Alto Professional Bluetooth Total XLR-Equipped Rechargeable Audio Receiver
• (1) 20FT Sure-Fit XLR Connecting Cable
• (1) Shure SM58 Vocal Microphone

The RCF Evox J8 Retail Box Includes:

• (1) RCF Evox J8 Active Two Way Portable Array (white)
• (1) Power Cord
• (1) Owner's manual

The COVER-EVOX J8 Retail Box Includes:

• (1) RCF Protective Cover for the Evox J8 Subwoofer

The Bluetooth Total Box Includes:

• (1) Alto Bluetooth Total Bluetooth Audio Receiver
• (1) Power supply
• (1) User manual
• (1) Warranty card

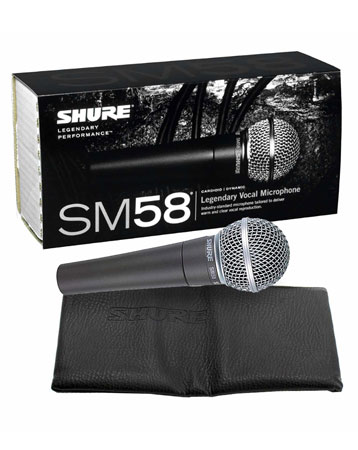

The Shure SM58 Box Includes:

• (1) Shure SM58 Vocal Microphone
• (1) Swivel Stand Adapter
• (1) Storage Bag
• (1) Microphone Clip
• (1) User Guide
