Electro-Voice ZLX-12P 12" Powered Speaker & Subwoofer Package

What is in the Box?

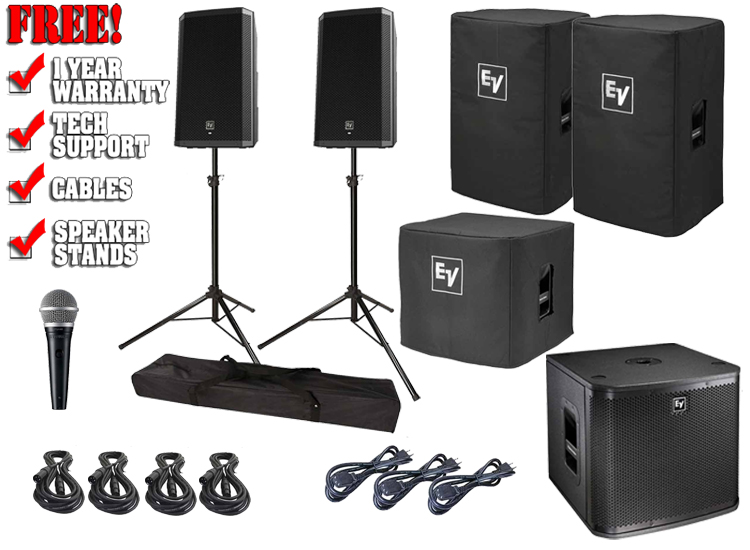

The ZLX12PSub1Pack Package Includes:

• (2) Electro-Voice ZLX-12P 12" Two-Way Powered PA Loudspeakers
• (1) Electro-Voice ZXA1-Sub 12" Powered Subwoofer
• (2) Electro-Voice ZLX-12 and ZLX-12P Protective Speaker Covers [ZLX-12-CVR]
• (1) Electro-Voice ZXA1 Padded Subwoofer Cover [ZXA1-SUB-CVR]
• (3) 20FT XLR Connecting Cables
• (3) Black 10FT 16 Gauge AC Extension Cords
• (2) Ultimate Support JS-TS50-2 – Pair of Tripod Speaker Stands
• (1) Durable Carry Bag (For the TS-100B speaker stands)
• (1) Shure PGA48-XLR Cardioid Dynamic Vocal Microphone

Each Electro-Voice ZLX-12P Box Includes:

• (1) Electro-Voice ZLX-12P 12" Two-Way Powered PA Loudspeaker
• (1) Power Cord
• (1) User Guide

The Electro-Voice ZXA1-Sub Box Includes:

• (1) Electro-Voice ZXA1-Sub 12" Powered Subwoofer
• (1) Power Cord
• (1) User Guide

The PGA48-XLR Box Includes:

• (1) Shure PGA48 Cardioid Dynamic Vocal Microphone
• (1) Microphone Clip
• (1) Zipper Carry Pouch
• (1) XLR-to-XLR Cable
• (1) User Guide

Overview

About this Products

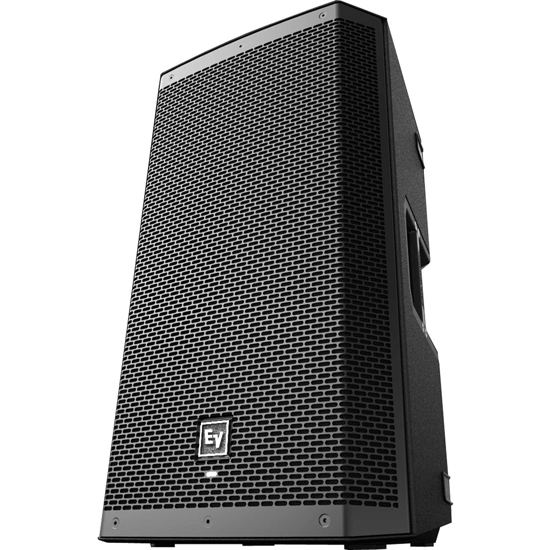

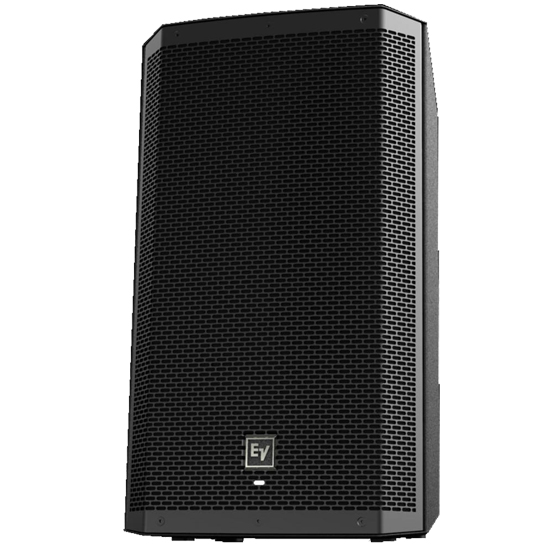

Electro-Voice ZLX-12P 12" Two-Way Powered PA Loudspeaker

With ZLX, Electro-Voice set out with a singular goal: to deliver best-in-class performance across every detail. The Electro-Voice ZLX-12P is a powered PA enclosure with a 15" woofer and 1.5" titanium compression driver that gives you the confidence of the industry's most trusted components. The enclosure is engineered to exacting standards to bring exceptional EV audio quality for larger applications, with or without a subwoofer. The compact, lightweight ZLX-12P was designed to give you power and performance beyond the scope of other small-format loudspeakers, making it a standout choice for smaller-venue sound reinforcement or stage-monitoring.

ZLX combines decades of proven pro-audio engineering know-how with a bold new look and user-friendly features that give you an extraordinary amount of control over your sound – all with the renowned EV quality and reliability the pros trust. The ZLX-12P is perfect for use as either mains or monitors, and represents a new standard for musicians, DJs, and all performers looking for more from a portable powered loudspeaker.

ZLX-12P Features:

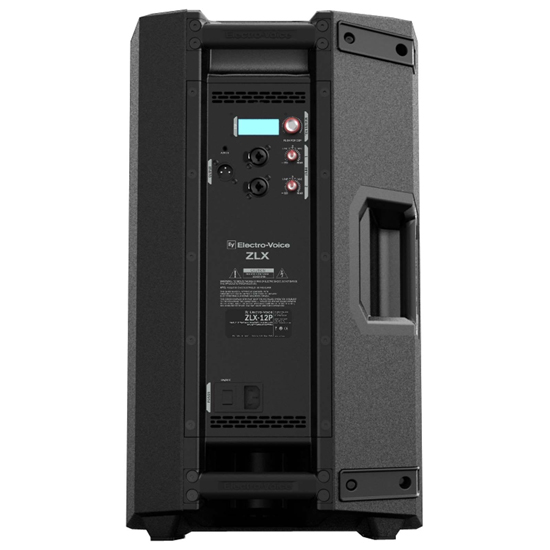

• LCD display and unique single-knob DSP control with presets
• Input level meters and independent amplifier control
• EV-engineered components matched & custom-built 1000-W Class-D amplifier
• Lightweight, super-durable composite construction with unique hi/lo grip design
• 1000 W (Class D); 126 dB max SPL; 50 Hz – 20 kHz
• 12" woofer and 1.5" high-frequency titanium compression driver
• 34 lb. (15.6 kg)
• Patented split-baffle design for superior driver time alignment and enhanced sonic impact and intelligibility

Electro-Voice ZXA1-Sub 12" Powered Subwoofer

Extending the ZXA1's size-defying performance and sleek styling into the low-end realm, the ZXA1-Sub packs 700 W of self-powered punch into a low-profile wood enclosure. Match ZXA1 with ZXA1-Sub and hear just how big a small rig can sound, whether you want to add a tight thump to a DJ set or give the highs and mids some breathing room in a live performance.

Electro-Voice ZXA1-Sub Features:

• Integrated 800 watt power amplifier
• Bi-amplified design with transducer protection
• EV8L 8" high-output LF transducer
• Dh3005 1" exit true compression driver
• 90° x 50° coverage pattern
• Rotatable horn design
• 126 dB maximum SPL
• Selectable high-pass filter for use with subwoofers
• Line and microphone inputs
• Integral monitor angle on enclosure
• Built-in pole mount
• Lightweight (< 20 lbs) with integral handle for easy carrying

Ultimate Support JS-TS50-2 – Pair of Tripod Speaker Stands with FREE Carry Bag

Speaker stands need to be both sturdy and easy to move. The Speaker Stand (Pair) fits on both accounts, giving you a stable environment in which to elevate your speakers to optimum height. Crafted from aluminum and powder-coated for finish durability, these stands will give you years of service. Each stand can hold up to 120 lbs. The strong telescoping and leg collars provide a stable stand for your speakers. The height adjustment collar has a safety pin for extra security. The JS-TS50-2 also includes a handy carry bag for FREE!

JS-TS50-2 Features:

• Part Name: JS-TS50-2
• Long-lasting aluminum construction
• Durable powder-coated finish
• Tripod base is very stable and sturdy
• Stand is height-adjustable
• Carrying bag included for FREE!
• Holds up to 120 lbs.
• Height 46.5" – 81.5"

Shure PGA48 Cardioid Dynamic Vocal Microphone

The PGA48 is a professional quality vocal microphone with an updated industrial design that features a black metallic finish and classic silver ball grille. Legendary Shure quality construction ensures exceptional performance in rigorous environments.

Shure PGA48 Features:

• Tailored cartridge design for clear reproduction of speech.
• Handheld microphone for spoken word and karaoke performance.
• Dynamic cartridge (does not require phantom power) with cardioid polar pattern.

Specifications

Electro-Voice ZLX-12P Specifications

• Frequency Range 50 Hz – 20 kHz
• Maximum SPL 126 dB
• Power Rating 1000 W
• Frequency Response 65 Hz – 18 kHz
• Coverage (Nominal -6 dB) H 90 °
• Coverage (Nominal -6 dB) V 60 °
• LF Transducer EVS-12K, 300 mm (12 in) Woofer
• HF Transducer DH-1K
• Connector Type (2) XLR/TRS Combo Jack, (1) 3.5 mm Input, and (1) XLR link Output
• Enclosure Material Polypropylene
• Grill 18 Gauge Steel with Black Powder Coat
• Height 610 mm (24.02")
• Width 356 mm (14.02")
• Depth 356 mm (14.02")
• Weight Net 15.6 kg (34.39 lbs)
• Shipping Weight 19 kg (41.89 lbs)
• Electro-Voice ZXA1-Sub 12" Powered Subwoofer
• Amplifier Power 800 Watts (RMS)
• Color Black
• Coverage (Nominal -6 dB) Omnidirectional
• Input Connections (2) XLR Stereo Input, (2) XLR Stereo Output
• Power Requirement 120V: 90V-132v, 1.0 A, 50-60Hz 230V: 190V-264V, 0.6A, 50-60Hz
• Speaker Type Powered Subwoofer
• Frequency Response (-3 dB) 53–93 Hz Half Space
• Frequency Response (-10 dB) 44–118 Hz Half Space
• Max. SPL/1m (calc) 126 dB Half Space
• System Power Handling (Continuous/Program/Peak) 700 Watts
• LF Transducer (1) EVS-12S, 305mm (12") Woofer
• Crossover Frequency 100 Hz
• Enclosure Material 9-ply, 15mm Plywood, Internally Braced, with Textured Paint
• Outdoor No
• Grill 16GA Steel with Black Powdercoat
• Height 400 mm (15.75")
• Width 444.5 mm (17.5")
• Depth 457.2 mm (18")
• Weight Net 20.9 kg (46.08 lbs)
• Shipping Weight 26.5 kg (58.42 lbs)

Shure PGA48 Specifications

• Frequency Response 70–15,000 Hz
• Phantom power required? No
• Polar Pattern Cardioid
• Type Dynamic
