Electro-Voice ZLX-12BT and ELX200-12SP Package

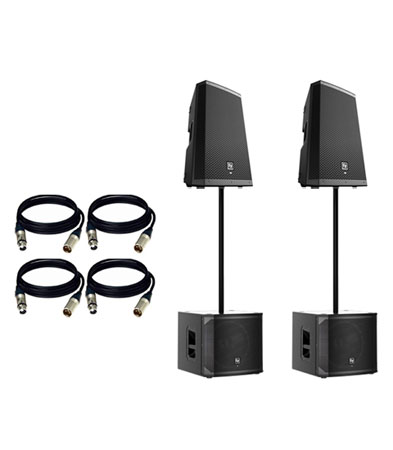

This Package Includes:

• (2) Electro Voice ZLX-12BT 12" Powered Loudspeaker with Bluetooth® Audio
• (2) Electro Voice ELX200-12SP 12-INCH POWERED SUBWOOFER
• (4) 15FT XLR Connecting Cables
• (2) Speaker Pole

Electro Voice ZLX-12BT

12" Powered Loudspeaker with Bluetooth® Audio*

High-quality Bluetooth® audio streaming for background music or musical accompaniment.

QuickSmartDSP features best-in-class processing. Easy setup via four presets, sub/top system-match, two-band EQ, five user-programmable presets, visual monitoring of limiter status, input level control and meters, and master volume control to optimize gain structure, all via LCD.

High-efficiency 1000 W Class-D power amplifier delivers up to 126 dB peak SPL utilizing transducers designed and engineered by EV.

EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage, minimal distortion, and maximized acoustical loading.

Three optimally located handles combined with a rugged composite structure provides the most portable professional sound speaker on the market.

NOW STREAMING: Electro-Voice ZLX best-selling speaker family adds Bluetooth audio streaming models

ZLX portable loudspeakers offer the best performance and reliability in their class - with components and engineering that work together to make it quicker and easier than ever to take control of your sound, whatever the gig. Now with Bluetooth® enabled wireless audio streaming, legendary ZLX performance becomes even more convenient with the ability to connect to any mobile device for streaming your music library.

Featuring custom drivers housed in an innovative cabinet design, the two new wireless, compact, and versatile ZLX models make EV's renowned sound quality and rugged reliability more accessible than ever before.

Specification

• Frequency Response (-3 dB)1 65 Hz - 18 kHz
• Frequency Range (-10 dB) 50 Hz - 20 kHz
• Maximum SPL2 126 dB
• Coverage (H x V) 90° x 60°
• Power Rating 1000 W
• LF Transducer EVS-12K, 300 mm (12 in) woofer
• HF Transducer DH-1K
• Connectors (2) XLR/TRS Combo Jack (1) 3.5 mm Input and (1) XLR link Output
• Enclosure Polypropylene
• Grille 18 Gauge steel with black powder coat
• Color Black
• Dimensions (H x W x D) 610 mm x 356 mm x 356 mm (24 in x 14 in x 14 in)
• Net Weight 15.6 kg (34.3 lb)
• Shipping Weight 19.0 kg (41.8 lb)
• Power Consumption3 100 - 240 V~, 50 - 60 Hz, 0.8 - 0.5 A

Each Electro-Voice ZLX-12BT Box Includes:

• (1) Electro-Voice ZLX-12BT 12" Powered Loudspeaker with Bluetooth® Audio
• (1) Power Cord
• (1) User Guide

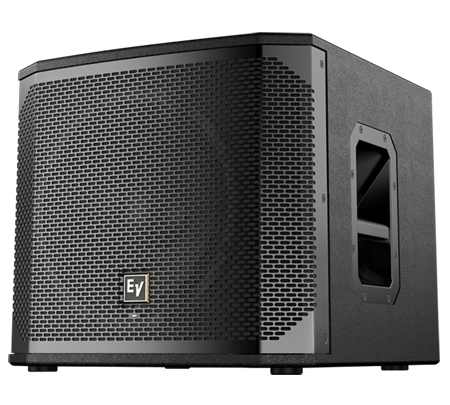

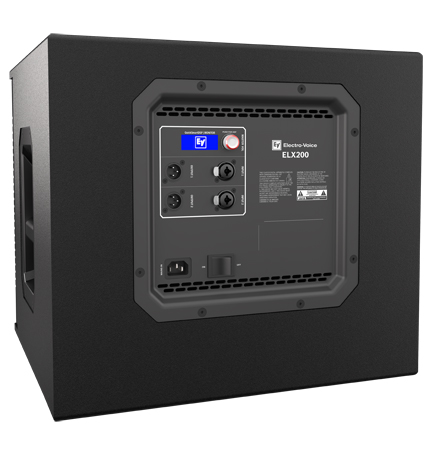

Electro Voice ELX200-12SP

12-INCH POWERED SUBWOOFER

EV QUICKSMART MOBILE APPLICATION: QUICKLY AND WIRELESSLY CONFIGURE, CONTROL AND MONITOR UP TO SIX ELX200 LOUDSPEAKERS SIMULTANEOUSLY, AND RECEIVE IMMEDIATE NOTIFICATION DURING CRITICAL PERFORMANCE CONDITIONS. BLUETOOTH® IS AVAILABLE IN SELECT COUNTRIES.

QUICKSMARTDSP FEATURES BEST-IN-CLASS PROCESSING. EASY SETUP VIA THREE PRESETS, SUB/TOP SYSTEM-MATCH, FIVE USER-PROGRAMMABLE PRESETS, VISUAL MONITORING OF LIMITER STATUS, INPUT LEVEL CONTROL AND METERS, AND MASTER VOLUME CONTROL TO OPTIMIZE GAIN STRUCTURE, ALL VIA LCD.

HIGH-EFFICIENCY 1200 W CLASS-D POWER AMPLIFIER DELIVERS UP TO 129 DB PEAK SPL UTILIZING ULTRAEFFICIENT, HIGH-SENSITIVITY TRANSDUCER DESIGNED AND ENGINEERED BY EV.

IDEAL FOR PORTABLE AND INSTALLED APPLICATIONS. PROFESSIONAL-GRADE HARDWARE: INTEGRATED M20 THREADED POLE MOUNT PLATE AND TWO-HANDLE DESIGN FOR EASY LIFTING.

ELX200-12SP features high-efficiency Class-D power amplifiers (up to 1200 W) with integrated QuickSmartDSP, and delivers up to 129 dB SPL utilizing transducers designed and engineered by EV (12-inch EVS-12L woofer). Powered subwoofer models allow easy setup via three presets (Music, Live, Club), sub/top system-match crossovers, three-band EQ, five user-programmable presets (Store and Recall settings), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure. ELX200 powered models are ideal for portable and installed applications, with lightweight and compact 15-mm wood enclosures, integrated M20 threaded pole polemount plate, and two-handle design for easy lifting.

The new QuickSmart Mobile wireless control and monitoring application, using Bluetooth® Low Energy (BTLE) technology, allows intuitive system control, configuration and monitoring of up to six powered ELX200 loudspeakers simultaneously. Receive alerts when your system is being overdriven, and control your system while in front of your speakers, not behind. Bluetooth® is available in select countries.

SPECIFICATIONS

• Available Color Black
• Connector Type (2) XLR/TRS combo jacks and (2) XLR link outputs
• Depth 457 mm
• Enclosure Material 15 mm plywood with EVCoat
• Family ELX200
• Frequency Range (-10 dB) 41 Hz - 165 Hz
• Frequency Response (-3 dB) 49 Hz - 135 Hz Hz
• Grill 18 AWG steel with powdercoat
• Height 397 mm
• LF Transducer EVS-12L 300 mm (12 in)
• Low Pass Frequency Adjustable: 80 Hz, 100 Hz, 120Hz, 150 Hz
• Max. SPL/1m (calc) 129 dB
• Power Consumption 100 - 240 V~, 50 - 60 Hz, 1.8A
• Power Rating 1200 W
• Powered or Passive Powered
• Shipping Weight 22.3 kg
• Speaker Type Subwoofer
• Weight Net 19.1 kg
• Width 445 mm
• Woofer Size 12 inch
