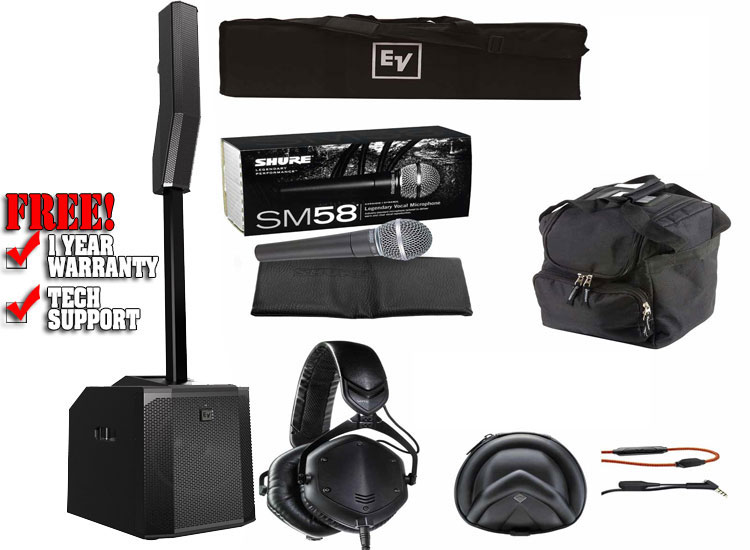

Electro-Voice Evolve 50 Portable Column Bluetooth PA System with Over-the-Ear Headphones & Vocal Microphone Package

Overview

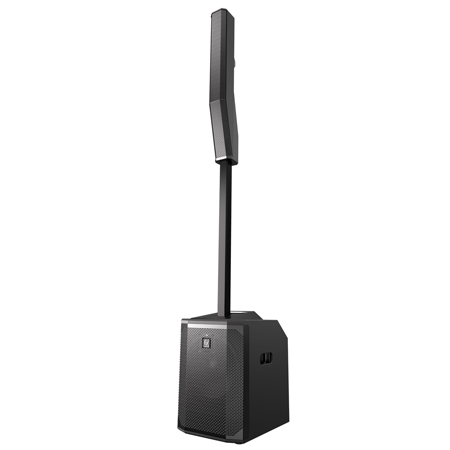

Electro-Voice Evolve 50 Portable Column PA System with Bluetooth

Designed to deliver an uncompromising combination of light weight, low-profile looks, and superior Electro-Voice audio quality, the EVOLVE 50 sets a new performance standard for powered column systems.

The perfect choice for DJs, mobile entertainers, bands, singer/songwriters, and any venue where high-output portable sound is needed - no other column system currently available sounds as good, looks as good, or is as easy to use. The smooth clarity of the EV sound in a sleek new form factor.

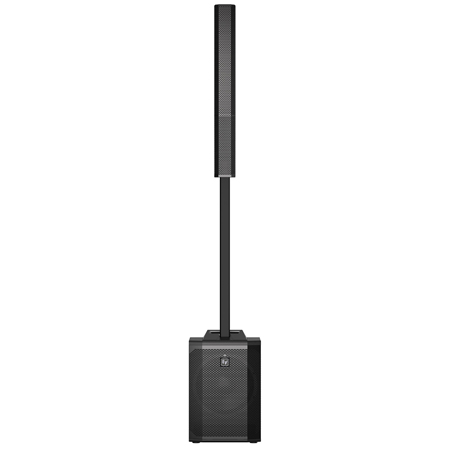

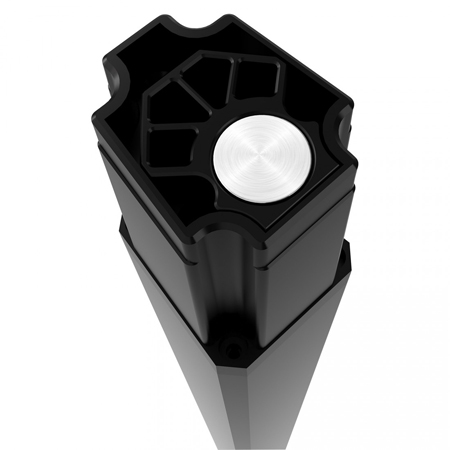

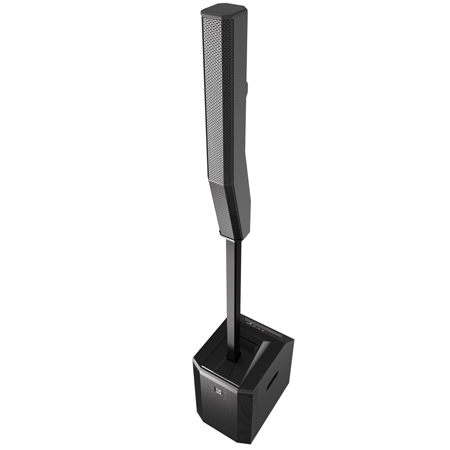

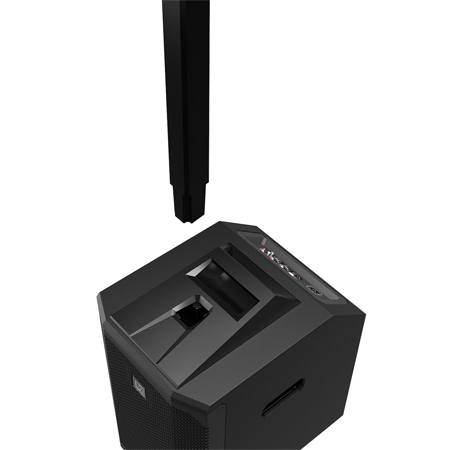

The EVOLVE 50 Portable Column System is a three component loudspeaker system powered by a 1000 W Class-D amplifier and driven by Electro-Voice's QuickSmartDSP. The system consists of a 15 mm wooden, ported, powered subwoofer enclosure that houses a 12" subwoofer capable of a functional frequency output down to 37 Hz. The bi-directional aluminum pole's connection to the subwoofer is secured using a magnet, and the column array is gravity-held to the sub pole. The signal is internally routed to the components.

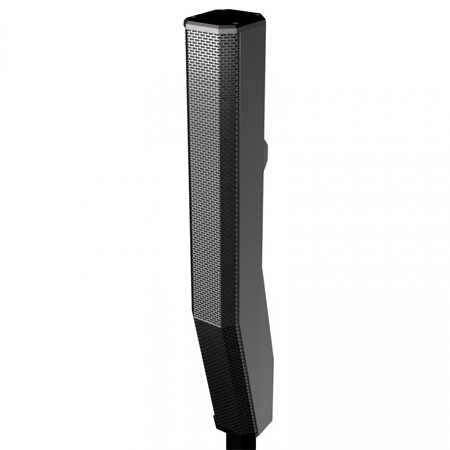

Eight 3.5" neodymium drivers in the column array coupled with the 12" subwoofer delivers up to 127 dB SPL. The eight composite waveguides control high frequencies with 120° of horizontal coverage, and 40° of asymmetrical (down-facing) vertical coverage to ensure suitable output for sitting and standing audiences. The sub pole and column array come prepackaged in a carrying bag.

The processing engine allows for easy setup via four presets (Music, Live, Speech, and Club), three-band EQ, five user-programmable presets (Store and Recall settings), output delay, phantom power (+15V), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure.

The new Electro-Voice QuickSmart Mobile application utilizes Bluetooth Low Energy (BTLE) technology for the wireless configuration, control, and monitoring of up to six EVOLVE 50 systems simultaneously. High resolution Bluetooth audio streaming adds convenience for wireless music playback in breakout rooms, intermission, and musical accompaniment.

Electro-Voice Evolve 50 Portable Column PA System Features:

• Clean, compact design built to blend in Lightweight column speaker array with cable-free connection quickly secures pole to sub.
• Easy transport and setup Ergonomically designed handles on both the array and the sub to enhance portability. Angled interface gives user easy access to make adjustments and connections on input panel.
• Real PA performance Legendary EV audio quality via eight 3.5-inch full-range drivers and a 12-inch subwoofer, powered by a three-channel amp for high output. Cutting-edge components and tuning provide full-sized sound in a super-streamlined, plug-and-play format.
• Wide, even coverage Custom waveguides provide ultra-wide 120° horizontal coverage and array-formed 40° asymmetrical vertical pattern control. No energy is wasted exceptional audience coverage and clarity from front to back.
• High-quality Bluetooth audio For convenient streaming of background music or musical accompaniment direct from any mobile device.
• Wireless control and monitoring via the new Bluetooth QuickSmartMobile app Quickly configure up to six EVOLVE 50 systems simultaneously, and receive immediate notification during critical performance conditions.

Electro-Voice Evolve 50 Portable Column PA System Features:

Features SM58 Handheld Microphone

This package includes the BLX4 receiver and the BLX handheld transmitter with a SM58 mic capsule. The BLX transmitter features a popular mic capsule, a rugged and reliable ABS polymer chassis and frame, a 10 dB pad, an On/Off ergonomic push-button switch, and a single bi-color LED battery indicator. The BLX4 is a half-rack sized wireless receiver built into a rugged, polymer ABS chassis. It features advanced capabilities usually unavailable in wireless systems in this price range.

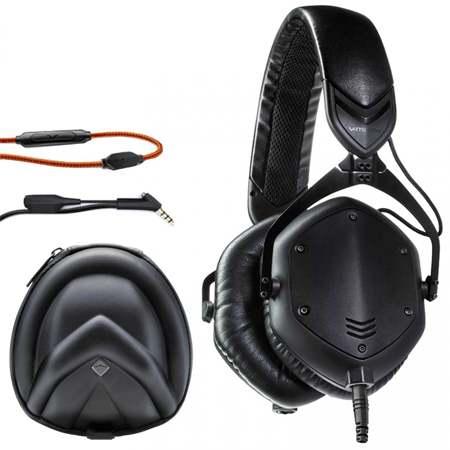

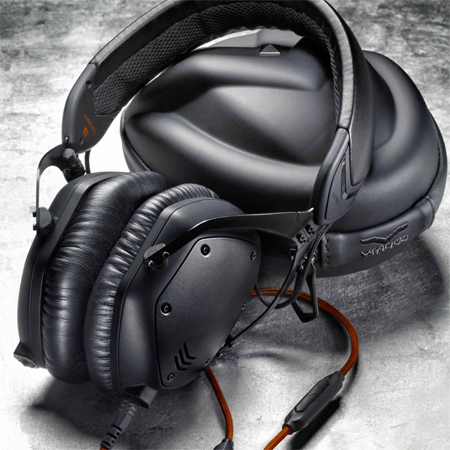

V-Moda CrossFade M-100 Over-the-Ear Headphones (matte black metal)

• 50mm Dual-Diaphragm Driver (Patent Pending) - Inner and outer rings separate the bass from bleeding into the mids and highs.
• Master Crafted Materials - More expensive driver and components than peer headphones at this price range.
• Analog Noise Isolation - Naturally cut out the distractions of jet engines, crying babies and crowd noise.
• No Batteries or Artificial Processing - Powerful, pure sound without the pollution of two extra digital-to-analog conversions of battery powered headphones.
• Minimal sound leakage - Immersive sound for you without bothering others view details.
• Consistent Driver Quality - Quality tested at 6 frequencies to maintain stricter consistency than the competition, often by an order of magnitude.
• 4+ Years of Comfort R&D - Ergonomic headband and hexagon shape that minimizes the force on your head, ears and gap.
• BLISS Memory Foam Cushions - Naturally forms to your ears to provide supreme comfort and noise isolation.

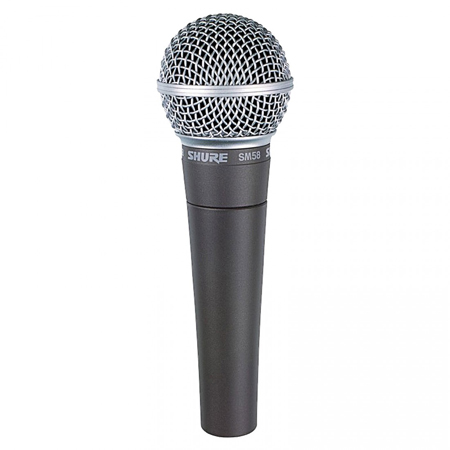

Shure SM58 Vocal Microphone

Legendary vocal microphone, tuned to accentuate the warmth and clarity of lead and back-up vocals.

The legendary Shure SM58 vocal microphone is designed for professional vocal use in live performance, sound reinforcement, and studio recording. Its tailored vocal response for sound is a world standard for singing or speech. A highly effective, built-in spherical filter minimizes wind and breath "pop" noise. A unidirectional (cardioid) pickup pattern isolates the main sound source while minimizing unwanted background noise.

Rugged construction, a proven shock-mount system, and a steel mesh grille ensure that even with rough handling, the SM58 will perform consistently, outdoors or indoors.

SM58 Features:

• Frequency response tailored for vocals, with brightened midrange and bass rolloff.
• Uniform cardioid pickup pattern isolates the main sound source and minimizes background noise.
• Pneumatic shock-mount system cuts down handling noise.
• Effective, built-in spherical wind and pop filter.
• Supplied with break-resistant stand adapter which rotates 180 degrees.
• Supplied with break-resistant stand adapter which rotates 180 degrees.
• Cardioid (unidirectional) dynamic.
• Frequency response: 50 to 15,000 Hz.
• Replacement cartridge: R59.

5 Pack of 8" Reusable Hook and Loop Cable Ties

Bring order back to cable clutter. Bundle speaker, power, and lighting cords with these easily adjustable, reusable ties. The simple one-piece self-gripping design wraps onto itself for a secure hold and professional appearance.

Universal Protective Lighting / Utility Case

Arriba Cases manufactures a wide variety of soft cases/bags designed for various lighting & audio products. Arriba Cases/bags are made to the highest standards and can be used for a wide variety of uses.

• Works with all brands of lighting fixtures.
• Affordable padded soft cases designed to protect and extend the life of mobile lighting fixtures.
• Secured zipped pocket for storing extra lamps, clamps, cables and other accessories.
• Secure "view windows" on Arriba Cases make it easy to identify specific fixtures even after they've been packed, or place your business card in the window for personal identification.
• Extra wide mouth design allows gear to be removed quickly and easily.

Electro-Voice Evolve 50 Portable Column PA System Specifications:

• Available Color : Black

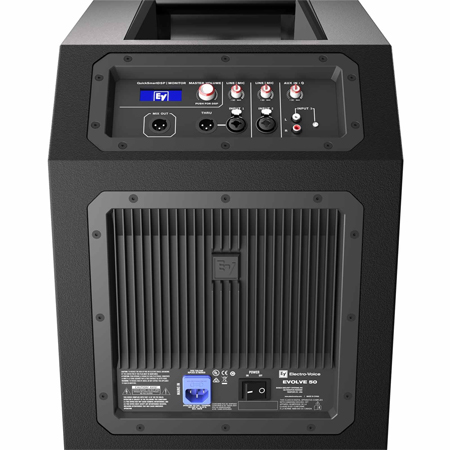

• Connector Type : 2x XLR/TRS combo jack input 1x 3.5 mm Input 1x Stereo RCA input 1x Wireless Bluetooth® audio input 1x XLR THRU output 1x XLR MIX OUT output
• Coverage (Nominal -6 dB) H : 120°
• Coverage (Nominal -6 dB) V : 40°
• Crossover Frequency : 200Hz
• Depth Sub: 18.5 in; 471mm Column: 6.9 in; 172mm Pole: 2.2 in; 55mm
• Enclosure Material sub - 15mm plywood, column - poly composite, pole - aluminum
• Family : EVOLVE 50
• Frequency Range (-10 dB) : 37 Hz - 20k Hz
• Frequency Response (-3 dB) : 43 Hz - 20 kHz
• Grill : Steel with black powder coat
• HF Power Handling : 500Watts
• LF Power Handling : 500Watts
• Max. SPL/1m (calc) : 127dB
• Maximum SPL (1% THD) Sub: 20.9 in; 230mm Column: 32.5 in; 825mm Pole: 36.6 in; 929dB
• Power Consumption : 100 - 240 V AC, 50 - 60 Hz, 1.5 - 0.6A
• Power Rating : 1000W
• Powered or Passive : Powered
• Shipping Weight : 69lbs (31.3kg)
• Speaker Type : Full-Range
• Weight Net : 57.87lbs (26.25kg)
• Width Sub: 13.6 in; 345mm Column: 4.0 in; 102mm Pole: 1.9 in; 48.5mm
• Woofer Size : 12inch

Shure SM58 Specifications

• Type : Dynamic (moving coil)
• Frequency Response : 50 to 15.000 Hz
• Polar Pattern : Unidirectional (cardioid), rotationally symmetrical about microphone axis, uniform with frequency

Velcro Cable Ties Specifications

• Dimensions : 8" Length x 3/4" Width 20cm Length x 2cm Width

Case Specifications

• Case Size 9.5" Long x 9.5" Wide x 13" High
• Inside Case Dimensions: 9.5" x 9.5" x 13" / 241mm x 241mm x 330mm

MEE Audio M6 PRO Specifications

This Package Includes:

• (1) Electro-Voice Evolve 50 Portable Column PA System with Bluetooth
• (1) Shure BLX24/SM58 Handheld Wireless System
• (2) 20FT Red Braided Sure-Fit XLR Connecting Cables
• (5) 8" Reusable Hook and Loop Cable Ties
• (1) Universal Protective Lighting / Utility Case
• (1) MEE Audio M6 PRO Universal-Fit Noise-Isolating Musician's In-Ear Monitors - Black

The Evolve 50 System is shipped in two separate boxes

• (2) Electro-Voice Evolve 50 Portable Column PA Systems with Bluetooth

The Evolve 50 System is shipped in two separate boxes

• Box one contains the EVOLVE50-SB-US Evolve 50 Subwoofer
• Box two contains the EVOLVE50-TB Column Array

The Electro Voice Evolve 50 Subwoofer Box Contains:

• (1) Subwoofer
• (1) Power cord
• (1) EVOLVE 50 installation manual
• (1) Warranty card
• (1) Safety manual

The Electro Voice Evolve 50 Column Array Box Contains:

• (1) Column array
• (1) Sub pole

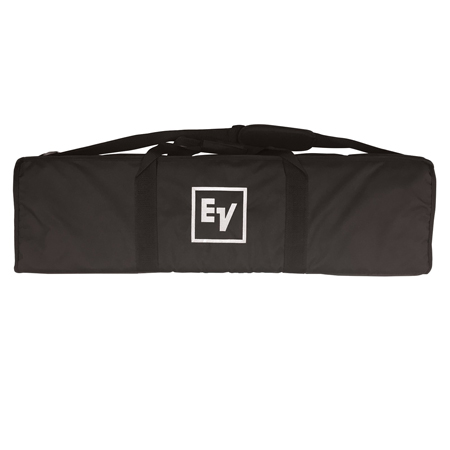

• (1) Carry bag

The M-100 Box Includes::

• (1) Crossfade M-100
• (1) Exoskeleton carry case
• (1) Carabiner clip
• (1) Reinforced SpeakEasy Microphone cable
• (1) Reinforced SharePlay audio cable
• (1) ¼" adapter
• (2) V-CORK
• (1) V-MODA sticker

The XC-T5 Box Includes:

• (5) 8" Reusable Hook and Loop Cable Ties

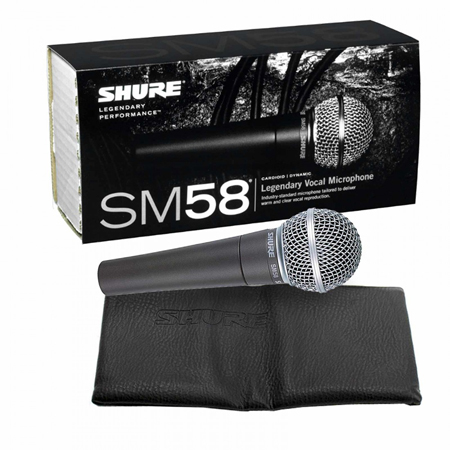

The Shure SM58 Box Includes:

• (1) Shure SM58 Vocal Microphone
• (1) Swivel Stand Adapter
• (1) Storage Bag
• (1) Microphone Clip
• (1) User Guide
