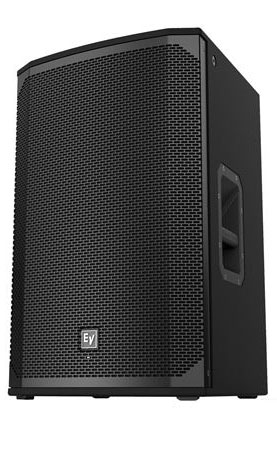

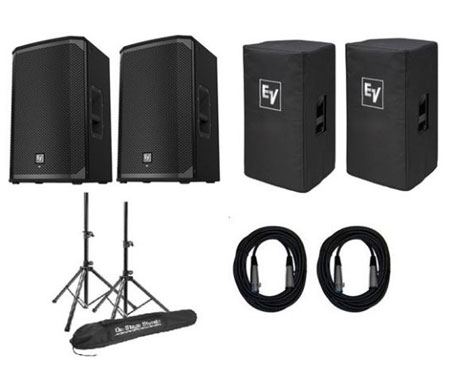

Electro Voice EKX15P Loudspeaker Package

Features:

• QuickSmartDSP features best-in-class processing, EV's signature single-knob user interface, and intuitive menu navigation via LCD
• High-efficiency 1500 W Class D power amplifier delivers up to 134 dB peak SPL on the EKX-15P via high-sensitivity transducers designed and engineered by EV
• Intelligent thermal management with a variable-speed fan controlled by multiple onboard sensors, ensuring superior performance and reliability in demanding environmental conditions
• EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage
• Lightweight, compact 15-mm wood enclosure with internal bracing, durable EVCoat finish, eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles

Specifications

Electro-Voice EKX15P Powered Speaker Specifications

• Frequency Response (-3 dB): 55 Hz - 18 kHz
• Frequency Range (-10 dB): 48 Hz - 20 kHz
• Maximum SPL: 134 dB
• Coverage (H x V): 90 x 60 degrees
• Power Rating: 1500 W
• LF Transducer: EVS-15M 381 mm (15 in)
• HF Transducer: DH-1M 1-inch titanium compression driver
• Crossover Frequency: 1.7 kHz

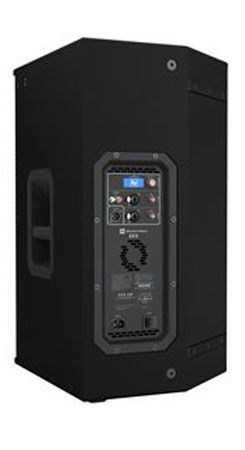

• Connectors: (1) Stereo RCA input, (2) XLR/TRS combo jack, and (1) XLR link output
• Enclosure: 15 mm, plywood with EVCoat
• Grille: 18 AWG steel with powdercoat
• Suspension: (8) M10 threaded mounting points
• Dimensions (HxWxD): 27 x 17 x 17 inches (685x432x429mm)
• Weight: 24.4 kg (53.9 lb)
• Power Consumption: 1.8 A
