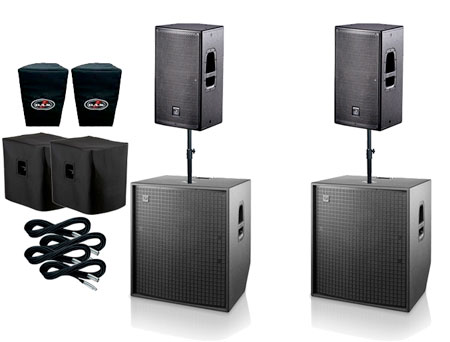

DAS Audio Action 15A/118A Package 2

Features:

• Compact multi-purpose system with monitor position
• Ultra lightweight Class D amplifier
• Switch-mode power supply
• Reduced size and weight
• Pole mount socket
• Rigging points

Technical Data:

• Amplifier Power 1000 W peak, 500 W continuous
• Class D, Biamplified
• Frequency Range (-10 dB) 45 Hz - 20 kHz
• Rated Peak SPL at 1 m 131 dB
• Dispersion 80° x 50°
• Enclosure Material Birch Plywood
• Color/Finish Black/ISO-Flex Paint
• Connectors INPUT: Female XLR
• LOOP THRU: Male XLR
• AC INPUT: powerCON
• AC Requirements 115 V, 3 A, 50 Hz/60 Hz
• 230 V, 1.5 A , 50 Hz/60 Hz
• Dimensions (H x W x D) 77.4 x 44.6 x 43.6 cm
• 30.5 x 17.6 x 17.2 in
• Weight 26 kg (57.2 lb)

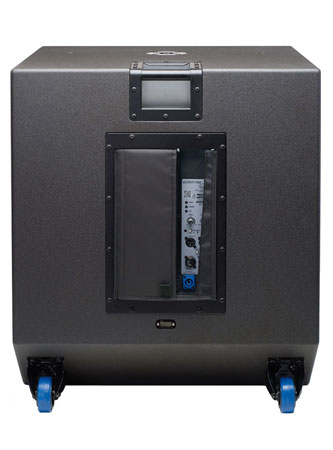

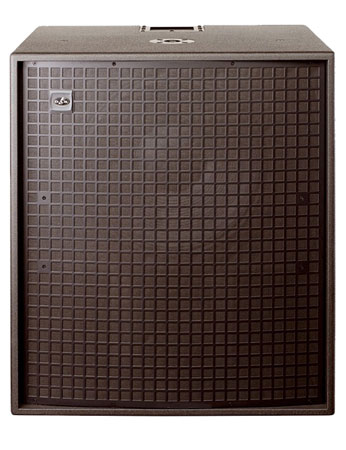

Action 118A Features:

• Powered horn-bass subwoofer system
• High output 18" loudspeaker
• Polarity switch
• Filtered output defeat switch
• Variable 80 -125 Hz high-pass filter
• Gain control

Technicaln Data:

• Nominal LF Amplifier Power 3200 Wpeak,1600 Wcontinuous (Class D)
• Frequency Range (-10 dB) Loud: 50 Hz - 125 Hz
• Deep: 45 Hz -125 Hz
• Rated Peak SPL at 1 m 137 dB
• Internal Crossover Variable LPF 80 Hz-125 Hz
• Connectors INPUT: 2 x Female
• XLR LOOP THRU: 2 x Male XLR
• AC INPUT: powerCON
• AC OUTPUT: powerCON
• AC Requirements 115 V, 5.4 A, 50 Hz/60 Hz
• 230 V, 2.7 A, 50 Hz/60 Hz
• Enclosure Material Birch Plywood
• Color/Finish Black ISO-flex Paint
• Dimensions (H x W x D) 79.1 x 69.0 x 56.7 cm
• (31.14 x 27.17 x 22.32 in)
• Weight 55 kg (121 lb)
