DAS Action 15A 15inch Powered Speakers & Dual 18inch Subwoofers Package

Overview

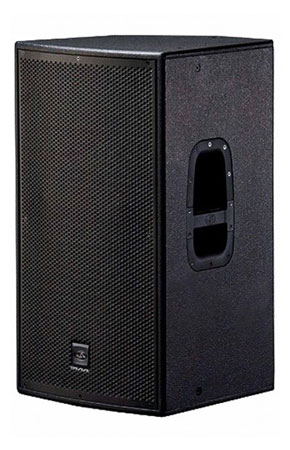

DAS Action 15A 15" 2-Way Powered Speaker

The Action 15A is a powered two-way system designed for exceptional performance in a wide range of applications.

The 1000 W peak Class D amplifier provides extended bandwidth, improved dynamic range and exceptionally low distortion. The Digital Signal Processing (DSP) incorporated in the Action series provides unparalleled control over the audio signal. Critical parameters have been fine tuned for each cabinet.

The D.A.S. 15Mi loudspeaker provides powerful low frequency reproduction. High frequencies are handled by the M-34 compression driver which uses a 1" exit and titanium diaphragm for exceptional performance in all types of applications.

The Action 15A asymmetrical enclosure design allows it to be used in the monitor position. Made from Birch plywood and finished in a durable black paint, the cabinet incorporates two side-located handles and a 35 mm pole mount socket for use with a stand.

DAS Action 15A Features:

• Compact full-range system.
• Ultra lightweight Class D amplifier.
• Switch-mode power supply.
• Reduced size and weight.
• Pole mount socket.
• Rigging points.

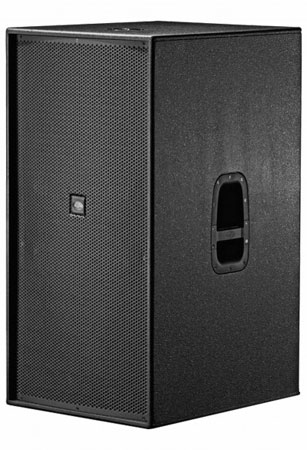

DAS Action 218A Dual 18" High Performance Powered Subwoofer

The Action 218A is a powered subwoofer system designed to provide outstanding performance in terms of output power, bandwidth extension and distortion. The Action 218A incorporates the 18H4 loudspeaker equipped with 4" voice coils, offering an excellent power handling capacity, reduced distortion and power compression.

The Action 218A incorporates a new high power (3200 W peak) amplifier design providing ample headroom and accuracy. The amplifier uses the latest Class D design.

The subwoofer is designed to be stacked vertically, reducing the units footprint and allowing for more "on-stage" space.

DAS Action 218A Features:

• Powered high performance subwoofer system.
• 3200 W peak Class "D" amplifier.
• Two 18H4 loudspeakers with 4" voice coils.
• Front loaded bass-reflex configuration.

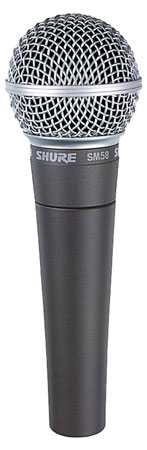

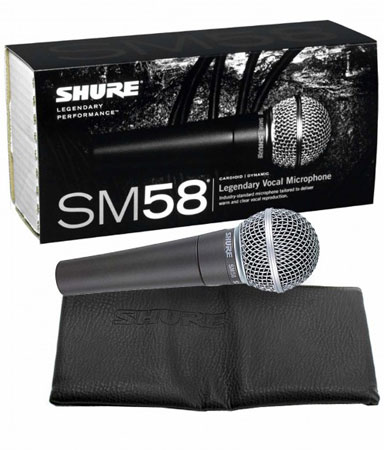

Shure SM58 Vocal Microphone

Legendary vocal microphone, tuned to accentuate the warmth and clarity of lead and back-up vocals.

The legendary Shure SM58 vocal microphone is designed for professional vocal use in live performance, sound reinforcement, and studio recording. Its tailored vocal response for sound is a world standard for singing or speech. A highly effective, built-in spherical filter minimizes wind and breath "pop" noise. A unidirectional (cardioid) pickup pattern isolates the main sound source while minimizing unwanted background noise.

Rugged construction, a proven shock-mount system, and a steel mesh grille ensure that even with rough handling, the SM58 will perform consistently, outdoors or indoors.

SM58 Features:

• Frequency response tailored for vocals, with brightened midrange and bass rolloff
• Uniform cardioid pickup pattern isolates the main sound source and minimizes background noise
• Pneumatic shock-mount system cuts down handling noise
• Effective, built-in spherical wind and pop filter
• Supplied with break-resistant stand adapter which rotates 180 degrees
• Legendary Shure quality, ruggedness and reliability
• Cardioid (unidirectional) dynamic
• Frequency response: 50 to 15,000 Hz
• Replacement cartridge: R59

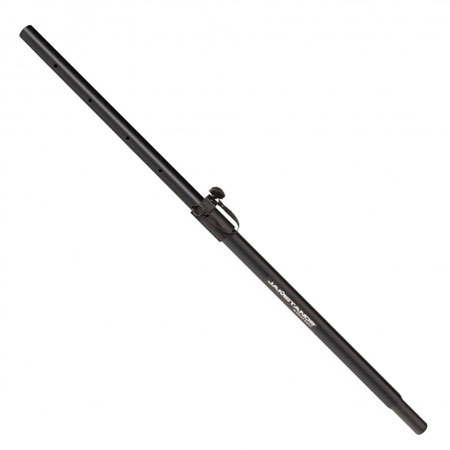

Ultimate Support JS-SP50 Adjustable Subwoofer Pole

The JS-SP50 is exactly what you need for your subwoofer/satellite speaker PA system. It's adjustable in height from 31.5" to 52.5" and mounts between a subwoofer cabinet with a top mounting hole and a speaker with a bottom mounting hole (1.375" for both). The JS-SP50 features both a friction locking knob and a security pin system and is made from durable steel.

JS-SP50 Features:

• Heavy-duty construction
• Height adjustable from 31.5" to 52.5"
• Friction locking knob with security pin
• 1 3/8" upper and lower tubes

Technical Specification

DAS Action 15A Specifications

Technical Data

• Amplifier Power 1000 W peak, 500 W continuous
• Class D, Biamplified
• Frequency Range (-10 dB) 45 Hz - 20 kHz
• Rated Peak SPL at 1 m 131 dB
• Dispersion 80° x 50°
• Enclosure Material Birch Plywood
• Color/Finish Black/ISO-Flex Paint

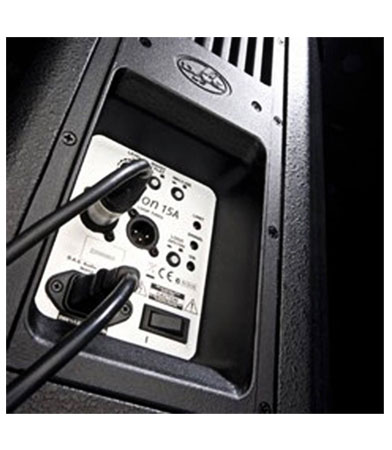

• Connectors INPUT: Female XLR
• LOOP THRU: Male XLR
• AC INPUT: powerCON
• AC Requirements 115 V, 3 A, 50 Hz/60 Hz
• 230 V, 1.5 A , 50 Hz/60 Hz
• Dimensions (H x W x D) 77.4 x 44.6 x 43.6 cm
• 30.5 x 17.6 x 17.2 in
• Weight 26 kg (57.2 lb)

DAS Action 218A Specifications

• Nominal LF Amplifier Power 3200 W peak, 1600 W continuous
• Frequency Range (-10 dB) 35 Hz - 160 Hz
• Rated Peak SPL at 1 m 140 dB
• Internal Crossover Variable LPF 100 Hz-160 Hz

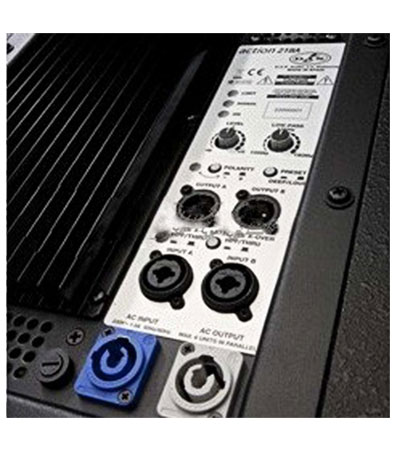

• Connectors NPUT: 2 x Female XLR
• LOOP THRU: 2 x Male XLR
• AC INPUT: powerCON
• AC OUTPUT: powerCON
• AC Requirements 115 V, 6 A, 50 Hz/60 Hz
• 230 V, 3 A, 50 Hz/60 Hz
• Enclosure Material Birch Plywood
• Color/Finish Black/ISO-flex Paint
• Dimensions (H x W x D) 106.7 x 54 x 67 cm
• 42 x 21.3 x 26.4 in
• Weight 63 kg (138.6 lb)

Shure SM58 Specifications

• Type Dynamic (moving coil)
• Frequency Response 50 to 15.000 Hz
• Polar Pattern Unidirectional (cardioid), rotationally symmetrical about microphone axis, uniform with frequency

WHAT'S IN THE BOX

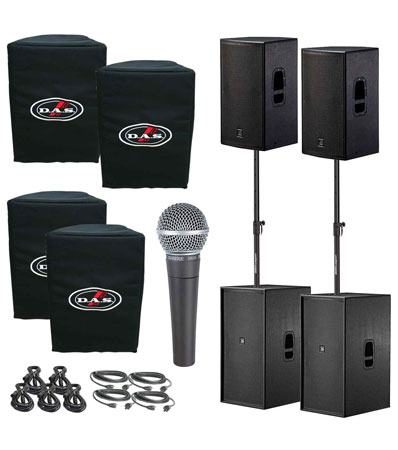

This Package Includes:

• (2) DAS Action 15A 12" Powered Speakers

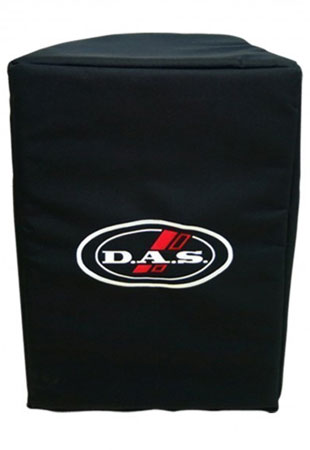

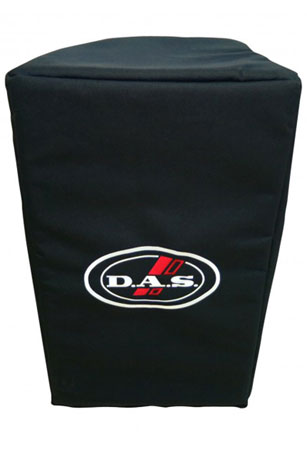

• (2) DAS Action 15A Protective Speaker covers
• (2) DAS Action 218A Dual 18" High Performance Powered Subwoofers
• (2) DAS Action 218A Dual 18" High Performance Powered Subwoofer Covers
• (1) Shure SM58 Vocal Microphone
• (2) Ultimate Support JS-SP50 Adjustable Subwoofer Poles
• (4) Black 10FT 16 Gauge AC Extension Cords
• (5) 20FT Sure-Fit XLR Connecting Cables

Each DAS Action 15A Box Includes:

• (1) DAS Action 15A Powered Speaker
• (1) Power Cord
• (1) User Manual

Each DAS Action 218A Box Includes:

• (1) DAS Action 218A Dual 18" High Performance Powered Subwoofer
• (1) Power Cord
• (1) User Manual

The Shure SM58 Box Includes:

• (1) Shure SM58 Vocal Microphone
• (1) Swivel Stand Adapter
• (1) Storage Bag
• (1) Microphone Clip
• (1) User Guide

Each Ultimate Support JS-SP50 Box Includes:

• (1) Ultimate Support JS-SP50 Adjustable Subwoofer Pole
