DAS Action 12A 12" Powered Speakers & Dual 18" Subwoofer Package

Overview

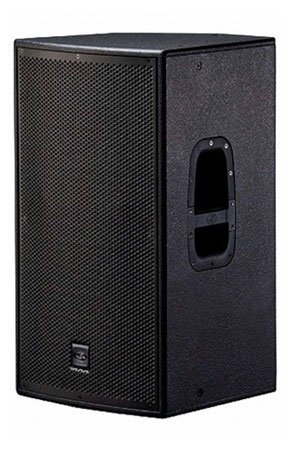

DAS Action 15A 15" 2-Way Powered Speaker

The Action 15A is a powered two-way system designed for exceptional performance in a wide range of applications.

The 1000 W peak Class D amplifier provides extended bandwidth, improved dynamic range and exceptionally low distortion. The Digital Signal Processing (DSP) incorporated in the Action series provides unparalleled control over the audio signal. Critical parameters have been fine tuned for each cabinet.

The D.A.S. 15Mi loudspeaker provides powerful low frequency reproduction. High frequencies are handled by the M-34 compression driver which uses a 1" exit and titanium diaphragm for exceptional performance in all types of applications.

The Action 15A asymmetrical enclosure design allows it to be used in the monitor position. Made from Birch plywood and finished in a durable black paint, the cabinet incorporates two side-located handles and a 35 mm pole mount socket for use with a stand.

DAS Action 15A Features:

• Compact full-range system.
• Ultra lightweight Class D amplifier.
• Switch-mode power supply.
• Reduced size and weight.
• Pole mount socket.
• Rigging points.

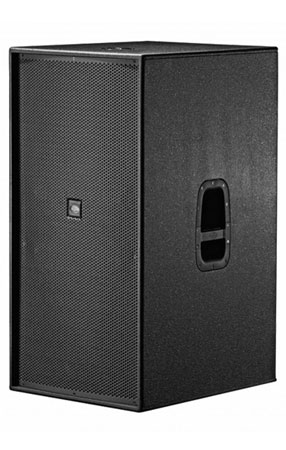

DAS Action 218A Dual 18" High Performance Powered Subwoofer

The Action 218A is a powered subwoofer system designed to provide outstanding performance in terms of output power, bandwidth extension and distortion. The Action 218A incorporates the 18H4 loudspeaker equipped with 4" voice coils, offering an excellent power handling capacity, reduced distortion and power compression.

The Action 218A incorporates a new high power (3200 W peak) amplifier design providing ample headroom and accuracy. The amplifier uses the latest Class D design.

The subwoofer is designed to be stacked vertically, reducing the units footprint and allowing for more "on-stage" space.

DAS Action 218A Features:

• Powered high performance subwoofer system.
• 3200 W peak Class "D" amplifier.
• Two 18H4 loudspeakers with 4" voice coils.
• Front loaded bass-reflex configuration.

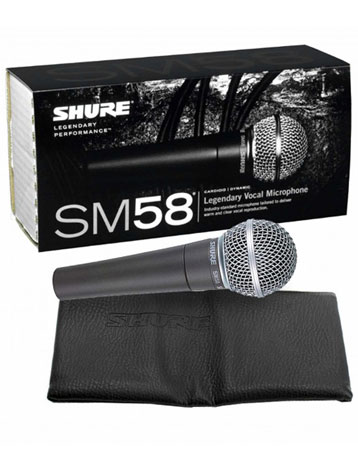

Shure SM58 Vocal Microphone

Legendary vocal microphone, tuned to accentuate the warmth and clarity of lead and back-up vocals.

The legendary Shure SM58 vocal microphone is designed for professional vocal use in live performance, sound reinforcement, and studio recording. Its tailored vocal response for sound is a world standard for singing or speech. A highly effective, built-in spherical filter minimizes wind and breath "pop" noise. A unidirectional (cardioid) pickup pattern isolates the main sound source while minimizing unwanted background noise.

Rugged construction, a proven shock-mount system, and a steel mesh grille ensure that even with rough handling, the SM58 will perform consistently, outdoors or indoors.

SM58 Features:

• Frequency response tailored for vocals, with brightened midrange and bass rolloff
• Uniform cardioid pickup pattern isolates the main sound source and minimizes background noise
• Pneumatic shock-mount system cuts down handling noise
• Effective, built-in spherical wind and pop filter
• Supplied with break-resistant stand adapter which rotates 180 degrees
• Legendary Shure quality, ruggedness and reliability
• Cardioid (unidirectional) dynamic
• Frequency response: 50 to 15,000 Hz
• Replacement cartridge: R59

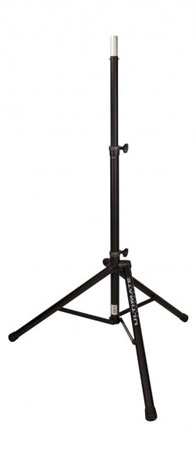

Ultimate Support TS-80B Original Series Aluminum Tripod Speaker Stand with Integrated Speaker Adapter - Black

The Original Series speaker stands from Ultimate Support are extraordinarily strong yet lightweight due to its over-sized heavy wall aluminum tubing. They're everything you'd expect from an Ultimate Support speaker stand - they're strong, sturdy, lightweight, and 100% field serviceable. You can choose between a black or silver finish with the TS-80B and TS-80S or the TS-88B, which has a black finish and is about two and a half feet taller than the TS-80B and TS-80S. The Original Series tripod speaker stands from Ultimate Support are the industry standards that you've seen on stages for decades.

TS-80B Product Breakdown:

• Patented Tripod Design
• Over-sized Heavy Wall Aluminum Tubing
• 100% Field Serviceable Parts
• Patented Die-cast Metal Collar on TLF

Patented Tripod Design

The TS-80B's offset tripod base design provides more support than typical "off-the-shelf" speaker stands. The design makes for very tight internal fittings, doing away with unnecessary sloppy leg problems, and includes a super strong die-cast metal collar that prevents over-tightening and breakage issues associated with all plastic designs.

Over-sized Heavy Wall Aluminum Tubing

The entire stand (legs, mast, and telescoping tube) uses oversized, heavy-walled aluminum tubing for durability, functionality, and weight savings. The TS-80B will not rust or corrode (thanks to its architectural anodized finish), is very smooth to operate, and is extraordinarily strong yet lightweight.

100% Field Serviceable Parts

From the foot caps on the bottom of the tripod legs all the way up to the speaker adapter at the top of the stand, the TS-80B is serviceable by parts as needed over its very long lifespan. In the unlikely event that something does break on the TS-80B, simply replace with an affordable part instead of throwing the entire stand away and buying a whole new one!

Patented Die-cast Metal Collar on TLF

The strongest leg fitting made, the collar on the TS-80B's tripod leg fitting (TLF) prevents over-tightening and breakage issues associated with all plastic designs. Plus, our die-cast fitting is 30x stronger than ABS or Nylon plastic used by the competition.

Technical Specification

DAS Action 15A Specifications

Technical Data

• Amplifier Power 1000 W peak, 500 W continuous
• Class D, Biamplified
• Frequency Range (-10 dB) 45 Hz - 20 kHz
• Rated Peak SPL at 1 m 131 dB
• Dispersion 80° x 50°
• Enclosure Material Birch Plywood
• Color/Finish Black/ISO-Flex Paint

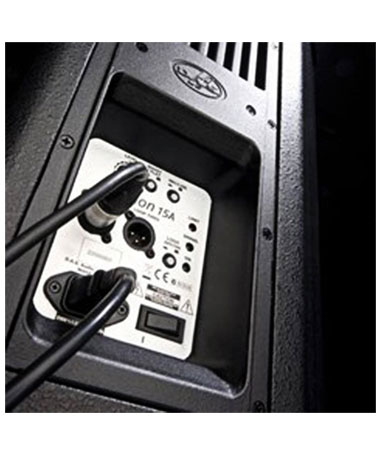

• Connectors INPUT: Female XLR
• LOOP THRU: Male XLR
• AC INPUT: powerCON
• AC Requirements 115 V, 3 A, 50 Hz/60 Hz
• 230 V, 1.5 A , 50 Hz/60 Hz
• Dimensions (H x W x D) 77.4 x 44.6 x 43.6 cm
• 30.5 x 17.6 x 17.2 in
• Weight 26 kg (57.2 lb)

DAS Action 218A Specifications

• Nominal LF Amplifier Power 3200 W peak, 1600 W continuous
• Frequency Range (-10 dB) 35 Hz - 160 Hz
• Rated Peak SPL at 1 m 140 dB
• Internal Crossover Variable LPF 100 Hz-160 Hz

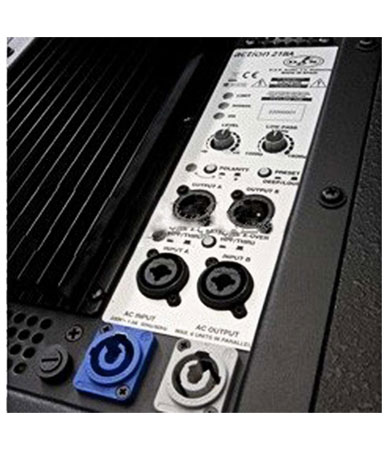

• Connectors NPUT: 2 x Female XLR
• LOOP THRU: 2 x Male XLR
• AC INPUT: powerCON
• AC OUTPUT: powerCON
• AC Requirements 115 V, 6 A, 50 Hz/60 Hz
• 230 V, 3 A, 50 Hz/60 Hz
• Enclosure Material Birch Plywood
• Color/Finish Black/ISO-flex Paint
• Dimensions (H x W x D) 106.7 x 54 x 67 cm
• 42 x 21.3 x 26.4 in
• Weight 63 kg (138.6 lb)

Shure SM58 Specifications

• Type Dynamic (moving coil)
• Frequency Response 50 to 15.000 Hz
• Polar Pattern Unidirectional (cardioid), rotationally symmetrical about microphone axis, uniform with frequency

WHAT'S IN THE BOX

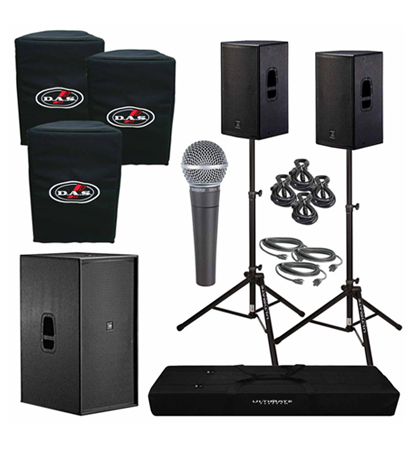

This Package Includes:

• (2) DAS Action 15A 12" Powered Speakers

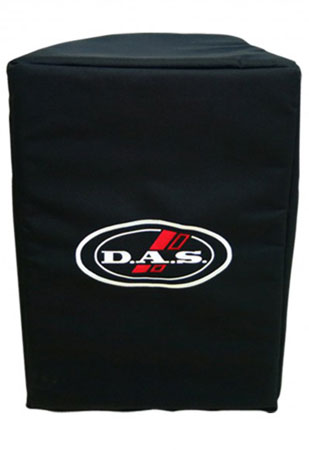

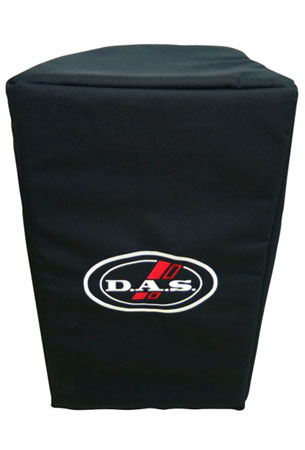

• (2) DAS Action 15A Protective Speaker covers
• (1) DAS Action 218A Dual 18" High Performance Powered Subwoofer
• (1) DAS Action 218A Dual 18" High Performance Powered Subwoofer Cover
• (1) Shure SM58 Vocal Microphone
• (2) Ultimate Support TS-80B Original Series Aluminum Tripod Speaker Stands

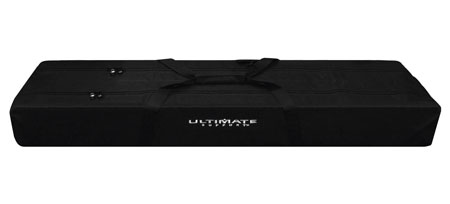

• (1) Ultimate Support BAG-90D Double Speaker Stand Tote Bag
• (3) Black 10FT 16 Gauge AC Extension Cords
• (4) 20FT Sure-Fit XLR Connecting Cables

Each DAS Action 15A Box Includes:

• (1) DAS Action 15A Powered Speaker
• (1) Power Cord
• (1) User Manual

The DAS Action 218A Box Includes:

• (1) DAS Action 218A Dual 18" High Performance Powered Subwoofer
• (1) Power Cord
• (1) User Manual

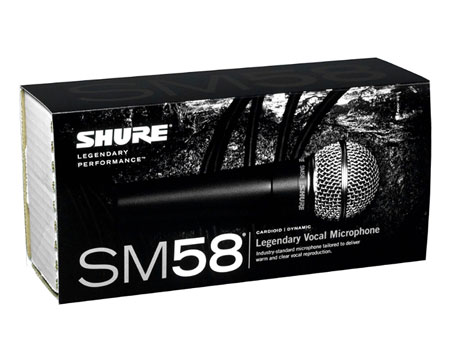

The Shure SM58 Box Includes:

• (1) Shure SM58 Vocal Microphone
• (1) Swivel Stand Adapter
• (1) Storage Bag
• (1) Microphone Clip
• (1) User Guide

Each TS-80B Box Includes:

• (1) Ultimate Support TS-80B Aluminum Tripod Speaker Stand
