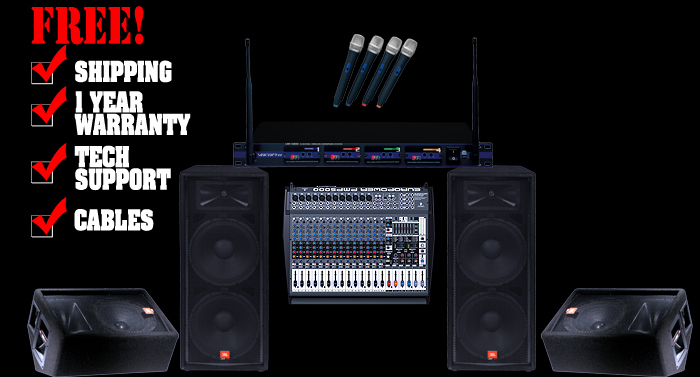

Church Sound 1

Overview

• Two JBL JRX125 Speakers
  • System Type: Dual 15" 2-way, sound reinforcement speaker
  • Frequency Range (-10 dB):2 35 Hz - 16 kHz
  • Frequency Response (±3 dB):2 45 Hz - 12 kHz
  • Sensitivity (1w/1m): 100 dB SPL
  • Nominal Impedance: 4
  • Peak Power Capacity: 2000 watts
  • Maximum SPL: 133 dB
  • Nominal Dispersion: 90° x 50°
  • Crossover Frequency: 2 kHz
  • Dimensions (H x W x D):3 1092 mm x 464 mm x 432 mm (43 in x 18.3 in x 17 in)
  • High Frequency Driver: JBL 2412, 1" exit compression driver mounted on Progressive
  • Transition™ Waveguide
  • Low Frequency Driver: JBL M115-8A x 2
    Input Connectors: Neutrik® Speakon® NL-4 (x1); ¼" TS phone jack (x1); parallel.
  • Enclosure Construction: 19 mm (¾ in) MDF (Medium Density Fiberboard); with glued and mechanically fastened joint detail; covered in black carpet.
  • Grille: 18-gauge, powder-coated steel.
• Two JBL JRX112MI Speakers
  • Power Rating: 1000 W
  • Frequency Range: 60 Hz - 16 kHz (-10 dB)
  • Dimensions (H x W x D): 22.7 in x 15.7 in x 12.8 in
  • Frequency Response: 70 Hz - 12 kHz (±3 dB)
  • Nominal Impedance: 8 ohms
  • Sensitivity: 99 dB SPL (1w/1m)
  • Maximum SPL: 129 dB
  • Nominal Dispersion: 90° x 50°
  • Crossover Frequency: 1.8 kHz
  • Weight: 43 lb
  • High Frequency Driver: JBL 2412 1 in exit compression driver mounted on Progressive
  • Low Frequency Driver: JBL M112-8
  • Input Connectors: Neutrik® Speakon® NL-4 (x1); .25 in
  • JBL 12 in low frequency driver with a 64 mm (2.5 in) diameter edgewound ribbon voice coil which provides more cross- sectional wire area in the voice coil gap than round wire designs, for greater efficiency and power handling.
  • Ferro-fluid cooled compression driver with titanium diaphragm improves high frequency performance as well as system reliability.
  • The advanced network topology crossover design shapes frequency response and delivers coherent summation in the crossover region.
  • High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating.
  • Progressive Transition™ highfrequency waveguide provides superior coverage control, reduced distortion, and smoother frequency response.
  • The rugged, acoustically superior enclosure is constructed from 19 mm (.75 in) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance.
  • SonicGuard™ protects the highfrequency driver from excess power without interrupting the performance.
  • Attractive 18-gauge perforated, steel grille protects components from damage.
  • Cabinet is fitted with three M10 threaded suspension points.
  • Rigging hardware kit containing three 10 mm forged shoulder eyebolts with washers is included.
• Behringer PMP-5000 Powered Mixer
  • Ultra-compact 2 x 600-Watt stereo powered mixer (1,200 Watt bridged mode)
  • Revolutionary amplifier technology: enormous power, incredible sonic performance and super-light weight
  • Ultra-compact design at nearly half the weight of conventional powered mixers means no more lugging around dead weight
  • 20-channel mixer section features 12 mono and 4 stereo channels plus separate tape returns
  • 2 studio-grade 24-bit stereo FX processors with 100 awesome presets including reverb, chorus, flanger, delay, pitch shifter and various multi-effects
  • Revolutionary FBQ Feedback Detection system instantly reveals critical frequencies for easy feedback removal
  • 12 high-quality IMP "Invisible" Mic Preamps with switchable +48 V phantom power for condenser microphones
  • Effective, extremely musical 3-band EQ, switchable Low cut filter and Clip LEDs on all mono channels
  • Stereo 7-band graphic EQ allows precise frequency correction of monitor or main outputs
  • Voice Canceller function removes singer's voice from recordings for Karaoke applications
  • Selectable stereo (main L/R), double mono (main/monitor) or bridged mono amplifier operation mode
  • Speaker Processing function adjusts frequency response to match professional speaker systems like BEHRINGER EUROLIVE series, etc.
  • Standby switch mutes all mic input channels during breaks while background music is provided via tape inputs
  • Breathtaking XPQ 3D stereo surround effect for more vitality and enhanced stereo image
  • Adjustable stereo CD/Tape input for connecting external line sources
  • Multi-functional stereo Preamp outputs for added flexibility
  • Internal switch-mode power supply, noise-free audio, superior transient response and very low power consumption
  • High-quality components and exceptionally rugged construction ensure long life
• VocoPro UHF-5800 Wireless Mic System
  • 4 Mic Outputs
  • 4 Handheld mics included
  • Individual Volume controls for precise vocal balancing
  • 4 independent Field-replaceable Modules (no need for tools)
  • Interference-resistant UHF Band operation from 730 MHZ - 790 MHz
  • Rugged 1RU metal receiver chassis
  • Battery life: 12 hours
  • Dimensions 18.9" (W) x 3.9" (D) x 1.8" (H)
  • DC-13.5V - 120V AC/DC ADAPTER
• All Connecting Cables
