1000 Pack 1

Overview

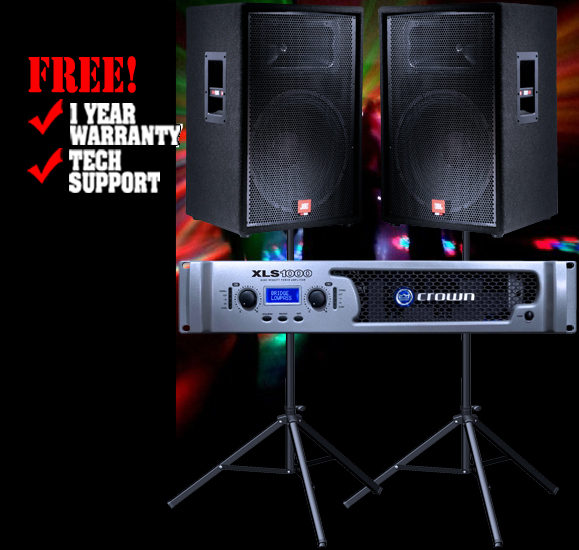

• One Crown XLS1000 amplifier
  • XLS High Performance, Lightweight Class D amp weighs less than 11 lbs.
  • Integrated PureBand Crossover System for better performance and control
  • Peakx Limiters provide maximum output while protecting your speakers
  • XLR, 1/4", RCA inputs provide outstanding flexibility
  • 1/4" Inputs can be used as loop-thrus to distribute signal to additional amplifiers Efficient forced-air fans prevent excessive thermal buildup
  • Electronically balanced XLR inputs; touchproof binding post and Speakon outputs
  • Precision detented level controls, power switch, power LED, and six LEDs indicate signal, clip and fault for each channel
  • Three-Year, No-Fault, Fully Transferable Warranty completely protects your investment and guarantees its specifications
  • Minimum Guaranteed Power per channel, both channels driven: 550W, Stereo, 2 Ohms (per ch.); 350W, Stereo, 4 Ohms (per ch.); 215W, Stereo, 8 Ohms (per ch.); 700W, Bridge-Mono, 8 Ohms;
  • 1100W, Bridge-Mono, 4 Ohms;
  • Sensitivity (for full rated power at 4 Ohms): 1.4 Vrms
  • Frequency Response (at 1 watt, 20 Hz - 20 kHz): +0 dB, -1 dB
  • Signal-to-Noise Ratio Rated as dBr to full rated 8Ohm power output (A-Weighted): XLS1000 > 97dB
  • Damping Factor (8 Ohm): 10Hz to 400Hz: > 200
  • Crosstalk (below rated 8Ohm power): At 1kHz: > 85dB; At 20kHz: >55dB
  • Input Impedance (nominal): 20 kOhm balanced, 10 kOhm unbalanced
  • Load Impedance: 2 to 8 Ohm per channel in Stereo; 4 to 8 Ohm in Bridge Mono
  • AC Line Voltage and Frequency Configurations Available (± 10%):120 VAC 60 Hz; 100 VAC 50/60 Hz; 220 and 240 VAC 50 Hz
  • Ventilation: Flow-through ventilation from front to back
  • Cooling: Internal heat sinks with forced-air cooling for rapid, uniform heat dissipation
  • Air Volume Requirements (per minute per unit): 80.15 ft (2.27 m )
  • Integrated Processing: PureBand Crossover System; Crossover Filter: Linkwitz-Riley 24dB per Octave; Crossover Frequency Range: 50 HZ - 3 kHz: Crossover Mode: Crossover (CH1=LPF, CH2=HPF), LowPass (both channels LPF), HighPass (both channels HPF), Bridge (LPF or HPF); Peakx limiters: Channel independent clip limiter designed to provide maximum output while protecting your loudspeakers
• Two JBL JRX-115 speakers
  • System Type: 15" 2-way, sound reinforcement speaker.
  • Sensitivity (1w/1m): 98 dB SPL
  • Nominal Impedance: 8
  • Peak Power Capacity:1 1000 watts
  • Maximum SPL: 128 dB
  • Nominal Dispersion: 90° x 50°
  • Crossover Frequency: 1.6 kHz
  • Dimensions (H x W x D):3 699 mm x 460 mm x 432 mm (27.5 in x 18.1 in x 17 in)
  • High Frequency Driver: JBL 2412, 1" exit compression driver mounted on Progressive
  • Transition™ Waveguide
  • Low Frequency Driver: JBL M115-8A
  • Input Connectors: Parallel Neutrik® Speakon® NL-4 (x1); ¼" TS phone jack (x1)
  • Enclosure Construction: 19 mm (¾ in) MDF (Medium Density Fiberboard); with glued and mechanically fastened joint detail; covered in black carpet.
  • Grille: 18-gauge, powder-coated steel
  • Mounting & Suspension: 35 mm, cast aluminum pole-mount socket
• Two1/4" to banana connecting cables
