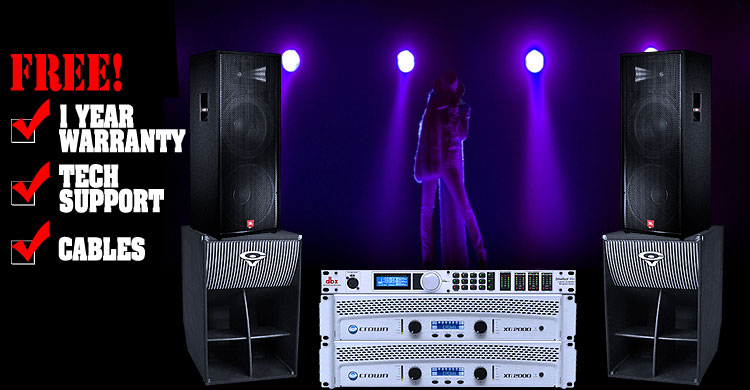

Arena Pack 1

Overview

• Two Cerwin Vega EL-36 -
  • 18" folded horn loaded bass
  • Perfect for PA/Playback/Disco
  • 1000 watts
  • 106 dB sensitibity @ 1watt/w meter
  • Use with any CV's full range systems to optimize extended bass response
  • Connections:
    (2) Neutrik SpeakonTM 4-pin connector with pin selector option.
    (2) 1/4" phone jacks.
  • Universal pole mount
  • New cabinet and caster design for easy mobility
• Two JBL JRX125 -
  • System Type: Dual 15" 2-way, sound reinforcement speaker
  • Frequency Range (-10 dB):2 35 Hz - 16 kHz
  • Frequency Response (±3 dB):2 45 Hz - 12 kHz
  • Sensitivity (1w/1m): 100 dB SPL
  • Nominal Impedance: 4
  • Power Capacity:1 500 watts
  • Peak Power Capacity:1 2000 watts
  • Maximum SPL: 133 dB
  • Nominal Dispersion: 90° x 50°
  • Crossover Frequency: 2 kHz
  • Dimensions (H x W x D):3 1092 mm x 464 mm x 432 mm (43 in x 18.3 in x 17 in)
  • High Frequency Driver: JBL 2412, 1" exit compression driver mounted on Progressive
  • Transition™ Waveguide
  • Low Frequency Driver: JBL M115-8A x 2
    Input Connectors: Neutrik® Speakon® NL-4 (x1); ¼" TS phone jack (x1); parallel.
  • Enclosure Construction: 19 mm (¾ in) MDF (Medium Density Fiberboard); with glued and mechanically fastened joint detail; covered in black carpet.
  • Grille: 18-gauge, powder-coated steel.
• Two Crown XTI2000-
  • 475W - 8 ohm Stereo (per channel)
  • 800W - 4 ohm Stereo (per channel)
  • 1,000W - 2 ohm Stereo (per channel)
  • 1,600W - 8 ohm Bridge-Mono
  • 2,000W - 4 ohm Bridge-Mono
  • Integrated proprietary DSP with LCD front panel display
  • Accurate, uncolored sound with very low distortion for the best in music and voice reproduction
  • Advanced protection circuitry guards against: shorted outputs, open circuits, DC, mismatched loads, general overheating, high-frequency overloads and internal faults
  • Extremely versatile, handling a wide range of speaker impedances and outputs
  • Switch-mode universal power supply
  • Speaker presets for crossover frequencies, EQ, limiting, and delay
  • All products fill 2U rack spaces and weigh under 17 pounds; weight sets a new standard in lightweight amps (20% less)
  • Speakon® and binding post outputs, XLR inputs and loop-thrus
  • Comprehensive LED status per channel
  • Three-Year, No-Fault, Fully Transferable Warranty completely protects your investment and guarantees its specifications
• One DBX Driverack PA -
  • Stereo Feedback Elimination with 12 feedback notch filters
  • Dual 28-band Graphic EQ
  • Classic dbx® Compressor
  • 120A Sub-harmonic Synthesizer
  • 2x3, 2x4, 2x5, 2x6 Crossover Configurations
  • Stereo Multi-band Parametric EQ
  • Stereo Output Limiters
  • Alignment Delay
  • Pink Noise Generator
  • Auto-EQ with 28-Band RTA
  • JBL® Speaker and Crown Power Amp Tunings with Setup Wizard
  • 25 User Programs / 25 Factory Programs
  • 2 Channel XLR Input and 6 Channel XLR Output
  • Front panel RTA-M XLR input with phantom power
  • 24-Bit ADC/24-Bit DAC, >110 dB Dynamic Range
  • TypeIV® Conversion System
  • Full Graphic LCD Display
• ALL CABLES INCLUDED
