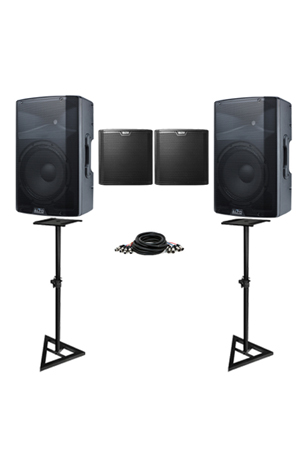

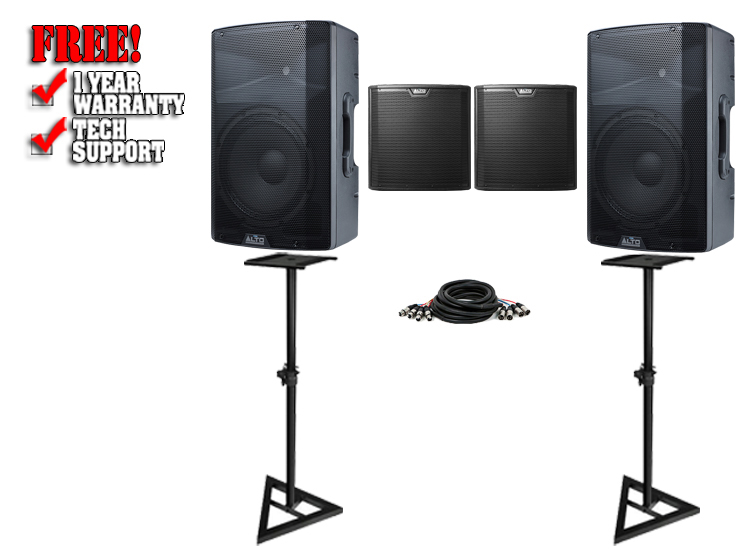

Alto TX212 TS312S Package

Big Sound, Portable Package

Experience power, performance, and portability. The TX212 comes equipped with efficient, bi-amped Class D amplification that pump out a generous 600 Watts of peak power. An exacting electronic crossover ensures smooth frequency response from the 12" low-frequency driver and 1" neodymium high-frequency compression driver with 1-inch voice coil. Bass porting offers extended low-end response, while the steel grille adds extra protection.

Ready For Anything

Built to travel, the road-ready TX2 Series is both lightweight and portable. Trapezoid cabinet contouring makes either upright or wedge-monitor placement a snap. A pole-mount socket and a comfortable handle are conveniently built in. Create a custom setup using the Link output to chain multiple cabinets together. For the musician, DJ, or live-sound provider craving professional audio reproduction, The TX2 Series delivers impressive, dynamic sound night after night.

Features

• 600 Watts peak, (300 Watts continuous Class D power)
• The newly designed horn delivers greater coverage 90° H x 60° V.
• The full grille delivers style and provides protection for your investment.
• 12-inch (305 mm) LF driver, 2-inch (50.8 mm) voice coil.
• 1-inch (25.4 mm) neodymium HF compression driver with 1-inch voice coil.
• Lightweight, portable design for main or wedge monitor operation.
• Standard speaker pole socket.
• Bi-amplified design with precision active crossover and EQ.
• Balanced XLR/TRS with selectable Mic/Line input. XLR Link Output, Contour EQ switch and Ground-Lift switch.
• Designed and tuned in the USA.

Alto TX212 Specifications:

• Power Output: 600 Watts peak, 300 Watts continuous Class D power
• LF Driver: 12-inch (305 mm) LF driver, 2-inch (50.8 mm) voice coil
• HF Driver: 1-inch (25.4 mm) neodymium HF compression driver with 1-inch voice coil
• Crossover: 2.5 kHz
• Maximum: 118 dB at 1m
• Frequency Response: (-3dB): 70 Hz – 20 kHz
• Horn Coverage: 90° H x 60° V nominal
• Connectors: (1) XLR/TRS ¼" (6.35 mm) combo input, (1) XLR link output, (1) IEC power cable input
• Controls: (1) Volume, Power on/off switch, Contour switch, Ground-Lift Switch
• Indicators: (2) Power LED (front and rear), Clip limiter LED
• Protection: Overload Analog Limiter / Compressor, Thermal Protection
• Power Supply: 100V-240V ~ 50/60Hz
• AC Voltage Input: 100,110-120,220–240 V, 50/60 Hz
• Fuse: 100–120V T4AL AC250V, 220–240V T2AL AC250V
• Power Consumption: 260 W
• Enclosure Construction: Injection-molded polypropylene enclosure, multi-angle for main or monitor applications, metal grille, rubber feet, 1 handle on top
• Mounting/Installation: Standard speaker pole socket, Wedge Monitor
• Dimensions (HxWxD): 23.7" x 15" x 13.7" / 602mm x 381mm x 348mm
• Net Weight: 31.3 lbs. / 14.2 kg.

Each TX212 Retail Box Includes:

• (1) Alto TX212 600 Watt 12" 2-Way Powered Loudspeaker
• (1) Power Cable
• (1) User Guide
• (1) Safety & Warranty Manual

Alto Professional TS312SSUB 12" 2000W Powered Subwoofer

The Alto Professional TS312SSUB is a 12" powered subwoofer designed to provide adjustable, low-frequency reinforcement for sound engineers and DJs in live stage, theater, and club setups. Class-D amplification drives the 12" high-excursion woofer to produce 2000W of peak power output and a frequency response of 44 to 95 Hz (-3 dB).

The TS312SSUB offers two XLR-1/4" combo inputs and two XLR outputs. The integrated DSP provides six settings for interfacing with other full-range speakers, ensuring a tight and professional sound. Controls include a volume knob, a polarity reverse, extended low-frequency switch, and power switch. LED indicators allow easy identification of the selected settings and power, signal, and limit status. The clip, thermal, and transducer overdrive protection keep the subwoofer safe.

The internally braced MDF cabinet features a front port and a 1.4" mounting socket, while the integrated and recessed carry handles simplify transportation between gigs. The Alto Professional TS312SSUB ships with an IEC power cable.

Features

• 2000W of peak power output
• High-efficiency Class-D amplifier
• Transducer: 12" woofer with 3" high-temperature voice coil
• 38 to 110 Hz frequency range (-10 dB)
• 44 to 95 Hz frequency response (-3 dB)
• Two XLR-1/4" combo inputs and two balanced XLR line outputs
• XLR outputs include six discreet DSP output modes for ideal matching with companion full-range speakers
• Polarity reverse switch and extended LF switch for increased EQ control
• Electronic clip, thermal, and transducer overdrive protection
• Rugged, internally braced, front-ported MDF cabinet with integrated 1.4" pole socket
• Rugged, mar-resistant splatter-spray finish always looks good, even with heavy use
• Designed and tuned in the United States of America

Specifications:

• PA Speaker
  • Configuration : Active Subwoofer
  • Enclosure Type : Bass-Reflex Subwoofer
  • Total Power Capacity : 2000 W Peak,1000 W RMS
  • Amplifier Class : Class-D
• Drivers
  • LF Driver : 1 x 12" / 304.8 mm Woofer
  • LF Voice Coil : 3" / 76 mm
• Performance
  • Frequency Range : 38 Hz to 110 Hz -10 dB
  • Frequency Response : 44 Hz to 95 Hz -3 dB
  • Maximum SPL : 129 dB (Peak),126 dB (Continuous)
  • Protections : Thermal, Transducer Overdrive
• Connectivity
  • Audio I/O: 2 x Combo XLR-1/4" Female Balanced Line Input, 2 x XLR 3-Pin Male Balanced Line Output
• Signal Processing
  • Dynamic Processing : Peak Limiter
  • Phase Adjustment : 0 / 180°
  • Digital Signal Processing : Venue Settings
• Power
  • AC Input Power : 100 to 120 VAC, 60 Hz, 220 to 240 VAC, 50 Hz
  • AC Power Connector : 1 x IEC Input
  • Power Consumption : 1000 W
• Physical
  • Mounting : 1 x 1.42" / 36 mm Pole Socket (Top)
  • Handles : 1 x Each Side
  • Construction Material : MDF
  • Dimensions : 17.9 x 18.1 x 19.9" / 45.5 x 46 x 50.5 cm
  • Weight : 55.1 lb / 25 kg
• Packaging Info
  • Package Weight : 64.4 lb
  • Box Dimensions (LxWxH) : 23.25 x 21.28 x 21"
