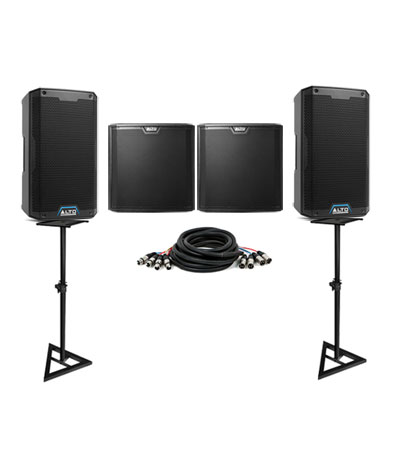

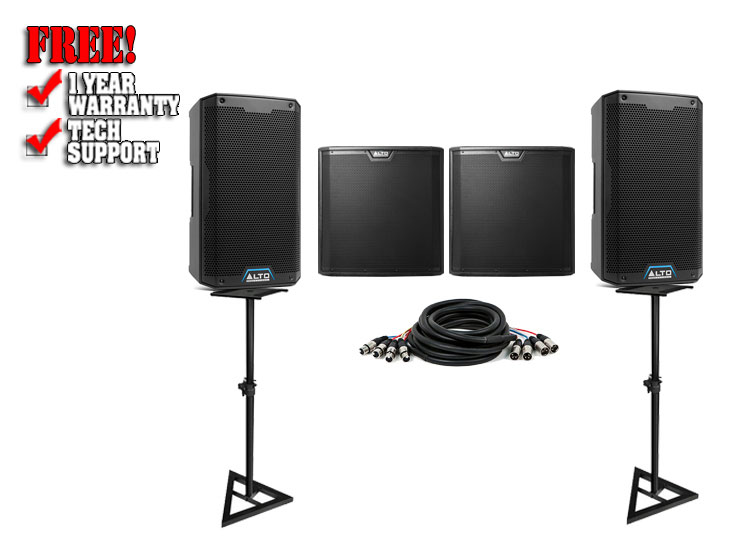

Alto TS410 TS312S Package

This Packages Includes

• 2 Alto TS410
• 4 xlr to xlr
• 2 Alto TS312SSUB
• 2 Super Speaker Stands

Alto TS410 2000-watt 10-inch 2-way Powered Loudspeaker With Bluetooth, DSP & App Control

Description

Building on the legacy of our best-selling TrueSonic speakers, the TS4 Series delivers increased power, clearer sound, and advanced Bluetooth functions including streaming, speaker linking, and App control.

Compact, lightweight, and designed for reliability, the new TS4 Series makes it simple to get great live sound at every event.

True Sonic Power

Whether you need a powerful vocal PA or club-shaking bass performance for a DJ set, TS4 speakers deliver loud, clear, room-filling sound for any application. With a 10-inch woofer, and a 1.4-inch compression driver, TS410 delivers 2000W of class-leading power and clarity in equal measure.

FREE Alto App for remote configuration and control

Available free for both Android and iOS, the Alto App gives hands-on remote control over Bluetooth levels, Speaker Use Modes, Custom EQ and Sub Size selection. Further, True Wireless Stereo linking can be configured remotely via the app to save time during setup.

Built-In 3-channel mixer

Every TS4 features an integrated 3-channel mixer, with two Mic/Line input channels and a dedicated Bluetooth channel. The Mic/Line channels feature XLR/TRS combo jacks and can be used with microphones, instruments, and line-level signals without the need for additional hardware or adjustment. Just plug straight into the rear panel and you're up and running.

Simple Bluetooth Streaming & Speaker Linking

The ideal high-powered streaming solution, TS4's built-in Bluetooth connectivity makes it easy to pair your laptop, phone or tablet and get the music pumping in no time at all. With the True Wireless Stereo function you can stream Bluetooth audio to two TS4 speakers in perfect stereo without the need for any cables.

DSP Modes for the best sound in every application

TS4's three preset "Speaker Use" modes let you optimize the speaker for any application, so you'll get great sound every time at the touch of a button. For even more control over your sound, you can configure a Custom EQ within the Alto App and remote adjust the settings from any listening point in the venue. You can even save your favorite Custom EQ setting direct to the TS4 for easy recall whenever you need it.

Versatile and Reliable

From the high-quality drivers to the fanless class D amplifiers, every aspect of the TS4 Series has been designed for superb reliability, whether used for mobile gigs and performances or fixed installation. Each speaker features a lightweight, sleek, black box design that can be used as the application demands - freestanding, as a wedge monitor, pole-mounted or suspended via the integrated suspension points.

Features

• 2000 W peak (1300 LF + 700 HF), 1000 W continuous RMS (650 LF + 350 HF)
• FREE Alto App (iOS/Android) for remote configuration and control
• Bluetooth® audio streaming direct from device
• On-board DSP with 4 Speaker Use modes (inc. Custom EQ via App)
• True Wireless Stereo speaker linking via Bluetooth®
• Integrated 3-channel mixer with dual XLR ¼-inch combo inputs, mic/line switches and independent level controls
• XLR Mix output, Speaker Use, and Sub Size Controls
• 10" driver, 2.0" (50 mm) high-temperature voice coil
• 1" exit ceramic driver with 1.4" (35 mm) coil
• Lightweight enclosure for easy transport, set up and installation
• Versatile design - pole-mountable, wedge monitor or flown application with integral M10 suspension points
• Powerful and efficient class D amplifiers with fanless cooling design to run cleaner, quieter and with greater long-term reliability
• Designed and tuned in the USA

Tech Information

• Output Power: 2000 W peak (1300 LF + 700 HF), 1000 W continuous RMS (650 LF + 350 HF)
• Low-Frequency Driver: 10.0" driver, 2.0" (50 mm) high-temperature voice coil. 1 x 650 W RMS @ 2 Ω.
• High-Frequency Driver: 1.0" exit ceramic driver with 1.4" (35 mm) coil. 1 x 350 W @ 4 Ω.
• Crossover Frequency: 2 kHz
• Maximum SPL: 130 dB (peak), 127 dB (continuous) (dB-SPL @ 1 m)
• Frequency Response: 57 Hz – 20 kHz (+/-3 dB)
• Frequency Range: 48 Hz – 20 kHz (-10 dB)
• Horn Coverage: 90° horizontal x 60° vertical (nominal)
• Connectors: (2) XLR+1/4" (6.35 mm) TRS combo inputs (Balanced), (1) XLR output (Link) ,(1) IEC power cable input
• Input Impedance Line: 10 KΩ balanced, 20 KΩ unbalanced, Mic: 1.2K
• Line Gain/Volume Control Range: -∞ to 0 dB, +4 dBu nominal, +10 dBu for max output
• Mic/Inst. Gain/Volume Control Range: -∞ to +50 dB
• USB Charging Port: 5V 2.1A
• Controls: Power switch, (2) gain control knobs (1 per input), (2) Mic/Line switches, Bluetooth volume control encoder, Pairing button, Stereo Link button, Sub Size button, Speaker Use button
• Indicators: (1) Input Channel Signal/Limit/Clip LED (Green = Ch1/2 Signal) (Yellow = Ch1/2 Limiter) (Red = Ch1/2 Output Clipped), (1) Bluetooth LED (Blue), (1) Link LED (Orange), (4) DSP Presets LED (Green), (3) HPF LED (Green)
• Power Connection: IEC
• Voltage: 100-120V, 50/60Hz; 220-240V, 50-60Hz
• Consumption: 900W
• Fuse: 100-120V T10AL AC250V; 220-240V T5AL AC250V
• Protection: Electronic clip, thermal, and transducer overdrive protection
• Enclosure: Injected Molded Enclosure and Perforated Metal Grille
• Mounting/Installation: Standard 36 mm pole socket, flown application with integral M10 suspension points, or in a wedge monitor position
• Operating Temperature: -10°C to 45°C (14°F to 113°F)
• Dimensions: (height x width x depth)21.1" x 12.6" x 12.5" / 536 x 320 x 317 mm
• Weight: 26.0 lbs. / 11.8 kg

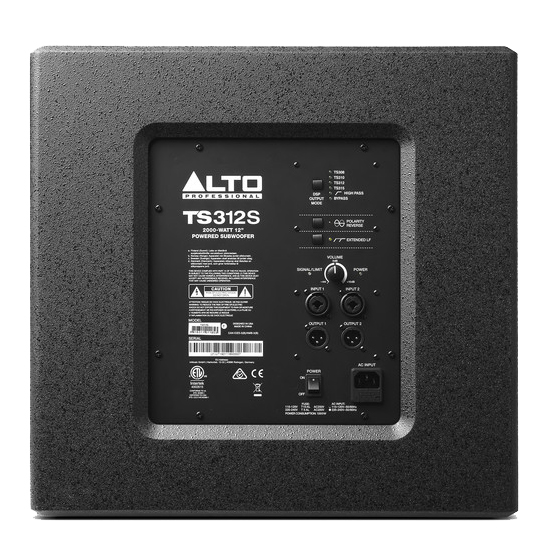

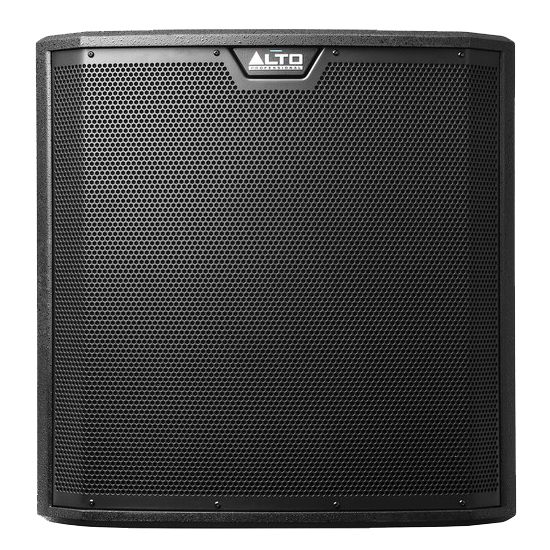

Alto Professional TS312SSUB 12" 2000W Powered Subwoofer

The Alto Professional TS312SSUB is a 12" powered subwoofer designed to provide adjustable, low-frequency reinforcement for sound engineers and DJs in live stage, theater, and club setups. Class-D amplification drives the 12" high-excursion woofer to produce 2000W of peak power output and a frequency response of 44 to 95 Hz (-3 dB).

The TS312SSUB offers two XLR-1/4" combo inputs and two XLR outputs. The integrated DSP provides six settings for interfacing with other full-range speakers, ensuring a tight and professional sound. Controls include a volume knob, a polarity reverse, extended low-frequency switch, and power switch. LED indicators allow easy identification of the selected settings and power, signal, and limit status. The clip, thermal, and transducer overdrive protection keep the subwoofer safe.

The internally braced MDF cabinet features a front port and a 1.4" mounting socket, while the integrated and recessed carry handles simplify transportation between gigs. The Alto Professional TS312SSUB ships with an IEC power cable.

Features

• 2000W of peak power output
• High-efficiency Class-D amplifier
• Transducer: 12" woofer with 3" high-temperature voice coil
• 38 to 110 Hz frequency range (-10 dB)
• 44 to 95 Hz frequency response (-3 dB)
• Two XLR-1/4" combo inputs and two balanced XLR line outputs
• XLR outputs include six discreet DSP output modes for ideal matching with companion full-range speakers
• Polarity reverse switch and extended LF switch for increased EQ control
• Electronic clip, thermal, and transducer overdrive protection
• Rugged, internally braced, front-ported MDF cabinet with integrated 1.4" pole socket
• Rugged, mar-resistant splatter-spray finish always looks good, even with heavy use
• Designed and tuned in the United States of America

Specifications:

• PA Speaker
  • Configuration : Active Subwoofer
  • Enclosure Type : Bass-Reflex Subwoofer
  • Total Power Capacity : 2000 W Peak,1000 W RMS
  • Amplifier Class : Class-D
• Drivers
  • LF Driver : 1 x 12" / 304.8 mm Woofer
  • LF Voice Coil : 3" / 76 mm
• Performance
  • Frequency Range : 38 Hz to 110 Hz -10 dB
  • Frequency Response : 44 Hz to 95 Hz -3 dB
  • Maximum SPL : 129 dB (Peak),126 dB (Continuous)
  • Protections : Thermal, Transducer Overdrive
• Connectivity
  • Audio I/O: 2 x Combo XLR-1/4" Female Balanced Line Input, 2 x XLR 3-Pin Male Balanced Line Output
• Signal Processing
  • Dynamic Processing : Peak Limiter
  • Phase Adjustment : 0 / 180°
  • Digital Signal Processing : Venue Settings
• Power
  • AC Input Power : 100 to 120 VAC, 60 Hz, 220 to 240 VAC, 50 Hz
  • AC Power Connector : 1 x IEC Input
  • Power Consumption : 1000 W
• Physical
  • Mounting : 1 x 1.42" / 36 mm Pole Socket (Top)
  • Handles : 1 x Each Side
  • Construction Material : MDF
  • Dimensions : 17.9 x 18.1 x 19.9" / 45.5 x 46 x 50.5 cm
  • Weight : 55.1 lb / 25 kg
• Packaging Info
  • Package Weight : 64.4 lb
  • Box Dimensions (LxWxH) : 23.25 x 21.28 x 21"
