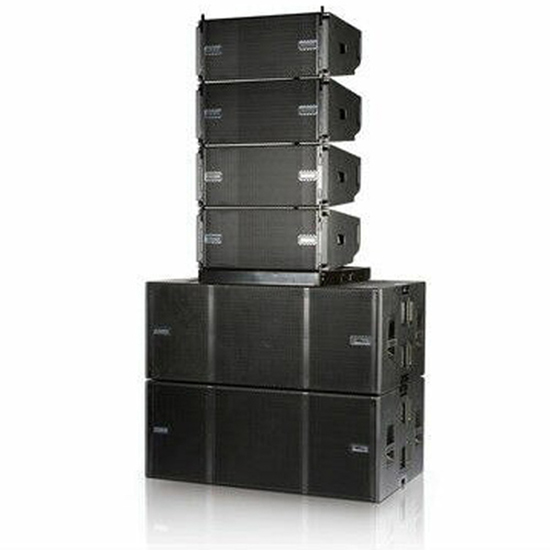

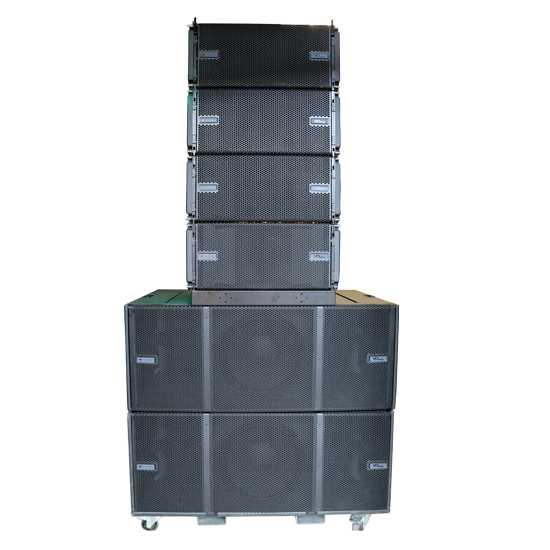

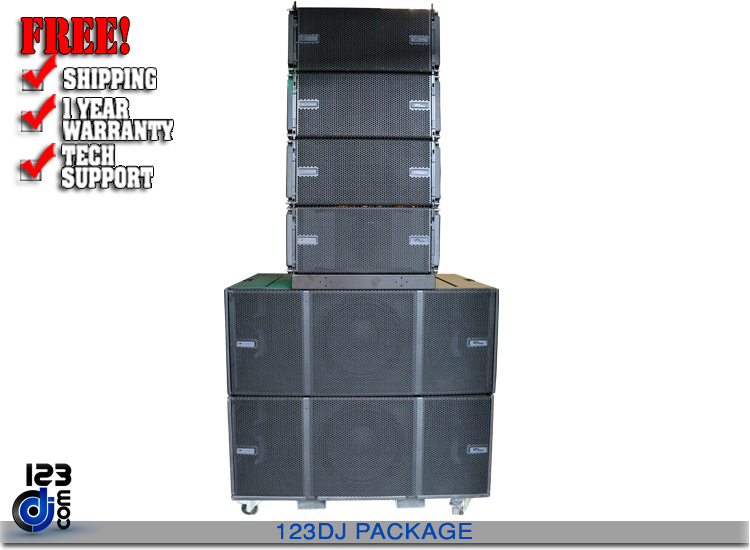

4 x DB Technologies VIO L210 Line Array 1800W and 2 x VIO S318 Subwoofer 5400W Package

This Package Includes

• 4 x DB Technologies VIO L210 Line Array 1800W
• 2 x VIO S318 Subwoofer 5400W

Compact Powered LoudspeakersHigh

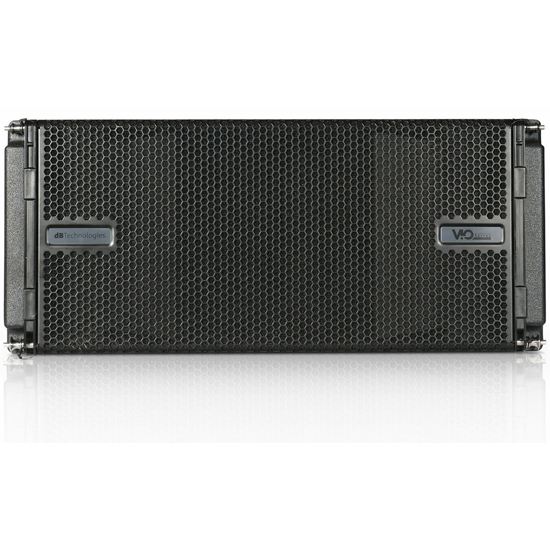

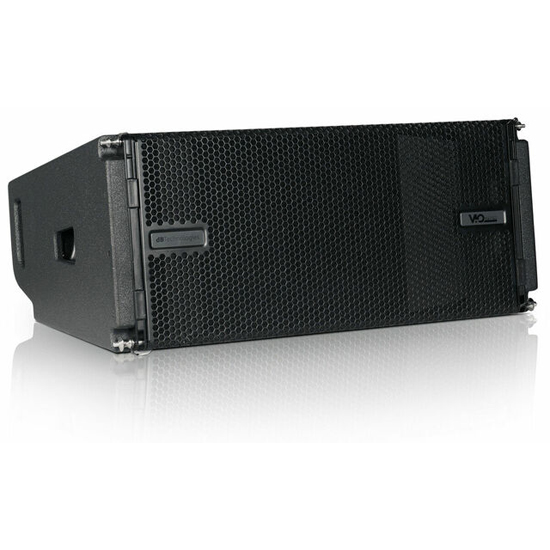

As a result of many years' experience, VIO L210 reaches the next level among dBtechnologies' speaker range aimed at larger sound reinforcement applications. A unique internal acoustic design and advanced sound processing merge to deliver outstanding performances in terms of sound pressure, coverage coherence, intelligibility and sound definition.

UNIQUE ACOUSTIC DESIGN COMBINING LONG THROW AND DETAILED AUDIO PERFORMANCE

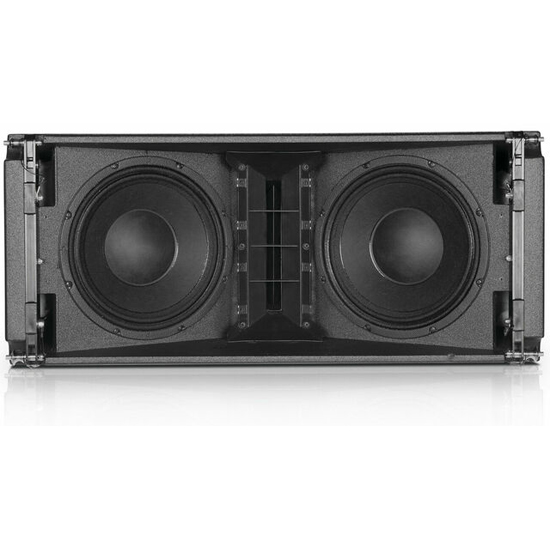

• VIO L210's premium low-freq transducers, positioned in a V form and sealed in a bass reflex wooden enclosure, have been custom designed to improve efficiency and to last in high stress conditions, providing an accurate transient response and an extended low-end reproduction.
• One single 3" voice coil compression driver (1.4" exit throat) accurately delivers high frequencies. A brand new waveguide contributes to create a cylindrical wavefront, allowing a very precise high-frequency directivity control, much to the advantage of the system's throw distance.

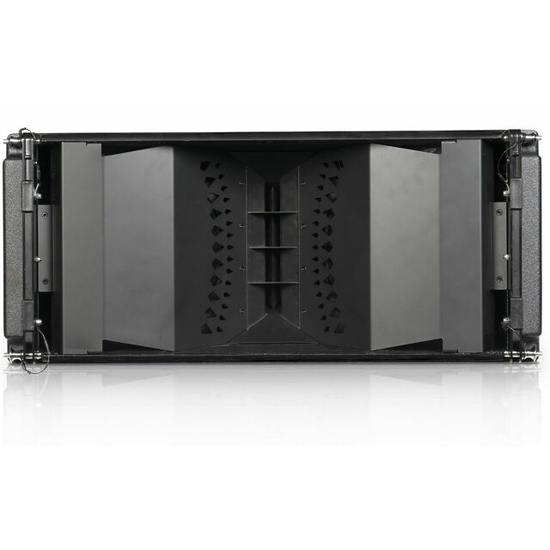

• The acoustic enclosure is completed by two massive aluminium phase plugs located in front of both woofers which acts as a prosecution of the constant directivity high-frequency waveguide.
• Each phase plug features 26 diamond-shaped holes aimed at reducing any interference within the crossover zone while improving frequency and transient response.

ADVANCED DSP PAIRED WITH NOTABLE EFFICIENCY

• The module features a highly efficient Class D Digipro G3 900 W RMS amplifier which is perfectly capable of achieving 135 dB SPL.
• A perfectly coherent coverage is granted even at a long distance thanks to advanced sound processing with FIR filters.
• The pre-amp module is also equipped with a digital optical isolation which avoids audio coupling, preventing any noise created by potential differences.

SMART RIGGING HARDWARE & ACCESSORIES TO SPEED UP SET UP OPERATIONS

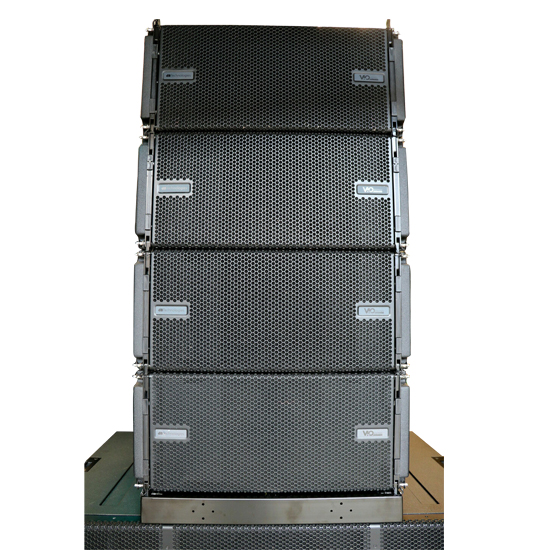

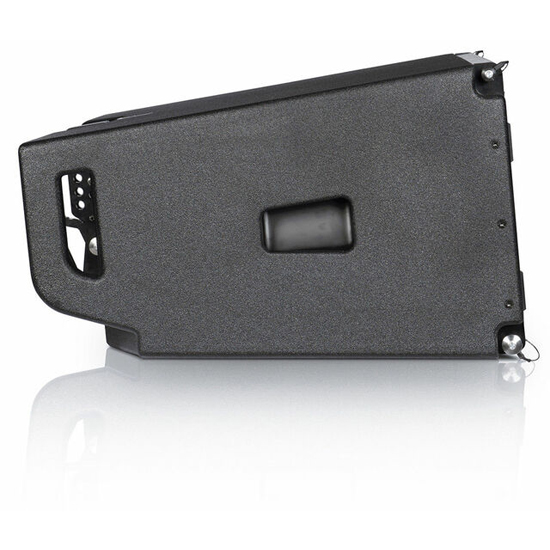

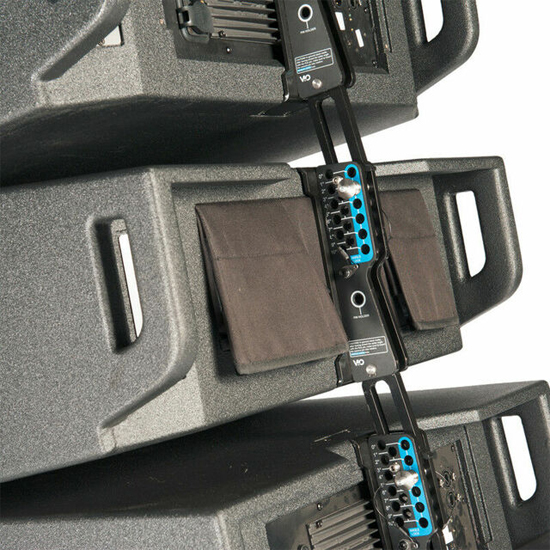

The VIO L210 comes with a built-in 3-point rigging system allowing a smooth and fast set up of the system. The 2 front links easily connect the modules from every angle. The back central rigging strand is equipped with a hook type link to set the relative splay angles determined via the prediction software dBTechnologies Composer. While lifting up the array, the rigging strand will automatically block the systems at the preset angles.

Tech specs / Technical Data

• Speaker Type: 2-way Active Line Array Module

Acoustical data

• Usable Bandwidth [- 6 dB]: 67-20,000 Hz
• Frequency Response [+/- 3dB]: 78-18,100 Hz
• Max SPL: 135 dB
• HF: 1x1.4"
• Voice Coil HF: 3"
• Type HF: Neodymium, Titanium Diaphragm
• LF: 2x10"
• Voice Coil LF: 2.5"
• Type LF: Neodymium Aluminium Phase Plug
• Horizontal Directivity: 100°
• Vertical Directivity: depends on array size and configuration

Amplifier

• Amp Technology: Digipro G3
• Amp Class: Class-D
• Power RMS: 900 W
• Peak Power: 1800 W
• Cooling: Convection
• Power Supply: 900 W SMPS with Auto-range PSU

Processor

• Controller: DSP 56 bit
• AD/DA Converter: 24 bit/48 KHz
• Limiter: Dual Active Multiband Peak, RMS, Thermal
• Processing (filters): FIR Linear Phase
• Crossover Frequency LF-HF: 950 Hz
• Slope LF-HF: 24 dB/Octave

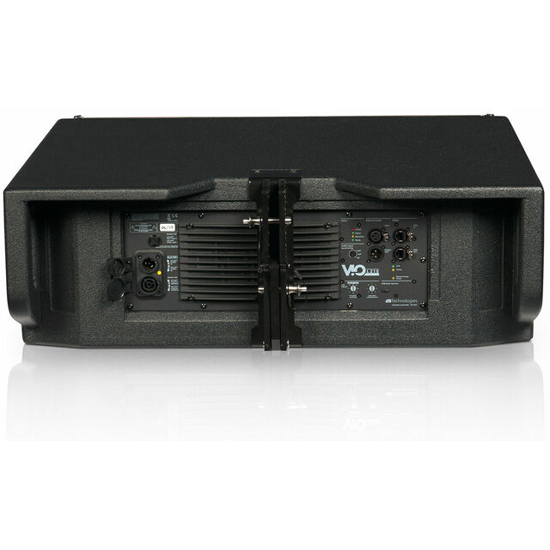

Input

• Signal Input: 1xXLR fem, Bal.
• Signal Output: 1xXLR male, Bal.
• Network: RDNet remote control RJ45 connector IN/OUT
• Power Socket: 1xPowerCon TRUE1 IN / 1xPowerCon TRUE1 Out
  Controls: 1xSpeakers Coupling (7 presets) / 1x HF Compensation (8 presets) / 1XInput Attenuation Rotary Switch

Mechanics

• Housing: Multiplex Plywood / Polyurea Painted
• Housing Design: Trapezoidal 10°
• Handles: 2x side
• Rain Cover: Included
• Rigging Points" Integrated rigging hardware
• Width: 720 mm (28.35 in)
• Height: 320 mm (12.6 in)
• Depth: 520 mm (20.47 in)
• Weight" 28.6 Kg (63.00 lbs

DB Technologies VIO VIO S318 Active Bassreflex Semi-Horn-Loaded Subwoofer 5400W

As for lower frequencies, the VIO series is completed by VIO S318 subwoofer, a one of a kind system both for its acoustic configuration and majestic output. Indeed, dBTechnologies succeded in designing an extraordinary powerful triple 18" woofer system while maximizing its frontal emission and extending lower frequencies.

Overview

• Designed to maximize in-phase frontal emission
• On-board delay for perfect time alignement
• On board cardioid array configuration preset
• Frequency range extending down to 35Hz
• Network ready with an integrated RDNet port

Vio S318 is equipped with 3 18" bassreflex half-horn loaded woofers, configured in order to maximize frontal emission. The 3 voice coils are in facts mechanically aligned in order to achieve a perfect phase response.

The 3 DIGIPRO G3 amplifiers deliver a total 2700 W RMS power, allowing the system to reach up to 143dB SPL.
The system features an integrated delay module achieving up to 9.9 ms delay with 0,5 ms steps. The crossover module sets the low pass filter alongside with the highpass filter for the integrated crossover output. The system also features an attenuation control, a polarity switch and a RDnet port for remote control.

The high quality multiplex housing is reinforced with a robust polyurea finishing and equipped with 5 aluminium handles per side.
The dolly transport DT-318 allows to transport up to 3 subs simoultaneously, both on wheels or on lift track. As an alternative to the dolly, wheels can be mounted on the rear side of the cabinet.

Tech specs / Technical Data

• Speaker Type: Active Bassreflex Semi-Horn-Loaded Subwoofer

Acoustical data

• Frequency Response [- 6 dB]: 39 Hz to Cut Freq (X-Over Dependent)
• Frequency Response [- 10 dB]: 35 Hz (HPF)
• Max SPL: 143 dB
• LF: 3x18"
• Voice Coil LF: 4 "
• Directivity: Omnidirectional

Amplifier

• Amp Technology: Digipro® G3
• Amp Class: Class D
• RMS Power: 2700 W
• Peak Power: 5400 W
• Cooling: Convection
• Power Supply: 2700 W SMPS with Auto Range PSU

Processor

• Controller: DSP 64 bit
• AD/DA Converter: 24 bit/48 KHz
• Limiter: RMS, Peak, Thermal
• Delay Option: 0-9.9 ms internal / Steps of 0.1 ms
• Crossover Frequency LF-HF: 70-105Hz + Full range
• LF-Xover out slope: 24 dB/Octave

Input

• Signal Input: 1xXLR balanced / 1xRJ45 LINK (RDNet)
• Signal Output: 1x XLR balanced / 1xRJ45 LINK (RDNet)
• Power Socket: 1xPowerCON TRUE1 IN / 1xPowerCON TRUE1 OUT
• Controls: 1x Input Attenuation Rotary Switch / 2x Rotary Encoder (Delay 9.9 ms) / 1XPolarity Inversion Switch (0° or 180°) / 1xCardioid Mode Switch / 1x X-Over Freq Switch (70-105 Hz + Full Range (steps of 5 Hz)

Mechanics

• Housing: Multiplex plywood / Polyurea painted
• Handles: 4x Per Side / Aluminium
• Raincover: Included
• Rigging Points: 2xPick Points on top to fix DRK-210 rigging frame
• Width: 1300 mm (51.18 in)
• Height: 520 mm (20.47 in)
• Depth: 800 mm (31.5 in)
• Weight: 103.9 kg (229.06 lbs)
