(4) RCF HDL6-A with RCF SUB 8006-AS Subwoofer Package

The HDL6-A is the ideal choice when line array performance is needed and a fast and easy set-up a must. A 1400 W 2-channel class-D amplifier powers the system. A powerful DSP processes the sound including crossover, phase correction, limiting and protection. The system features state-of-the-art RCF transducers - two powerful 6.0" woofers for a solid bass reproduction plus a high powered 1.7" voice coil compression driver mounted on a precise 100° x 10° waveguide delivers vocal clarity with high definition and an incredible dynamic.

The HDL 6-A is a two way active line array module designed for live sound reinforcement and installed sound applications. It features: 2 x 6.5-inch neodymium woofers, 1 x 1.7-inch neodymium compression driver, digital amplifier with switch mode power supply and DSP controlled Input section with selectable presets. The HDL 6-A delivers: 131dB max SPL; 1400 Watt peak power (700 Watts RMS); 65Hz - 20kHz frequency response. The HDL 6-A is a true active and high power ready to use touring system equipped with a high efficiency digital amplifier that delivers superior SPL reducing energy requirement. The integrated processing and the cabling reduction will make the set-up faster and easier and, thanks to its compact size, the truck space requirement is reduced to the minimum. The HDL 6-A is powered by a 1400W peak power digital amplifier, split 200W for the HF and 500W for the LF. A new generation DSP handles all the processing within the cabinet and allows adjustment of HF projection. This setting is accessed by the button on the rear of the cabinets. MAIN XLR INPUT (BAL/UNBAL). The system accept female XLR input connectors and line level signals from a mixing console or other signal source. The output XLR male connector provides a loop trough for speakers daisy chaining. The Volume Knob controls the volume of the power amplifier. The control ranges from - (maximum attenuation) to the MAX level (maximum output). Status indicators - Power on indicator. When the power cord is connected and the power switch is turned on this indicator lights green. SIGNAL INDICATOR. The signal indicator lights green if there is signal present on the main XLR input. LIMITER INDICATOR. The amplifier has a built in limiter circuit to prevent clipping of the amplifiers or overdriving the transducers. When the peak clipping circuit is active the LED blinks orange. It is okay if the limit LED blinks occasionally. If the LED blinks frequently or lights continuously, turn down the signal level. The amplifier has a built in RMS limiter. If the RMS limiter is active the LED lights red. The RMS limiter has the purpose to prevent damages the transducers. The speaker shall never be used with the limit indicator red, continuous operation with the RMS protection active can cause damages to the speaker.

Features:

• 1400 W, two-way amplification.
• 131 dB max SPL.
• 1.7" voice coil neodymium compression driver.
• 2 x high power neodymium 6.0" woofers.
• 48 kHz, 32 bit floating point DSP processing.
• Symmetrical design.
• Extremely low weight.
• FiRPHASE processing.

Specification

Acoustical specifications

• Frequency Response -3 dB: 65 Hz ÷ 20000 Hz
• Max SPL: 131 dB
• Horizontal coverage angle: 100°
• Vertical coverage angle: 10°
• Compression Driver: 1.0" neo, 1.7" v.c.
• Woofer: 2 x 6" neo, 2.0" v.c.

Input/Output section

• Input connectors: XLR male
• Output connectors: XLR female
• Input sensitivity: +4 dBu

Processor section

• Crossover frequencies: 900 Hz
• Protections: Thermal, RMS
• Limiter: soft limiter
• Controls: HF correction

Amplifier Specifications

• Total power: 1400 W PEAK
• High frequencies: 400 W PEAK
• Low frequencies: 1000 W PEAK
• Total power: 700 W RMS
• High frequencies: 200 W RMS
• Low frequencies: 500 W RMS
• Cooling: convection
• Connections: Powercon in-out

Cabinet

• Cabinet Material: Composite PP
• Hardware: array fittings
• Handles: 2 back
• Colour: black

Physical Specifications

• Height: 237/9.3 mm/inch
• Width: 470/18.50 mm/inch
• Depth: 377/15.0 mm/inch
• Net Weight: 11.5/25.35 kg/lbs

RCF Sub 8006-AS

The SUB 8006-AS is the largest and most powerful active sub woofer in the professional series.

Featuring two 18" transducers, with 4" inside/outside voice coils, this cabinet is designed to delivery a serious amount of low frequency. Powered by a 2500W digital amplifier module, the SUB 8006-AS can perform in the most demanding situations.

Key Features:

FEATURES

• 5000 Watt Peak power - 2500 Watt RMS
• 141 dB max SPL
• 30 Hz - 120 Hz frequency response
• 2 x 18" Woofer
• DSP controlled Input section with selectable presets
• Delay control
• Integrated mechanics for multiple configuration with HDL 20-A
• Baltic birch tour grade cabinet

ACOUSTICAL SPECIFICATIONS

• Frequency Response -3 dB:30 Hz ÷ 120 Hz
• Max SPL:141 dB
• Woofer:2 x 18", 4.0" v.c.

INPUT/OUTPUT SECTION

• Input signal:bal/unbal
• Input connectors:XLR
• Output connectors:XLR
• Input sensitivity:-2 dBu / +4 dBu

PROCESSOR SECTION

• Crossover frequencies:Selectable 80 Hz - 100 Hz Hz
• Protections:Thermal, RMS
• Limiter:Fast limiter
• Controls:Xover, Phase switch, Deep/Punch, Output Delay Settings, Cardioid

AMPLIFIER SPECIFICATIONS

• Total power:5000 W PEAK
• Low frequencies:5000 W PEAK
• Cooling:Convection
• Connections:Powercon in/out

CABINET

• Cabinet Material:Baltic Birch
• Hardware:Mounting points
• Handles:4 side
• Colour:Black

PHYSICAL SPECIFICATIONS

• Height:709 / 27.91 mm/inch
• Width:1109 / 43.66 mm/inch
• Depth:700 / 27.5 mm/inch
• Net Weight:90 / 198.41 kg/lbs

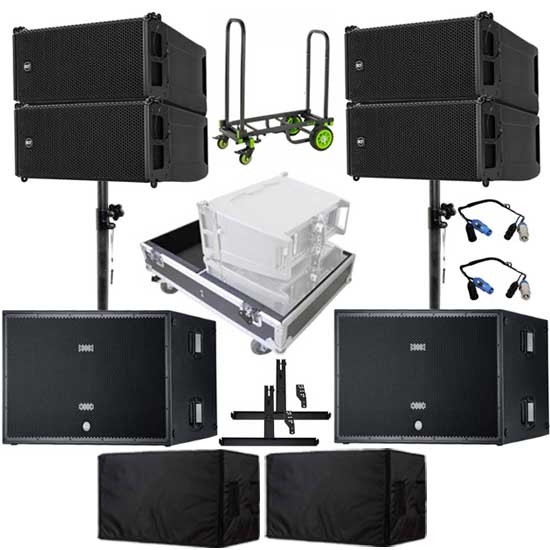

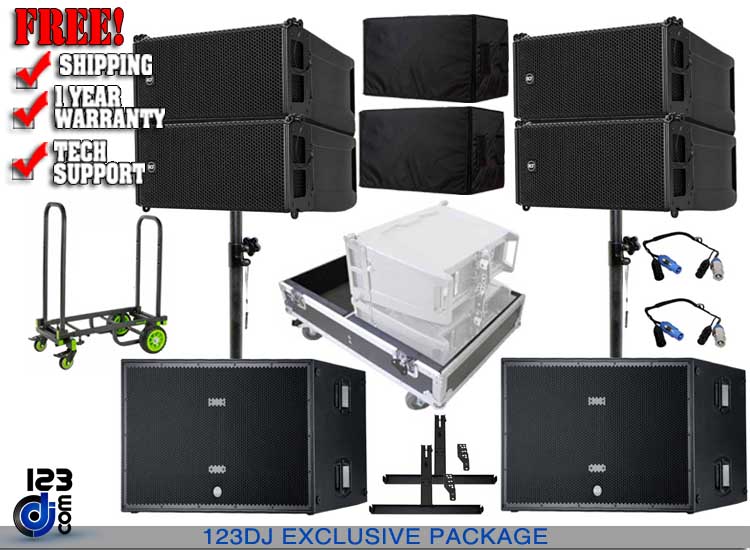

This Package Includes:

• (4) RCF HDL6-A Active Line Array Modules
• (2) RCF SUB 8006-AS Dual 18" Active High Power Subwoofer
• (2) Power cord
• (2) RCF PM-KIT 3X HDL 6 Pole Mount Kit for HDL26a Speakers
• (2) ProX 2-in-1 36" Aluminum Adjustable Speaker Extension Pole Mount [X-SPAM20]
• (2) ProX 3FT Powercon and XLR Link Cable [XC-PWC14-XLR03]
• (1) ProX X-RCF-HDL6ALAX2W Line Array Flight Case for 2 RCF HDL6-A Speakers with Wheels
• (2) Properly Fitting & Durable Protective Transport Cover
• (1) Multifunctional Trolley
