(4) DAS Event-208A Speakers and (2) Event 218A Subwoofer Package

Overview

The Event 208A Line is a three-way powered line array in a double 8" configuration. The D.A.S. loudspeaker units have been teamed up with a single M-75 compression driver and purpose-designed injected aluminum high frequency waveguide. The Event 208A line array is powered by a three channel Class D amplifier which provides 360 Wpeak per channel. The amp?s rear panel includes quality Neutrik® XLR and powerCON connectors, status LEDS to facilitate setup and D.A.S.'s Easy-DSP™ interface which simplifies preset selection for the number of units and throw depth.

DAS Event 208A Features:

• Powered 3-way system.
• Light-weight Class D amplifier topology.
• High-end DSP chipsets.
• Easy-DSP™ Interface.
• Quality Neutrik® connectors.
• Top grade Birch cabinet construction.
• Durable ISO-flex finish.
• Robust "quick-rig" professional rigging hardware.
• Proprietary injected aluminium HF waveguide (not plastic).
• D.A.S. M-75 compression driver and cone transducers

DAS Event 218A Dual 18" Powered Subwoofer

The Event 218A dual 18" powered subwoofer makes use of one of D.A.S.'s most acclaimed loudspeakers, the LX series long excursion transducers which were introduced in the high-level LX-218. The enclosure is designed for horizontal use, built using quality Birch plywood, finished with the ISO-flex coating and has a pole mount socket on the upper panel.

The power amplifier provides 3600 Wpeak power and offers features found on the more expensive LX subwoofers such as the Cardioid Preset mode switch which offers specific signal treatment for easy set-up of pairs of systems in cardioid subwoofer applications. The system includes two balanced inputs (A-B) with stereo HPF (100 Hz) filtered output connections for satellite systems. Defeating the HPF filter offers stereo "loop thru" connections. The variable LPF crossover ranges from 80 Hz-125 Hz. A gain control and polarity reverse feature increase user control over the system.

Event 218A Features:

• Powered high performance subwoofer system.
• 3600 Wpeak Class "D" amplifier.
• Two 18LX loudspeakers with 4" voice coils.
• Front loaded bass-reflex configuration.
• Durable ISO-flex finish.

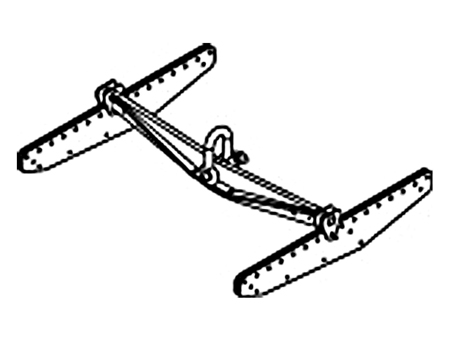

DAS AXS-EVENT 208 Event 208 Stacking Bracket

Stacking bracket, ceiling mount, truss mounting (requires AXC-AT) or TRD-2 mounting (requires AXC-ZT), for Event 208A.

DAS 3FT PowerCON & XLR Combo Jumper Cable 14 AWG Power 16 AWG Audio [DAS-CJC-3FT]

3FT. Combo Jumper Cable : 14 AWG Power, 16 AWG Audio Power-in (blue) w/ XLR Male on one side and Power-out (gray) w/ XLR Female on the other side. Both cables are housed in a single sleeve with insulation.

Technical specification

DAS Event 208A Specifications

• Nominal HF Amplifier Power 360 Wpeak
• Nominal MF Amplifier Power 360 Wpeak
• LF Amplifier Power 360 Wpeak
• Range (-10 dB) 75 Hz -20 kHz
• Rated Peak SPL at 1 m 132 dB
• Horizontal Coverage (-6 dB) 90° Nominal
• Vertical Coverage Splay Dependent
• Enclosure Material Birch Plywood
• Color/Finish Black ISO-flex Paint
• Connectors INPUT: Female XLR
• LOOP THRU: Male XLR
• AC INPUT: powerCON
• AC OUTPUT: powerCON
• AC Requirements 115 V, 2.4A, 50 Hz/60 Hz
• 230 V, 1.2A, 50 Hz/60 Hz
• Dimensions (H x W x D) 27 x 67 x 36.6 cm
• 10.6 x 26.4 x 14.4 in
• Weight 30 kg (66 lb)

DAS Event 218A Specifications

• Nominal LF Amplifier Power 3600 Wpeak-1800 Wcontinuous
• Frequency Range (-10 dB) 32 Hz - 125 Hz
• Rated Peak SPL at 1 m 140 dB
• Internal Crossover 100 Hz
• Connectors IN: Female XLR
• LOOP THRU: Male XLR
• AC IN:powerCON
• AC OUT: powerCON
• AC Requirements 6. 0A, 115 V, 50 Hz/60 Hz
• 3.0 A, 230 V, 50 Hz/60 Hz
• Enclosure Material Birch Plywood
• Color/Finish Black ISO-flex Paint
• Dimensions (H x W x D) 54 x 106 x 67 cm
• 21.3 x 41.7 x 26.4 in
• Weight 70 kg (154 lb)

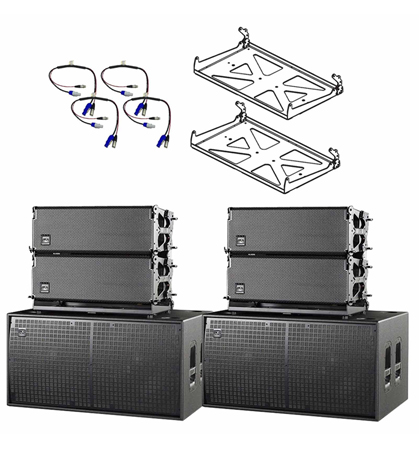

WHAT'S IN THE BOX

This Package Includes:

• (4) DAS Event-208A Dual 8" Multipurpose Powered Line Array Speakers
• (2) DAS Event 218A Dual 18" Powered Subwoofers
• (2) DAS AXS-EVENT 208 Event 208 Stacking Brackets
• (4) DAS 3FT PowerCON & XLR Combo Jumper Cables 14 AWG Power 16 AWG Audio [DAS-CJC-3FT]

Each DAS Event 208A Box Includes:

• (1) DAS Event 208A Dual 8" Multipurpose Powered Line Array Speaker
• 1) Power Cord
• (1) User Manual

The Event 218A Box Includes:

• (1) DAS Event 218A Dual 18" Powered Subwoofer
• (1) Power Cord
• (1) User Manual

The DAS AXS-EVENT Box Includes:

• (1) DAS AXS-EVENT 208 Event 208 Stacking Bracket

Each DAS-CJC-3FT Box Includes:

• (1) DAS 3FT Combo Jumper Cable 14 AWG Power 16 AWG Audio
