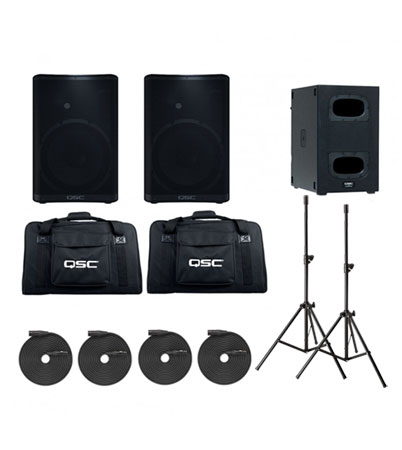

2x QSC CP12 + QSC KS112 + Tote Bags + Tripod Pair + XLR Cables

Package Includes :

• 2 X QSC CP12
• 1 X QSC KS112
• 2 X QSC CP12 Tote
• 1 X Tripod Pair w/ Carry Bag
• 4 X XLR Cable

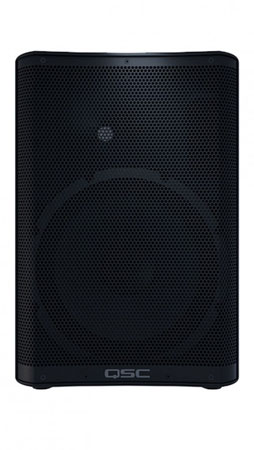

• QSC CP12

Compact Powered LoudspeakersHigh

performance, superior quality and lasting reliability. These are the hallmarks of the QSC brand and the reason why millions of professionals the world-over have come to trust QSC to help them confidently deliver superior experiences and memorable performances. The CP Series follows in that same tradition while also offering an ultra-compact form factor and class-leading value.The first thing you will notice about the CP Series is its compact design - every line, angle and curve working harmoniously to present a stylish, yet rugged, appearance. Inside, CP is equipped with a highly-efficient, 1000-watt power amplifier, matching transducers and advanced DSP, delivering performance beyond expectations for a loudspeaker of this size. Because of its compact size, CP is remarkably lightweight, making it easy to load, carry, lift and deploy in a wide range of portable and installed applications. Entertainers of all kinds, as well as educators, institutions and houses of worship will appreciate the ability to mix up to three input sources (mic/line, line and music playback device) at once, making CP a great single-box PA system that sets up in seconds. As part of a larger system, CP can be deployed on a speaker pole, used as a floor monitor or as a musical instrument amplifier. System integrators will especially appreciate CP's lightweight and compact form factor when attaching it to a wall or truss (via optional yoke mount). And all users will enjoy one-touch DSP control with preset contours for the most common audio applications.

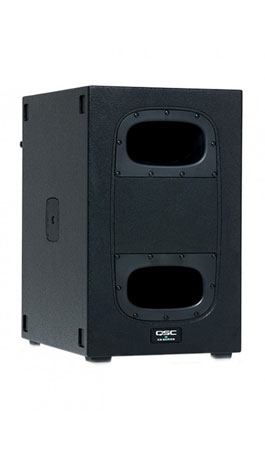

QSC KS112

The KS112 is an ultra-compact powered subwoofer for installation and highly portable entertainment applications. The KS112 is a highly portable, single 12-inch bandpass design subwoofer, powered by a 2000 watt peak power class D amplifier module. The cabinet is constructed of premium birch and includes high-quality, low noise casters.

Two M20 threaded pole receptacles are available for a positive, wobble-free connection to a threaded speaker pole in either vertical or horizontal deployment (pole not included).

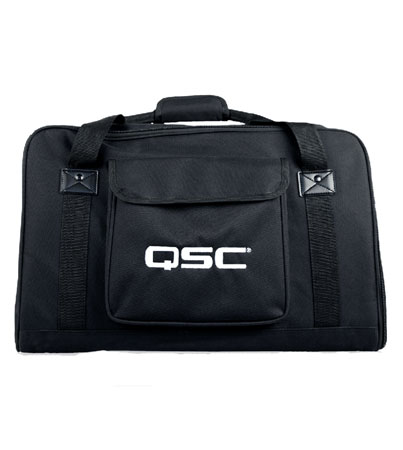

QSC CP12 Tote

Carry Tote Bag for QSC CP12 Speaker

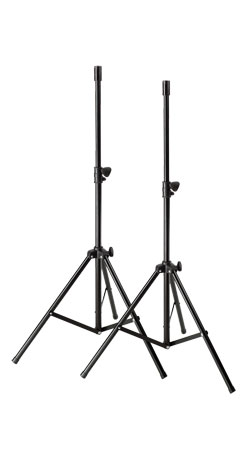

Tripod Pair w/ Carry Bag

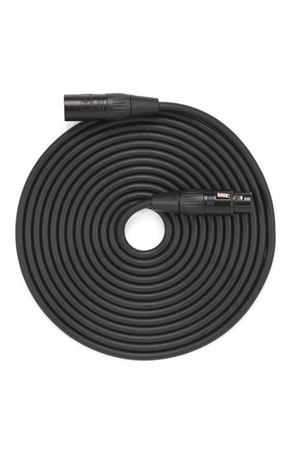

XLR Cable

Features

QSC CP12

• Compact and powerful performance
• 1000 Watt peak power Class-D amplifier module
• Easily selected contours for commonly-used applications
• Advanced DSP with Intrinsic Correction for superior sound quality and speaker protection
• Directivity Matched Transition (DMT) for consistent frequency response across the entire coverage area
• Light weight and highly portable
• Professional appearance looks great in any application
• Use for main PA, stage monitor, or instrument amplifie
• 35 mm pole socke
• Optional yoke, tote, and outdoor cover accessories
• Complete EASE and CAD information

Compact Powered Loudspeakers

• Configuration : Two-way active loudspeaker
• LF Transducer : 12 in (305 mm), cone
• HF Transducer : 1.4 in (35.6 mm) compression driver
• Frequency Response (-6 dB) : 49 - 20 kHz
• Frequency Range (-10 dB) : 47 - 20 kHz
• Nominal Coverage Angle : 75° Axisymetric
• Maximum Rated SPL1 : 126 dB
• Amplifier : Class D, Peak : 800 W (LF), 200 W (HF)
• Controls : Power 2 x Gain Mic Boost Push Switch 6-way Contour Selection Switch
• Indicators : Power LED, 2 x Input Signal LED, Input B MIC selected LED, Limiter active LED
• Connectors : 2 x locking XLR/F ¼" combo (Line Input and Mic/Line input) , 1 x 3.5 mm TRS (Stereo Input), 1 x XLR/M (Mix Output), 1 x IEC power connector
• AC Power Input : Universal power supply 100 - 240 VAC, 50 - 60 Hz
• AC Power Consumption 1/8th Power : 100 VAC, 0.75A / 120VAC, 1.0A / 240VAC 0.31A
• Enclosure Material : Polypropylene
• Attachment Points : M10 threaded insert
• Color : Black (RAL 9011)
• Grille : 18 Gauge powered coated steel
• Dimensions (HxWxD) : 20.3 x 13.8 x 12.7 in, 20.3 x 13.8 x 12.7 in
• Regulatory : EMC, UL, CB
• Optional Accessories : CP12 Tote, CP12 Outdoor Cover, CP12 Yoke

QSC KS112

• High Output in an ultra-compact form factor
• 2000 Watt class D amplifier module
• 12-inch, long-excursion driver; 6th order bandpass design
• Variable crossover and savable/recallable scenes for commonly-used applications
• Intrinsic Correction™ tuning and loudspeaker management
• Refined, professional appearance looks great in any application
• Rugged painted wood enclosure for long life and lasting durability
• Deployment in either vertical or horizontal positions with dual M20 speaker pole fittings
• Optional KS-LOC security cover prevents unauthorized tampering of controls
• Configuration : 6th-Order Bandpass Subwoofer
• LF Transducer : 12-inch (305 mm), Cone
• Frequency Response (-6 dB) : 41 Hz - 108 Hz
• Frequency Range (-10 dB) : 38 Hz - 121 Hz
• Maximum Rated SPL1 : 128 dB 1 m (peak)

Amplifier

• Class D
• 2000W (peak)
• Cooling : Low-noise, variable speed fan

Controls

• Power On/Off
• Gain Control
• Rotary encoder
• 2 x selection buttons

Indicators

• 2 x Power LED (front and rear)
• Input Signal LED
• Limiter Active LED

Connectors

• 2 x locking XLR/F 1/4" combo
• 2 x XLR/M (Loop-thru Output)
• 1 x locking IEC power connector
• AC Power Input : Universal power supply 100 - 240 VAC, 50 - 60 Hz
• AC Power Consumption : 100 VAC, 2.4 A / 120 VAC, 2.0 A / 240 VAC, 1.3 A

Enclosure Details

• Enclosure : 15 mm Birch Plywood
• Color : Black (RAL 9011)
• Grille : Internal woofer cover
• Dimensions (HWD) inches : 24.5 x 15.5 x 24.25
• Dimensions (HWD) mm : 622 x 394 x 616
• Regulatory : CE, WEEE, UL, China RoHS, RoHS II, FCC Class B
• Included Accessories : 4 x Low-Noise, Heavy Duty Casters

QSC CP12 Tote

• Carry Tote Bag for QSC CP12 Speaker
• Tripod Pair w/ Carry Bag

XLR Cable
