(2) RCF NXL 24-A MK2 with RCF SUB 8004-AS Package

NXL 24-A MK2 is a line array column speaker masterfully engineered from the ground up to deliver stellar audio performance for Bands, DJs, Clubs, and Rental Companies. The best-in-class combination of premium RCF transducers and a 2100W two-channel amplifier produce coherent 100° x 30° coverage for the listening area with up to 132 dB. The two-way design features four 6" neodymium woofers and a 3" driver on an asymmetrical waveguide. The horn's design delivers accurate sound to the coverage area without tilting the enclosure. The speaker delivers an extended frequency range down to 60 Hz and can be used as a stand-alone speaker, flown, or coupled with another NXL 24-A MK2 for extended coverage. Pairing the speaker with subwoofers delivers full-range power for medium-sized concerts and DJ systems. Blending RCF proprietary FiRPHASE and Bass Motion Control DSP processing, the NXL 24-A MK2 speaker is perfectly tuned for absolute sound clarity and deep, powerful bass response. The rugged, tour-ready, high-quality baltic birch plywood cabinet is easy to carry and installed securely using the dedicated rigging points.

The most powerful amplifier in its class. RCF's improvements in transducer design make them stronger and more powerful. With 2,100W of power, the NXL MK2 2-channel Class-D amplifier is 50% more powerful than previous models. NXL manages extreme sound pressure levels with an ultra-fast attack, realistic transient response, and very low power loss. NXL modules are energy-efficient so there's no need for a cooling fan - the amplifier is attached to a solid aluminum heat exchanger in the rear of the cabinet - with no moving parts. The input circuit features a new low distortion design with an advanced safety limiter, maintaining the true character of the input signal at all levels. All NXL amplifiers are designed according to EN62368-1 for maximum safety and house a Switch Mode Power Supply section with minimum weight. The vertically asymmetrical horn design accurately projects the sound energy and avoids unwanted reflections when placed on a sub or a speaker stand, without tilting the enclosure. This design also allows configuring two cascading NXL columns for optimal coverage. Intelligibility is significantly increased in challenging acoustic environments. The speaker delivers an extended low-frequency range that is increased when paired with a subwoofer for medium-sized concerts and DJ sets.

Features:

• Up to 132 dB Sound Pressure Level.
• 2100W Class-D Amplifier.
• 100° x 30° Constant Directivity Coverage Angle.
• 3" Titanium Neodymium Compression Driver.
• 4 x 6" High Power Neodymium Woofers.
• 60-20000 Hz linear Frequency Response.
• Bass Motion Control and FiRPHASE processing.
• 4 x M8 Rigging Points and 4 x Quick Lock.

RCF NX-L24A-MK2 Product Specifications:

Acoustical Specifications

• Frequency Response: 60 Hz ÷ 20000 Hz
• Max SPL @ 1m: 132 dB
• Horizontal coverage angle: 100°
• Vertical coverage angle: 30°

Transducers

• Compression Driver: 1 x 1.4" neo, 3.0" v.c
• Woofer: 4 x 6.0" neo, 1.5" v.c

Input/Output Section

• Input signal: bal/unbal
• Input connectors: Combo XLR/Jack
• Output connectors: XLR
• Input sensitivity: +4 dBu

Processor Section

• Crossover Frequencies: 800
• Protections: Thermal, Excurs., RMS
• Limiter: Soft Limiter
• Controls: Linear, 2 Speakers, High-Pass, Volume

Power Section

• Total Power: 2100 W Peak
• High frequencies: 700 W Peak
• Low frequencies: 1400 W Peak
• Cooling: Convection
• Connections: Powercon TRUE1 TOP IN/OUT

Standard Compliamce

• Safety agency: CE compliant

Physical Specifications

• Cabinet/Case Material: Baltic birch plywood
• Hardware: 4 x M8, 4 x quick lock
• Handles: 2 side
• Pole mount/Cap: Yes
• Grille: Steel
• Color: Black

Size

• Height: 1056 mm / 41.57 inches
• Width: 201 mm / 7.91 inches
• Depth: 290.4 mm / 11.43 inches
• Weight: 24.4 kg / 53.79 lbs

Shipping Information

• Package Height: 320 mm / 12.6 inches
• Package Width: 1080 mm / 42.52 inches
• Package Depth: 230 mm / 9.06 inches
• Package Weight: 27.5 kg / 60.63 lbs

RCF SUB 8004-AS

The SUB 8004-AS is one of the most powerful 18" subwoofers in pro-sound category. Featuring a high power, hypervented 18" woofer, with 4" inside/outside voice coils, this cabinet is designed to deliver a serious amount of low frequency. Powered by a 1250W digital amplifier module, the SUB 8004-AS can perform in the most demanding situations. The input board includes volume control, deep/punch switch, high pass switch, phase switch, cardioid, time delay.

Key Features:

FEATURES

• 2500 Watt Peak, 1250 Wat RMS
• 136 dB max SPL
• 30 Hz - 120 Hz frequency response
• 18" Woofer, 4.0" voice coil vented woofer
• DSP controlled Input section with selectable presets
• Delay control
• Baltic birch tour grade cabinet
• Compatible with NXL23-A (stacking)
• Compatible with NXL24-A (stacking)
• Multiple configurations with HDL 10-A and HDL 20-A

ACOUSTICAL SPECIFICATIONS

• Frequency Response -3 dB:30 Hz ÷ 120 Hz
• Max SPL:136 dB
• Woofer:18", 4.0" v.c.

INPUT/OUTPUT SECTION

• Input signal:bal/unbal
• Input connectors:XLR
• Output connectors:XLR
• Input sensitivity:-2 dBu / +4 dBu

PROCESSOR SECTION

• Crossover frequencies:Selectable 90 Hz - 120 Hz Hz
• Protections:Thermal, RMS
• Limiter:Fast limiter
• Controls:Xover, Phase switch, Deep/Punch, Output Delay Settings, Cardioid

AMPLIFIER SPECIFICATIONS

• Total power:2500 W PEAK
• Low frequencies:2500 W PEAK
• Total power:1250 W RMS
• Low frequencies:1250 W RMS
• Cooling:Convection
• Connections:Powercon in-out

CABINET

• Cabinet Material:Baltic Birch
• Hardware:2xM20, 4 x wheels mounting points
• Handles:2 side
• Colour:Black

PHYSICAL SPECIFICATIONS

• Height:700 / 22.56 mm/inch
• Width:557.5 / 21.95 mm/inch
• Depth:700 / 27.56 mm/inch
• Net Weight:51.0 / 112.20 kg/lbs

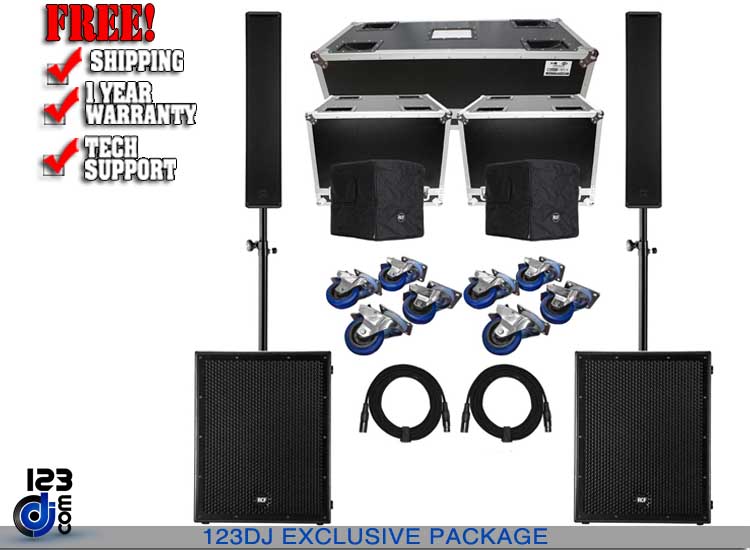

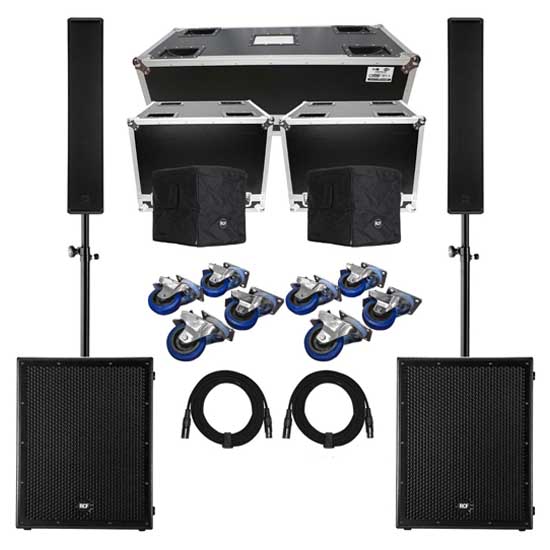

This Package Includes:

• (2) RCF NX-L24A-MK2 Active Two-Way Column Array Powered Speakers
• (2) IEC Power cords
• (1) ProX X-RCF-NXL24A Column Array Flight Case with 4 inch Wheels - Fits (2) RCF NX L24-A Speakers
• (2) Black Steel Tube Distance Rods
• (2) ProX X-RCF-SUB8004AS RCF SUB 8004-AS Subwoofer Flight Cases with 4" Wheels
• (2) RCF SUB 8004-AS 18" Active High Power Subwoofers
• (2) Power cords
• (8) RCF AC-4CAST-SET-LOCK Subwoofer Wheels
• (2) RCF Protective Covers for SUB 8004-AS Subwoofers
• (2) 10FT XLR Connecting Cables
