(2) RCF HDL 10-A with RCF SUB 8006-AS Subwoofer Package

The very compact size, no compromise transducers and a unique composite cabinet design make the HDL 10-A the perfect tool in many situations. Ideal in live sound reinforcement and reliable installed situations. The HDL 10-A is the ideal choice when line array performance is needed and a fast and easy set up is a must. The system is powered from a 1400 Watt Peak Power 2 way digital amplifier, sound is processed from a powerful DSP.

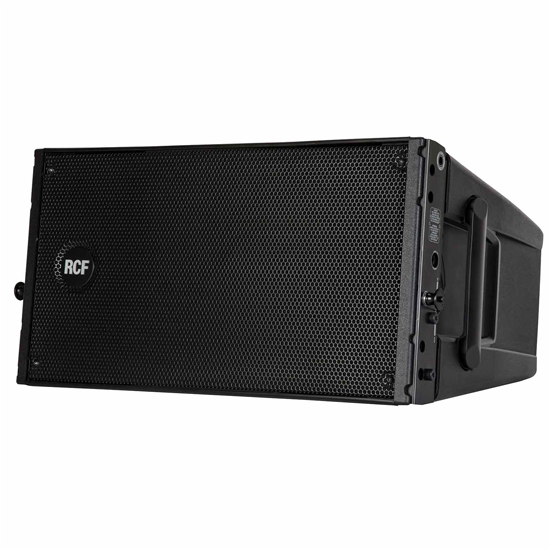

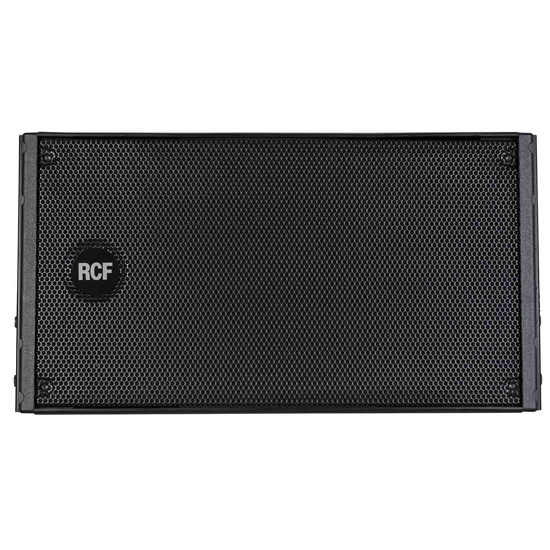

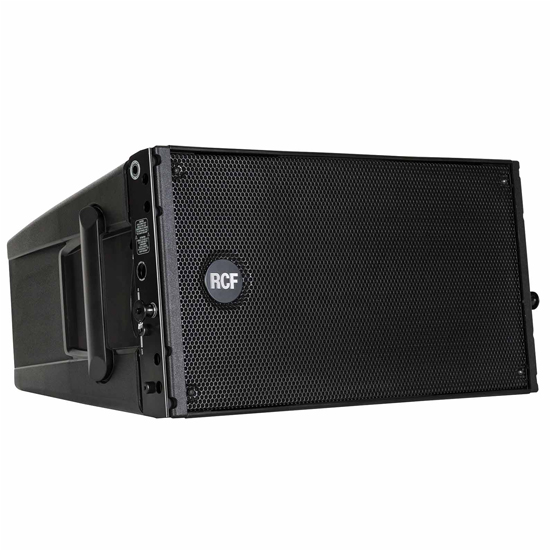

The HDL 10-A is a two way active line array module designed for live sound reinforcement and installed sound applications. It features: 2 x 8-inch woofers, 1 x 2.5-inch titanium compression driver, digital amplifier with switch mode power supply and DSP controlled Input section with selectable presets. The HDL 10-A delivers: 133dB max SPL; 1400 Watt peak power (700 Watts RMS); 65Hz - 20kHz frequency response.The HDL 10-A is a true active and high power ready to use touring system equipped with a high efficiency digital amplifier that delivers superior SPL reducing energy requirement. The integrated processing and the cabling reduction will make the set-up faster and easier and, thanks to its compact size, the truck space requirement is reduced to the minimum.The integrated processing and the cabling reduction will make the set-up faster and easier. The compactness and lightweight of the system combined with top of class steel on board mechanics helps during rigging operations as well as during transportation.

Features

• 1400 Watt Peak power - 700 Watt RMS.
• 133 dB max SPL.
• 65 Hz 20 kHz frequency response.
• 2 x 8" Woofers.
• 1 x 2" Compression Driver.
• DSP controlled Input section with selectable presets.
• Tour grade safe and solid variable mechanics.
• Composite PP enclosure structurally wooden reinforced.

HDL 10-A Applications:

• Live sound.
• Rental.
• Portable PA, clubs, ballrooms, live theater.
• House of worship.
• Theme parks.
• Music playback and sound reinforcement in small and mid-size venues.
• Corporate A/V professionals and sound system hire companies.

Specification

Acoustical specifications

• Frequency Response -3 dB: 65 Hz ÷ 20000 Hz
• Max SPL: 133 dB
• Horizontal coverage angle: 100°
• Vertical coverage angle: 15°

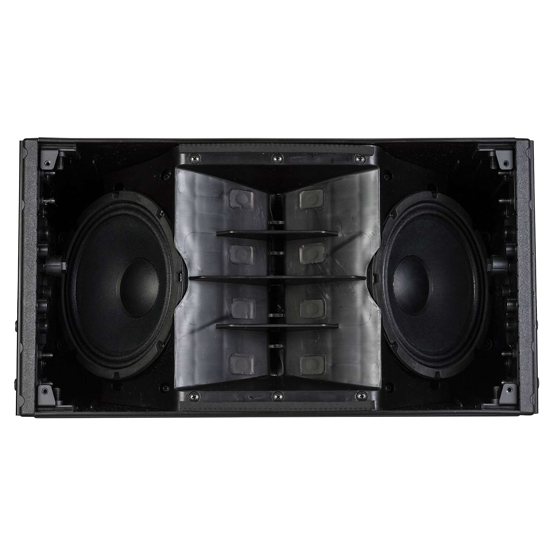

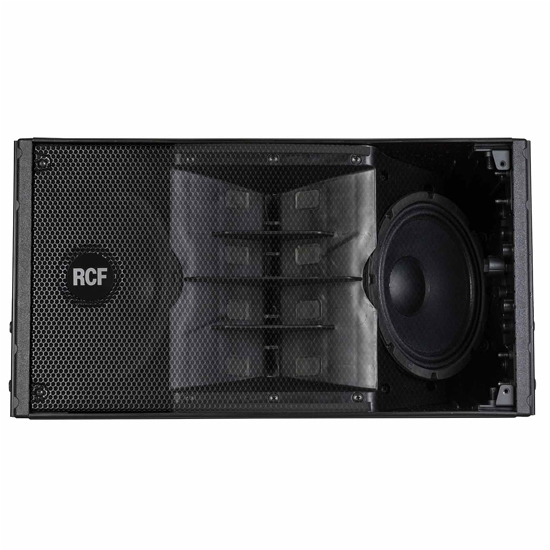

• Compression Driver: 2", 2.5" v.c.
• Woofer: 2 x 8", 2.0" v.c.

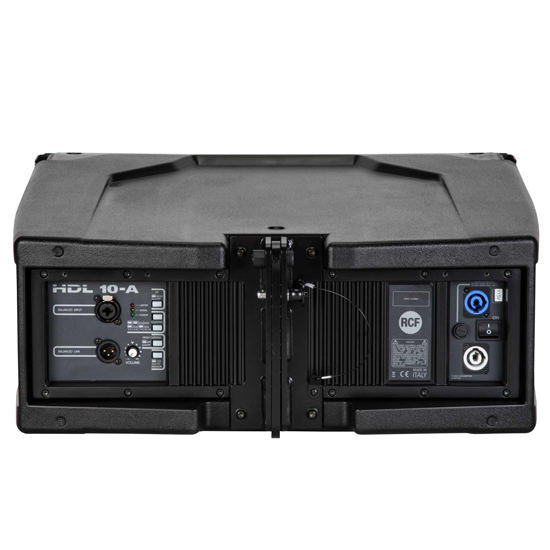

Input/Output Section

• Input signal: bal/unbal
• Input connectors: XLR
• Output connectors: XLR
• Input sensitivity: -2 dBu / +4 dBu

Processor Section

• Crossover frequencies: 800 Hz
• Protections: Thermal, RMS
• Limiter: Soft limiter

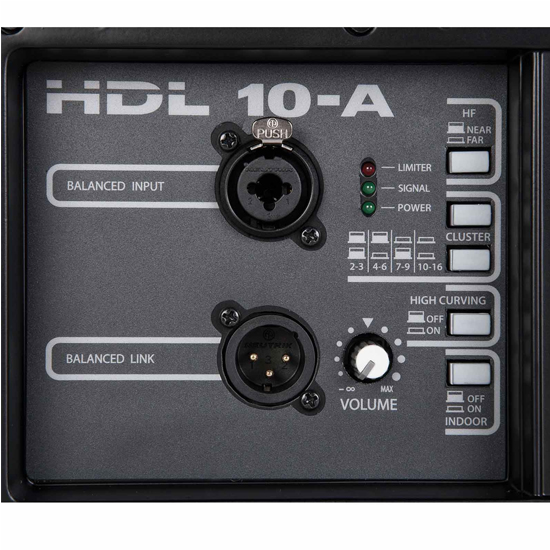

• Controls: Cluster, HF, High curving, Indoor

Amplifier Specifications

• Total power: 1400 W PEAK
• High frequencies: 400 W PEAK
• Low frequencies: 1000 W PEAK
• Total power: 700 W RMS
• High frequencies: 200 W RMS
• Low frequencies: 500 W RMS
• Cooling: Convection
• Connections: Powercon in/out

Cabinet

• Cabinet Material: Composite PP, wooden reinforced
• Hardware: Rigging flyware

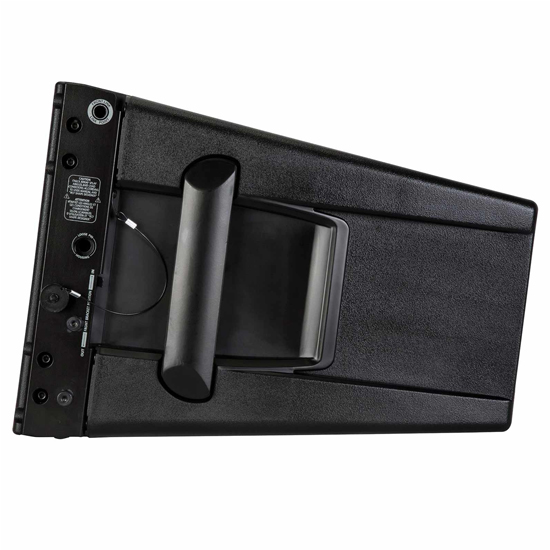

• Handles: 2 side
• Colour: Black

Physical specifications

• Height: 294 / 11.5 mm/inch
• Width: 569 / 22.40 mm/inch
• Depth: 434 / 17.09 mm/inch
• Net Weight: 20.4 / 44.97 kg/lbs

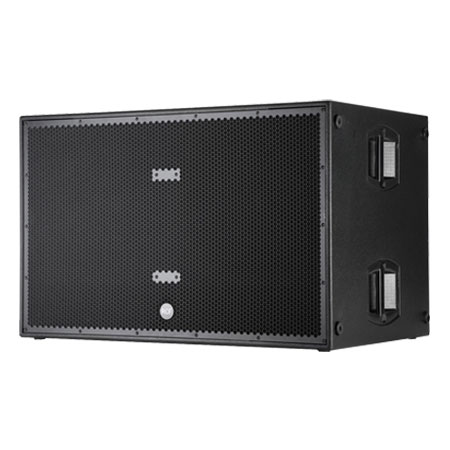

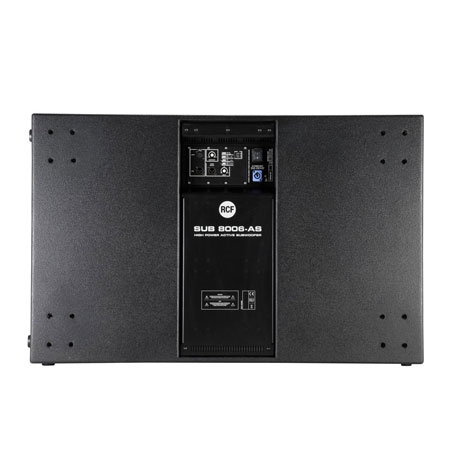

RCF Sub 8006-AS

The SUB 8006-AS is the largest and most powerful active sub woofer in the professional series.

Featuring two 18" transducers, with 4" inside/outside voice coils, this cabinet is designed to delivery a serious amount of low frequency. Powered by a 2500W digital amplifier module, the SUB 8006-AS can perform in the most demanding situations.

Key Features:

FEATURES

• 5000 Watt Peak power - 2500 Watt RMS
• 141 dB max SPL
• 30 Hz - 120 Hz frequency response
• 2 x 18" Woofer
• DSP controlled Input section with selectable presets
• Delay control
• Integrated mechanics for multiple configuration with HDL 20-A
• Baltic birch tour grade cabinet

ACOUSTICAL SPECIFICATIONS

• Frequency Response -3 dB:30 Hz ÷ 120 Hz
• Max SPL:141 dB
• Woofer:2 x 18", 4.0" v.c.

INPUT/OUTPUT SECTION

• Input signal:bal/unbal
• Input connectors:XLR
• Output connectors:XLR
• Input sensitivity:-2 dBu / +4 dBu

PROCESSOR SECTION

• Crossover frequencies:Selectable 80 Hz - 100 Hz Hz
• Protections:Thermal, RMS
• Limiter:Fast limiter
• Controls:Xover, Phase switch, Deep/Punch, Output Delay Settings, Cardioid

AMPLIFIER SPECIFICATIONS

• Total power:5000 W PEAK
• Low frequencies:5000 W PEAK
• Cooling:Convection
• Connections:Powercon in/out

CABINET

• Cabinet Material:Baltic Birch
• Hardware:Mounting points
• Handles:4 side
• Colour:Black

PHYSICAL SPECIFICATIONS

• Height:709 / 27.91 mm/inch
• Width:1109 / 43.66 mm/inch
• Depth:700 / 27.5 mm/inch
• Net Weight:90 / 198.41 kg/lbs

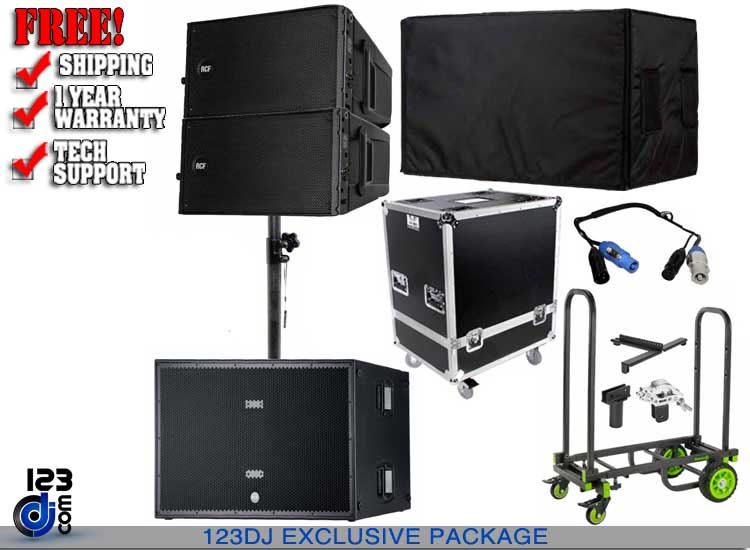

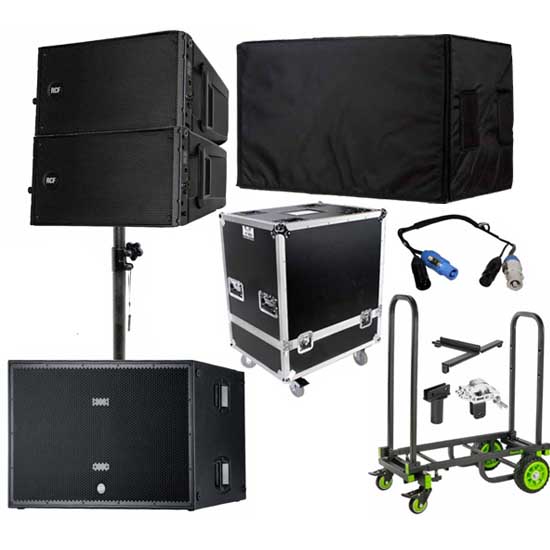

This Package Includes:

• (2) RCF HDL 10-A Active Line Array Modules
• (2) Power cords
• (1) RCF SUB 8006-AS Dual 18" Active High Power Subwoofer
• (1) Power cord
• (1) RCF FLY BAR HDL 10 Light Suspending Stack bar
• (1) Pickup point
• (1) Pole mount support
• (7) pins
• (1) ProX 2-in-1 36" Aluminum Adjustable Speaker Extension Pole Mount [X-SPAM20]
• (1) ProX 3FT Powercon and XLR Link Cable [XC-PWC14-XLR03]

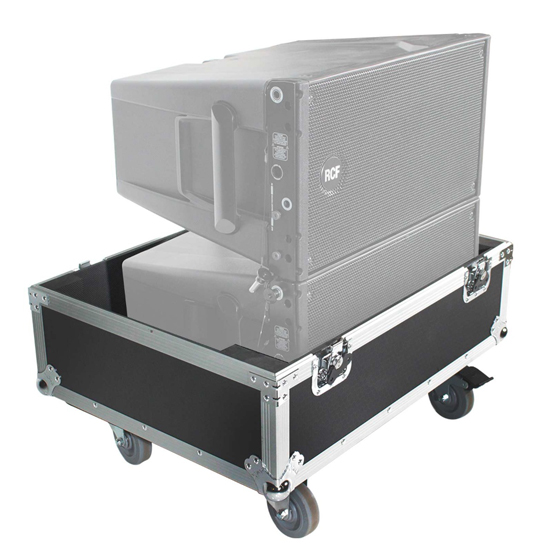

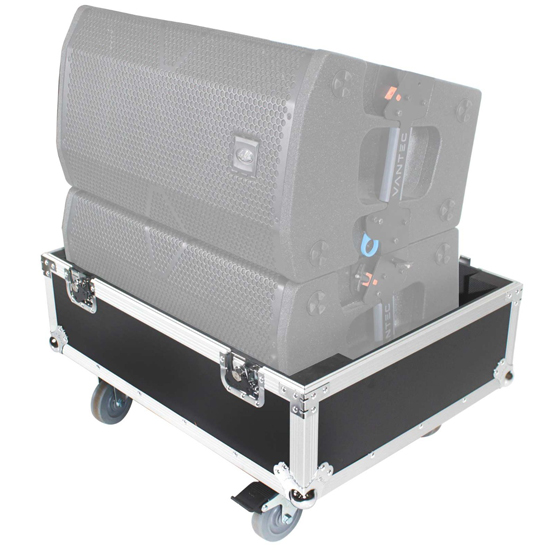

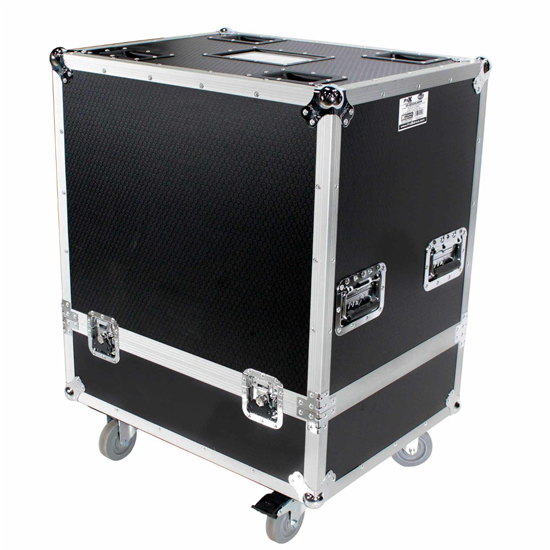

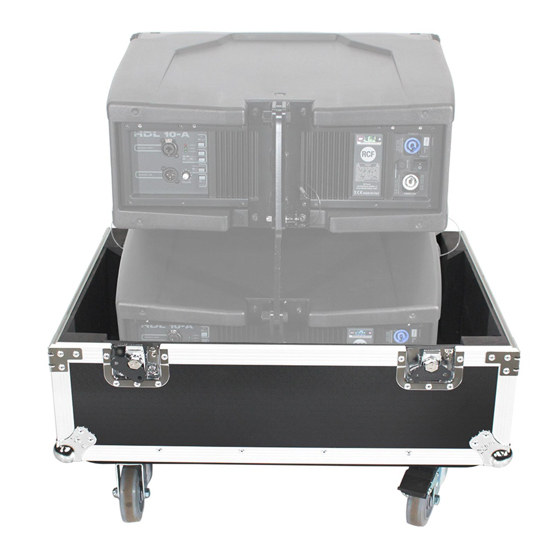

• (1) ProX XS-282620LASPW Universal Line Array Speaker Flight Case with Wheels for 2 Speakers
• (1) Properly Fitting & Durable Protective Transport Cov
er
• (1) Multifunctional Trolley
