(2) RCF HDL 10-A with Universal Array Speaker Flight Case Package

The very compact size, no compromise transducers and a unique composite cabinet design make the HDL 10-A the perfect tool in many situations. Ideal in live sound reinforcement and reliable installed situations. The HDL 10-A is the ideal choice when line array performance is needed and a fast and easy set up is a must. The system is powered from a 1400 Watt Peak Power 2 way digital amplifier, sound is processed from a powerful DSP.

The HDL 10-A is a two way active line array module designed for live sound reinforcement and installed sound applications. It features: 2 x 8-inch woofers, 1 x 2.5-inch titanium compression driver, digital amplifier with switch mode power supply and DSP controlled Input section with selectable presets. The HDL 10-A delivers: 133dB max SPL; 1400 Watt peak power (700 Watts RMS); 65Hz - 20kHz frequency response.The HDL 10-A is a true active and high power ready to use touring system equipped with a high efficiency digital amplifier that delivers superior SPL reducing energy requirement. The integrated processing and the cabling reduction will make the set-up faster and easier and, thanks to its compact size, the truck space requirement is reduced to the minimum.The integrated processing and the cabling reduction will make the set-up faster and easier. The compactness and lightweight of the system combined with top of class steel on board mechanics helps during rigging operations as well as during transportation.

Features

• 1400 Watt Peak power - 700 Watt RMS.
• 133 dB max SPL.
• 65 Hz 20 kHz frequency response.
• 2 x 8" Woofers.
• 1 x 2" Compression Driver.
• DSP controlled Input section with selectable presets.
• Tour grade safe and solid variable mechanics.
• Composite PP enclosure structurally wooden reinforced.

HDL 10-A Applications:

• Live sound.
• Rental.
• Portable PA, clubs, ballrooms, live theater.
• House of worship.
• Theme parks.
• Music playback and sound reinforcement in small and mid-size venues.
• Corporate A/V professionals and sound system hire companies.

Specification

Acoustical specifications

• Frequency Response -3 dB: 65 Hz ÷ 20000 Hz
• Max SPL: 133 dB
• Horizontal coverage angle: 100°
• Vertical coverage angle: 15°
• Compression Driver: 2", 2.5" v.c.
• Woofer: 2 x 8", 2.0" v.c.

Input/Output Section

• Input signal: bal/unbal
• Input connectors: XLR
• Output connectors: XLR
• Input sensitivity: -2 dBu / +4 dBu
>

Processor Section

• Crossover frequencies: 800 Hz
• Protections: Thermal, RMS
• Limiter: Soft limiter
• Controls: Cluster, HF, High curving, Indoor

Amplifier Specifications

• Total power: 1400 W PEAK
• High frequencies: 400 W PEAK
• Low frequencies: 1000 W PEAK
• Total power: 700 W RMS
• High frequencies: 200 W RMS
• Low frequencies: 500 W RMS
• Cooling: Convection
• Connections: Powercon in/out

Cabinet

• Cabinet Material: Composite PP, wooden reinforced
• Hardware: Rigging flyware
• Handles: 2 side
• Colour: Black

Physical specifications

• Height: 294 / 11.5 mm/inch
• Width: 569 / 22.40 mm/inch
• Depth: 434 / 17.09 mm/inch
• Net Weight: 20.4 / 44.97 kg/lbs

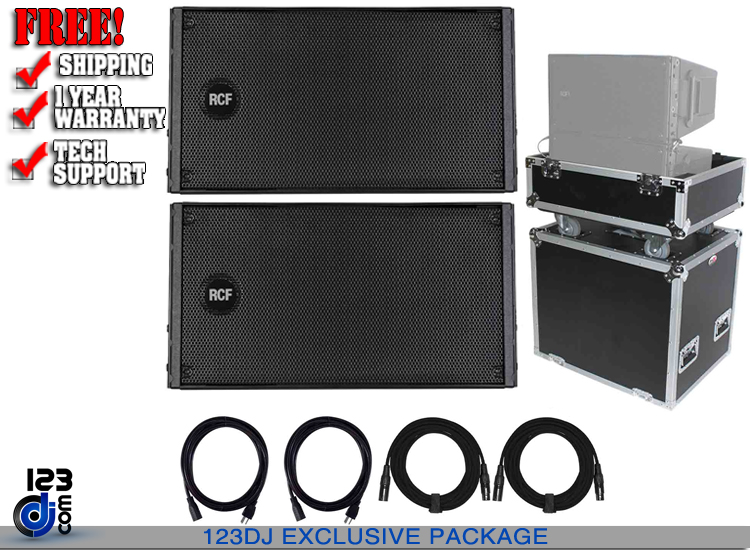

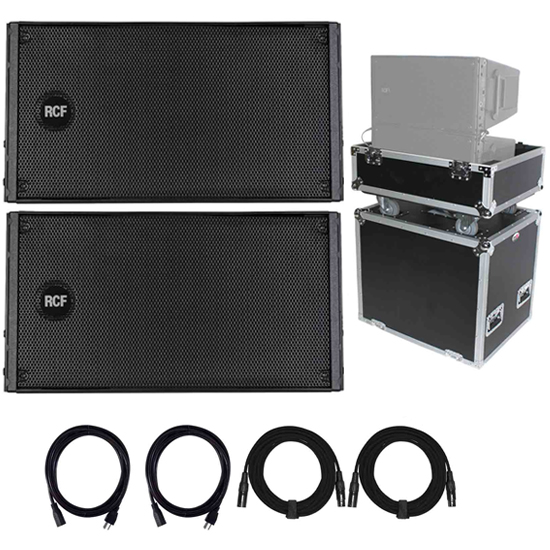

This Package Includes:

• (2) RCF HDL 10-A Active Line Array Modules
• (2) Power cords
• (1) ProX XS-282620LASPW Universal Line Array Speaker Flight Case with Wheels for 2 Speakers
• (2) 20FT XLR Connecting Cables
• (2) Black 10FT 16 Gauge AC Extension Cords
