(2) RCF ART 735-A MK4 with RCF SUB 705-AS II and Audio Receivers Package

The ART 735-A MK4 is a unique speaker in its category. The titanium dome, 3.0" voice coil neodymium compression driver offers a unique vocal clarity and sound projection. The 15" neodymium woofer offers an extremely linear response and a precise, deep low frequency control. The transducers are produced using the most advanced assembly technologies. The amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalisation, phase control, soft limiting and speaker protections.

THE ART 7 SERIES DESIGN

The RCF ART 7 Series has earned the prestigious international Red Dot Design Award in the Product Design category. Receiving the renowned Red Dot acts as proof of the excellent design achievements of professionals and up-and-coming talent alike, thus symbolising a seal of quality. With its outstanding and innovative design, the Art 7 Series has succeeded in one of the most renowned and most difficult international design competitions worldwide. High quality materials, precise manufacturing, careful assembly and extensive quality control procedures complete the groundbreaking design work of the RCF R&D team.

FEATURES

• 132 dB Max SPL
• 1400 WATT 2-way peak power
• Innovative DSP Processing
• 1.4" Titanium Compression Driver, 3.0" v.c. Neodimium
• 15" Woofer
• 800 Hz crossover point for perfect vocal reproduction
• 90°x60°, wide dispersion constant directivity horn
• FiRPHASE Technology

ACOUSTICAL SPECIFICATIONS

• Frequency Response -3 dB:45 Hz ÷ 20000 Hz
• Max SPL:132 dB
• Horizontal coverage angle:90°
• Vertical coverage angle:60°
• Compression Driver:1.4", 3.0" v.c.
• Woofer:15", 3.0" v.c.

INPUT/OUTPUT SECTION

• Input signal:Bal / unbal
• Input connectors:XLR, Jack
• Output connectors:XLR
• Input sensitivity:-2 dBu / +4 dBu

PROCESSOR SECTION

• Crossover frequencies:800 Hz
• Protections:Thermal, rms
• Limiter:Soft limiter
• Controls:Volume, Boost, Mic/Line

AMPLIFIER SPECIFICATIONS

• Total power:1400 W PEAK
• High frequencies:400 W PEAK
• Low frequencies:1000 W PEAK
• Total power:700 W RMS
• High frequencies:200 W RMS
• Low frequencies:500 W RMS
• Cooling:Convection / forced
• Connections:VDE connector in

CABINET

• Cabinet Material:Composite PP
• Hardware:2xM10 flying p.
• Handles:2 side, 1 top
• Pole Mount/Cap:Yes
• Colour:Black

PHYSICAL SPECIFICATIONS

• Height:708 / 27.87 mm/inch
• Width:437 / 17.2 mm/inch
• Depth:389 / 15.31 mm/inch
• Net Weight:21.4 / 47.18 kg/lbs

Cabinet:

THE ART 7 SERIES DESIGN

The RCF ART 7 Series has earned the prestigious international Red Dot Design Award in the Product Design category. Receiving the renowned Red Dot acts as proof of the excellent design achievements of professionals and up-and-coming talent alike, thus symbolising a seal of quality. With its outstanding and innovative design, the Art 7 Series has succeeded in one of the most renowned and most difficult international design competitions worldwide. High quality materials, precise manufacturing, careful assembly and extensive quality control procedures complete the groundbreaking design work of the RCF R&D team.

Top Handle

The sturdy, ergonomic cabinet is easy to carry thanks to the rubber-coated plastic handle. Take the ART 7 everywhere with you.

Side Handle

A side handle with internal rubber handgrip allows to firmly hold the cabinet and move it easily. Ergonomic design and carefully designed proportions, for all your transport needs.

Pole Mount

At the bottom of the speakers there is a robust steel pole mount, allowing to place the speaker on a stand or on a subwoofer with full safety and stability.

Stage Configuration

Thanks to the rear profile of the cabinet, the ART 7 Series speakers can be easily used as stage monitors whatever the needs of musicians. Internal reinforcements prevent any deformation of the cabinet.

RCF SUB 705-AS II 15" Powered Subwoofer

The SUB 705-AS II is a compact and powerful bass reflex subwoofer. It is equipped with a 15" high power woofer with 3" voice coil, powered by a 1400 Watt digital amplifier in a robust plywood housing with deep and punchy tuning for a powerful bass. Thanks to the built-in digital stereo crossover (DSP) with adjustable crossover frequency, it can be easily and quickly set up with a satellite speaker. The SUB 705-AS II easily combines with 12" and 15", ideal for RCF ART and D-Line Series.

FEATURES

• 1400 Watt Digital Amplifier.
• 15" Woofer, bass reflex housing.
• Stereo crossover.
• Switchable crossover frequencies.
• Phase-reverse switch.
• Electronic equalization, soft limiter and protection.
• Stereo XLR input, Stereo XLR signal output.

RCF SUB 705-AS II Specifications

Acoustical Specifications

• Frequency Response -3 dB: 40 Hz ÷ 120 Hz
• Max SPL: 131 dB
• Woofer: 15", 3.0" v.c.

Input/Output Section

• Input connectors: Stereo XLR
• Output connectors: Stereo XLR
• Input sensitivity: -2 dBu / + 4 dBu

Processor Section

• Crossover frequencies: 80-110 Hz Hz
• Protections: thermal, rms
• Limiter: soft limiter
• Controls: Volume, EQ, phase, xover

Amplifier Specifications

• Total power: 1400 W PEAK
•    Low frequencies: 1400 W PEAK
• Total power: 700 W RMS
•    Low frequencies: 700 W RMS
• Cooling: convection
• Connections: VDE connector

Cabinet

• Cabinet Material: Baltic birch plywood
• Hardware: Pole mount
• Handles: 2 side
• Pole Mount/Cap: yes
• Grille: Steel
• Colour: Black

Physical Specifications

• Height: 568/22.36 mm/inch
• Width: 430/16.93 mm/inch
• Depth: 595/23.43 mm/inch
• Net Weight: 28.0/50.70 kg/lbs

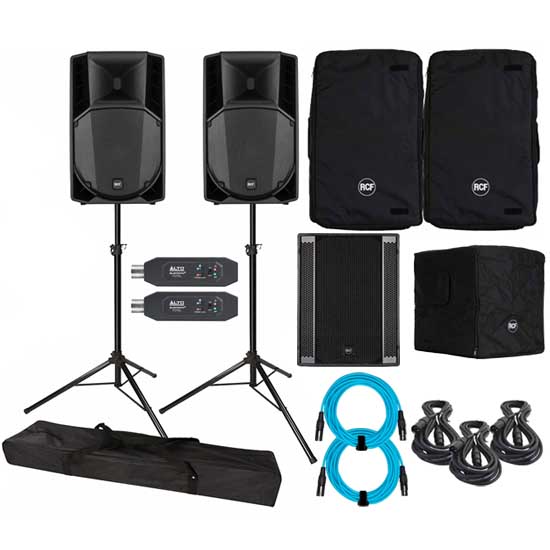

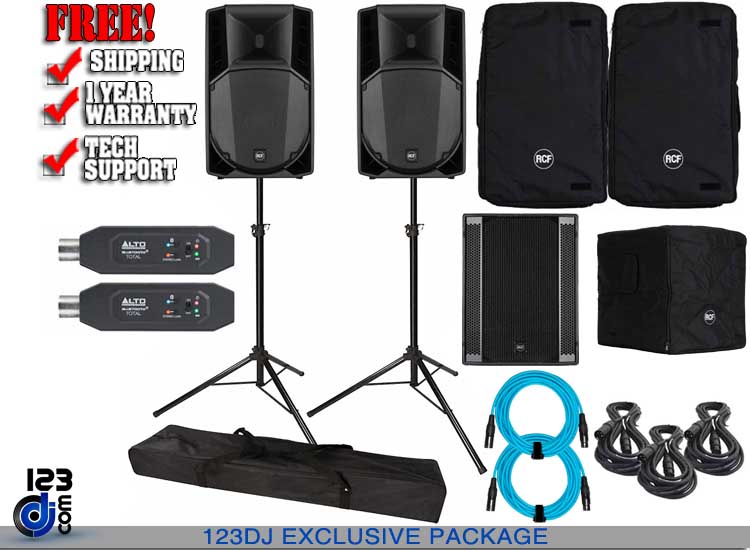

This Package Includes:

• (2) RCF ART 735-A MK4 15" Active Two-Way Speakers with 3" Voice Coils
• (2) IEC Power Cords
• (1) RCF SUB 705-AS II 15" Powered Subwoofer
• (1) Power Cord
• (1) RCF Protective Cover for SUB705-MKII Subwoofers [COVER-SUB705-MKII]
• (2) RCF Protective Covers for 715-A, 725-A, and 735-A Speakers [ART-COVER-715]
• (2) Ultimate Support JS-TS50-2 Tripod Speaker Stands
• (1) Durable Speaker Stand Carry Bag
• (2) 20' XLR to XLR Connecting Cables [SF20XLR-BLUE]
• (3) 20FT XLR Connecting Cables
• (5) 8" Reusable Hook and Loop Cable Ties
• (2) Alto Professional Bluetooth Total MKII XLR-Equipped Rechargeable Bluetooth Audio Adapters
• (2) Micro-USB Charging Cables
