(2) RCF ART 715-A MK4 with Dual Channel Wireless Microphone Package

ART 715-A MK4 is a unique product in its category. The professional compressiondriver with custom designed dome and high power voice coil offers unique vocal clarity and sound projection. The 15" neodymium woofer offers an extremely linear response and a precise, deep low frequency control. The transducers are produced using the most advanced assembly technologies. The amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalisation, phase control, soft limiting and speaker protections.

THE ART 7 SERIES DESIGN

The RCF ART 7 Series has earned the prestigious international Red Dot Design Award in the Product Design category. Receiving the renowned Red Dot acts as proof of the excellent design achievements of professionals and up-and-coming talent alike, thus symbolising a seal of quality. With its outstanding and innovative design, the Art 7 Series has succeeded in one of the most renowned and most difficult international design competitions worldwide. High quality materials, precise manufacturing, careful assembly and extensive quality control procedures complete the groundbreaking design work of the RCF R&D team.

Specifications:

FEATURES

• 130 dB Max SPL
• 1400 WATT 2-way peak power
• Innovative DSP Processing
• 1" Compression Driver, 1.75" v.c.
• 15" Woofer
• 90°x60°, wide dispersion constant directivity horn
• FiRPHASE Technology

ACOUSTICAL SPECIFICATIONS

• Frequency Response -3 dB:45 Hz ÷ 20000 Hz
• Max SPL:130 dB
• Horizontal coverage angle:90°
• Vertical coverage angle:60°
• Compression Driver:1", 1.75" v.c.
• Woofer:15", 2.5" v.c.

INPUT/OUTPUT SECTION

• Input signal:bal / unbal
• Input connectors:XLR-Jack
• Output connectors:XLR
• Input sensitivity:-2 dBu / +4 dBu

PROCESSOR SECTION

• Crossover frequencies:1600 Hz
• Protections:Thermal, rms
• Limiter:Soft limiter
• Controls:Volume, Boost, Mic/Line

AMPLIFIER SPECIFICATIONS

• Total power:1400 W PEAK
• High frequencies:400 W PEAK
• Low frequencies:1000 W PEAK
• Total power:700 W RMS
• High frequencies:200 W RMS
• Low frequencies:500 W RMS
• Cooling:Convection / forced
• Connections:VDE connector in

CABINET

• Cabinet Material:Composite PP
• Hardware:2xM10 flying p.
• Handles:2 side, 1 top
• Pole Mount/Cap:Yes
• Colour:Black

PHYSICAL SPECIFICATIONS

• Height:708 / 27.87 mm/inch
• Width:437 / 17.2 mm/inch
• Depth:389 / 15.31 mm/inch
• Net Weight:19.6 / 43.21 kg/lbs

Cabinet:

THE ART 7 SERIES DESIGN

The RCF ART 7 Series has earned the prestigious international Red Dot Design Award in the Product Design category. Receiving the renowned Red Dot acts as proof of the excellent design achievements of professionals and up-and-coming talent alike, thus symbolising a seal of quality. With its outstanding and innovative design, the Art 7 Series has succeeded in one of the most renowned and most difficult international design competitions worldwide. High quality materials, precise manufacturing, careful assembly and extensive quality control procedures complete the groundbreaking design work of the RCF R&D team.

Top Handle

The sturdy, ergonomic cabinet is easy to carry thanks to the rubber-coated plastic handle. Take the ART 7 everywhere with you.

Side Handle

A side handle with internal rubber handgrip allows to firmly hold the cabinet and move it easily. Ergonomic design and carefully designed proportions, for all your transport needs.

Pole Mount

At the bottom of the speakers there is a robust steel pole mount, allowing to place the speaker on a stand or on a subwoofer with full safety and stability.

Stage Configuration

Thanks to the rear profile of the cabinet, the ART 7 Series speakers can be easily used as stage monitors whatever the needs of musicians. Internal reinforcements prevent any deformation of the cabinet.

Shure BLX288/PG58

Two channels of handheld wireless in a single package.
The BLX288/PG58 system features Shure's dual-channel BLX88 receiver and a pair of BLX2 transmitters, each equipped with a Shure PG58 mic capsule.

The transmitter features the popular PG58 mic capsule, a rugged and reliable ABS polymer chassis and frame, a 10 dB pad, an On/Off ergonomic push-button switch, and a single bi-color LED battery indicator. It has a rugged windscreen and has a comfortable size and shape.

The receiver is a tabletop design with XLR and 1/4" outputs, and features one touch QuickScan technology, which examines the room and the available frequencies, and selects the best one.

• Two good quality mic capsules
• Rugged handheld transmitter chassis
• Up to 12 compatible systems
• Microprocessor-controlled internal antenna diversity
• One touch QuickScan locates the best open frequency
• 1/4" and XLR audio outputs
• Two color audio status indicator LED

  Transmitter
• Power and battery status LED
• Adjustable gain control
• Quick and easy frequency matching
• AA batteries (included) provide up to
• 14 hours of continuous use
• 300 ft. (100 m) operating range (line of sight)

  Receiver
• Two receivers in a single chassis
• Adjustable output level
• Removable antennas for quick antenna distribution
• LC display with detailed RF and audio metering
• Rugged metal construction
• Up to 12 compatible systems
• One touch QuickScan locates the best open frequency
• 1/4" and XLR audio outputs

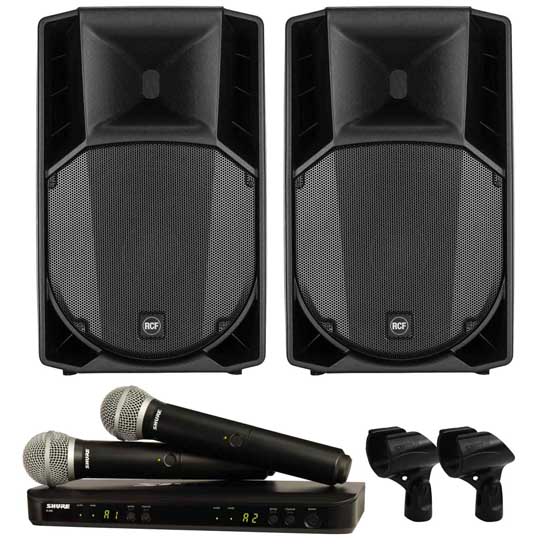

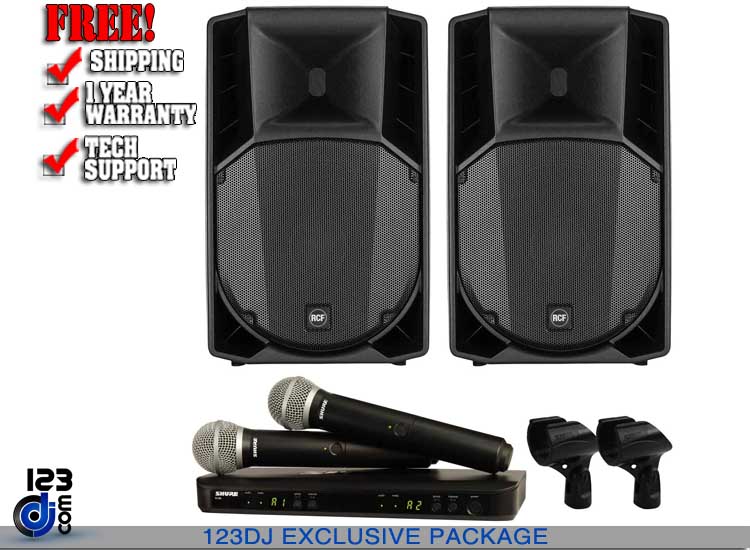

This Package Includes:

• (2) RCF ART 715-A MK4 15" Active Two-Way Speakers
• (1) Shure BLX288/PG58 Dual Channel Handheld Wireless System
