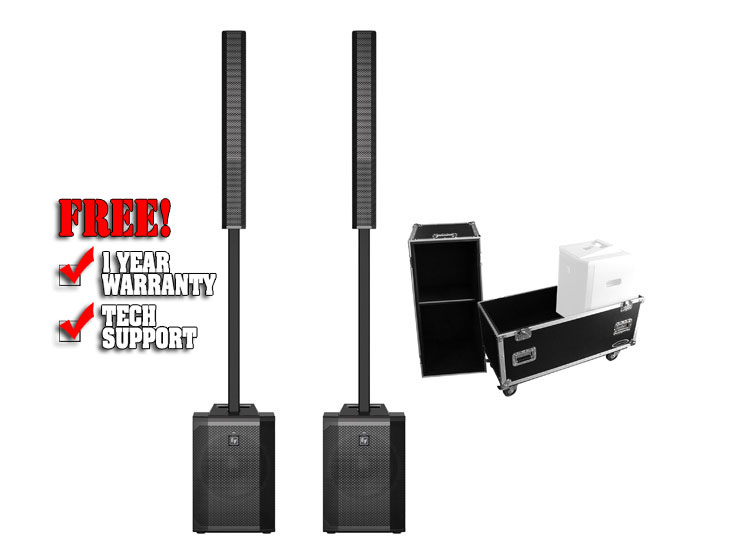

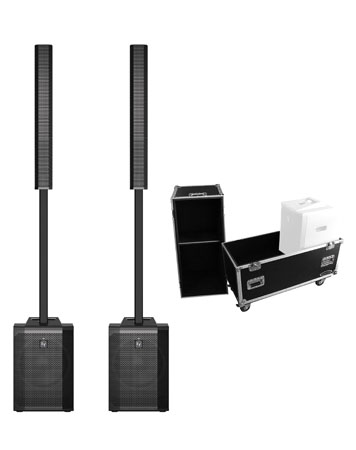

2 Electro-Voice EVOLVE 50 + Rolling Flight Case Bundle

Overview

ELECTRO-VOICE EVOLVE 50 Powered Compact Column Line Array

The EVOLVE 50 Portable Column System is a three component loudspeaker system powered by a 1000 W Class-D amplifier and driven by Electro-Voice's QuickSmartDSP. The system consists of a 15 mm wooden, ported, powered subwoofer enclosure that houses a 12" subwoofer capable of a functional frequency output down to 37 Hz. The bi-directional aluminum pole's connection to the subwoofer is secured using a magnet, and the column array is gravity-held to the sub pole. The signal is internally routed to the components. Eight 3.5" neodymium drivers in the column array coupled with the 12" subwoofer delivers up to 127 dB SPL. The eight composite waveguides control high frequencies with 120° of horizontal coverage, and 40° of asymmetrical (down-facing) vertical coverage to ensure suitable output for sitting and standing audiences. The sub pole and column array come prepackaged in a carrying bag. The processing engine allows for easy setup via four presets (Music, Live, Speech, and Club), three-band EQ, five user-programmable presets (Store and Recall settings), output delay, phantom power (+15V), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure. The new Electro-Voice QuickSmart Mobile application utilizes Bluetooth® Low Energy (BTLE) technology for the wireless configuration, control, and monitoring of up to six EVOLVE 50 systems simultaneously. High resolution Bluetooth® audio streaming adds convenience for wireless music playback in breakout rooms, intermission, and musical accompaniment. Bluetooth® is available in select countries.

Features:

• Connector Type - 2x XLR/TRS combo jack input 1x 3.5 mm Input 1x Stereo RCA input 1x Wireless Bluetooth® audio input 1x XLR THRU output 1x XLR MIX OUT output
• Coverage (Nominal -6 dB) H 120°
• Coverage (Nominal -6 dB) V 40°
• Crossover Frequency 200 Hz
• Depth Sub: 471mm (18.5 in) Column: 172mm (6.9 in) Pole: 55mm (2.2 in) mm
• Enclosure Material Wood
• Family EVOLVE 50
• Frequency Range (-10 dB) 37 Hz - 20
• Frequency Response (-3 dB) 43 Hz - 20 Hz
• Grill Steel with black powder coat
• HF Power Handling 500 Watts
• LF Power Handling 500 Watts
• Max. SPL/1m (calc) 127 dB
• Maximum SPL (1% THD) Sub: 230mm (20.9 in) Column: 825mm (32.5 in) Pole: 929mm (36.6 in) dB
• Power Consumption 100 - 240 V AC, 50 - 60 Hz, 1.5 - 0.6A
• Power Rating 1000 W
• Powered or Passive Powered
• Shipping Weight 31.3 kg
• Speaker Type Full-Range
• Weight Net 26.25 kg
• Width Sub: 345mm (13.6 in) Column: 102mm (4.0 in) Pole: 48.5mm (1.9 in) mm
• Woofer Size 12 inch

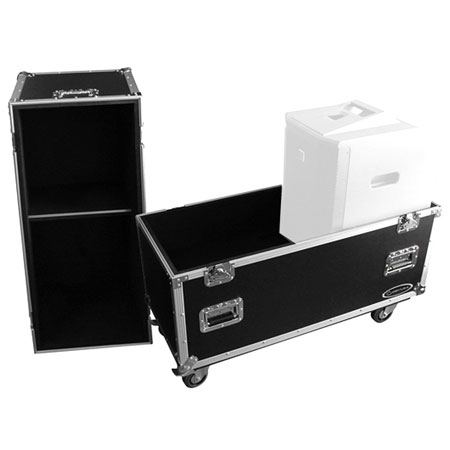

ODYSSEY FZEVOLVEW 2 EV EVOLVE 50 Rolling Road Case

Odyssey ATA road cases are made to handle the harsh realities of life on tour as well as constant short haul transport. The Flight Zone® FZEVOLVEW case is specially made for the Electro-Voice EVOLVE 50 Portable Column Speaker System and features heavy-duty casters for convenient transport and recessed spring-loaded handles for secure lifting and loading to and from your gigs. Other features include recessed butterfly latches and a fully foam-lined interior with separate compartments for each piece including the subs.

Features:

• Heavy-Duty Caster Wheels, Two With Brakes
• Chrome Plated Steel Ball Corners and Recessed Spring-Loaded Handles
• 3/8" Thick Wood Construction
• Fully Foam-lined Interior
• Compartments For Each Piece of the Evolve Speaker Column System
• Limited Lifetime Warranty

Specifications:

• Approximate Dimensions (exterior): 42"W x 38"H x 17.5"D
• Approximate Weight: 65 lbs
• Approximate Shipping dimensions (exterior): 43" x 33.25" x 18.75"
• Approximate Shipping weight: 69 lbs
