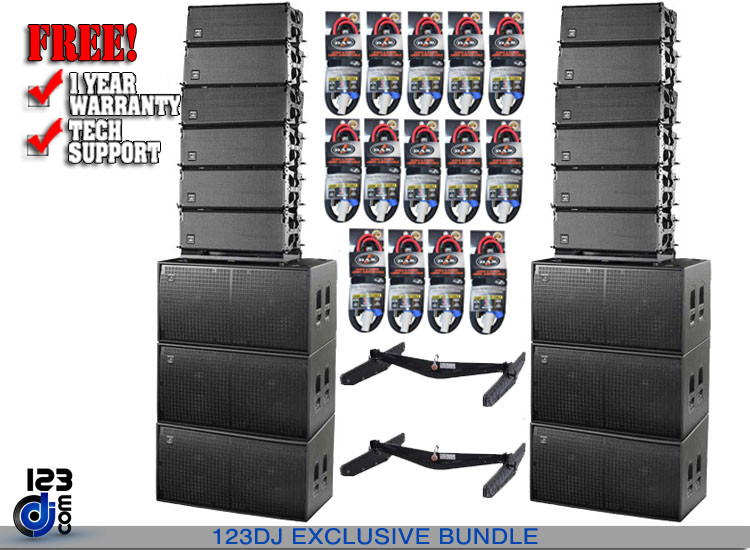

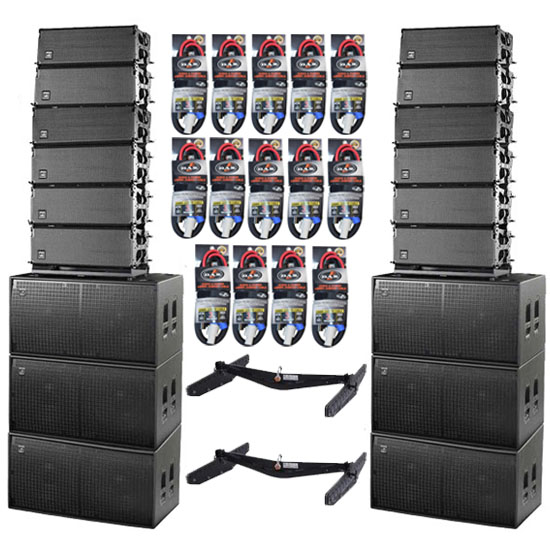

(12) DAS Event 210A 10" Powered Line Array Speakers with Event 218A 18" Subwoofers & Rigging Systems Package

DAS EVENT-210A Description

The EVENT-210A Line is a three-way powered line array in a double 10" "dual-band" configuration which provides a wider frequency range. The DAS loudspeaker units has been teamed up with a single M-75 compression driver and purpose-designed injected aluminum high frequency waveguide.

The EVENT-210A line array is powered by a three channel Class D amplifier which provides 360 Wpeak per channel. The amp's rear panel includes quality Neutrik® XLR and powerCON connectors, status LEDS to facilitate setup and DAS's Easy-DSP™ interface which simplifies preset selection for the number of units and throw depth.

Features:

• Powered 3-way system
• Light-weight Class D amplifier topology
• High-end DSP chipsets
• Easy-DSP™ Interface
• Quality Neutrik® connectors
• Top grade Birch cabinet construction
• Durable ISO-flex finish
• Robust "quick-rig" professional rigging hardware
• Proprietary injected aluminium HF waveguide
• DAS M-75 compression driver and cone transducers

Applications:

• House of worship
• Theatres, auditoria and performing arts centers
• Live music clubs
• Corporate A/V
• Live sound touring/Rental services

Specificatins:

• Performance
  • Frequency Range (-10 dB) : 70 Hz - 20 kHz
  • Horizontal Coverage (-6 dB) : 90°
  • Vertical Coverage : Splay Dependent
  • Maximum Peak SPL at 1 m : 134 dB
• Electronics and Connectors
  • Nominal Amplifier Power LF (continuous) : 180 W
  • Nominal Amplifier Power LF (peak) : 360 W
  • Nominal Amplifier Power MF (continuous) : 180 W
  • Nominal Amplifier Power MF (peak) : 360 W
  • Nominal Amplifier Power HF (continuous) : 180 W
  • Nominal Amplifier Power HF (peak) : 360 W
  • Input Type : Balanced
  • Input Impeadance : 20 kohms
  • Input Sensitivity : 6.2 V (+18 dBu)
  • Audio Signal Input Connector : 1 x Female XLR
  • Audio Signal Loop Thru Connector : 1 x Male XLR
  • AC Output Connector : powerCON NAC3FCB
  • Current Draw : 230 V / 115 V -/3.0 A
  • Certification Number : NRTL US&CA SGSNA/19/SUW/00109
• Enclosure
  • Enclosure Construction : Birch Plywood
  • Enclosure Geometry : Trapezoidal
  • Rigging : Captive Rigging System
  • Finish : ISO-flex Paint
  • Color : Black
  • Dimensions ( H x W x D ) : 275 x 735 x 370 mm, 10,8 x 28,9 x 14,6 in
  • Net Weight : 32,5 kg ( 71,7 lb )
• Components
  • LF Driver : 10MI4
  • MF Driver : 10MI4
  • HF Driver : M-75
  • Horn/Waveguide : BPS-90AR
• Shipping
  • Carton Dimensions ( H x W x D ) 800 x 320 x 410 mm, 31,5 x 12,6 x 16,1 in
  • Shipping Weight : 34,5 kg ( 76,1 lb )

DAS Audio Event 218A Description

The Event 218A dual 18" powered subwoofer makes use of one of D.A.S.´s most acclaimed loudspeakers, the LX series long excursion transducers which were introduced in the high-level LX-218. The enclosure is designed for horizontal use, built using quality Birch plywood, finished with the ISO-flex coating and has a pole mount socket on the upper panel.

The power amplifier provides 3600 Wpeak power and offers features found on the more expensive LX subwoofers such as the Cardioid Preset mode switch which offers specific signal treatment for easy set-up of pairs of systems in cardioid subwoofer applications. The system includes two balanced inputs (A-B) with stereo HPF (100 Hz) filtered output connections for satellite systems. Defeating the HPF filter offers stereo "loop thru" connections. The variable LPF crossover ranges from 80 Hz-125 Hz. A gain control and polarity reverse feature increase user control over the system.

Features:

• Powered high performance subwoofer system
• 3600 Wpeak Class "D" amplifier
• Two 18LX loudspeakers with 4? voice coils
• Front loaded bass-reflex configuration
• Durable ISO-flex finish.

Specification:

• Nominal LF Amplifier Power : 3600 Wpeak
• Frequency Range (-10 dB) : 32 Hz - 125 Hz
• Rated Peak SPL at 1 m : 140 dB
• Internal Crossover : 100 Hz
• Connectors - Input: Female XLR, Loop Thru: Male XLR, AC Input: powerCON, AC Output: powerCON
• AC Requirements : 6.0 A, 115 V, 50 Hz/60 Hz, 3.0 A, 230 V, 50 Hz/60 Hz
• Enclosure Material : Birch Plywood
• Color/Finish : Black ISO-flex Paint
• Dimensions (H x W x D) 54 x 106 x 67 cm, 21.3 x 41.7 x 26.4 in
• Weight 70 kg (154 lb)

This Package Includes:

• (12) DAS Event 210A Dual 10" Multipurpose Powered Line Array Speakers
• (2) DAS AX-Event 210A Event 210A Rigging Systems
• (14) DAS 3FT PowerCON & XLR Combo Jumper Cables 14 AWG Power 16 AWG Audio [DAS-CJC-3FT]
• (6) DAS Event 218A Dual 18" Powered Subwoofers
