WiFLY EXR Dotz Par Four Pack

Overview

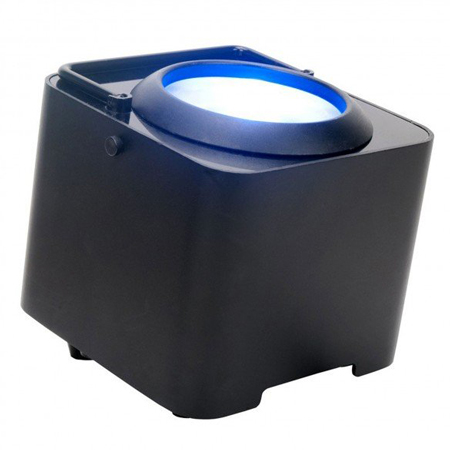

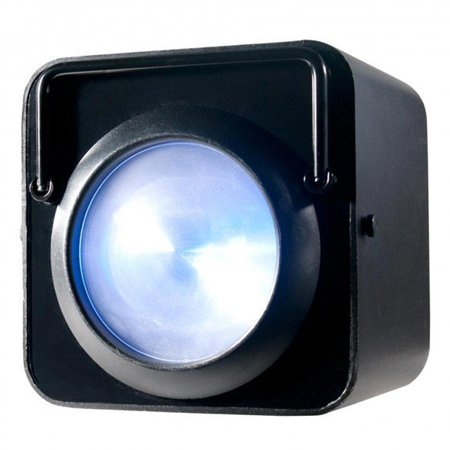

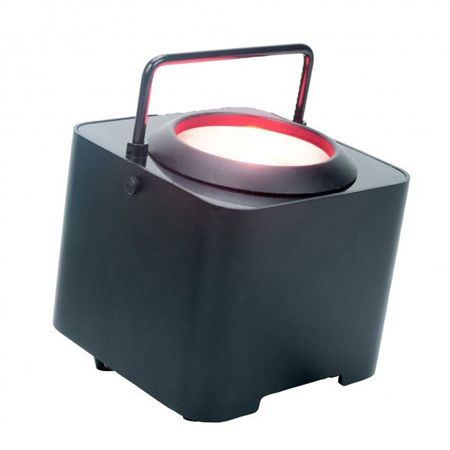

American DJ WiFLY EXR Dotz Par LED Uplight

The WiFLY EXR Dotz Par is one of ADJ's most technically advanced LED Pars to date. It utilizes ADJ's WiFLY EXR extended range wireless DMX that transmits a signal up to 2,500 ft (760M), it features a bright, saturated 36W TRI COB (Chip On Board) LED, and has a built-in battery that lasts up to 8 hours on one charge.

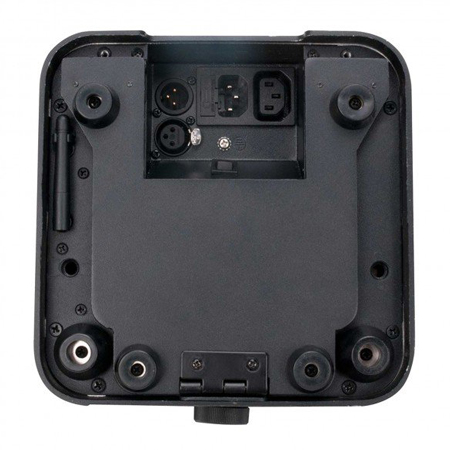

It may be used as a 20-degree Par or as a 66-degree wide wash with the lens removed. There are 32 built-in color macros, 5 DMX channel modes and 7 operational modes to choose from. The IEC In/Out power connectors, DMX IN/Out connectors and wireless DMX antenna are tucked away underneath the unit. There are rubber feet so the fixture may be set on the ground. There is also a built-in kickstand to angle the par while its on the floor.

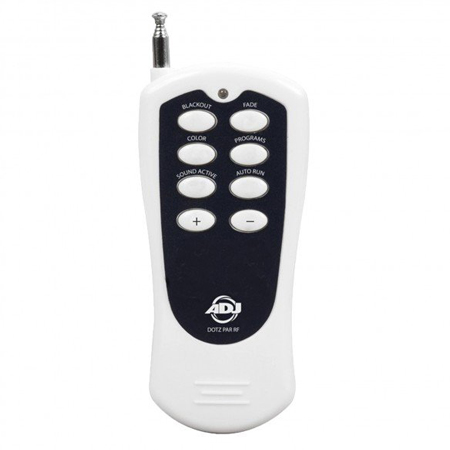

ADJ Dotz Par RF wireless remote

The Dotz Par RF wireless remote has many different functions and allows you to control a variety of ADJ LED Pars from long distance. The remote can control your system up to 75 feet / 25 meters. To use the remote you must first activate the fixtures receiver, to activate the receiver please see the instructions for the specific fixture.

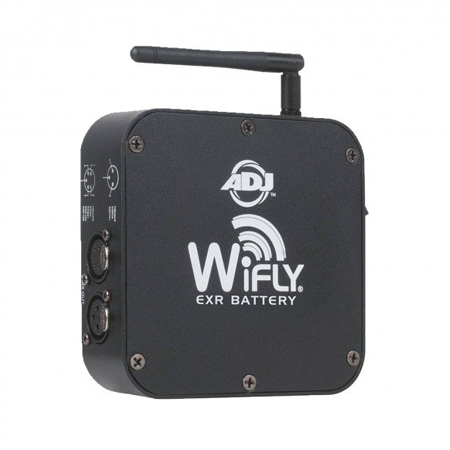

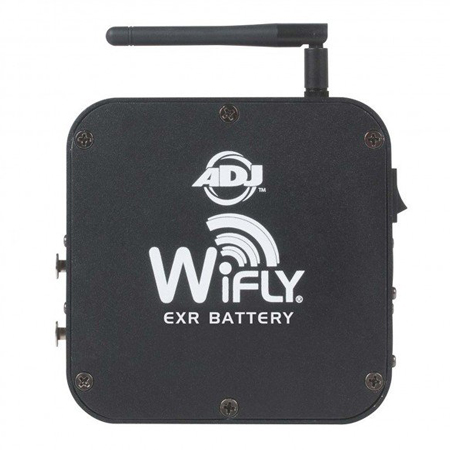

ADJ WiFLY EXR Battery Wireless DMX Transceiver

A true wireless solution! The ADJ WiFLY EXR Battery is a battery powered wireless DMX transceiver (transmitter/receiver in one) that is compatible with all ADJ WiFLY "EXR" products. After connecting the WiFLY EXR Battery transceiver to a DMX Controller users can send a constant and reliable wireless DMX signal up to 2500 feet to other ADJ WiFLY "EXR" products. This transceiver is backwards compatible with ADJ WiFLY products, however, it will only transmit up to 2500 feet with other "EXR" Extend Range products.

The WiFLY EXR Battery has a battery life of up to 20 hours. There are digital battery life and WiFLY wireless signal strength indicators on the side of the unit. Plus, a magnetic bottom plate allows for temporary, quick and easy mounting of the WiFLY EXR Battery transceiver onto a metal lighting fixture or object. The wireless frequency is 2.4 GHz and will coexist in busy RF environments alongside technologies like Bluetooth and Wi-Fi.

The ADJ WiFLY EXR Battery transceiver is the ideal solution for event productions, nightclubs, DJs, or for any event where you do not want data cables to be seen, and when it is not easy to run power and data cables to your fixtures location.

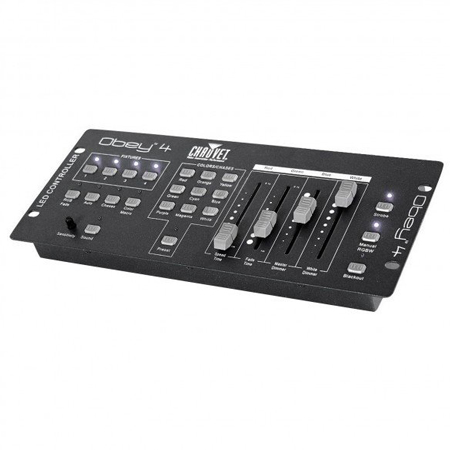

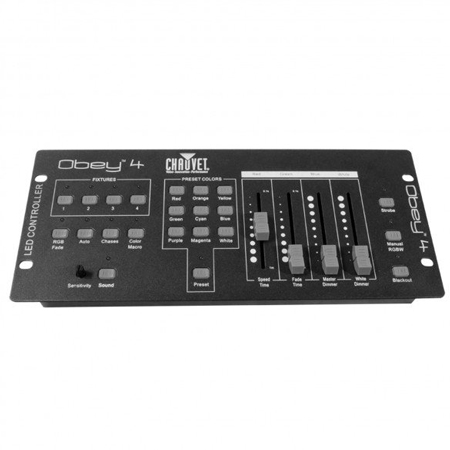

Chauvet DJ Obey 4

It's a compact DMX controller for LED wash lights with 3- or 4-channel modes—red, green, blue and white/amber—for easy color-mixing control. It has built-in automated, sound-activated or manual playback options and can control fixtures in four different zones—independently of each other. Its one-touch buttons of pre-mixed colors, built-in chases and strobe and dimmer controls make it perfect for a lighting novice or anyone looking for an easy way to control LED washes.

Features:

Obey 4

• Easily controls up to 4 separate fixtures.
• Increase effects by simultaneously operating each fixture in different playback modes with variable fade times.
• Increase flexibility with playback options that include manual RGBA/RGBW, automated and sound-activated mode.
• Playback modes:
• Preset: 9 built-in colors.
• Chases: manually trigger automated programs.
• Color macro: manually scroll through the color spectrum.
• RGB fade: automatically scroll through the color spectrum.
• RGB fade delay: automatically scroll through the color spectrum with a small delay to each fixture.
• Auto: randomly selects different colors for each fixture.
• Increase control with adjustable audio sensitivity as well as strobe and blackout effects.

Compact DMX controller designed for LED fixtures with up to 4 channels

• Channel 1: red
• Channel 2: green
• Channel 3: blue
• Channel 4: white (or amber)

Xstatic X-PC10USB 10 Plug Power Conditioner w/USB Charging Ports

The X-PC10USB Rack mountable 10 Plug 110v Power Conditioner with Two USB ports at 2.1 amps and 1.0 amps. Front mounted Circuit Breaker, single racks unit spacing.

Specifications

ADJ WiFLY EXR Dotz Par

• Extended range wireless DMX: Up to 2,500 feet (760M) when used with ADJ's WiFLY EXR Battery Transceiver
• Built-in WiFLY wireless DMX: compatible with ADJ's WiFLY Transceiver (sold separately)

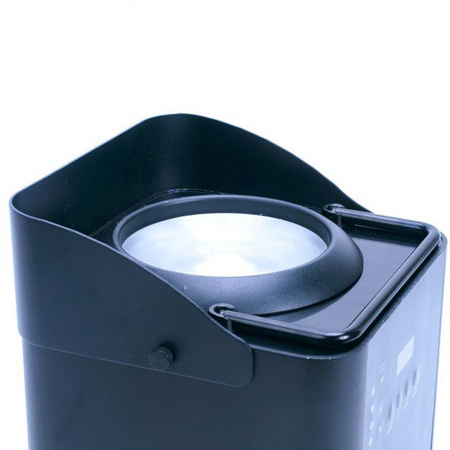

• Shield included helps limit unwanted light exposure
• Variable RGB color mixing offers a smooth, seemingly unlimited color palette - Great for Stage or Wall Washing!
• Creates no RGB shadows
• Compatible with ADJ Dotz Par RF wireless remote control (sold separately)
• 5 DMX Channel modes: 3/4/5/5/9 channel modes (Two 5 DMX Channel Modes)
• 7 Operational modes: Static Color; Sound Active Mode; RGB Dimmer Mode; 3 Color Change; 7 Color Change Mode; Color Fade; and DMX Controlled
• 32 built-in Color Macros
• 5 Dimmer Curves: Standard, Stage, TV, Architectural, or Theatre
• LED pulse and strobe effect
• Flicker Free Operation
• Electronic Dimming: 0 - 100%
• Beam angle: 20 Degrees (w/ Lens) 66 Degrees (w/o Lens)
• Linkable via 3-pin IP cable (In/Out)

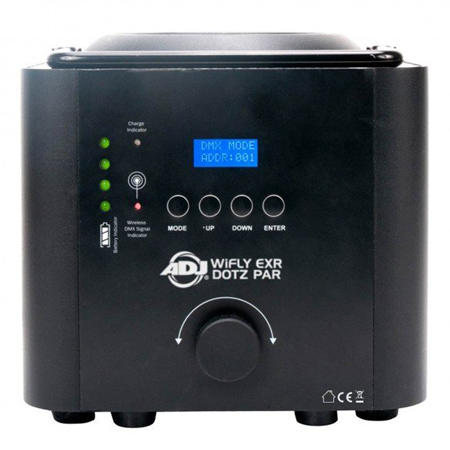

• 4-button DMX menu display on rear panel
• Manual Angle Adjustment
• AC IN/OUT outlets on rear to daisy chain power (up to 10 units @ 110V and 18 units @ 240V)
• LED Source: 1 x 36W TRI COB LED rated at approximately 50,000 hrs)
• Battery Charge Time: 4 Hours
• Battery Life: 8 Hours Full On (With Full Charge)
• Battery life indicator with charge indicator
• Wireless DMX signal indicator
• Built-in kickstand to angle figure while it's on the floor
• Power Draw: 38W total (Full On)
• Multi-voltage operation: AC 100-240V, 50/60Hz
• Dimensions (LxWxH): 8.25" x 7.75" x 9.75" / 210 x 200 x 250mm
• Weight: 12 lbs. / 5.5 kg.

ADJ Dotz Par RF

• BLACKOUT- Pressing this button will blackout the fixture.
• FADE- This button will activate the color fade program.
• COLOR- This button will activate the static color mode. Use the "+" and "-" buttons to scroll through the colors and find your desired color.
• PROGRAMS- This button will activate the built-in programs mode. Use the "+" and "-" buttons to scroll through the 13 programs and find your desired program.
• SOUND ACTIVE- This button activates sound active mode.
• AUTO RUN- This button will run an automatic program. Use the "+" and "-" buttons to adjust the speed of the auto run. "+" and "-" - Use these buttons to adjust the speed of the Auto Run, scroll.

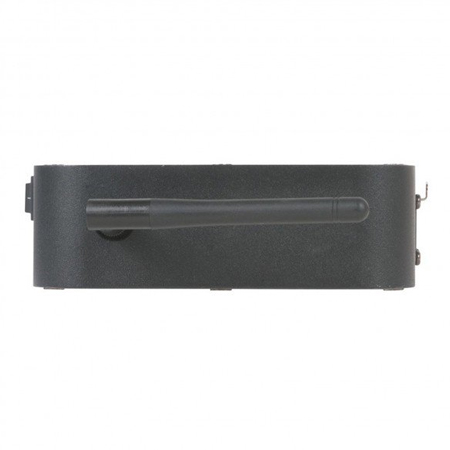

ADJ WiFLY EXR Battery

• Battery powered wireless DMX transceiver (transmitter/receiver in one).
• Battery Life: Up to 20 hours.

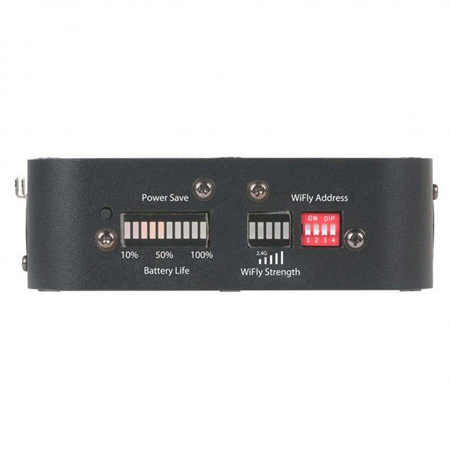

• Battery life and WIFLY wireless signal strength indicators on side panel.
• Magnetic bottom plate for temporary, quick and easy mounting to metal fixtures or objects.
• Compatible with all ADJ WiFLY products.
• Up to 2500 wireless feet (open line of sight) with only other "EXR Extended Range" WiFLY products.
• Compatible with all ADJ WiFLY products.
• One transmitter can send to many receivers using the same radio channel.
• Receivers automatically listen for transmitters (no pairing required).
• Supports up to 16 DMX-512 universes.
• Dip Switches to select from 16 different radio channels (one DMX universe per channel).

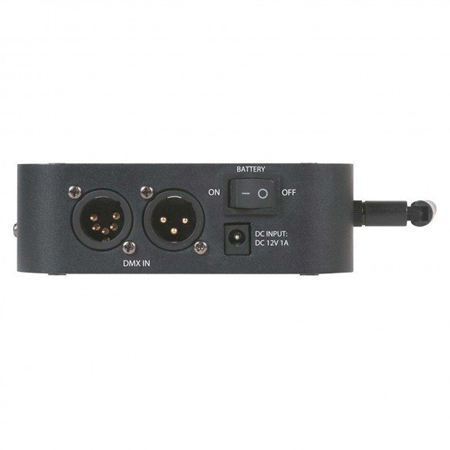

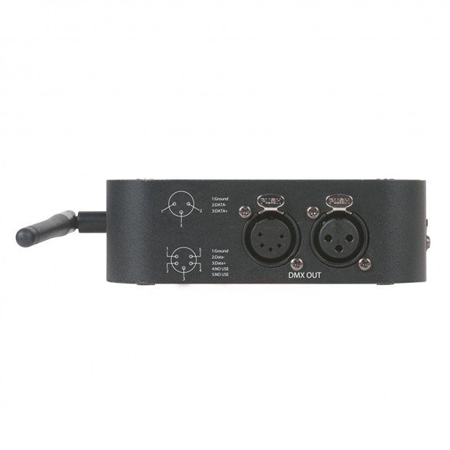

• 3-pin & 5-pin DMX In/Out.
• Wireless Frequency: 2.4 GHz DSSS.
• Power Supply: DC 9-12V (AC or DC powered).
• Dimensions (LxWxH): 6" x 5.5" x 2.5" / 148 x 135 x 62mm
• Weight: 2 lbs. / 0.75 kg.

Chauvet DJ Obey 4

• DMX Channels: 16
• DMX Connectors: 3-pin XLR
• Strobe Rate: 0 to 33 Hz
• Input voltage: 9 VDC, 500 mA (external power supply: 100 to 240 VAC, 50/60 Hz)
• Weight: 3 lb (1.4 kg)
• Size: 12.8 x 5.5 x 2.1 in (325 x 140 x 52 mm)
• Approvals: CE

What's in the box

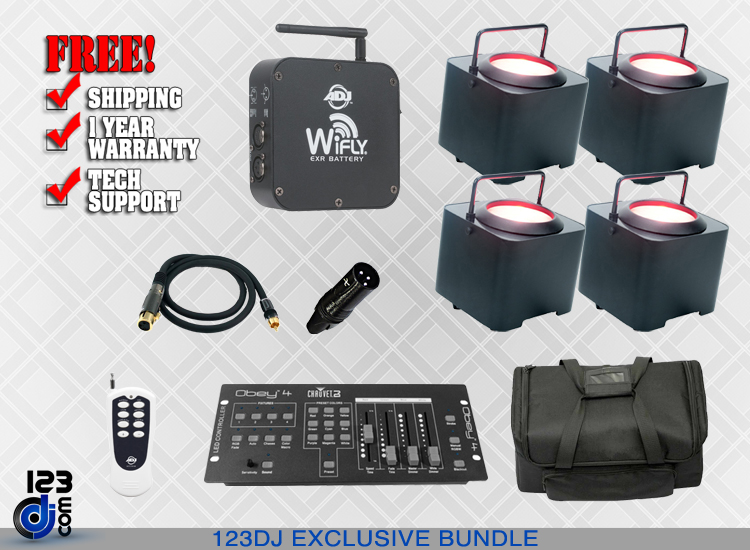

This Package Includes:

• (4) ADJ WiFLY EXR Dotz Par LED Uplights
• (1) Protective Transport Case
• (1) ADJ Dotz Par RF wireless remote
• (1) ADJ WiFLY EXR Battery Wireless DMX Transceiver
• (1) Chauvet DJ Obey 4 DMX Controller
• (1) 3FT DMX Connecting Cable

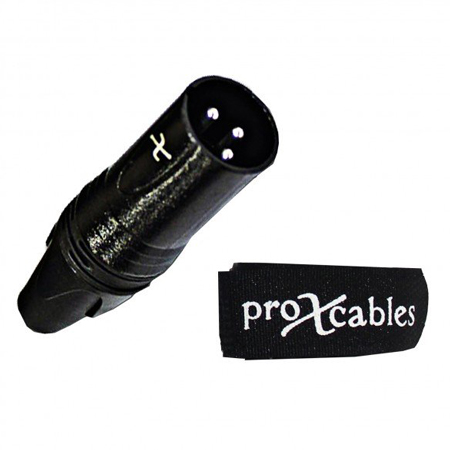

• (1) DMX 3-Pin Terminator

Each WiFLY EXR Dotz Par Box Includes:

• (1) ADJ WiFLY EXR Dotz Par LED Uplight
• (1) Power Cord
• (1) User Guide

The Dotz Par RF Box Includes:

• (1) ADJ Dotz Par RF Wireless Remote

The WiFLY EXR Battery Box Includes:

• (1) ADJ WiFLY EXR Battery
• (1) Power Supply
• (1) Use Guide

The Obey 4 Box Includes:

• (1) Obey 4 Controller
• (1) Power Supply
• (1) Warranty Card
• (1) User Manual
