JMAZ Lighting JZ1046 with Charging Case Package

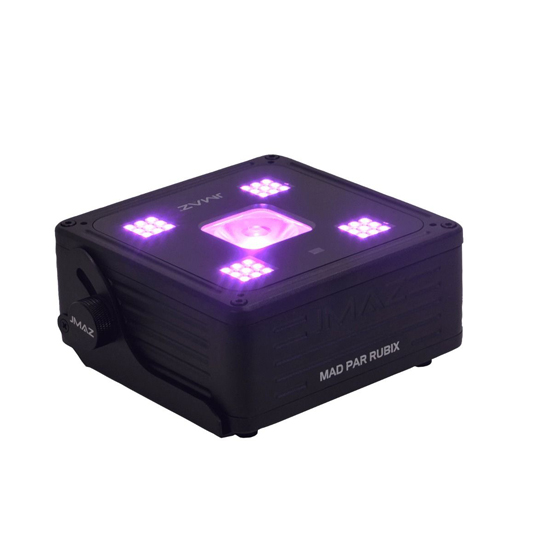

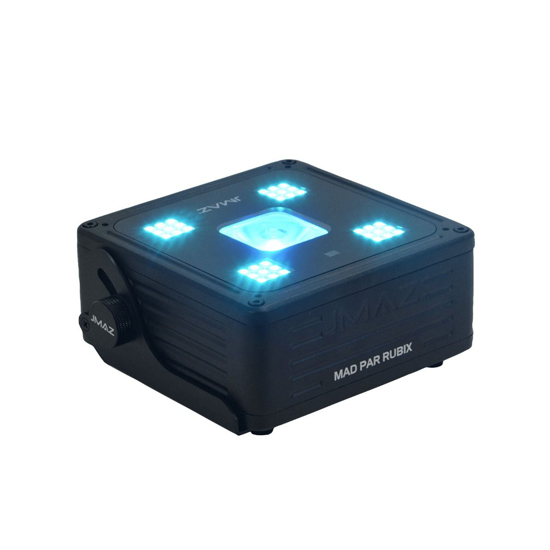

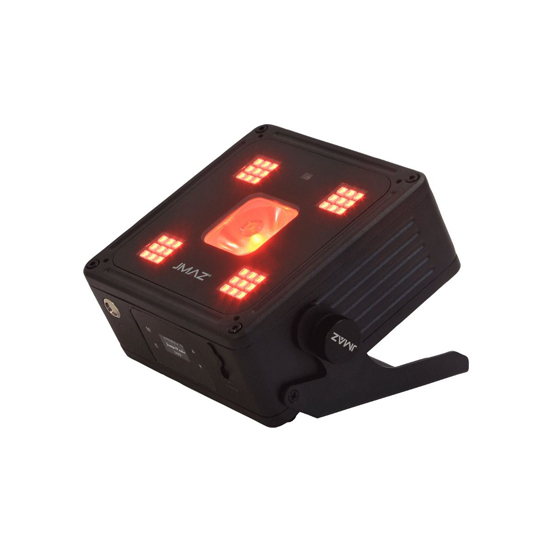

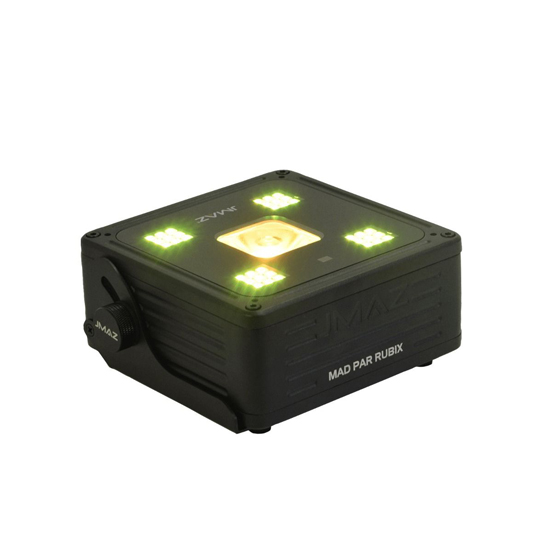

The JMAZ MAD PAR RUBIX is a versatile 20W RGBA + 18W LED battery-powered outdoor uplight, offering stunning lighting effects with 73 preset color programs, 50 sound-active modes, and 72 auto/fade options. Its IP65 rating ensures durability outdoors, while its adjustable beam angles (40°/60° with diffuser) provide creative flexibility. Enjoy up to 14 hours of runtime (40 hours in battery-saving mode) with a 4-hour recharge time. Wireless DMX and IR remote compatibility make it easy to control, and it includes an IR remote, diffuser filter, A/C charger, and manual. Perfect for vibrant, reliable outdoor lighting.

Features:

• 20W RGBA LED.
• 18W (36 x 0.5W) RGB+WW SMD LED.
• Individual Pixel Control (Otter LEDs.)
• CCT: 2300K - 8500K.
• IP65 Outdoor Rated.
• Beam Angle: 10° & 120° Beam Angle.
• Battery Life: 16 Hour Single Color / 5 Hour Full On Battery Life.
• Charging Time: 6 Hours.
• 73 Preset Color Programs.
• 50 Advanced Sound Active Mode.
• 72 Auto / Fade Built-In Programs.
• Protocols: Wireless DMX, IR Remote.
• Includes: IR Remote, Diffuser Filter, A/C Charger, Manual.

Specifications:

• Light Source
  • 20W RGBA LED
  • 18W (36 x 0.5W) RGB+WW SMD LED
• Color System
  • RGBA Color Mixing 8/16 bit
  • RGB+WW SMD LED
  • CCT: 2300K to 8500K
• Optics
  • Advanced Lens Optic: 10° Beam Angle
  • Diffuser Angle (Included): 120° Beam Angle
• Dynamic Effect
  • Battery Life: 16 Hour Single Color / 5 Hour Full On Battery Life
  • Charging Time: 6 Hours
  • Selectable Battery Saving Mode: 25%, 50%, 75%, 100%
  • 73 Preset Color Programs
  • 50 Advanced Sound Active Mode
  • 72 Auto / Fade Built-In Programs
  • Stand Alone Color Mixing
  • Electronic Dimmer
  • Fading/Jumping Macros Light Change And Jump
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0-25 Hz
  • Preset Color Temperature
  • 4 Favorite Color Customization Triggered via DMX / IR Remote
• Control
  • Control Protocol: Wireless DMX, IR Remote
  • Personalities: 5/6/8/16 CH DMX Modes

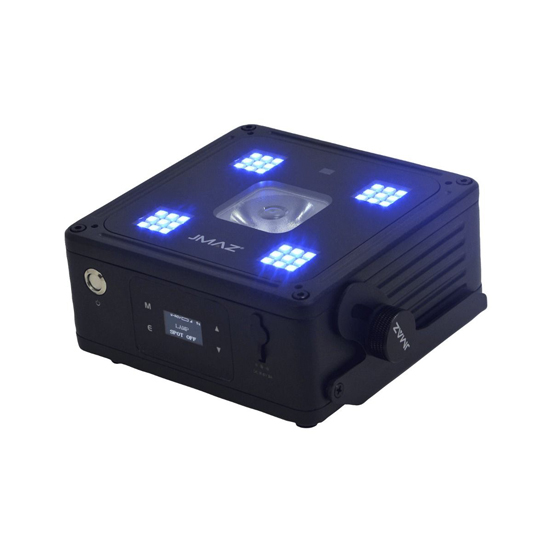

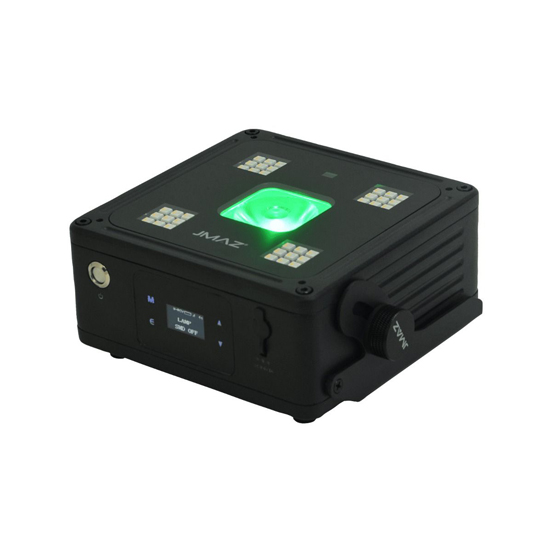

  • OLED Graphical Display
• Electronics
  • Strobe Shutter: 1-25Hz
  • Dimming Modes: 4
• Body
  • Die-Cast Aluminum and Steel Structure
• Physical

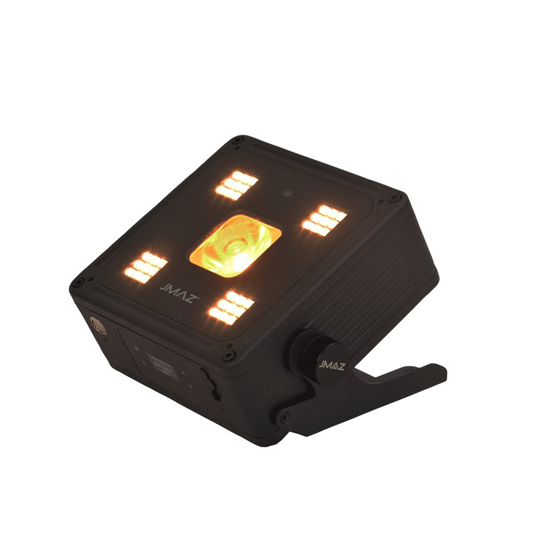

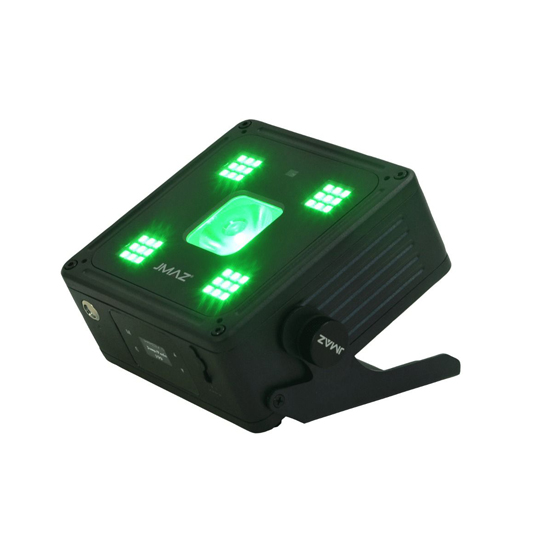

  • Adjustable Tilt Base: 0-40 Degree
  • Cooling: Fanless
• Certification / Qualifications
  • RoHS, CE, FCC
  • IP Rating: IP 65
  • Operating Temperature: -10° C (14° F) To 60° C (140° F)
• Electrical
  • Input Voltage: 100 V - 240 V AC, 50/60 Hz
  • Power Consumption: 20W
  • PWM: 1.5KHz
  • Battery Voltage: 11.1V
  • Battery Capacity: 10,400 mAH, 115.5 Wh/hour

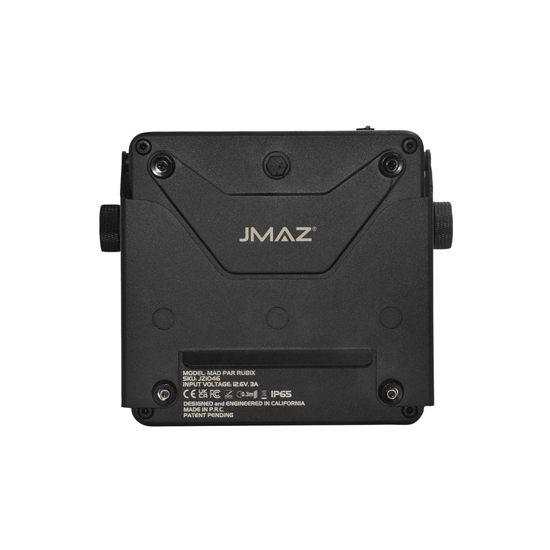

  • Charger: 12.6V, 3A
  • Rechargeable Battery Type: Lithium Ion
• Item Dimensions & Weight
  • Dimensions: 7.2" x 5.9" x 3"
  • Weight: 4.4 lbs

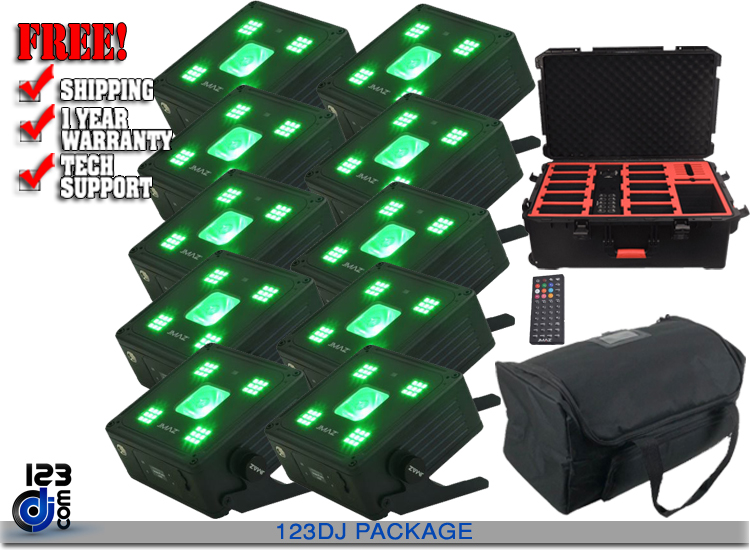

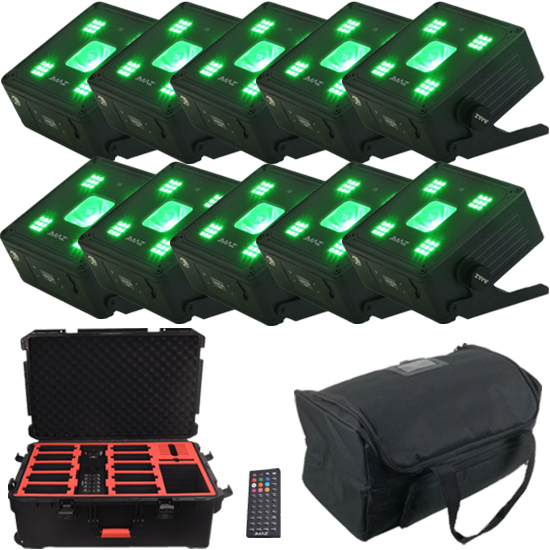

This Package Includes:

• (10) JMAZ Lighting JZ1046 MAD PAR RUBIX 20W RGBA 18W (36 x 0.5W) RGB+WW SMD LED Battery Powered Outdoor Uplights
• (10) 120 Degree Diffusers
• (10) External Chargers
• (10) User Manuals

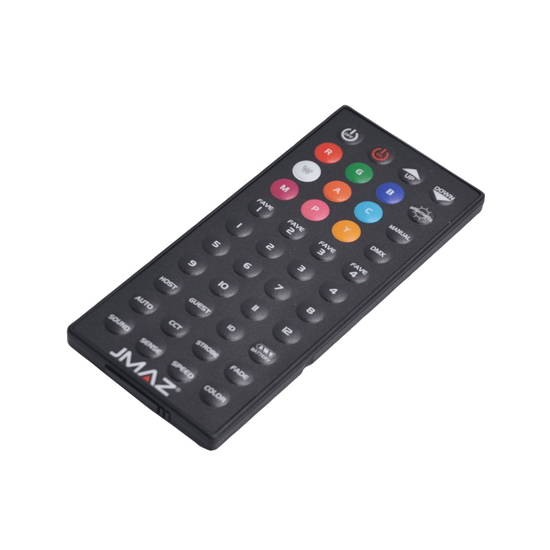

• (10) IR Remotes
• (1) JMAZ Lighting JZ7018 Charging Injection Molded Case for 10 MAD PAR Units with Wheels
• (1) Fogger/Intelligent Scanner Protective Case
