ADJ Element HEX PC6 Pak

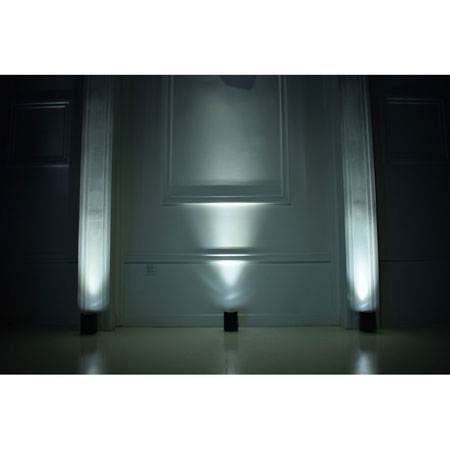

From the Element Par Series, the Element HEX is a battery powered LED Par with ADJ's WiFLY EXR wireless DMX for indoor use. It's powered by four 10W RGBAW+UV (6-IN-1) LEDs. The Element Par Series are lightweight and easy to operate with a carry handle and kickstand for uplighting, staging, events, productions and any mobile application. No cables or wires needed!

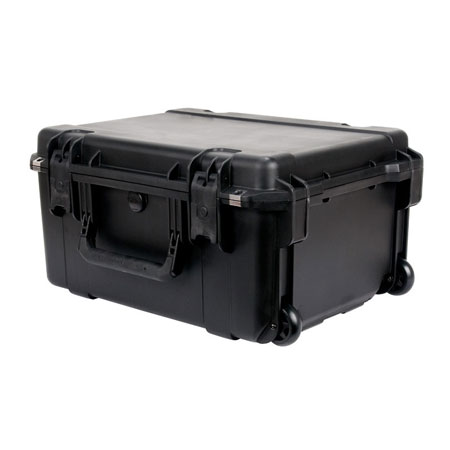

The Element PC6 is a waterproof case made of ultra high-strength polypropylene copolymer resin, featuring a gasket sealed, water and dust tight, submersible design (MIL-C-4150J) that is resistant to corrosion and impact damage. Features a molded-in hinge, patented trigger release latch system, comfortable, snap-down rubber over-molded cushion grip handle, automatic ambient pressure equalization valve (MIL-STD-648C), resistance to UV, solvents, corrosion, fungus and impact damage (MIL-STD-810F).

Specification

Element HEX

Optical:

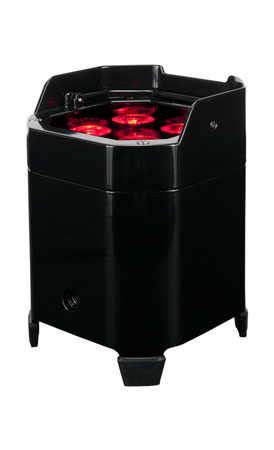

• 4 x 10-Watt RGBAW+UV LEDs (6-in-1 - Red, Green, Blue, Amber, White & UV)
• Life expectancy: rated at 50,000 hrs.
• LUX: 684@ 2M; 171 @ 4M
• Beam angle: 20-degree
• PWM frequency:1000Hz

Connection:

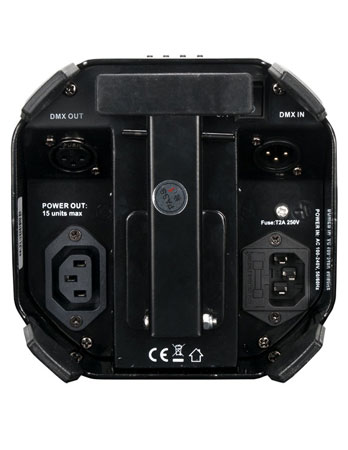

• DMX:3-pin DMX In/Out
• With Wired Digital Communication Network
• IEC In/Out to power battery or daisy chain fixture

Control:

• Control protocol: WiFLY EXR DMX, 3-pin DMX
• 5 DMX Channel modes: 6, 7, 8, 11 & 12
• Remote control: WiFLY EXR DMX, UC-IR, Airstream IR
• 5 Operational modes: RGBAW+UV Dimmer Mode; Sound Active mode; Auto Run Mode (16 color change modes, 16 color fade modes, & 1 color/fade combo mode); Static Color mode; and DMX Controlled

Features:

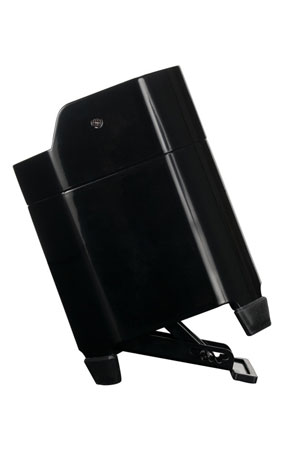

• Built-in kickstand to angle figure while it's on the floor

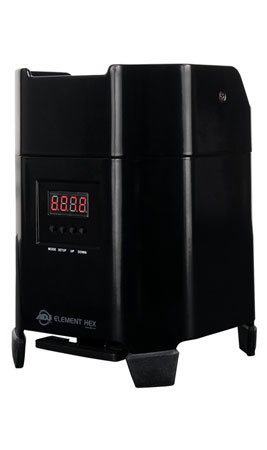

• 4-button DMX menu display on rear panel
• Built-in WiFLY EXR wireless DMX: Up to 2,500 feet (760M) when used with ADJ's WiFLY EXR Battery Transceiver
• 63 built-in Color Macros
• Variable RGBAW+UV color mixing offers a smooth, seemingly unlimited color palette - Great for Stage or Wall Washing!
• LED pulse and strobe effect (0.2Hz-11Hz)
• Flicker Free Operation
• Electronic Dimming: 0 - 100% with 5 dimming curves
• Run all night ? No duty cycle
• Energy Saving Mode

Battery:

• Battery Type: fixed lithium battery
• Battery Energy: 73.26WH (Watt Hours)
• Battery Weight: 0.42 kg.
• Battery Voltage: 11.1V
• Battery Capacity: 6.6AH
• Total Lithium Ion Cells: 9 pieces
• Battery Wrap Material: PVC sleeving + highland barley paper
• Battery Charge Time: 4.5 Hours (With POWER switch On)
• Battery Life: 11 hours (single color)

Electrical:

• Power Draw Total (All LED's @ Full On): 45W, 0.5A @ 120V/60Hz, 42W, 0.2A @ 220V/50Hz,
• Multi-voltage operation: AC 100-240V, 50/60Hz

Dimensions / Weight:

• Dimensions (LxWxH): 5.5" x 5.5" x 7.5" / 140 x 140 x 190.5mm
• Weight: 6.5 lbs. / 2.9kg.

Certifications:

• ETL Approved
• CE Approved
• IP20 Indoor rated

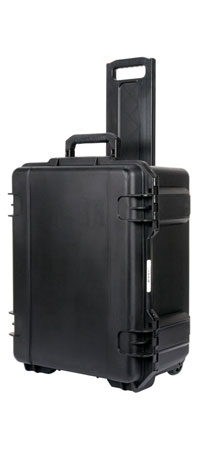

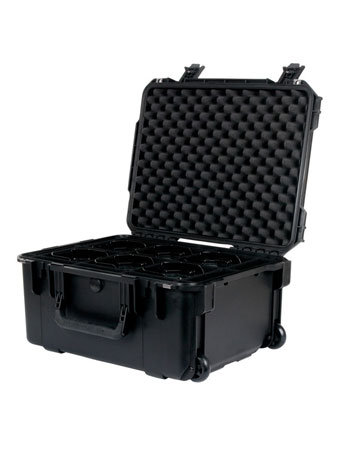

Element PC6

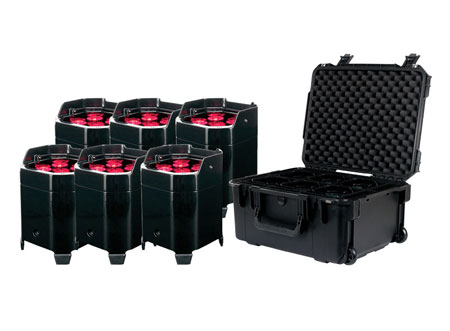

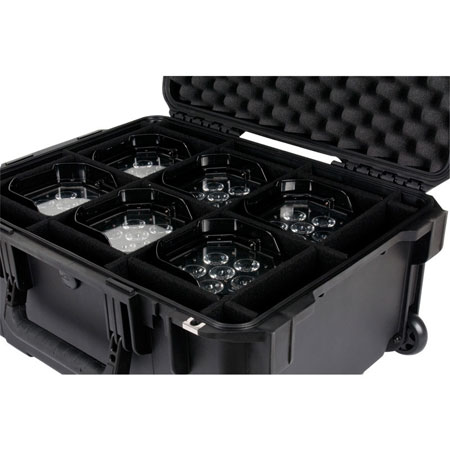

• Securely holds six Element Pars
• Waterproof and dust tight design (MIL-C-4150J)
• Molded-in hinge for added protection
• Trigger release latch system
• Snap-down rubber over-molded cushion grip handle
• Ambient pressure equalization valve (MIL-STD-648C)
• Resistant to UV, solvents, corrosion, fungus (MIL-STD-810F)
• Resistant to impact damage (MIL-STD-810F)
• Limited lifetime warranty
• Exterior Dimensions: 22.92" x 18.75" x 12" / 565x476x305mm
• Interior Dimensions: 20.5" x 15.5" x 10" / 520x394x254mm
• Weight (empty): 14.5 lbs. / 6.5kg
