Saber Spot WW Pack3

Description

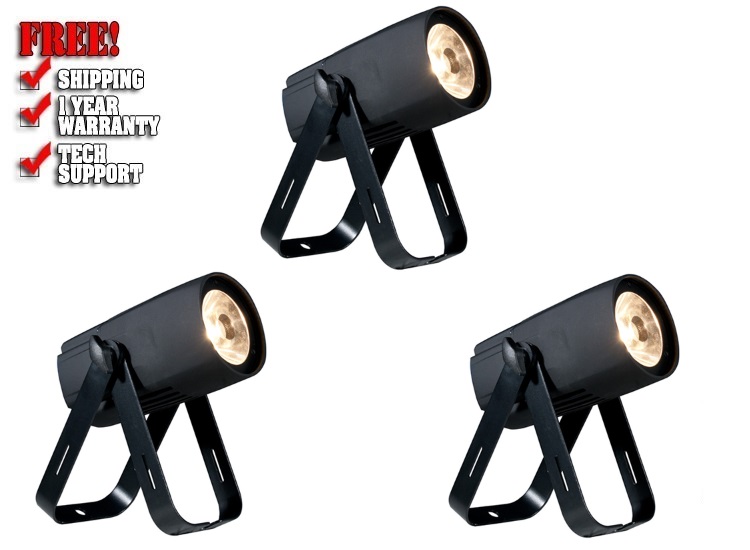

The Saber Spot WW Pack3 is a compact Pinspot with a 15-Watt warm white LED. Features DMX-512, flicker-free operation, strobing, electronic dimming and has a 4-Button DMX display system on the rear panel. Its built-in ACL lens produces a razor sharp 4-degree beam angle.

The Saber Spot WW Pack3 has a scissor bracket system that allows the fixture to be hung or set on the ground, and is ideal for performance stages, installations, table spotting, lighting retail stores.

Specifications:

Optical

• Light Source: 15-Watt Warm White LED

• LED Life Expectancy: 10,000 Hrs

• Beam Angle: 4-degrees

• Includes 2 interchangeable frost filter lens (10-degree & 45-degree)

• Refresh Rate: 3.6KHz

Technical Features

• 4-button Digital Display for easy navigation

• Electronic Dimming 0 - 100%

• Flicker Free

• Includes a scissor yoke to be hung or set on the ground

Connections

• Power Input: powerCON

• Power Pass through: powerCON

• Control: 3 Pin DMX In/Out pigtails

• With Wired Digital Communication Network

Control

• 2 DMX Channel Modes: 1 or 2

Electrical

• Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing)

• Power draw 120V 60Hz: 15W, 0.13 Amps

• Power draw 220V 50Hz: 15W, 0.07 Amps

Physical

• Dimensions (LxWxH): 3.5" x 6.75" x 3.5" / 88 x 170 x 87mm

• Weight: 2.6 lbs / 1.2 kg.

• Metal Black Housing

Certifications

• ETL Approved, UL, CE

• IP 20: Dry area, No liquids

What's Included

• Manual

• powerCON power cord
  2 frost filter lens (10-degree & 45-degree)

• O-ring for frost filter lens

Optional Accessories

• PLC 3,PLC 6, PLC 10 (powerCON passthrough cables)
