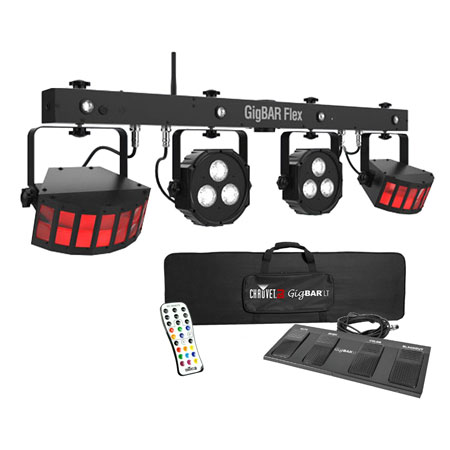

Chauvet DJ GigBar Flex Pack-n-Go Effect Lighting System with American DJ DMX Operator Programmable DMX Controller Package

• 3-in-1 fixture includes a pair of LED Derby, LED pars and strobe effect for ultimate convenience.
• Complete light show in a single bar that sets up in seconds.
• Includes the IRC-6 easy-to-use infrared remote control which allows you to wirelessly select color, intensity, strobe rate and more.
• Great for: mobile DJs, bands, and small clubs.

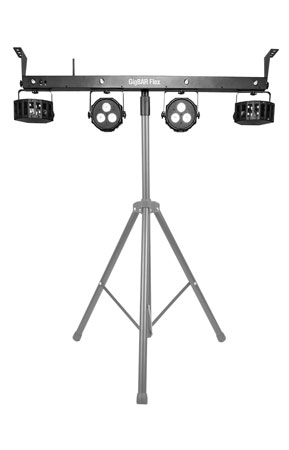

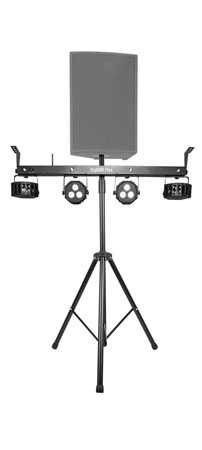

• Pass-through mounting hole for flexible mounting options with various stage and speaker stands.
• Built-in UV (blacklight) for increased color mixing and effects.
• Four individually adjustable heads provide wide room coverage and lighting versatility.
• Wireless footswitch for convenient hands-free control.
• Built-in automated and sound-activated programs make dynamic light shows easy.
• Master/slave multiple units under the control of a single IRC-6 or wireless foot switch.

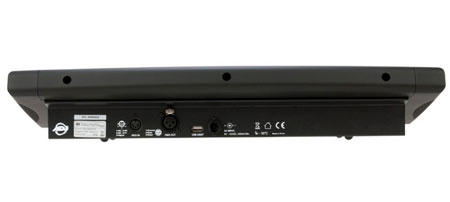

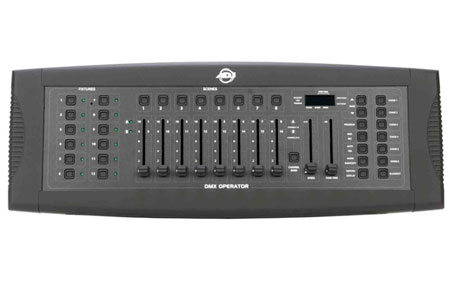

American DJ DMX Operator Programmable DMX Controller

ADJ's DMX Operator Controller has 12 individual fixture channels which allow you to control up to 12 separate intelligent lights with up to 16 DMX channels per fixture and any fixtures with less than 16 DMX channels can be combined on one channel which gives you 192 DMX channels to do what ever you want with.

With ADJ's DMX Operator Controller you can record up to 6 programmable chases with fade times and different speeds. The 8 individual faders provided you with easy programmability for the intelligent light or dimmer packs that you may have. ADJ also included a USB input for your convenience to save your programs and settings or use it to power an USB work light. The blackout is controlled by the MIDI input signal.

Chauvet DJ GigBar Flex Specifications:

• DMX Channels: 3, 8 or 20.
• DMX Connectors: 3-pin XLR.
• Light Source (pars): 6 LEDs (quad-color RGB + UV) 3.5 W (1 A), 50,000 hours life expectancy.
• Light Source (strobe): 4 LEDs (white & UV) 5 W (1.5 A), 50,000 hours life expectancy.
• Light Source (derby): 6 LEDs (2 red, 2 green, 2 blue) 5 W (1.6 A), 50,000 hours life expectancy.
• Strobe Rate: 0 to 18 Hz.
• Beam Angle (pars): 13°.
• Beam Angle (strobe): 8°.
• Field Angle (pars): 24°.
• Field Angle (strobe): 18°.
• Coverage Angle (derby): 114°.
• Foot Switch Operating Frequency: 433 MHz.
• Foot Switch Max Unobstructed Distance: 100 ft (30.5 m.)
• Footswitch battery: 12 V A 23.
• Illuminance (pars): 1,078 lux @ 2 m (per head.)
• Illuminance (strobe): 86 lux @ 2 m (per zone.)
• Power Linking: 12 units @ 120 V; 22 units @ 230 V.
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging.)
• Power and Current: 45 W, 0.7 A @ 120 V, 60 Hz.
• Power and Current: 46 W, 0.4 A @ 230 V, 50 Hz.
• Weight: 11 lb (5 kg.)
• Size: 37 x 4 x 15 in ( 949 x 110 x 388 mm.)
• Approvals: CE.

ADJ DMX Operator Specifications

• Programmable up to 240 scenes.
• 12 individual fixture channels - Control up to 12 separate intelligent lights with up to 16 DMX channels per fixture.
• Fixtures with less than 16 DMX channels may be combined on 1 DMX scanner button.
• Record up to 6 programmable chases with fade time and speeds.
• 8 individual faders provide easy programmability for Intelligent Lighting or Dimmer Packs.
• MIDI controllable.
• DMX-512, 3-pin XLR signal.
• Built-in Microphone.
• Remote control: Blackout controlled by MIDI input signal.
• Blind function - override chases on the fly.
• Use in conjunction with the ELP-DMX20 or the ELD-DMX20.
• Polarity switch to accommodate different types of cable requirements.
• Power input: DC 9V-12V, 220 mA min. power supply included.
• Dimensions: 5.25" x 19" x 2.5" (133 x 483 x 64 mm) 19 in. rack mount - 3 rack spaces.
• Weight: 5 lbs (2.3 kgs).
• Voltage: 120V/220V.

This Package Includes:

• (1) Chauvet DJ GigBar Flex Pack-n-Go Effect Lighting System with LED derbys, quad-color pars, and strobes
• (1) American DJ DMX Operator Programmable DMX Controller
• (1) 25FT DMX Cables

The GigBar Flex Retail Box Includes:

• (1) Chauvet DJ GigBar Flex
• (1) Power Cord
• (1) Carry Bag
• (1) Wireless Foot Switch
• (1) IRC-6 Remote Control
• (1) Warranty Card
• (1) Quick Reference Guide

The DMX Operator Box Includes:

• (1) American DJ DMX Operator Programmable DMX Controller
• (1) Power Cord
• (1) User Manual
