4BAR Tri Wash Pack

Overview:

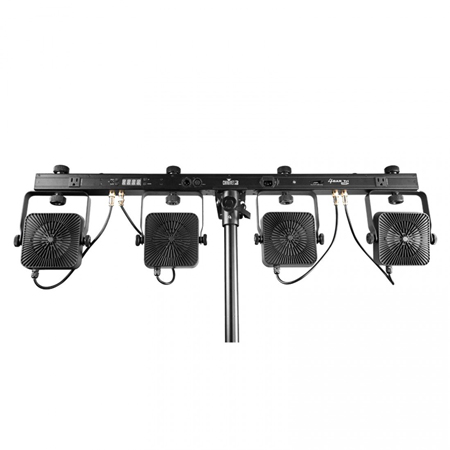

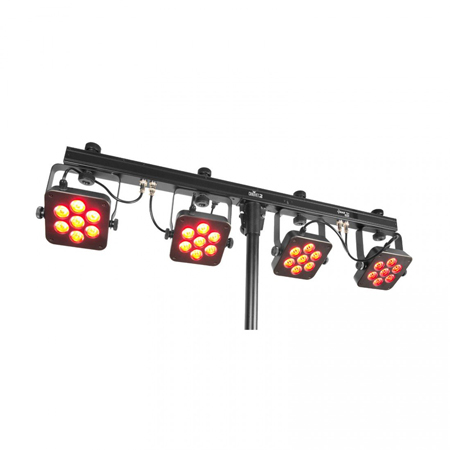

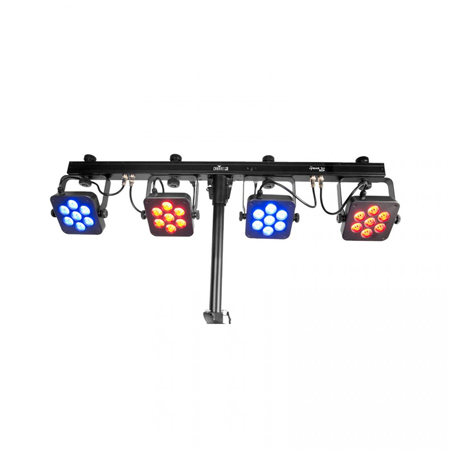

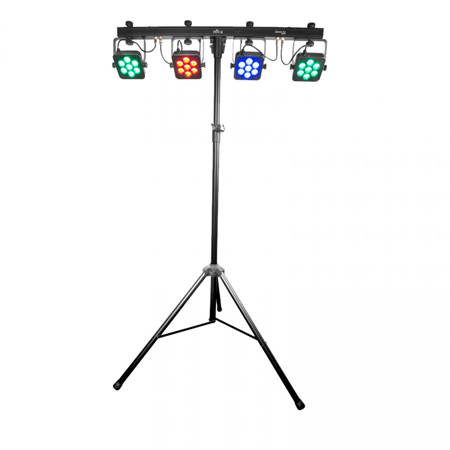

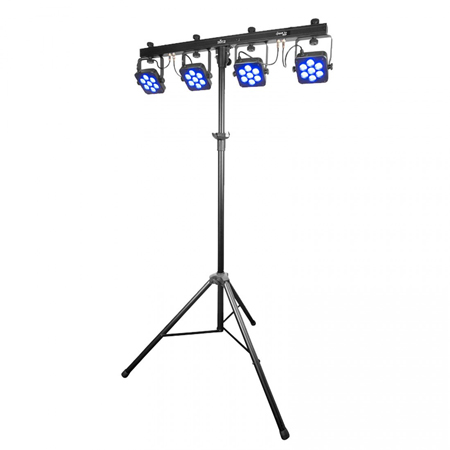

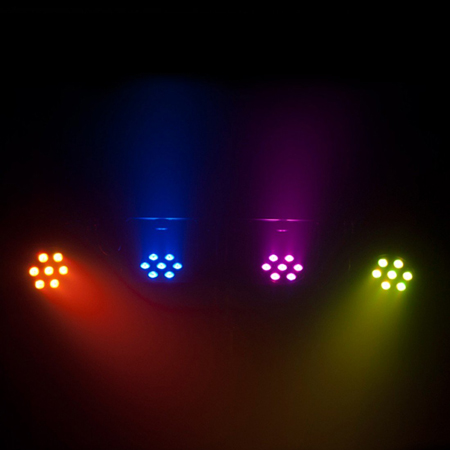

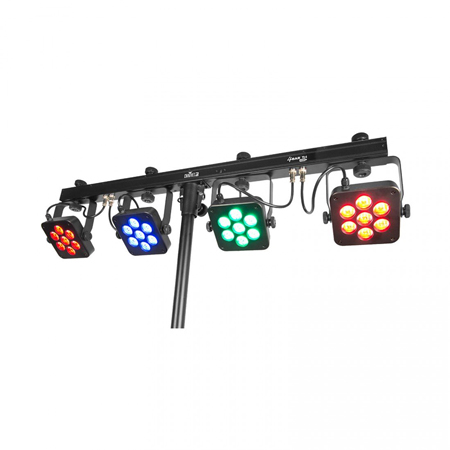

Chauvet DJ 4BAR Tri USB Complete Wash Lighting Solution

4BAR Tri USB is a complete wash lighting solution ?tted with high-intensity tri-color (RGB) LEDs that can be controlled wirelessly via the included footswitch or the optional IRC-6 controller (sold separately). It also features D-Fi USB compatibility for wireless master/slave or DMX control. A convenient tripod stand and carrying bag are included for quick and easy setup and tear down.

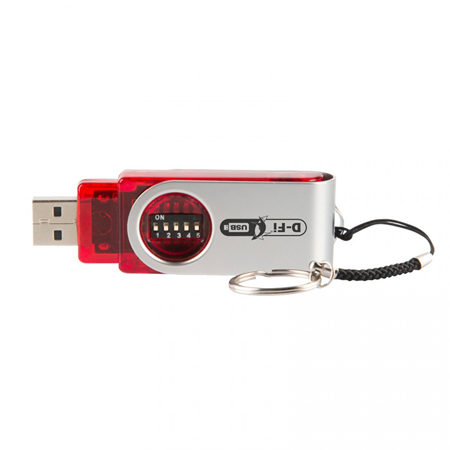

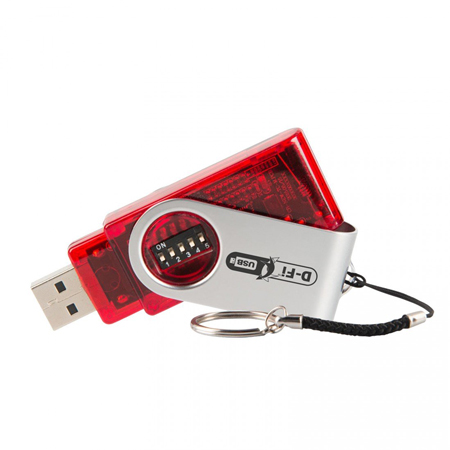

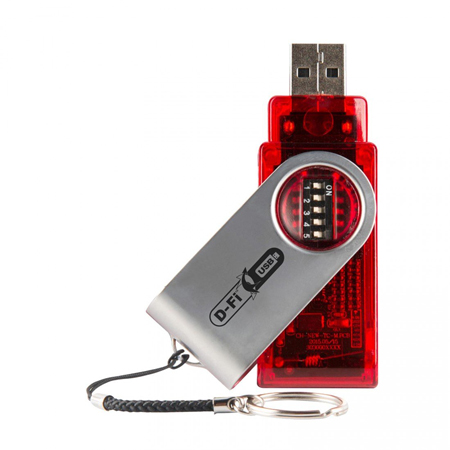

Chauvet DJ D-Fi USB Wireless DMX Transceiver

Chauvet DJ has developed a series of fixtures that include a standard USB connection. You can now wirelessly connect to all of them using the new D-Fi USB transceiver, which eliminates the need for any DMX cables. The USB transceiver is powered directly from the fixture. Control your USB fixtures using any of our wireless controllers, or from your smartphone with the D-Fi Hub and FlareCON.

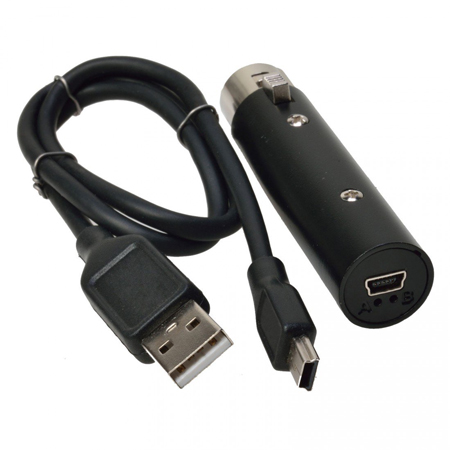

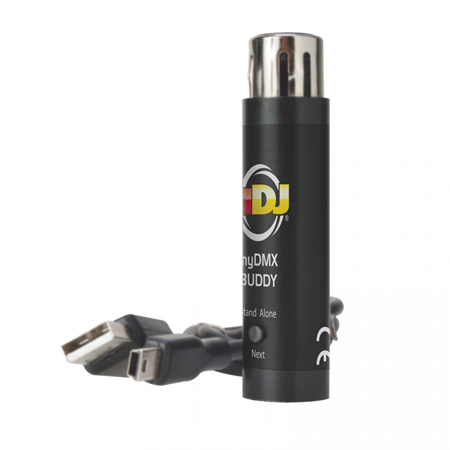

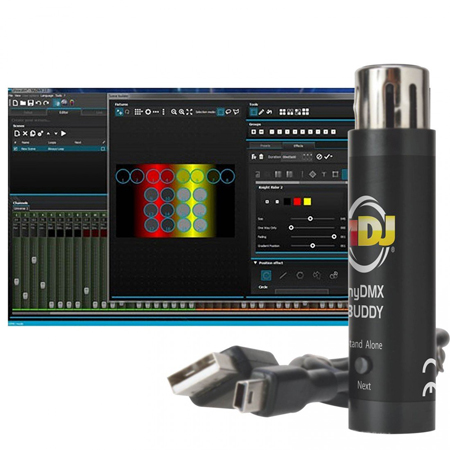

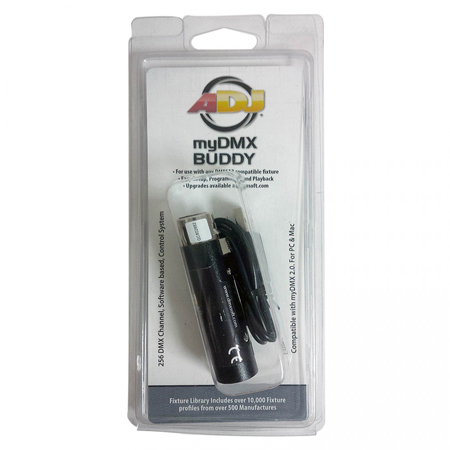

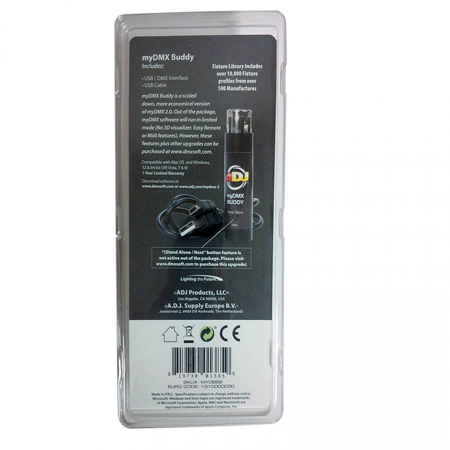

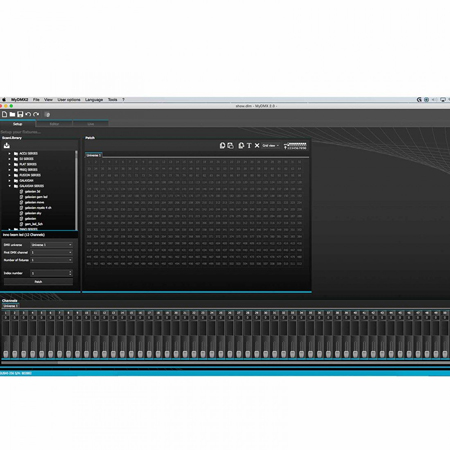

American DJ myDMX Buddy USB/DMX Dongle & DMX Software

myDMX Buddy is a scaled down, entry level version of myDMX 2.0. Out of the package, myDMX software will run in limited mode (No 3D visualizer, Easy Remote or Midi features). The dongle plugs directly into a 3-pin DMX input on your lighting fixture. The dongle connects with a computer via a USB connection.

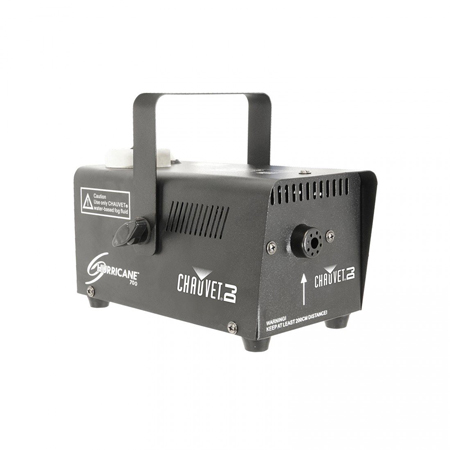

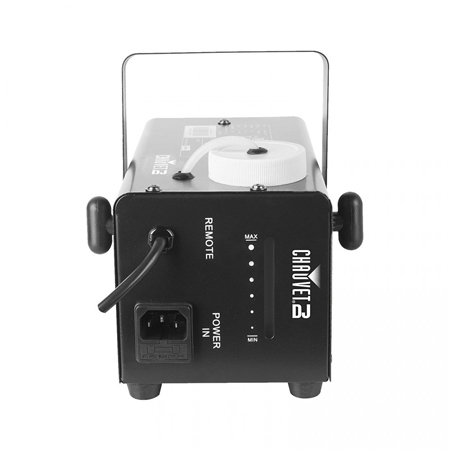

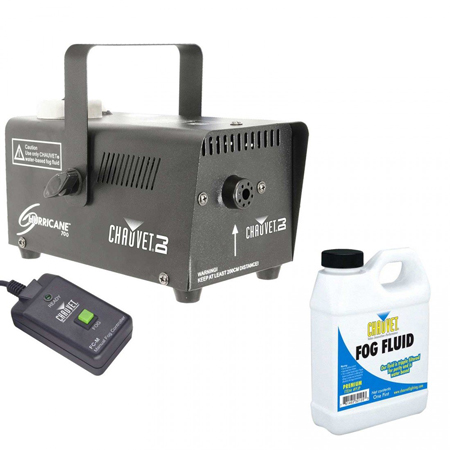

Chauvet DJ Hurricane 700 Fog Machine

The Hurricane Series Foggers provide the quality, performance and innovation for which Chauvet is known. All come with generous-capacity tanks and quick heat up of water-based fog to fill a venue within minutes.

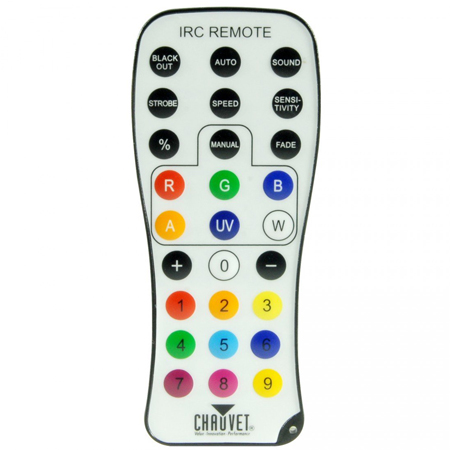

Chauvet DJ IRC-6 Infrared Remote Control

IRC-6 is an easy-to-use infrared remote control (IRC) for IRC compatible lighting fixtures. It provides instant access to pre-programmed scenes, color mixing options and on-the-fly speed adjustments. This compact and lightweight remote has an approximate range of 30 feet (9 m).

Features:

4BAR Tri USB Features:

• Complete wash lighting solution fitted with high-intensity, tri-color (RGB) LEDs.
• Out of the box wireless control with included footswitch or optional IRC-6 controller.

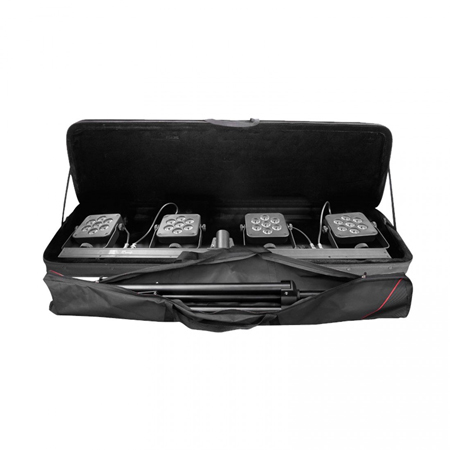

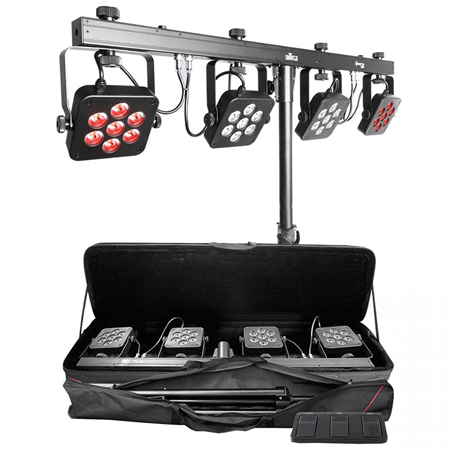

• Easily set up and tear down in minutes with the included tripod stand and carrying bags.
• Create large, coordinated light shows with other 4BAR fixtures in Master/Slave mode.
• D-Fi USB compatibility for wireless Master/Slave or DMX control.

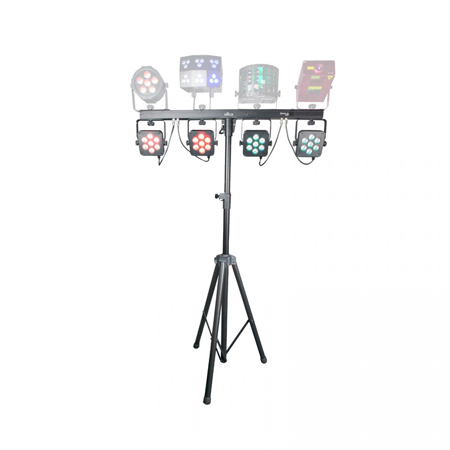

• Create the ultimate light show by mounting up to 4 additional fixtures to the top of the 4BAR Tri USB.
• Achieve total room or stage coverage with 4 individually adjustable heads.
• Nearly eliminate multi-colored shadows with high-power, tri-color (RGB) LEDs.
• Increase mounting options by safely mounting to truss using built-in bolts.
• Save time running cables and extension cords by power linking multiple units.
• Sound-activated programs dance to the beat of the music.

D-Fi USB Features:

• Finger-sized wireless D-Fi transceiver provides instant wireless communication.
• Transfers DMX as well as master/slave signals between similar fixtures.
• Eliminates the need for DMX cables.
• Plugs directly into USB-compatible devices.
• Works without the need of an external power supply.
• Fully FCC/RTTE compliant.

Hurricane 700 Features:

• Compact, lightweight fog machine emits thick bursts of water-based fog to enhance any light show.
• Ready to use right out of the box by including a wired remote control and free pint of water-based fog fluid.

IRC-6 Features:

• Wireless remote control for all Chauvet Freedom series & IRC products.
• Allows you to wirelessly select color, intensity, strobe rate and more.
• Provides instant access to pre-programmed light shows.
• Manually set individual color percentages to achieve the exact color without a DMX controller.

Specifications:

Chauvet DJ 4BAR Tri USB Specifications

• DMX Channels: 3 or 15
• DMX Connectors: 3-pin XLR
• Light Source: 28 LEDs (tri-color RGB) 3 W (1 A), 50,000 hours life expectancy
• Strobe Rate: 0 to 25 Hz
• Stand Height: 7.4 ft (2.25 m)
• Beam Angle: 18°
• Field Angle: 31°
• Illuminance: 2,330 lux @ 2 m (per pod)
• Power Linking: 8 units @ 120 V; 14 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 69 W, 1 A @ 120 V, 60 Hz
• Power and Current: 66 W, 0.5 A @ 230 V, 50 Hz
• Fits Tripod Sizes: 1.34 to 1.57 in (35 to 40 mm)
• Weight: 20.6 lb (10.8 kg)
• Weight (Controller): 0.8 lb (1.8 kg)
• Size: 41.3 x 2 x 10.6 in (1,050 x 50 x 270 mm)
• Size (Controller): 12.4 x 5.2 x 1.5 in (315 x 132 x 38 mm)
• Optional Controllers: IRC-6, D-Fi USB
• Approvals: CE

Chauvet DJ D-Fi USB Specifications

• Operating Frequency: 2.412 to 2.484 GHz
• Max Unobstructed Distance: 165 ft (50 m)
• Weight: 1.1 oz. (31.2 g)
• Size: 3 x 0.9 x 0.5 in (78 x 25 x 13 mm)
• Approvals: CE, FCC

American DJ myDMX Buddy Specifications

• For use with any DMX512 compatible fixture
• Easy Setup, Programming and Playback
• Fixture Library Includes over 10,000 Fixture profiles from over 500 Manufactures
• Compatible with myDMX 2.0. For PC & Mac
• 256 DMX Channel, Software based, Control System
• Compatible with Mac OS and Windows, 32 & 64-bit (XP, Vista, 7 & 8)
• Dimensions (LxW): 3" x 1"/ 75 x 18mm
• 1-Year Limited Warranty

Chauvet DJ Hurricane 700 Specifications

• Tank Capacity: 0.2 gal (0.6 L)
• Remote Length: 13 ft (4 m)
• Heat-up Time: 2.5 min
• Output: 1,500 cfm
• Fluid Consumption: 7.5 ml/min
• Input Voltage: 120 VAC, 60 Hz; 230 V, 50 Hz
• Power and Current: 471 W, 3.9 A @ 120 V, 60 Hz
• Weight: 4 lb (1.8 kg)
• Dimensions: 8.5 x 7.1 x 4.9 in (215 x 180 x 124 mm)
• Approvals: CE

Chauvet DJ IRC-6 Specifications

• Max Unobstructed Distance: 15 ft (4.6 m)
• Input Voltage: 3 VDC lithium battery (CR2025)
• Weight: 0.7 oz (20 g)
• Size: 3.9 x 1.8 x 0.3 in (100 x 47 x 7 mm)
• Approvals: CE

What's in the Box:

This Package Includes:

• (2) Chauvet DJ 4BAR Tri USB Complete Wash Lighting Solution
• (3) Chauvet DJ D-Fi USB Wireless DMX Transceiver
• (1) American DJ myDMX Buddy USB/DMX Dongle & DMX Software
• (2) 10FT Sure-Fit DMX Connecting Cables
• (1) Chauvet DJ Hurricane 700 Fog Machine
• (1) Chauvet DJ IRC-6 Infrared Remote Control

Each 4BAR Tri USB Box Includes:

• (1) 4BAR Tri USB
• (1) Tripod Stand
• (1) Wireless Footswitch
• (1) 4BAR Tri USB Carry Bag

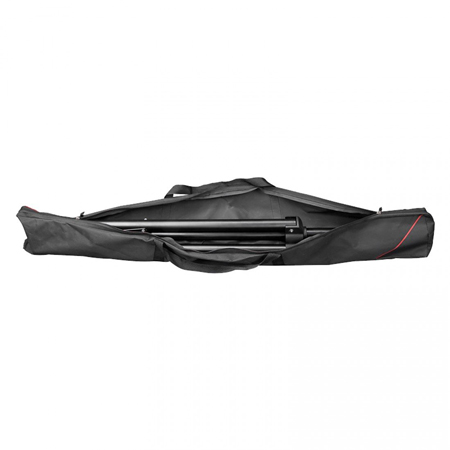

• (1) Tripod Stand Carry Bag
• (1) Power Cord
• (1) Warranty Card
• (1) Quick Reference Guide

Each D-Fi USB Box Includes:

• (1) Chauvet DJ D-Fi USB Wireless DMX Transceiver

The ADJ myDMX Buddy Box Includes:

• (1) American DJ myDMX Buddy USB/DMX Dongle
• (1) USB Cable
• (1) Packaging Insert Card

The Chauvet DJ Hurricane 700 Box Includes:

• (1) Pint of Fog Fluid
• (1) Power Cord
• (1) Warranty Card
• (1) Quick Reference Guide
• (1) Permanently Wired Remote

The Chauvet DJ IRC-6 Box Includes:

• (1) Chauvet IRC-6 Infrared Remote Control
• (1) QuickStart Guide
• (1) Warranty Card
