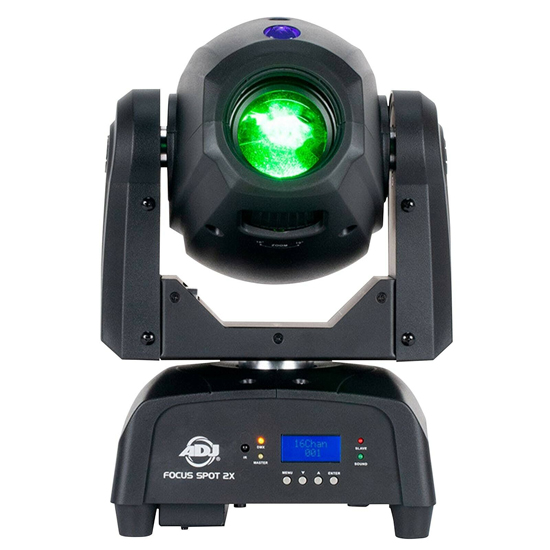

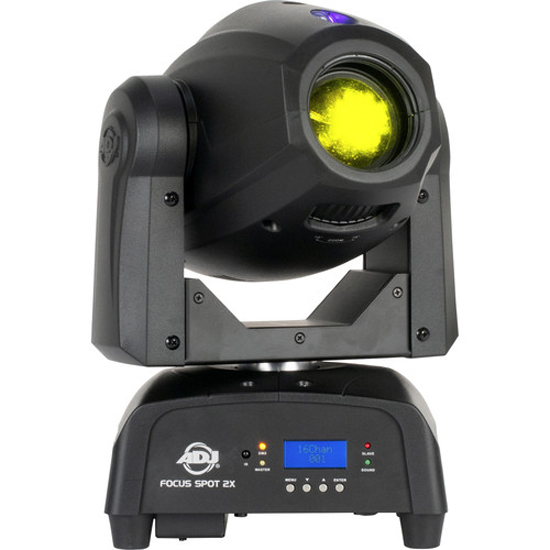

American DJ Focus Spot 2X 100W LED DMX Gobo Moving Head Light Pair with Flight Case

The ADJ Focus Spot 2X is a 100W LED Moving Head with a 3W UV LED included for black lighting or additional color hues. It features two prism effects; a 6-facet circular prism and a 6-facet linear prism. In addition, ADJ has fitted the FS2X with a GOBO wheel with replaceable, rotating and indexable GOBOs. The GOBOs are easy to replace by removing the top housing with one screw that's on a hinge. GOBOs easily lock in and out of the GOBO wheel. This mover is also equipped with motorized focus, Gobo Indexing, EZ Gobo replacement and a manual zoom knob near the lens to change the beam angle from 16 ~ 19 degrees.

The Focus Spot 2X is extremely versatile and has everything clubs, theaters, churches, concert productions and lighting professionals are looking for in a LED spot moving head. It has 16 & 18 DMX channel modes, Pan/Tilt Inversion, 16-Bit Fine Pan/Tilt, 3-pin DMX In/Out, locking In/Out power connectors, and a 4-Button DMX LCD menu.

The Focus Spot 2X is fitted with 8 colors plus spot and split colors. It has 6 rotating, replaceable GOBO patterns plus spot. The color wheel and GOBO wheel work independent of each other. All GOBOs are indexable.

ProX XS-MH140X2W 140 Style Moving Head Lighting Case Features:

• 3/8 inch Plywood.
• Black finish laminate.
• Inside lined w/ Durable hard rubber.
• Heavy duty ball corners.
• Industrial rivets.
• Recessed spring-loaded handles.
• Recessed butterfly twist latches.
• 4 inch casters with brakes on 2 wheels.
• Aluminum extrusion around caster plate.
• Stack-able 4 inch caster Dish on top of each case.

American DJ Focus Spot 2X Moving Head Product Specifications:

Light Source:

• 1 x 100W Cold White LED (7600°K, 50,000 hr.)
• 1 x 3W UV LED
Features:

• Motorized Focus
• Manual Zoom knob on head: 16 ~ 19 degree beam angle
• Fan cooled
• Strobe/Pulse effect; random strobe slow to fast
• UC IR & Airstream IR Compatible (Sold Separately)

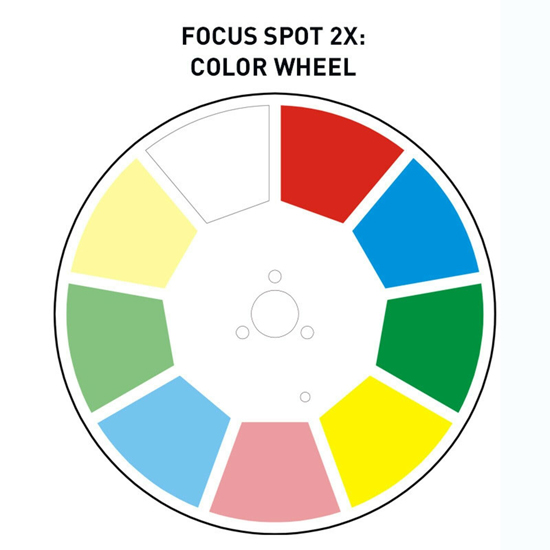

Color Wheel:

• 8 Colors + White & Split Colors

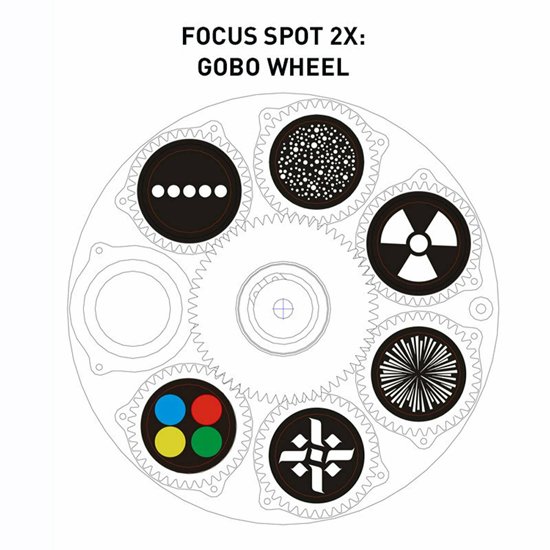

GOBO Wheel:

• 6 Rotating, replaceable Gobos + Spot
• Gobo Size: Outer: 23mm/Inner:19mm/Thickness: 0.5mm
• Gobo Indexing
• EZ Gobo replacement with hinged head cover
• Gobo Shake effect
Prism Wheel:

• 6-facet circular prism
• 6-facet linear prism
Control:

• 3 Operational Modes: Sound Active, Show Mode, & DMX Controlled
• Master / Slave-able
• 4 Built-in lighting shows
• 16 & 18 DMX channel modes
• Electronic Dimming: 0% - 100%
• 5 Dimmer Curves
• 4-Button DMX LED menu
• Stepper motors with micro stepping
• With Wired Digital Communication Network

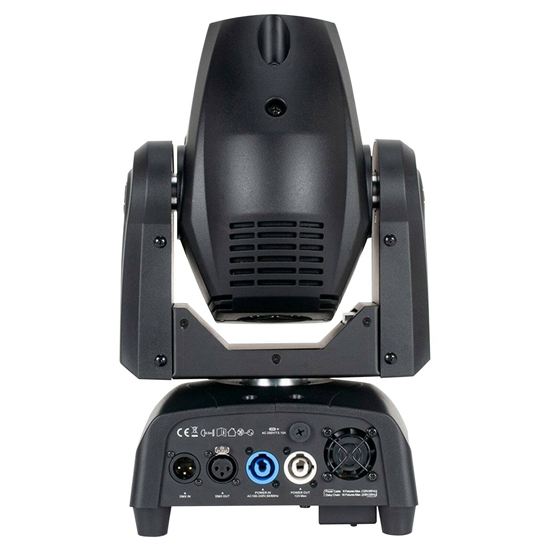

Connections:

• 3-pin DMX In/Out
• Twist locking power In/Out connections on rear to daisy chain power (up to 9 Focus Spot 2X's @ 120V and 16 Focus Spot 2X's @ 230V)
Pan/Tilt:

• Fast and precise Pan/Tilt Movements
• 16-Bit Fine Pan/Tilt control
• Pan: 540-degree
• Tilt: 270-degree
• Pan/Tilt Invert Mode
• 4, Built-In, Pan/Tilt Target Modes
Electrical:

• Multi-voltage Operation: 100-240V, 50Hz/60Hz
• Power Consumption: 175W
Dimensions / Weight:

• Dimensions (LxWxH): 9.33" x 9.10" x 15.15"/ 237 x 231 x 385mm
• Weight: 14.5 lbs. / 6.5 kgs.
Approvals:

• CE
• ETL (Pending)

This Package includes

• 2x American DJ Focus Spot 2X 100W LED Moving Head
• 1x Omega bracket for truss mounting
• 1x Power cable
• 1x American DJ UC-IR Universal Remote Control for ADJ Lighting Fixtures
• 1x ProX XS-MH140X2W 140 Style Moving Head Lighting Case for 2 Units
• 2x Chauvet DJ CH-05 31" Lighting Safety Cables
• 2x 25FT 3-Pin DMX Lighting Cables
• 2x O-Clamp
