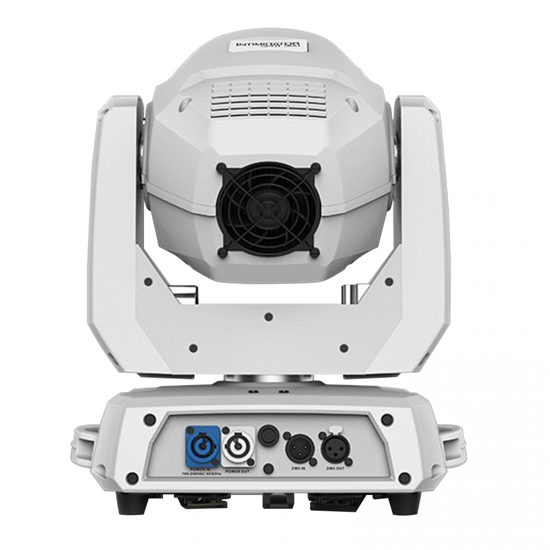

4x Chauvet Intimidator Spot 360 White Moving-Head w DMX interface with Case & Clamps

Features

• Feature-packed moving head fitted with a 100 W LED designed for mobile performances
• Dual rotating prisms split the beam for great effects and cover a larger area
• Throw light farther by decreasing the beam angle 5° using the manual zoom
• Unique 1/4-turn hanging bracket allows for single or dual clamp mounting options
• Project crisp gobos from nearly any distance with the motorized focus
• Beams always remain on the dance floor using the built-in, innovative Totem mode
• Set, save, and recall 1 scene manually, directly from the full-color LCD display
• Convenient, wireless non-DMX control using the optional IRC-6 remote
• powerCON®-compatible power input/output connections for power linking
• Suitable for every event with either black or white housing
• Fits best in the CHS-360 VIP carry bag or the Intimidator Road Case S35X flight case

Specifications

• DMX Channels: 8 or 14
• DMX Connectors: 3-pin XLR
• Pan and Tilt: 540°/270°
• Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
• Colors: 8 + white, split colors, continuous scroll at variable speeds
• Gobos: 7 + open (6 metal + 1 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Light Source: 1 LED (white) 100 W, (3.2 A), 50,000 hours life expectancy
• Strobe Rate: 0 to 20 Hz
• Illuminance: (12°): 35,010 lux @ 2 m
  (17°): 19,710 lux @ 2 m
  (12°): 5,470 lux @ 5 m
  3,097 lux @ 5 m
• Power Linking: 6 units @ 120 V; 11 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 163 W, 2.07 A @ 120 V, 60 Hz
  154 W, 1.18 A @ 230 V, 50 Hz
• Gobo Size: 24 mm outside, 20 mm image, 1.1 mm max thickness
  Prism (1): 3-facet round, bidirectional rotation at variable speeds
  Prism (2): 5-facet linear, bidirectional rotation at variable speeds
• Zoom Angle: (manual): 12° to 17°
• Weight: 25 lb (11.4 kg)
• Size: 16.65 x 12.68 x 11.69 in (423 x 322 x 297)
• Approvals: CE, MET
• Optional Controllers: IRC-6

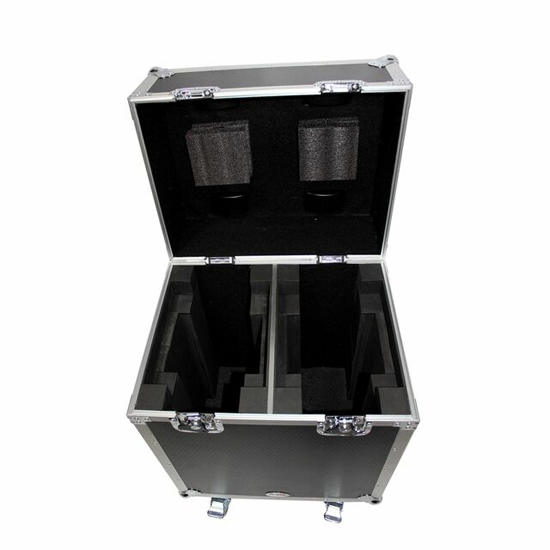

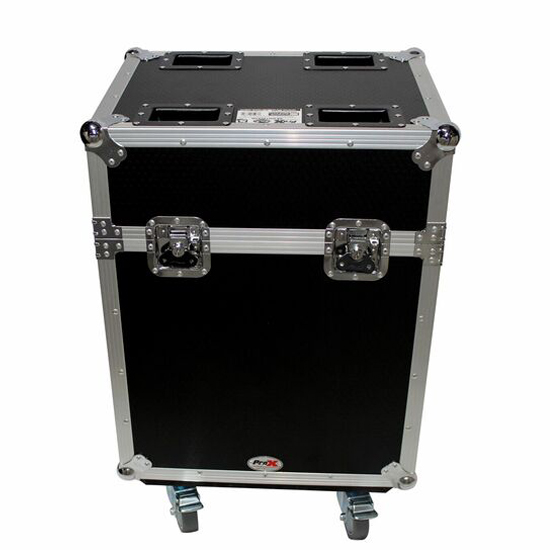

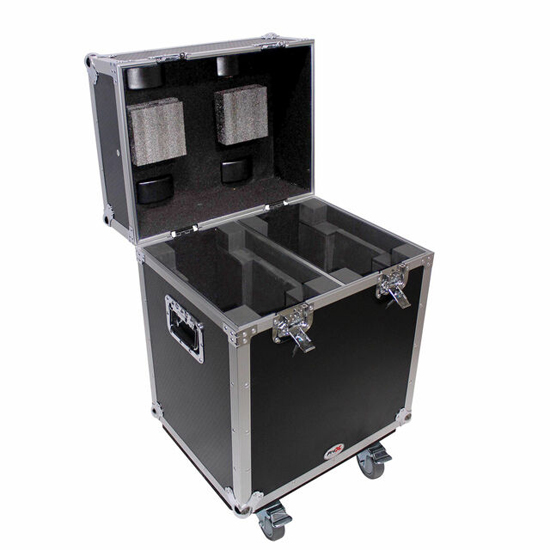

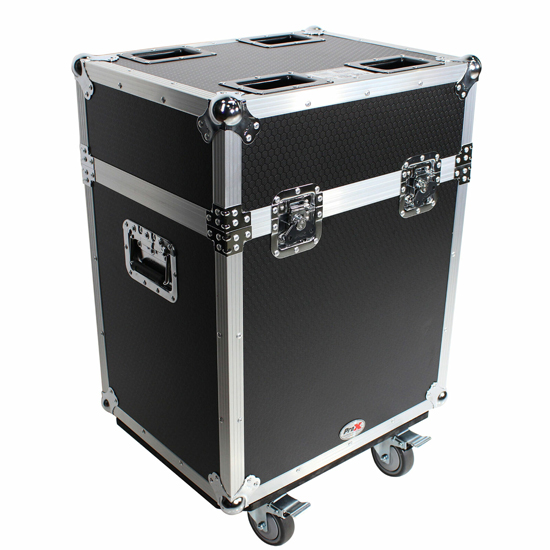

ProX XS-MH140X2W 140 Style Moving Head Lighting Case Features:

• 3/8 inch Plywood.
• Black finish laminate.
• Inside lined w/ Durable hard rubber.
• Heavy duty ball corners.
• Industrial rivets.
• Recessed spring-loaded handles.
• Recessed butterfly twist latches.
• 4 inch casters with brakes on 2 wheels.
• Aluminum extrusion around caster plate.
• Stack-able 4 inch caster Dish on top of each case.

Chauvet DJ Xpress 1024

Harness the power of ShowXpress lighting control software with Xpress-1024 DMX interface. This self-contained aluminum unit is compatible with both Windows and Mac OS X systems, but will easily store and play back 1 show without a computer. Xpress-1024 controls two DMX universes and unlocks an additional ArtNet universe (3 universes total). The interface is hot-swappable and automatically re-connects within seconds. Connect multiple interfaces to control additional universes. Xpress-1024 has built-in electrostatic discharge and dual optical isolation protection circuits.

Features:

• Self-contained, aluminum DMX interface for ShowXpress™ software
• Controls two DMX universes and unlocks an additional ArtNet universe (3 universes total)
• Easily store and play back 1 show without a computer
• Compatible with Windows and Mac OS X systems
• Connect multiple interfaces to control additional universes
• Hot-swappable and automatically re-connects within seconds
• Both outputs are electrically and optically isolated

Specifications

• DMX Channels: 1024 + 512 via ArtNet
• DMX Connectors: 3-pin XLR
• Input Voltage: 5 V USB
• Weight: 0.4 lb (0.2 kg)
• Dimensions: 4.3 x 2.6 x 1.8 in (110 x 66 x 45 mm)
• Approvals: CE
• DMX Refresh Rate: 40 Hz

Downloads

• Xpress 1024 User Manual
• Xpress Interface Matrix

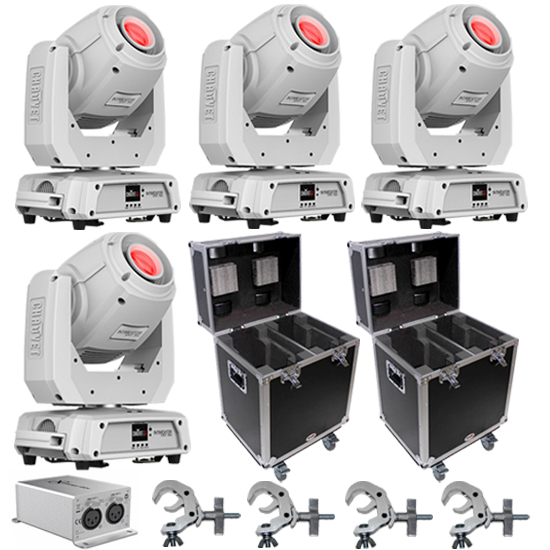

This Package Includes:

• 4x Chauvet DJ Intimidator Spot 360 White
• 2x ProX XS-MH140X2W
• 1x Chauvet DJ Xpress 1024

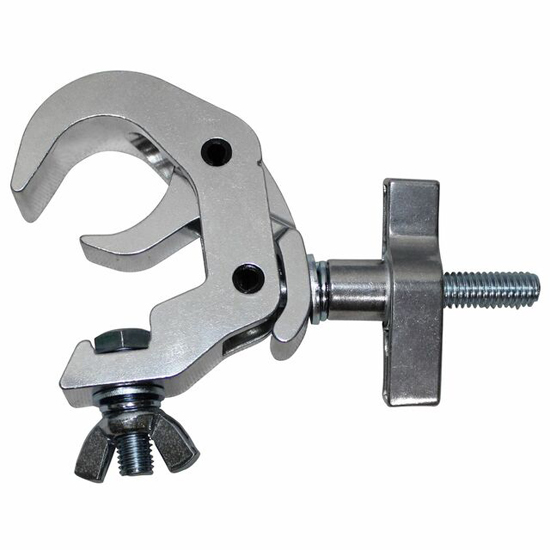

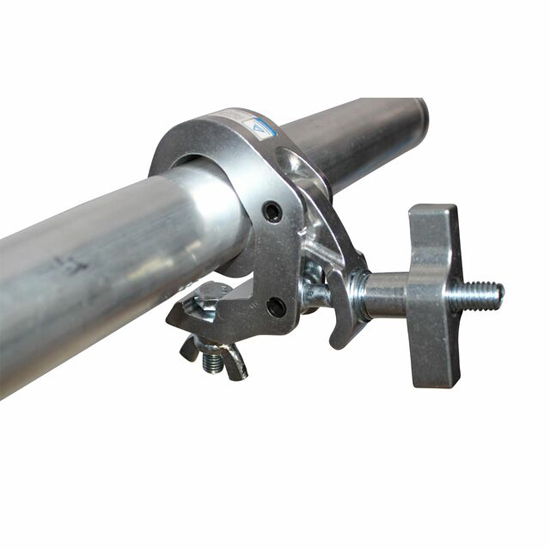

• 4x ProX T-C12H
