American DJ Focus Spot 4Z 200W LED Moving Head Spot with Carrying Case Package

The new Focus Spot 4Z sits at the top of range of the popular Focus Series moving heads from ADJ Lighting. The Focus Spot 4Z is powered by a brilliant 200W cool white LED engine and is equipped with motorized focus and zoom (11 ~ 22-degree zoom). Its designed for temporary live events and fixed installations in nightclub, stages or churches. It is professionally fit with one GOBO wheel with 6 rotating/replaceable GOBOS, 8 vibrant colors plus white, and 2 prism wheels (one 5-facet linear and one 6-facet circular).

The Focus Spot 4Z has locking powerCON In and out connectors to daisy chain the power, as well as 3-pin DMX In/Out to transmit a DMX signal from one fixture to the next. There is a USB firmware update port built-in plus advanced control options such as: 16-bit fin pan and tilt, multiple DMX control modes, and 6 different dimming options. The Focus Spot 4Z offers a robust light output in a light weight, compact foot print (18-inch high and one 23 pounds).

Specification

American DJ Focus Spot 4Z Moving Head Spot Features:

• 200W Cool White LED Engine (50,000 hr.)
• 8 Colors + white.
• 6 Rotating, Replaceable GOBOs + Open.
• Zoom Range: 11 ~ 22-degrees.
• : Motorized.
• 2 Prism FX: Rotating 5-facet Linear & rotating 6-facet Circular.
• powerCON In/Out to daisy chain power.
• 3-pin DMX In/Out.
• USB firmware update port.
• Multiple DMX Control Channels Mode.
• Fine Pan & Tilt: 16-Bit.
• Dimming & Fine Dimming (16-Bit) : 0-100% Electronic.
• 6 Dimming Modes: Standard.
• Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing.)
• Dimensions (LxWxH): 18" x 10.97" x 7.15" / 457 x 279 x 182mm.
• Weight: 23 lbs. / 10 kg.

American DJ Focus Spot 4Z Specifications:

• Light Source: 200W Cool White LED Engine (50,000 hr.)

Features:

• Motorized Focus
• Motorized Zoom: 11 ~ 22-degrees plus 16-bit Fine Zoom
• 2 Prism FX: Rotating 5-facet Linear & rotating 6-facet Circular
• 0-100% smooth dimming
• Various strobe speeds
• USB firmware update port
• 2 cooling fans
• Color Wheel: 8 dichroic colors + white

GOBO Wheel:

• 6 aluminum GOBOs + open
• All GOBOs removable & rotatable
• GOBO Shake Effect
• GOBO size: 23mm (outer); 19mm (viewable); 0.5mm (thickness)

Prism Wheel:

• Prism Wheel 1: Rotatable 5-facet Linear
• Prism Wheel 2: Rotatable 6-facet Circular
• Prism Indexing

Control:

• 3 DMX Channel Modes: 16/18/22 Channels
• Color LCD display with 6-button function menu
• Data In/Out: 3-pin DMX
• Power In/Out: Locking powerCON (Daisy chain 4 units @ 120V; 10 units @ 240V)
• Control Mode: DMX512 or internal programs
• 6 Dimming Curve Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2
• 0-100% smooth dimming
• Various strobe speeds
• USB firmware update port
• With Wired Digital Communication Network

Pan/Tilt:

• Pan: 540-degrees
• 16-bit Fine Pan: 630-degrees
• Tilt
• 16-bit Fine Tilt

Electrical:

• Power voltage: AC100-240V, 50/60Hz (Multi-voltage)
• Power consumption: 240W max

Dimensions & Weight:

• Dimension: 18" x 10.97" x 7.15" / 457 x 279 x 182mm
• Weight: 23 lbs. / 10 kg.

ADJ AV6 3FT Power Link Cable [PLC3]

• AV6 System 3' power link cable, cabinet to cabinet, horizontal and vertical.

What's in the Box

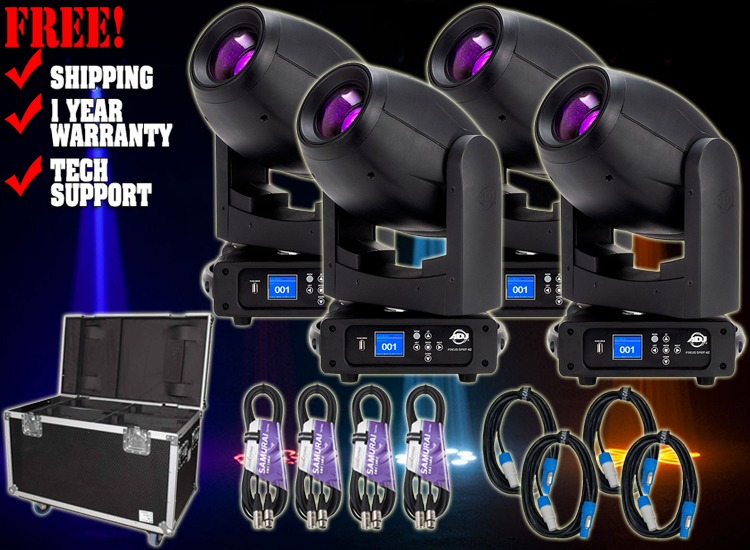

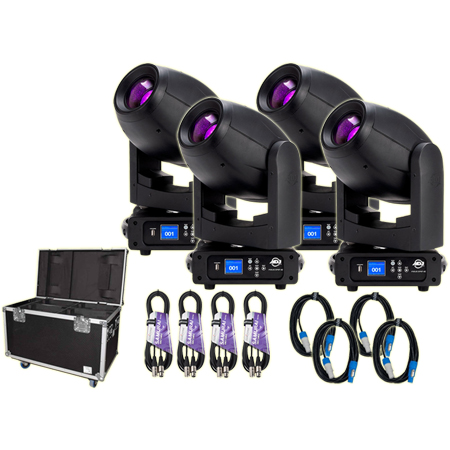

This Package Includes:

• (4) American DJ Focus Spot 4Z 200W LED Moving Head Spot Fixtures with Motorized Focus & Motorized Zoom
• (1) Properly Fitting & Durable Protective Transport Case
• (4) 25FT DMX Connecting Cables
• (4) ADJ AV6 3FT Power Link Cables [PLC3]

Each Focus Spot 4Z Retail Box Includes:

• (1) American DJ Focus Spot 4Z 200W LED Moving Head Spot Fixture
• (1) 3 foot PowerCON power cable
• (1) Safety Cable
• (1) Omega Bracket

Each PLC3 Box Includes:

• (1) ADJ AV6 3FT Power Link Cable [PLC3]
