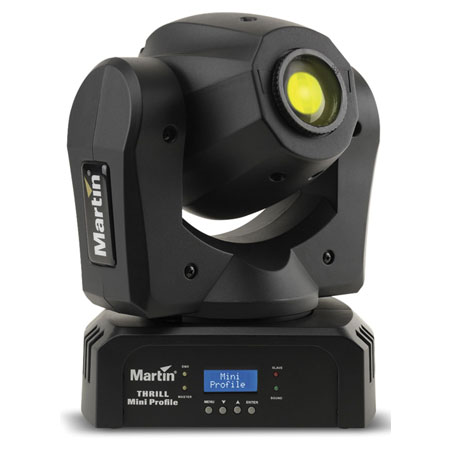

Martin THRILL Mini Profile 2-Pack with DMX Controller

Overview

Imagine having the ability to integrate the moving beams of light, shine spotlights when and where you need them, or add the dramatic effect of colors and "gobos" flying around the audience during your live shows. Now you can with the THRILL Mini Profile, Martin professional's smallest and most affordable moving head to date. THRILL Mini Profile has been designed to help DJs, musicians and entertainers take their performances to the next level–whether they're in lounge bar or pub, to a wedding or high–energy dance floor.

The THRILL Mini Profile delivers super–sharp optics with over 800 lumens of output via an 18 watt white LED engine. Eight varied gobos and eight vibrant colors are available, with electronic strobe/dimming, manual focus and high–speed pan and tilt. The eye–catching effects can be synchronized to a music beat via audio trigger or run from the four pre–programmed shows. For more custom control options, it can also be operated via DMX.

Despite performing above its class, this ultra–compact fixture weighs only 4.3 kg (9.5 lb.), so it's easy to transport and set up. Its lightweight design, rugged exterior, and compact form factor make THRILL Mini Profile the perfect fit for on–the–go entertainers, DJs, venues and home enthusiasts that require professional, lighting within their reach.

Features:

• 18 W, white LED engine
• Dynamic effects include electronic dimming and strobe
• 8 static gobos for mid–air break–ups and projections
• 8 vibrant dichroic color filters
• Ultra–smooth and fast pan/tilt
• Easy to operate standalone sound–activated and master/slave control methods
• 4 professionally pre–programmed shows
• DMX operable for individualized control and design
• Includes bracket for hanging or surface mount
• Common IEC power mains inlet – mains cable included

Specifications:

• Length: 237 mm (9.3 in.)
• Width: 155 mm (6.1 in.)
• Height: 338 mm (13.3 in.)
• Height with hanging bracket: 362 mm (14.25 in.)
• Weight: 4.3 kg (9.5 lbs.)
• Color wheel: 8 colors plus open, variable and random rotation
• Static gobo wheel (stamped): 8 static gobos plus open, variable and random rotation
• Strobe: Variable from 3 – 20 Hz, pulse effects and random strobe
• Electronic dimming: 0 – 100%, four dimming curve options
• Pan: 540°
• Tilt: 230°
• Control options: DMX, 4 stand–alone shows, master/slave
• DMX channels: 10
• Stand–alone trigger: Sound–trigger, auto–run
• Interface: Control panel with backlit LCD display
• DMX compliance: ANSI E1.11 – USITT DMX512–A
• Light source: 18 W white LED engine
• Minimum LED lifetime: 50 000 hours (to >70% luminous output)*
• Beam angle: 14°
• Focus: Manual
• *Figure obtained under manufacturer's test conditionsConstruction
• Color: Black
• Housing: High–impact flame–retardant thermoplastic on metal frame
• IP rating: IP 20
• Orientation: Standing or hanging
• Mounting points: Bracket for single rigging clamp, M12 or 1/2"
• Location: Dry location only
• Minimum distance to illuminated surfaces: 200 mm (8 in.)
• Minimum distance to combustible materials: 100 mm (4 in.)
• Minimum clearance around fans and vents: 100 mm (4 in.)
• AC power input: IEC male inlet, C14
• DMX data in/out: 3–pin and 5–pin locking XLR
• AC power: 100–240 V nominal, 50/60 Hz Fuse: Fuse: T 2AL, 250 V
• Typical Power and Current: 120 V, 60 Hz: 52 W, 0.8 A 230 V, 50 Hz: 50 W, 0.5 A
• Typical half–cycle RMS inrush current: 6.4 A
• Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/– 10%.
• Cooling: Forced air (temperature–regulated, low noise)
• Maximum ambient temperature (Ta max.): 40° C (104° F)
• Minimum ambient temperature (Ta min.): 0° C (32° F)
• Total heat dissipation (calculated, +/- 10%, at full intensity, full white): 180 BTU/hr.
• EU safety: EN 60598–2–17 (EN 60598–1), EN 62471, EN 62493
• EU EMC: EN 55015, EN 55032, EN 55103–2, EN 61000–3–2, EN 61000–4–2, EN 61547
• US safety: UL 1573 US EMC: CFR Title 47 Part 15 Class A
• Canadian safety: CSA C22.2 No. 166
• Canadian EMC: ICES–003 Class A
• Australia/NZ (pending): RCM
• Included Items: Power cable, EU, IEC C13 female, molded Schuko, 1.9 m (6.3 ft.); Power cable, US, IEC C13 female, molded NEMA 5–15P, 1.9 m (6.3 ft.); Bracket for rigging clamp attachment
• Accessories:
• Installation hardware: Super lightweight half coupler, black: P/N 91602018
• Safety cable, SWL 60 kg (132 lb.), BGV C1/ DGUV 17, black: P/N 91604006

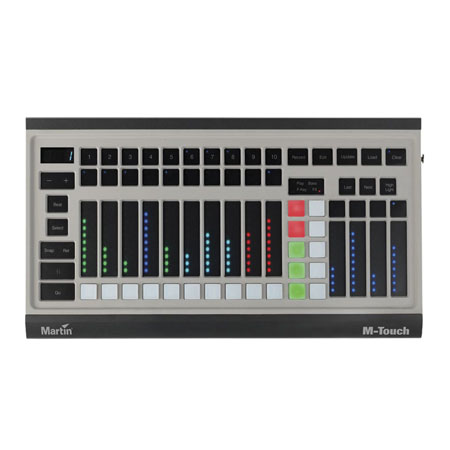

Martin M–Touch 512 Channel DMX Lighting Controller

Martin M–Touch is a powerful yet simple control surface for the Martin M–Series controllers, the most affordable professional lighting solutions on the market. Fully compatible with all M–Series consoles and M–PC software, Martin M–Touch is a plug–and–play solution with an innovative control surface like no other lighting console.

14 FSR faders allow control of playbacks and fixture parameters while 20 velocity–controlled pads allow for new types of effects. Additional programming buttons such as Record, Edit, Update, Load and Clear are accessible directly from the M–Touch control panel. Martin M–Touch comes with one DMX 512 Universe for direct control of any compatible DMX device.

Features:

• Truly affordable console surface for both smaller applications and professional use
• Rugged aluminum design for durability
• The most powerful controller of its class with a full 512 DMX channels, expandable to 65,000 channels

Specifications:

• Control/User Interface
• Bank Navigation Up/Down with numerical display
• Main Go section: Snap, Release, Pause and Go buttons
• Command Buttons: Record, Edit, Update, Load, Clear
• Multifunction Mode Select button
• Fixture Selection buttons: Last, Next, Highlight
• 4 x Parameter Select buttons
• 4 x Parameter Adjust touch faders
• 10 x Function velocity pads
• Playback
• 10 x Playback touch faders with 3 buttons
• (2 x touch pad, 1 x velocity pad)
• System integration
• Unlocks 1 x DMX universe when connected to M–PC
• Construction
• Housing: Aluminum, steel, plastic
• Mounting: VESA 75x75, 100x100
• Security: K–Lock locking slot
• IP Rating: IP20
• Connections
• DMX data link: 1 x 5–pin locking XLR
• Windows PC: USB 2.0
• Electrical
• Power source: 5 VDC over USB
• Maximum current: 500 mA
• Thermal
• Operating temperature: 0° – 50° C (32° – 122° F)
• Included Items
• USB cable 1.5m (4.9 ft.)
• Physical
• Length: 394 mm (15.5 in.)
• Width: 218.5 mm (8.6 in.)
• Height: 46.5 mm (1.8 in.)
• Weight: 1.5 kg (3.3 lbs.)
• Includes:
• USB cable 1.5m (4.9 ft.)

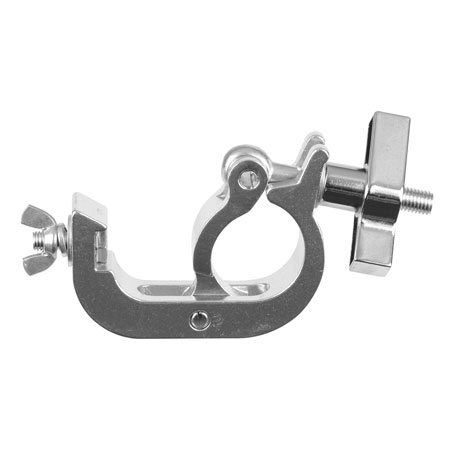

Global Truss Trigger Light Hook Clamp for 1.5–Inch to 2–Inch Truss or Pipe

The pro grade Trigger Clamp is ideal for use with truss or pipe which has an outer diameter of 1.5" to 2". Installation of lighting fixtures or key effects is a breeze, simply connect your light fixture or effect to the clamp then place clamp in desired location on trussing or pipe and securely tighten down via a large wing–type grip handle. Clamp also has an M10 wing–nut accessory bolt for an even more secure installation. Ideal for mobile DJ's, light riggers or theater stage hands.

Specifications:

• Heavy duty wrap around trigger/hook clamp
• Maxl load capacity: 550 lbs.
• Clamp weight: 1 lbs.
• Designed for truss or pipe 1.5" to 2"

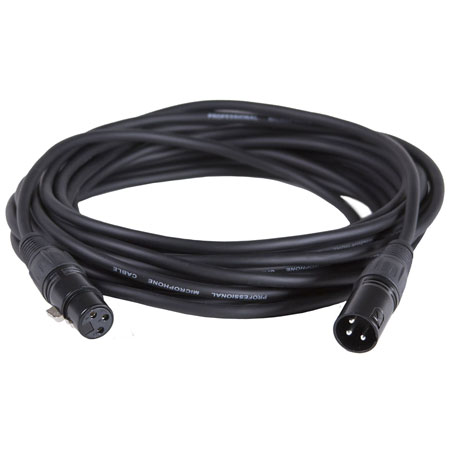

Solena Professional 25ft DMX Cable

Features:

• 3–Pin DMX Lighting Cable
• High–quality XLR connectors
• Sturdy, flexible design
• Tough, tread–resistant jacket
• Perfectly designed for high–speed transmission of digital DMX light control signal and digital AES/EBU audio signals

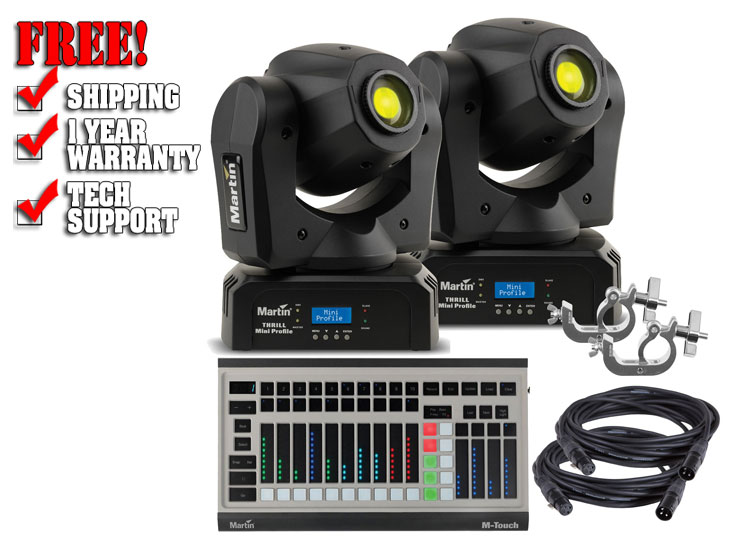

Package Includes

• 1 x Martin M-Touch 512 Channel DMX Lighting Controller
• 2 x Trigger Light Hook Clamp for 2 Inch Truss
• 2 x Martin THRILL Mini-Profile 18W LED Moving Head
• 2 x 25ft 3-Pin DMX Lighting Cable
