Chauvet DJ Freedom Par Tri-6 Wireless Pack

Description

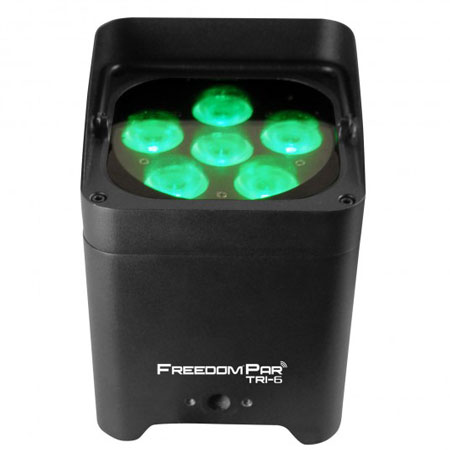

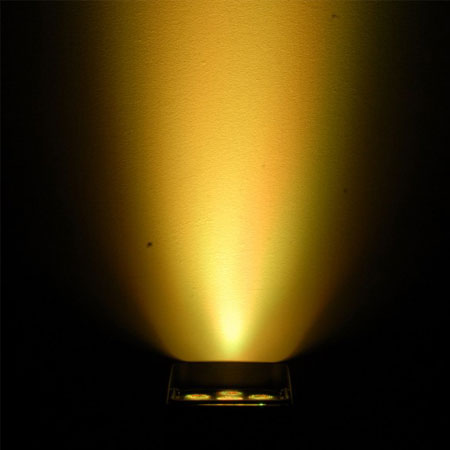

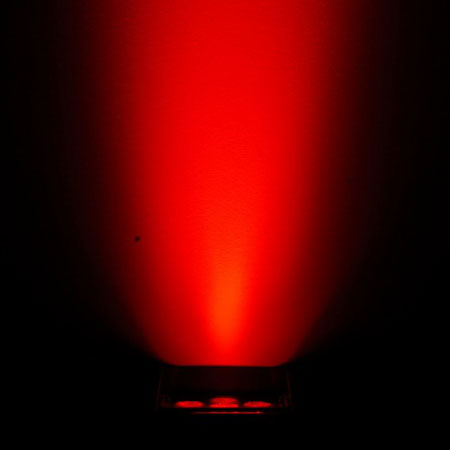

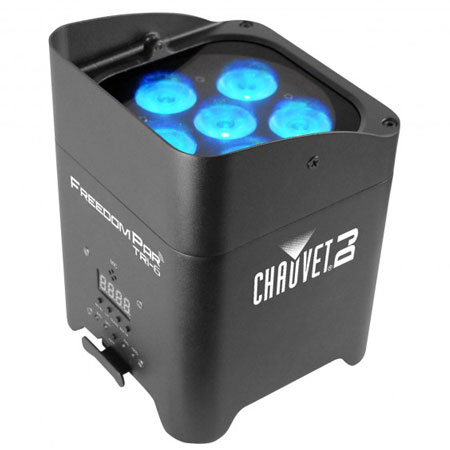

Freedom Par Tri-6 is powerful, bright, and truly 100% wireless with a rechargeable battery and a built-in D-Fi transceiver. Freedom™ Par Tri-6 has 18 watts of RGB color mixing and can be operated with the control panel, the included CHAUVET DJ IRC-6 remote, or from any mobile phone or tablet running the FlareCON™ mobile app. Freedom™ Par Tri-6 fits perfectly inside TRUSST® and all other 12" box truss, and travels safely and stylishly in the CHAUVET® DJ CHS-FR4 VIP Gear Bag.

Features:

• 100% TRUE wireless, battery-operated, tri-color LED Par with built-in D-Fi™ transceiver
• Multiple wireless triggering and control options via the FlareCON™ Air and the FlareCON™ app
• Works in Master/Slave with first-generation Freedom™ Pars

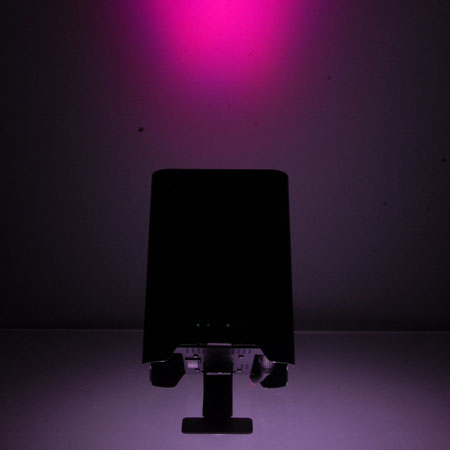

• Shine light where it is needed using the built-in adjustable kickstand
• Built-in glare shield prevents light spillage
• Extend the battery's lifespan with built-in discharge protection
• Convenient, wireless non-DMX control using the IRC-6 remote
• Create customized colors using the built-in LED display
• Achieve smooth LED fading with built-in dimming curves
• Safely store and transport your fixtures from gig to gig in the CHS-FR4 carry bag

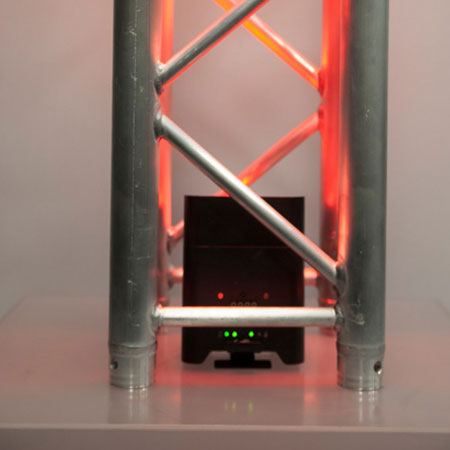

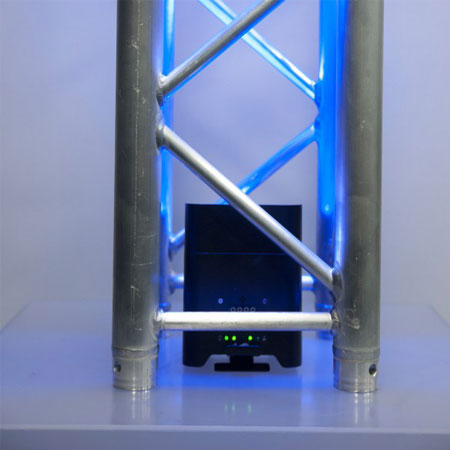

• Compact and lightweight design easily fits inside sticks of TRUSST®

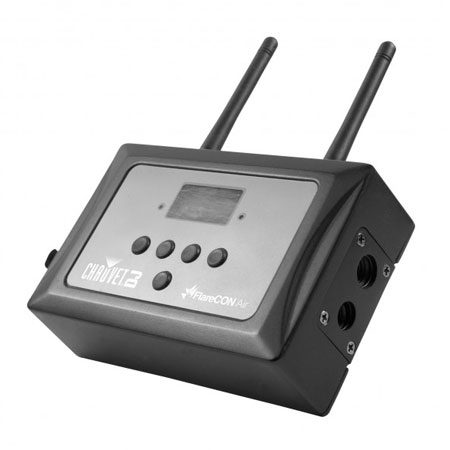

Chauvet FlareCON Air

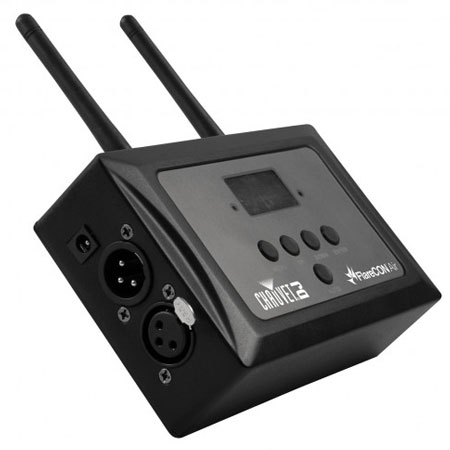

The FlareCON™ Air utilizes cell phones and tablets and turns them into wireless DMX controllers. It works with all CHAUVET® DJ Freedom series fixtures as well as all D-Fi™ products for versatile control over your rig.

The built-in Wi-Fi™ transmitter connects with cell phones and tablets running the FREE FlareCON™ app, to allow the user to control the connected lighting fixtures. The FlareCON™ Air then converts the Wi-Fi™ signal from the phone or tablet into D-Fi™ and wirelessly transmits those signals to an unlimited number of receivers.

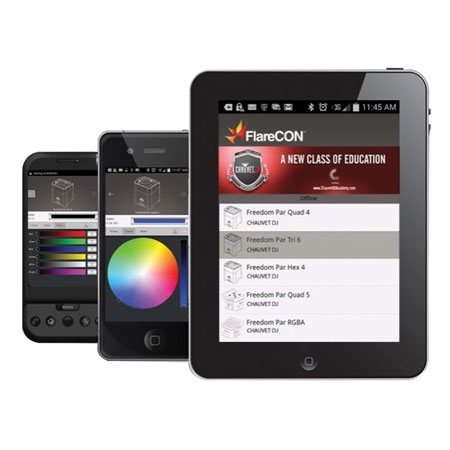

The FlareCON™ app is available for both Android™ and iOS® in both phone and tablet versions. The FlareCON™ Air can also connect directly to a DMX controller to send wireless signals out to an unlimited number of D-Fi™ lights or receivers. The FlareCON™ Air is fully FCC and RTTE compliant.

FlareCON Air Features

• Compact, easy-to-use Wi-Fi™ receiver and wireless D-Fi™ transmitter in a single unit
• Compatible with Android™ operating system and Mac iOS® on both smartphones and tablets
• Output can be used in wireless D-Fi™ or wired DMX protocols
• Wirelessly synchronize an unlimited number of D-Fi™-ready fixtures and receivers simultaneously
• Built-in options include manual or automatic channel selection
• Simple navigation and text readout using the OLED digital display

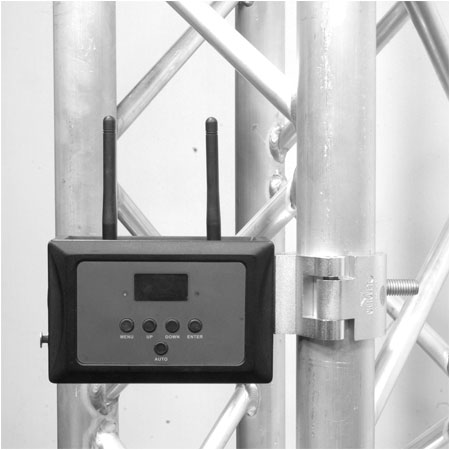

• Mounting options include built-in hook and loop fastener strap, keyhole mounting holes, M10 and M12 threaded holes for direct mounting to truss
• Fully FCC/RTTE compliant

Specifications:

Chauvet Freedom Par Tri-6

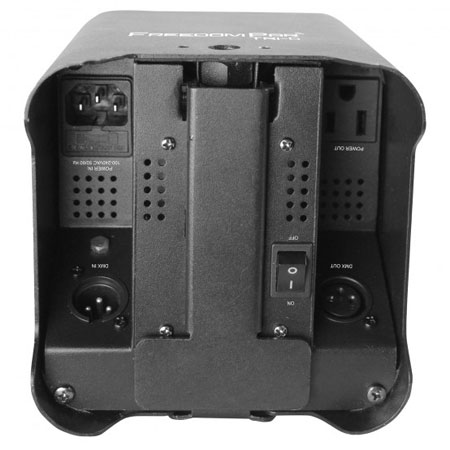

• DMX Channels: 3, 4, 5, or 9

• DMX Connectors: 3-pin XLR

• Light Source: 6 LEDs (tri-color RGB) 3 W (600 mA), 50,000 hours life expectancy

• Strobe Rate: 0 to 17 Hz

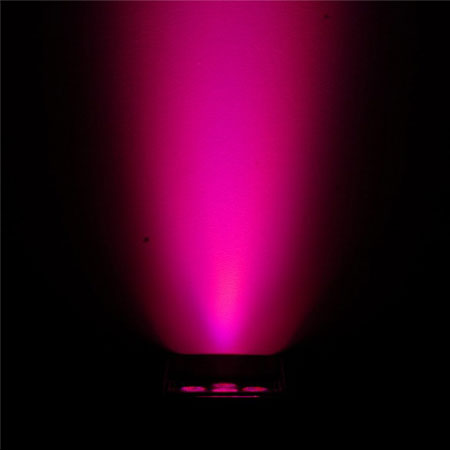

• Beam Angle: 15°

• Field Angle: 29°

• Operating Frequency: 2.4 GHz

• Illuminance: 1,938 lux @ 2 m

• Maximum Run Time (all on): up to 8 hours

• Maximum Run Time (single color): up to 20 hours

• Recharge Time: 6 hours

• Power Linking: 17 units @ 120 V; 30 units @ 230 V

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

• Power and Current: 32 W, 0.5 A @ 120 V, 60 Hz

• Power and Current: 31 W, 0.3 A @ 230 V, 50 Hz

• Weight: 5.8 lb (2.6 kg)

• Size: 5.4 x 5.7 x 7.2 in (138 x 145 x 184 mm)

• Approvals: CE, FCC

Chauvet FlareCON Air

• DMX Channels: 512
• DMX Connectors: 3-pin XLR
• Operating Frequency: 2.4 GHz
• Antenna connection: RP-SMA
• Max Unobstructed Distance (Wi-Fi™): 100 ft (30.5 m)
• Max Unobstructed Distance (D-Fi™): 600 ft (183 m)
• Input Voltage: 9 VDC, 500 mA (external power supply: 100 to 240 VAC, 50/60 Hz)
• Power and Current: 4 W, 0.1 A @ 120 V, 60 Hz
• Power and Current: 4 W, 0.1 A @ 230 V, 50 Hz
• Weight: 1.2 lb (0.6 kg)
• Size: 5.59 x 3.58 x 1.81 in (142 x 91 x 46 mm)
• Approvals: CE, FCC

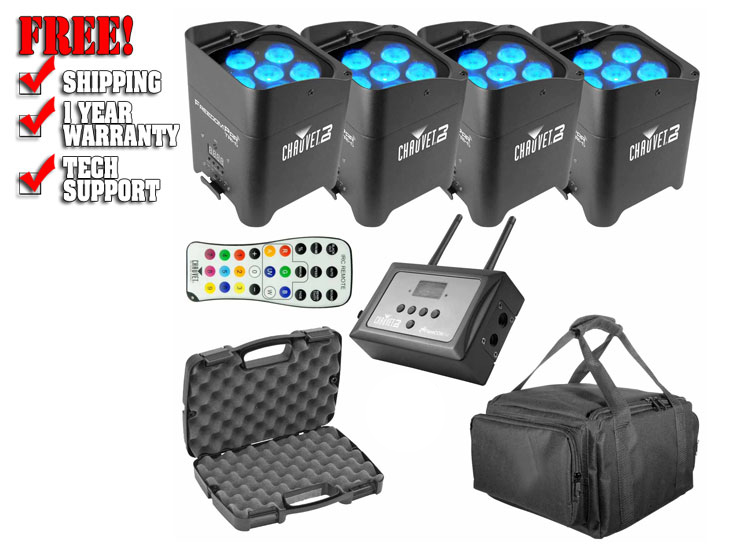

This Package includes:

• (4) Freedom Par Tri-6
• (1) Chauvet FlareCON Air
• (4) Universal C-Clamps
• (1) Plano 1011600 Storage Case
• (2) Chauvet CHSFR4 Gear Bags

Each Chauvet Freedom Par Tri-6 Includes:

• (1) Freedom Par Tri-6
• (1) Power Cord
• (1) IRC-6 Remote
• (1) Warranty Card
• (1) Quick Reference Guide

The Chauvet FlareCON Air Includes:

• (1) FlareCON Air
• (1) External Power Supply
• (1) Warranty Card
• (1) Quick Reference Guide

What's In The Box

This Package Includes:

• (4) Chauvet DJ Freedom Par Tri-6
• (1) Chauvet DJ FlareCON Air
• (1) Combat X Heavy Duty Storage Case
• (1) Properly Fitting & Durable Protective Transport Case

Each Chauvet DJ Freedom Par Tri-6 Box Includes:

• (1) Freedom Par Tri-6
• (1) Power Cord
• (1) IRC-6 Remote
• (1) Warranty Card
• (1) Quick Reference Guide

The Chauvet DJ FlareCON Air Box Includes:

• (1) FlareCON Air
• (1) External Power Supply
• (1) Warranty Card
• (1) Quick Reference Guide
