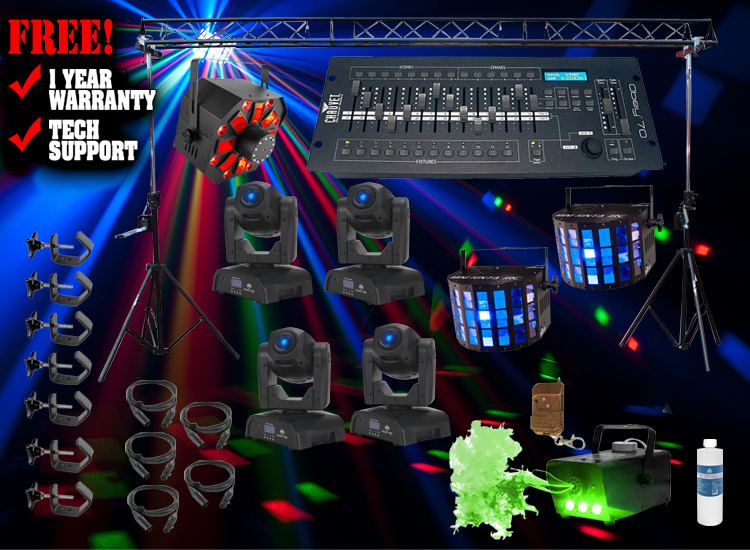

Complete Effect Pack

Chauvet DJ Swarm 5 FX 3-In-1 LED Effect Light

For movement and colorful effects at any event, Swarm 5 FX is a 3-in-1 LED effect light that combines red and green lasers, white strobe effects and RGBAW rotating derby effects into one fixture. Match the look of any event by creating customized looks and effects with separate color and program control. Increase control options using built-in automated and sound-activated programs or Master/Slave and DMX mode. Create a synchronized light show and save time running cables and extension cords by power linking multiple units. To simplify storage and transport, Swarm 5 FX fits best inside the CHS-40 VIP Gear Bag.

Swarm 5 FX Features:

• 3-in-1 LED light that includes a RGBAW rotating derby, red/green laser and white strobe effect.
• Laser projects thousands of red and green laser beams.
• Operation allows for separate color and program control.
• Increase control options using automated and sound-activated programs, or Master/Slave and DMX mode.
• Save time running cables and extension cords by power linking multiple units.

Chauvet DJ Obey 70 Universal DMX Lighting Controller

Bigger shows call for more accessibility and ease of programming. The Obey 70 bridges the gap between smaller rack mount controllers and massive control desks. 14 reversible faders and an assignable joystick allow for easy programming of up to twelve 32-channel fixtures. The Obey 70 can store up to 6 sets of chases containing 240 scenes on 384 total channels of control. Also at your fingertips are fog and strobe control as well as MIDI compatibility.

Obey 70 Features:

• Universal DMX controller capable of handling all the complexities of today's lighting fixtures.
• Easily control up to 12 intelligent lights with up to 16 channels each.
• Includes 384 channels of DMX control and 30 banks of 8 scenes for a maximum of 240 scenes.
• Enhance light shows with 6 sets of chase effects containing 240 scenes.
• Increase effects with fog and strobe control, reversible sliders, beat activation, tap-sync and auto run.
• Capability to grab any fixture on the fly, reassign channels and sequentially link chases.
• Increase flexibility with MIDI compatibility, DMX polarity selector and assignable pressure-sensitive joystick.
• Conveniently mounts using the 4-space (4U) mounting rack.

Technical Pro 500 Watt Fog Machine with Wireless Remote Control & Built-in LEDs [FOGL500R]

Everybody knows that parties aren't just about music. You need to create an atmosphere that makes people want to dance all night long. The FOGL500R 500 Watt Fog Machine does just that. It is the perfect addition to any dance floor and will keep the party going well into the early morning hours.

This easy to use model is not confusing to set up or operate, so you can just take it out of the box, and in no time you're dance floor will be covered in thick fog that will transform the room into a club-like atmosphere. This is the ultimate mood enhancer that will really get partygoers into the groove.

With a variety of placement options, you can set up this fog machine anywhere you like. Position it in an ideal location using the included integrated mounting brackets for a floor setup or it can be ceiling and wall-mounted to keep it out of the way. Either way, you'll be able to tailor your party experience to meet your needs.

The FOGL500R can cycle through three different colors of fog to keep the dance floor fresh, and the three built-in LED bulbs have a sound-activated play mode so you can focus on other things without compromising the show. When you do need to make changes, you can use the convenient key chain-style wireless remote with a 100 foot range.

You need to do all you can to make sure people are having an awesome time while you're in charge of the party, and atmosphere is the key. You don't want people thinking that you are a lame party host, and you need to make sure that doesn't happen. Your dance floor can stand out with this high quality and inexpensive fog machine and you'll never throw a weak party again.

Chauvet DJ FJ-Q Fog Juice - 1 Quart

Chauvet fluids are designed and tested to provide exceptional output from Chauvet fog, snow, and bubble machines. The use of other, inferior products can cause irreparable damage to your machine. Play it safe and get maximum output by trusting Chauvet fluids.

• Formulated specifically for use in all water-based machines.
• Generates a thick cloud of fog.
• Will not stain or leave residue.
• Non-toxic, non-flammable and unscented.

ProX T-LS35C Specifications
Shipping Dimensions (the system is shipped in 2 separate boxes):
Box #1 includes: 3 Truss Pieces: 57" x 20" x 9" and weighs approximately 43 lbs.
Box #2 includes: 2 Crank stands: 58"x 16" x 9" and weighs approximately 55 lbs.

The complete system when assembled weighs 92 lbs.

American DJ Pocket Pro Specifications:

• High output mini Moving Head with a bright white 25W LED source.
• 7 Colors + white.
• 7 replaceable gobos + spot.
• Includes kit of 4 additional GOBOs.
• Separate color & gobo wheels.
• Manual focus.
• 3 Operational modes: DMX, Sound Active & Internal Show control modes.
• 2 DMX channel modes: 11 & 13 Channel modes.
• 4 Built-in shows.
• Gobo Shake effect.
• Gobo scroll mode.
• Beam Angle: 15-degrees.
• 540° pan / 230° tilt (16-bit).
• Pan /Tilt Inversion mode.
• 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theater).
• Shutter: Pulse effect; random strobe slow to fast.
• Dimming: 0% - 100%
• Fan Cooled.
• Omega bracket included.
• Linkable: DMX via 3-pin XLR cable.
• GOBO size: 18.4 mm (13mm viewable).
• Optional ADJ UC IR Compatible (Not Included) and Airstream IR Compatible (transmitter Not included).
• Power consumption: 53W.
• Multi-voltage Operation: AC 100 - 240V, 50/60Hz.
• LED Source: 25W White LED source (Rated at approximately 50,000 hrs).
• Dimensions (LxWxH): 6.37" x 7.87" x 11.30" / 162 x 200 x 287mm
• Weight: 7.3 lbs. / 3.6 kgs.

Chauvet DJ Mini Kinta IRC Specifications

• DMX Channels: 4
• DMX Connectors: 3-pin XLR
• Light Source: 4 LEDs (1 red, 1 green, 1 blue, 1 white) 3 W (680 mA), 50,000 hours life expectancy
• Coverage Angle: 114°
• Power Linking: 29 units @ 120 V; 53 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 19 W, 0.3 A @ 120 V, 60 Hz
• Power and Current: 18 W, 0.2 A @ 230 V, 50 Hz
• Weight: 3.4 lb (1.6 kg)
• Size: 7.5 x 9.1 x 7.25 in (191 x 241 x 184 mm)
• Optional Controllers: IRC-6
• Approvals: CE

Chauvet Swarm 5 FX Specifications

• DMX Channels: 9
• DMX Connectors: 3-pin XLR
• Light Source (Swarm): 5 LEDs (1 red, 1 green, 1 blue, 1 amber, 1 white) 3 W (300 mA), 50,000 hours life expectancy
• Light Source (strobe): 8 LEDs (white) 1 W (300 mA), 50,000 hours life expectancy
• Light Source (laser): 532 nm/50 mW (green) laser diode, 650 nm/100 mW (red) laser diode
• Strobe Rate: 0 to 20 Hz
• Beam Angle (strobe): 17°
• Field Angle (strobe): 35°
• Coverage Angle (laser): 100°
• Coverage Angle (Swarm): 65°
• Illuminance (strobe): 823 lux @ 2 m
• Power Linking: 15 units @ 120 V; 26 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 62 W, 0.5 A @ 120 V, 60 Hz
• Power and Current: 66 W, 0.3 A @ 230 V, 50 Hz
• Weight: 9.8 lb (4.5 kg)
• Size: 9.75 x 11.7 x 12.2 in (248 x 298 x 310 mm)
• Classified per EN/IEC 60825-1:2007
• Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007
• Approvals: CE

Chauvet Obey 70 Specifications

• DMX Channels: 384
• DMX Connectors: 3-pin XLR
• Rackmount: 4U
• Input Voltage: 9 VDC, 500 mA (external power supply: 100 to 240 VAC, 50/60 Hz)
• Weight: 7.3 lb (3.3 kg)
• Size: 19 x 7 x 2.8 in (483 x 178 x 71 mm)
• Approvals: CE

Technical Pro FOGL500R Specifications

• Three Built-in LED Bulbs with Auto / Sound Activated play modes
• Tank Capacity: 0.3 L
• Warm-up Time: 5 minutes
• Output: 3,000 cufm/min
• Fluid Consumption: 5 ml/min
• Includes wireless Remote with 100 foot range
• Power Consumption: 500W
• Easy to use, lightweight fog machine produces thick bursts of water-based fog to enhance any light show
• Integrated mounting brackets allow for wall / ceiling mounting
• 110V

Chauvet DJ FJ-Q Specifications

• Net contents: 1qt (0.9l)
• Weight: 2lbs (0.9kg)
• Size: 3.4 x 3.4 x 19.6in (88 x 88 x 245mm)

• DMX Channels: 3, 9, or 19
• DMX Connectors: 3-pin XLR
• Light Source: 5 LEDs (quad-color RGBW) 7 W, (2.4 A), 50,000 hours life expectancy
• Strobe Rate: 0 to 20 Hz
• Coverage Angle: 360°
• Power Linking: 12 units @ 120 V; 21 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 46 W, 0.7 A @ 120 V, 60 Hz
• 44 W, 0.4 A @ 230 V, 50 Hz
• Weight: 8.6 lb (3.9 kg)
• Size: 11 x 13 x 17 in (266 x 319 x 419 mm)
• Approvals: CE
• Rotation Speed: 2 - 19 RPM
• Optional Controllers: IRC - 6

• (1) ProX T-LS35C Complete Portable Multi-Size Lighting Truss System
• (4) American DJ Pocket Pro High Output Mini Moving Heads with bright white 25W LED sources
• (2) Chauvet DJ Mini Kinta IRC Effect Lights
• (1) Chauvet DJ Swarm 5 FX 3-In-1 LED Effect Light
• (1) Chauvet DJ Obey 70 Universal DMX Lighting Controller
• (7) Universal O-Clamps with Snug-fit Grip
• (4) 10' DMX Cables
• (1) 25' DMX Cables
• (1) Quart of: Chauvet DJ FJ-Q Fog Juice
• (1) Technical Pro 500 Watt Fog Machine with Wireless Remote Control & Built-in LEDs

Box 1 Includes:

• (3) Black triangular truss segments and measures 57" x 20" x 9"

Box 2 Includes:

• (2) Crank stands and measures 58"x 16" x 9"

• (1) American DJ Pocket Pro High Output Mini Moving Head
• (1) PowerCON power cord
• (4) Additional GOBOs

• (1) Chauvet DJ Mini Kinta IRC
• (1) Power Cord
• (1) Quickstart Guide

• (1) Chauvet Swarm 5 FX
• (1) Power Cord
• (1) Warranty Card
• (1) Quick Reference Guide

• (1) Obey 70 Controller
• (1) Power Supply
• (1) Warranty Card
• (1) User Manual

• (1) Quart of: Chauvet Fog Juice

• (1) Technical Pro FOGL500R 500 Watt Fog Machine
• (1) Wireless remote control
• (1) Preinstalled mounting bracket

• (1) Chauvet DJ Rotosphere Q3 High-Power LED Mirror Ball Simulator
• (1) Power cord
• (1) Hanging bracket with mounting hardware
• (1) Warranty card
• (1) Quick Reference Guide
