Chauvet SlimPACK Q12 USB + DMX Controller + Cable

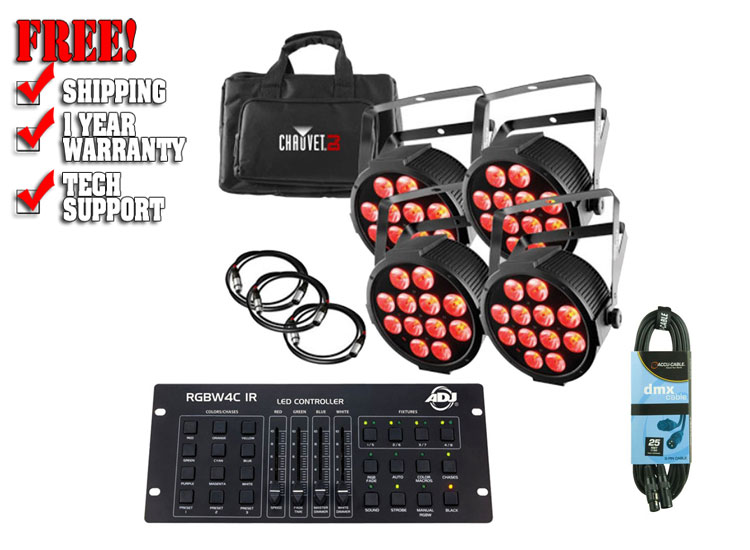

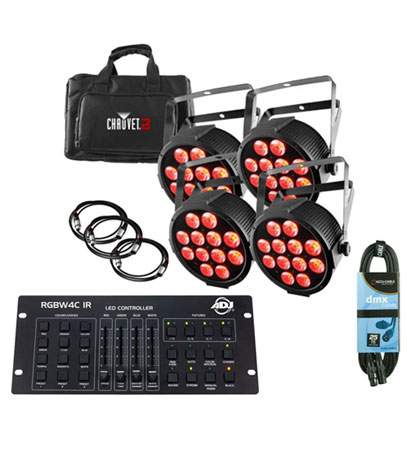

Package Includes

• 1 x Chauvet SlimPACK Q12 USB
• 1 x American DJ RGBW 4C IR
• 1 x American DJ 25 foot 3 Pin DMX Cable

Product Description

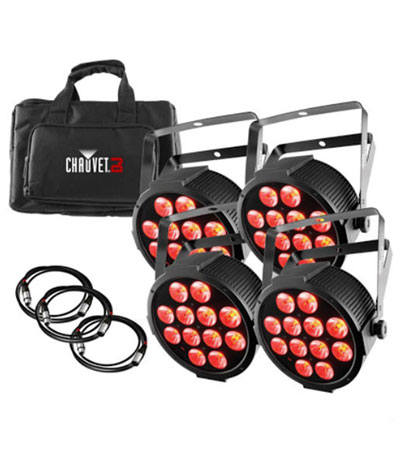

Chauvet SlimPACK Q12 USB

SlimPACK Q12 bundles several popular products into an easily transportable VIP Gear Bag perfect for the mobile entertainer. The package includes four SlimPAR Q12 USB wash lights, 3 five-foot DMX cables and a custom Gear bag.

American DJ RGBW 4C IR

The RGBW4C IR is a 32-channel RGB, RGBW or RGBA LED controller. It was designed to control any standard 3 or 4 channel group of LED fixtures where channel 1 is Red, channel 2 is Green, channel 3 is Blue and channel 4 is White or Amber.

Up to 8 LED fixtures or fixture groups can independently be controlled via four fixture buttons. All LED fixtures or fixture groups must be set to run in DMX mode and be addressed four channels apart for independent control.

The units control panel includes 9 direct access "Static Color/Chase" buttons, which contain pre-programmed color presets and chase programs, 3 user programmable color preset buttons, 4 multi function faders that control RGBW intensities on the fly, as well as chase program "Speed", chase program "Fade Time" and "Master Dimmer".

There is also an array of 8 buttons used to select the operation mode, including RGB Fade, Auto Run, Color Macro, Chase, Sound Active, Strobe, Manual RGBW and Blackout modes.

The RGBW4C is one of the simplest and most versatile LED controllers available today. It's ideal for D.J.'s, nightclubs, lounges, bars and anyone that wants easy control of LED Par's, Bar's, Flood's or Panel's.

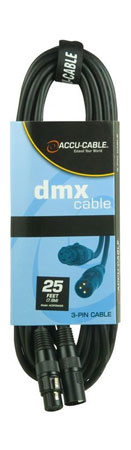

American DJ 25 foot 3 Pin DMX Cable

22 AWG stranded (0.15 x 19 ) tinned copper conductors, polyethylene insulation, twisted pair, polyethylene inner jacket, Duofoil (100% coverage) and cotton plus a tinned copper braid shield (85% coverage), PVC jacket.

Features

Chauvet SlimPACK Q12 USB

• Bundles several popular products with an easily transportable VIP Gear Bag perfect for the mobile entertainer
• Includes 4 SlimPAR Q12 USB wash lights, 3 five-foot DMX cables and a custom Gear bag
• Economic expansion pack for existing uplighting
• 4 SlimPAR Q12 USB, 3 3-pin DMX cables - 5 ft, 1 custom carry bag
• Weight : 20.2 lb (9.2 kg)
• Size : 15.6 x 11.6 x 13.8 in (395 x 295 x 350 mm)
• Approvals : CE

American DJ RGBW 4C IR

• Compact DMX512 controller for RGB, RGBW and RGBA LED fixtures
• Control up to 8 individual fixtures or fixture groups
• 3 user programmable color preset, direct access buttons
• 9 Color preset/Chase program direct access buttons
• Color Macro playback mode
• Manual RGBW intensity control mode
• RGB and Auto modes
• On the fly Speed & Fade control of all chase programs
• Sound active mode via internal microphone
• Adjustable microphone sensitivity
• Variable strobe
• Blackout button
• ADJ LED RC2 Compatible (Sold Separately)
• DMX output connector : 3-pin XLR
• Power In : 12VDC 500mA UL approved power supply (Included)
• Power consumption : 3.6 Watts
• Size : 12.9" x 5.5" x 1.9" (327 x 140 x 48mm)
• Weight : 2.4lbs. (1.1kgs.)

American DJ 25 foot 3 Pin DMX Cable

Conductor :

• Number of Pairs : 1
• Total Number of Conductors : 2
• AWG : 22
• Stranding : 0.15 x 19
• Conductor Diameter : .0354"
• Conduct or Material : TC-Tinned Copper

Insulation :

• Insulation Material PE Polyethylene
• Lay Length :
• Lay Length : 2.5"
• Direction : Left Hand Lay
• Twists : 4.8 per foot

Inner Jacket :

• Inner Jacket Material : PE- Polyethylene
• Inner Jacket Diameter : .055"
• Pair Color Code : Black/White

Outer Shield :

• Outer Shield Trade Name : Duofoil
• Outer Shield Type : Tape/Braid

Outer Shield Material :

• Layer Number : 1, Material Trade Name : Dufoil, Type : Tape, Material : Aluminum Foil-Polyester, Coverage % : 100
• Layer Number : 2, Material Trade Name : Dufoil, Type : Braid, Material : TC-Tinned Copper, Coverage % : 85

Outer Jacket :

• Outer Jacket Material : PVC-Polyvinyl Chloride
• Overall Nominal Diameter :
• Overall Nominal Diameter : .229"

Mechanical Characteristics :

• Operating Temperature Range : (-30 degrees C To + 75 degrees C)
• Bulk Cable Weight : 31 lbs/1000
• Minimum Bend Radius (Install) : 3.2"
• Maximum Recommended Pull Tension : 72 lbs.

Electrical Characteristics :

• Nominal Characteristic Impedence : 110 Ohms
• Nominal Capacitance Conductor to Conductor @ 1KHz : 12.8 pF/f t
• Nominal Cap Cond. To Other Cond. & Shield @ 1KH z : 23 pF/ft
• Nominal Velocity of Propagation : 66%
• Nominal Delay : 1.6 Nanoseconds per foot
• Nominal Conductor DC Resistance @ 20 degrees C : 24 Ohms/1000 ft
• Nominal Outer Shield D C Resistance @ 20 degrees C : 3.4 Ohms/ 1000 ft
• Nominal Attenuation (dB/100 ft) : 0.6 (@ 1 MH z) dB/100 ft
• Maximum Recommended Current : 2.1 A mps per conductor @ 25 degree C
