Description

Bundle Includes:

• 4x Profile Panel RGBA LED Color Panel Wash Light
• 1x Solena Professional Command 3500 DMX Controller
• 4x 25ft 3-Pin DMX Lighting Cable

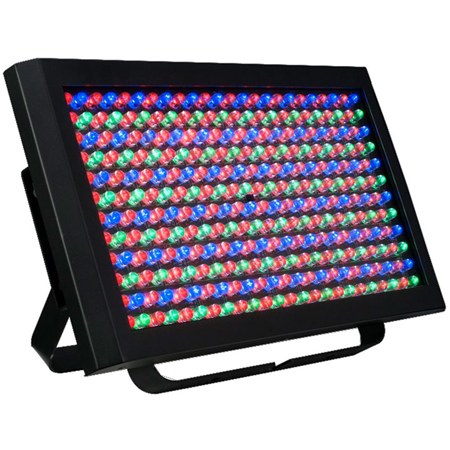

American DJ Profile Panel RGBA LED Color Panel Wash Light

The ADJ Profile Panel RGBA is a compact indoor LED Color Panel powered by 288 10mm red, green, blue and amber LEDs. It may be used as a standard wash fixture, or run it in its built-in programs or sound active mode to create exciting multi-colored lightshows. With four DMX channel modes and six operational modes users get an unprecedented variety of control over the fixture The Profile Panel RGBA has built in programs, sound mode, master slave mode and a DMX mode. The Profile Panel RGBA produces a 30-degree beam. A wider wash may be achieved by adding a light shaping filter into the slit on the side of the panel. It comes with a powerCON power cord, UC IR wireless remote and Airstream IR sensor inside the box. Being lightweight and compact in size, this fixture may be set it up anywhere indoors, the dual scissor yoke let you hang the fixture on truss or mount it on a wall. With extremely long life LEDs, low power consumption, and very low heat output, this fixture can all night with no duty cycle - plus little to no heat is emitted onto performers. Great for small performance stages, permanent installations or mobile entertainers.

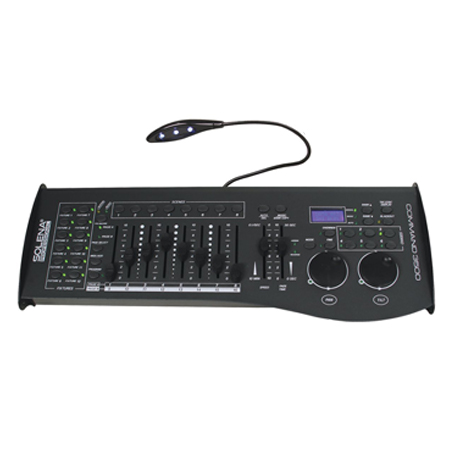

Solena Professional Command 3500 DMX Controller

The Solena Professional Command 3500 DMX Controller is a universal intelligent lighting controller that controls up to 12 fixtures composed of 16 channels each and up to 240 programmable scenes. Six chase banks can contain up to 240 steps composed of the saved scenes and in any order. Programs can be triggered by music, MIDI, automatically, or manually. On the surface you will find various programming tools such as 8 universal channel sliders, a wheel, and LCD display indicators for easier navigation of controls and menu functions. You can control the pan and tilt or different intelligent lighting fixtures using the same wheel at the same time by means of a programmable wheel. This wheel allows the user to assign individual pan and tilt channels for every fixture.

American DJ Profile Panel RGBA LED Features:

• Compact indoor LED Color Panel with 288, 10mm LEDs (72 Red, 72 Green, 72 Blue, & 72 Amber LEDs - rated at 100,000 hrs.)
• Very smooth field with rich palettes of color created by mixing the Red, Green, Blue, & Amber LEDs
• Great as an architectural wall wash or for performance stages where traditional stage lighting emit a lot of heat onto performers
• Light Shaping Filter slot to widen beam angle (filter size: 210x375mm)
• Beam angle: 30-degrees
• 288, 10mm LEDs (72 Red, 72 Green, 72 Blue, & 72 Amber LEDs)
• Technical Features:
• Color strobe effect
• 4 DMX channel modes: 4, 7, 9 or 32
• Electronic Dimming: 0 - 100%
• Includes dual scissor yoke to hang on truss and built-in mounting brackets to hang on a wall
• Very low heat output
• Run all night no duty cycle
• 3-pin DMX In/Out
• powerCON In/Out to Daisy Chain up to 20 fixtures Max @ 120V
• 4-button LED display on rear panel
• 6 Operational modes: Built-in programs, Sound mode, Static Color mode, Auto Run, RGBA Dimmer mode, & DMX mode
• Power Draw: 35W
• Multi-voltage operation: 100-240V, 50/60Hz
• Dimensions (LxWxH): 16.73" x 3.2" x 10.75" / 425x82x275mm
• Weight: 7.8 lbs. / 3.5 kgs.
• Metal black housing
• What's Included: UC IR wireless remote control, Airstream IR App transmitter (Airstream IR iOS APP compatible), powerCON power cord

Solena Professional Command 3500 Features:

• Universal DMX-512 controller
• Controls 12 intelligent lights of up to 16 channels
• 30 banks of 8 scenes (240 scenes total)
• Re-assignable X/Y channels
• Wheel assignable pan/tilt and 16-bit control
• Beat activation
• Tap sync
• Auto run
• Polarity selector
• MIDI compatible for bank, chase, and blackout
• Operating range: DC 9V-12V 1000mA min
• Maximum ambient temperature: 113F
• Dimensions: 19.0" x 7.5" x 3.5" (L x W x H)
• Weight: 7.7 lbs.

25ft 3-Pin DMX Lighting Cable Features:

• 3-Pin DMX Lighting Cable
• High-quality XLR connectors
• Sturdy, flexible design
• Tough, tread-resistant jacket
• Perfectly designed for high-speed transmission of digital DMX light control signal and digital AES/EBU audio signals

Package Includes (Click links for individual product info):

• 4 x 25ft 3-Pin DMX Lighting Cable
• 1 x Solena Professional Command 3500 DMX Controller
• 4 x ADJ Profile Panel RGBA LED Wash Light
